Product information

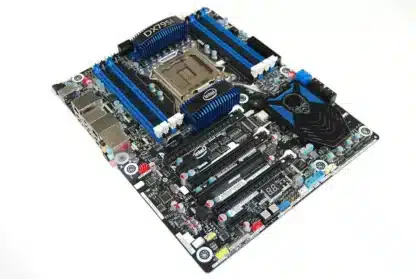

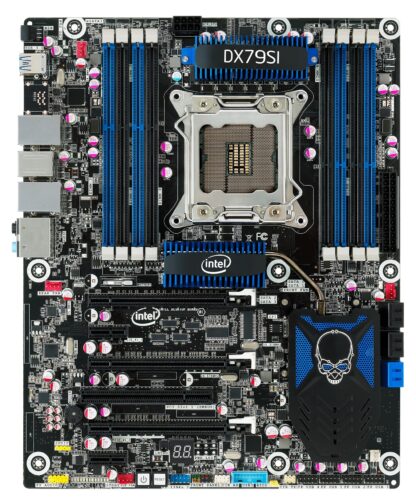

Intel Desktop Board DX79SI: Motherboard | ATX | Socket 2011 | 8x DDR3 (max 64GB) | Firewire | USB2.0 | USB3.2 | Sata-300 | Sata-600 |

Product:Intel DX79SI
Socket: Socket 2011
Category: motherboards
Brand: Intel
Condition: Used
EAN: 0675901110600, 0735858225168, 5032037020350
SKU: BOXDX79SI
Warranty: 6 months

Package contents:
– Motherboard (Intel DX79SI)
– I/O-Shield (tin backplate)
– No manual
– No drivers CD
– No cables

CPU
2nd Generation Intel® Core™ i7 Processor family for the LGA
2011 Socket
Supports Intel® Turbo Boost Technology 2.0

Chipset
Intel® X79 Express Chipset

Memory
8 x DIMM, max 64GB, DDR3 2400(O.C.) / 2133(O.C.) /
1866 / 1600 / 1333 / 1066 MHz, non-ECC, unbuffered
memory
Quad channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
** Hyper DIMM support is subject to the physical characteristics
or individual CPUs.

Expansion slots
3 x PCI Express 3.0 x16 slots (Dual at x16/ x16 mode, Triple at
x16/ x16/ x8)
2 x PCI Express 2.0 x1 slots
1 x PCI slot

Multi-GPU support
Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD® Quad-GPU CrossFireX™ ​​Technology

Storage
Intel® X79 Express Chipset
– 2 x SATA 6 Gb/s ports with RAID 0, 1, 5 and 10 support
– 4 x SATA 3 Gb/s ports with RAID 0, 1, 5 and 10 support
ASMedia® 1061 SATA controller
– 1 x Power eSATA 6Gb/s port
– 1 x eSATA 6Gb/s ports

LAN
2x Ethernet 1Gbps

USB
14x USB 2.0,
4x USB 3.2 (Gen1, 5Gb/s)

Audio
8 Channel High Definition Audio CODEC

Back panel I/O ports
2 x USB 3.0/2.0 ports (blue)
6 x USB 2.0/1.1 ports (white port can be switched to USB BIOS
flashback)
1 x IEEE1394a port
1 x USB BIOS Flashback Button
2 x LAN (RJ-45) port
1 x Optical S/PDIF Out port
8-channel Audio I/O

Internal I/O connectors
8 x USB 2.0/1.1 connectors
2 x USB 3.0 connectors
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x IEEE1394 connectors
1 x CPU Fan connector (4 pin)
1 x CPU Optional Fan connector (4 pin)
4 x Chassis Fan connectors (4-pin)
1 x Front panel audio connector (AAFP)
1 x S/PDIF Out header
1 x Clear CMOS jumper
1 x 24-pin EATX Power connector
1 x 8 Pin EATX 12V Power Connector

BIOS features
64Mb EFI, ACPI: 3.0b

Form factor
ATX form factor: 12 in. x 9.6 in. (30.5cm x 24.4cm)
