Product information

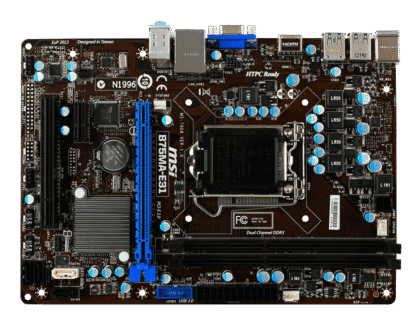

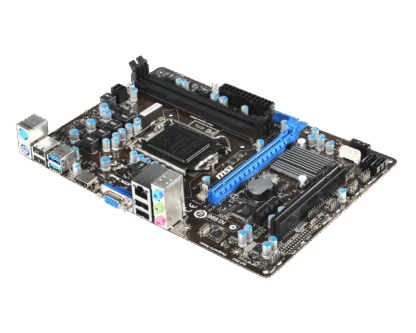

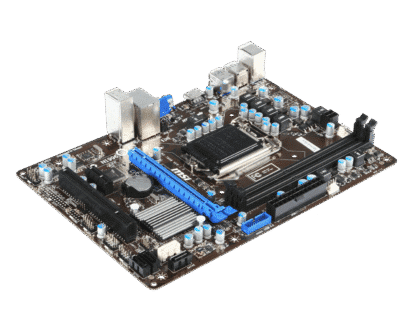

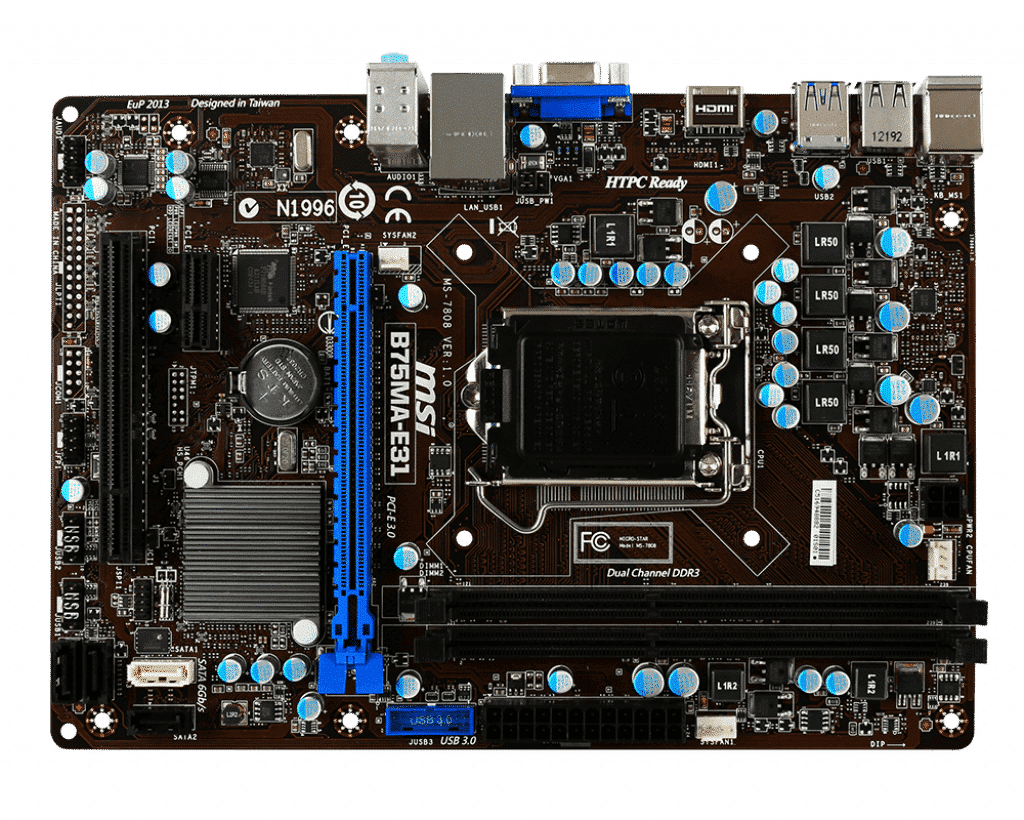

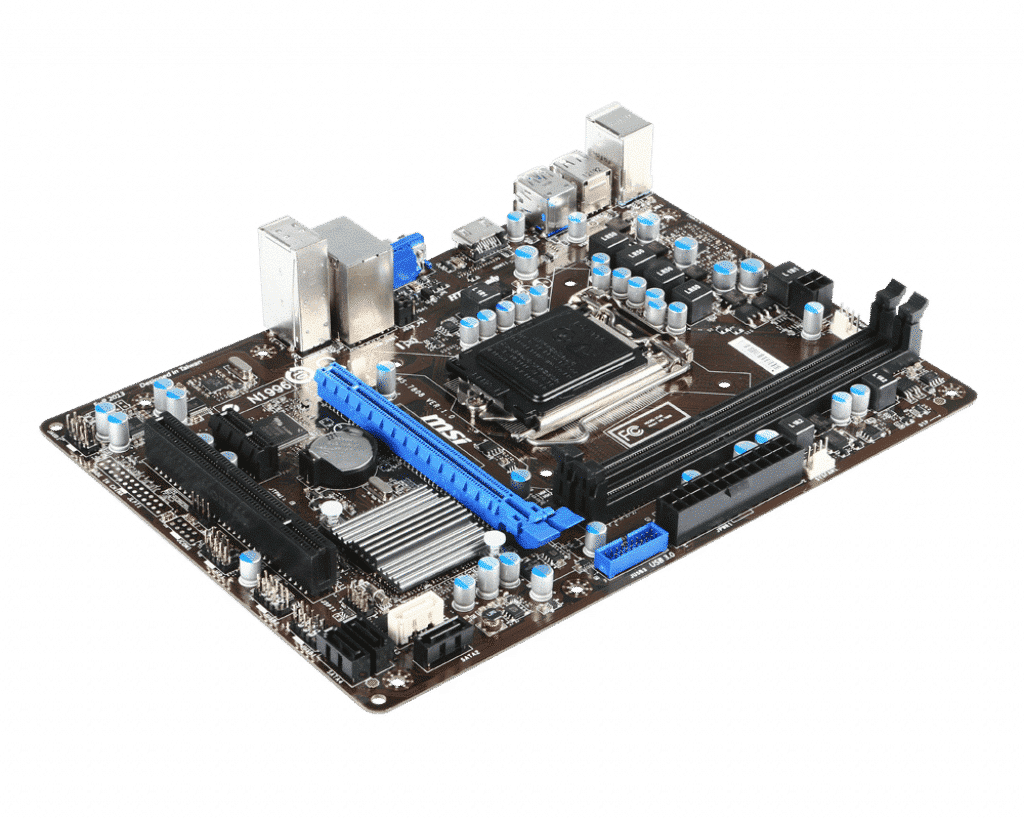

The MSI B75MA-E31  is a Micro-ATX LGA1155 motherboard based on the Intel B75 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the MSI B75MA-E31 has 4 Serial ATA connections for hard drives and SSDs.

Features: Motherboard | Micro ATX | LGA1155 | 2x DDR3 | 3x SATA-300 | 1x SATA 600 | PCI | PCI-e 2.0 x1 | 2x PCI-e 3.0 x16 | LAN | VGA | HDMI

Click here for the supporting CPUs
Click here for the drivers

Product: MSI B75MA-E31
Socket: LGA1155
Category: motherboards
Brand: MSI
Condition: Used – BIOS updated to the latest version
EAN:
4719072296834
SKU: 7808-014R, B75MA-E31
Warranty:
6 months

Package contents:
– Motherboard (MSI B75MA-E31)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables


CPU
Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors


Chipset
Intel® B74


Memory
– Memory speed support up to 1333MHz are provided on 2nd Gen Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors (codename Sandy Bridge, 32nm)
– Memory speed support up to 1600MHz are provided on 3rd Gen Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors (codename Ivy Bridge, 22nm)
Note: DDR3-1600 MHz memory support vary based on the Intel® Ivy Bridge processors use
– Memory speed support beyond 1600MHz are provided on some 3rd Generation Intel Core i7-3770K CPUs. This will vary based on quality of CPU.
– Support up to 16GB of system memory*
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
– Support Dual-Channel mode, two DIMMs per channel


Expansion Slots
1 x PCIe 3.0 x16 slots
1 x PCIe 2.0 x1 slots
1 x PCI slot


Storage

SATAIII controller integrated in Intel® B75 chipset
– Up to 6Gb/s transfer speed.
– Supports one SATAIII ports (SATA1) by B75

SATAII controller integrated in Intel® B75 chipset
– Up to 3Gb/s transfer speed.
– Supports three SATAII ports (SATA2~4) by B75


LAN
Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® 8111E


Audio
Chipset integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec


USB Ports
6x USB 2.0 (2 internal)
3x USB 3.0 (1 internal)


Operating System Support
Windows® 8
Windows® 7

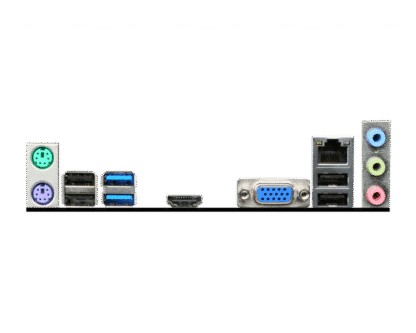

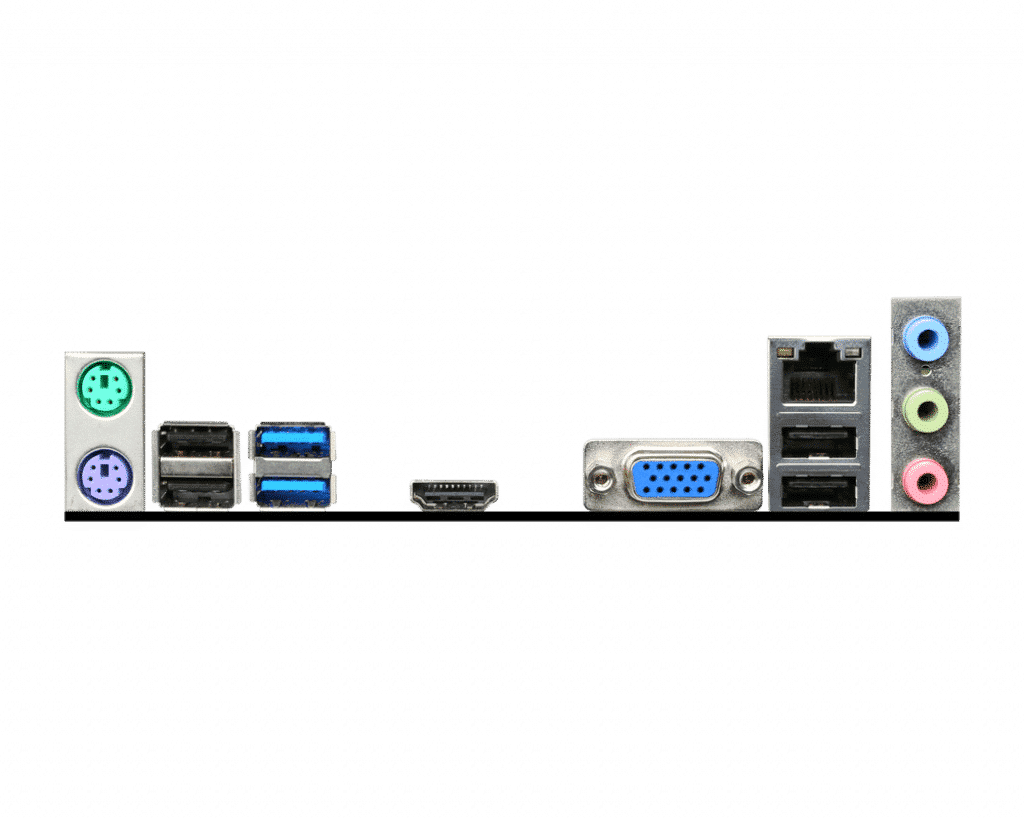

Back I/O Ports
– 1 x PS/2 keyboard/
– 1 x PS/2 mouse port
– 4 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x RJ45 LAN Jack
– 1 x 3 in 1 audio jack
– 1 x Graphic Card port* with max. resolution up to 2048×1536
– 1 x HDMI port* with max. resolution up to 1920×1200


Internal I/O Ports
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– CPU x 1 / System x 2 FAN connectors
– 1 x Clear CMOS jumper
– 3 x Serial ATAII connectors
– 1 x Serial ATAIII connector
– 2 x USB 2.0 connectors
– 1 x USB 3.0 connector
– 1 x Front Panel Audio connector
– 1 x Chassis Intrusion connector


Accessories
I/O Shield


Form Factor
Micro-ATX Form Factor (24.4cm(L) x 17.3cm(W))


BIOS
The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Specification

Weight 1 kg
Intel

LGA1155

Brand

MSI

Chipset

Intel B75

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

Ethernet (RJ-45), HDMI, USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

MSI B75MA-E31 LGA1155 motherboard

Fast delivery

Product: B75MA-E31 Socket 1155;
Brand: MSI;
EAN: 4719072296834
SKU: 7808-014R
Condition: Used
Warranty:
6 Months


SKU: B75MA-E31 Categories: , , Tags: , ,

Pros and cons
According to our computer expert

  • 4 DDR3 Geheugensloten
