Product information

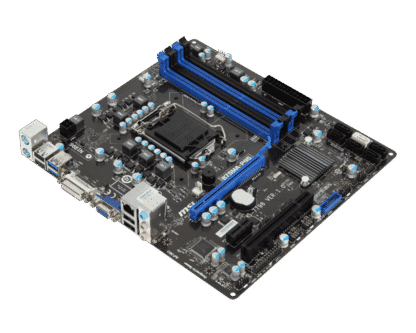

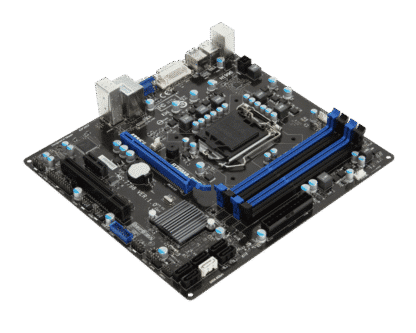

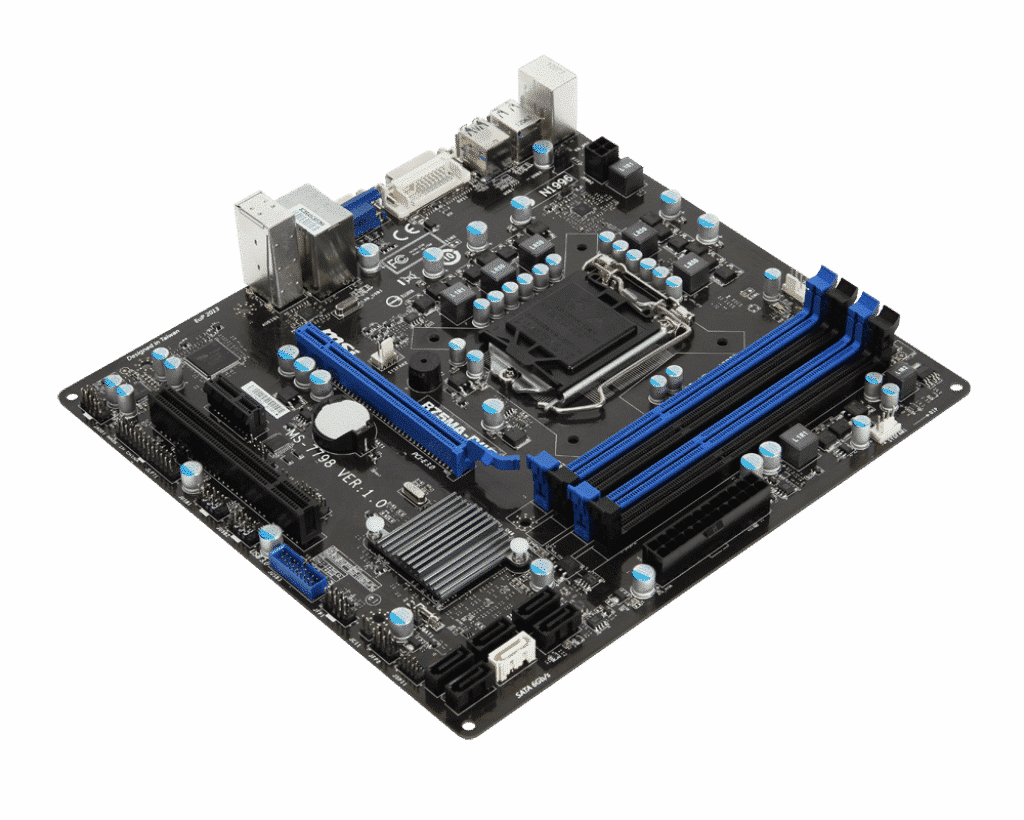

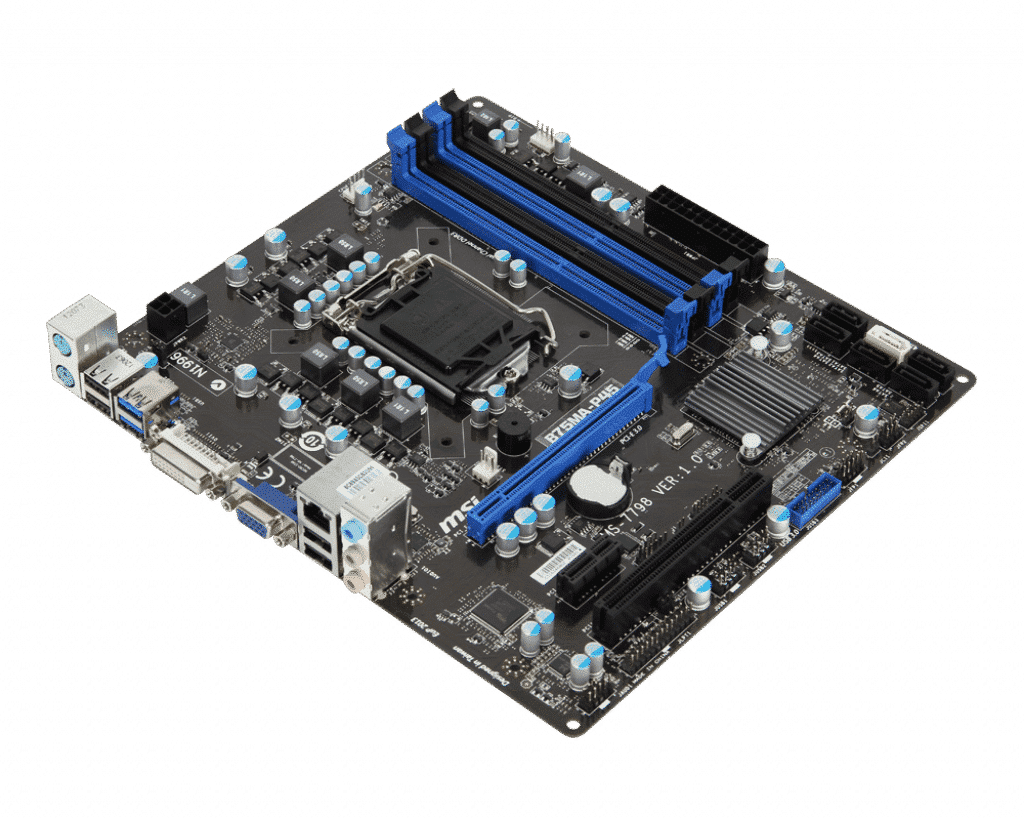

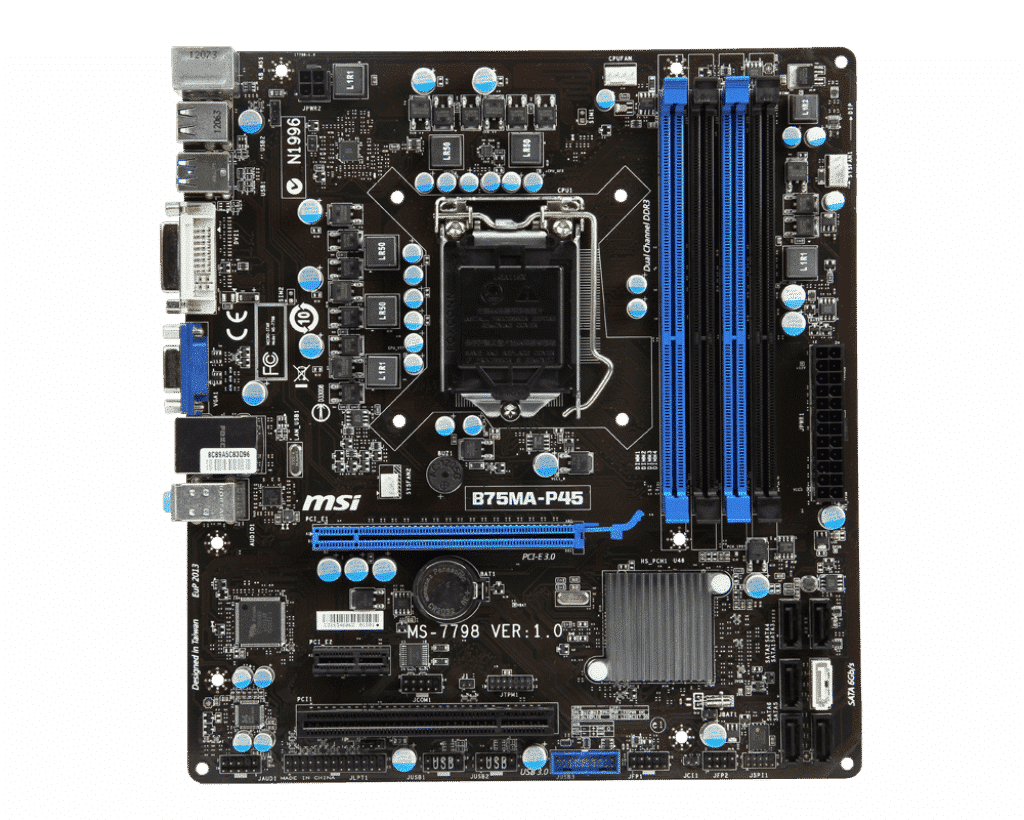

The MSI B75MA-P45 motherboard is a Micro-ATX motherboard with space for 4 DDR3 memory modules, with a maximum of 32GB. The MSI B75MA-P45 motherboard features PCI, PCI-e x1 and PCI-e 3.0 x16 slots.

Specifications:
 motherboard | LGA1155 | Intel B75 chipset | PCI | PCI-e 2.0 x1 | PCI-e 3.0 x16 | 8x USB 2.0 | 4x USB 3.0 | DVI-D | VGA (D Sub)

Product: B75MA-P45
Socket: LGA1155
Category:
Motherboards
Brand: Gigabyte
Condition: Used. equipped with the latest available BIOS version
EAN: 0816909096583, 4719072261139, 5053460936155
SKU:
7798-010R, B75MA-P45
Warranty: 6 months

Drivers for Asus B75MA-P45
Processors used by the B75MA-P45 are supported

package content:
– Motherboard (B75MA-P45)
– Backplate (Blende)
– No manual
– No driver CD
– No cables


CPU

Supports 3rd Gen Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1155 socket


Chipset
Intel® B75 Express Chipset


Memory
– Memory speed support up to 1333MHz are provided on 2nd Gen Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors (codename Sandy Bridge, 32nm)
– Memory speed support up to 1600MHz are provided on 3rd Gen Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors (codename Ivy Bridge, 22nm)
Note: DDR3 1600 MHz memory support vary based on the Intel® Ivy Bridge processors use
–  Memory speed support beyond 1600MHz are provided on some 3rd Generation Intel Core i7-3770K CPUs. This will vary based on quality of CPU.
–  Support up to 32GB of system memory*
Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
–  Support Dual-Channel mode, two DIMMs per channel


Onboard Graphics
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 1920×1200
* The DVI-D port does not support D-Sub connection by adapter.


Audio
Chipset integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec


LAN
Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® 8111E


Expansion Slots
– 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
– 1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 2.0 standard.)
– 2 x PCI slots


Multi-Graphics Technology
– Support for AMD CrossFireX™ ​​technology


Chip set:
 SATAIII controller integrated in Intel® B75 chipset
– Up to 6Gb/s transfer speed.
– Supports one SATAIII ports (SATA1) by B75

SATAII controller integrated in Intel® B75 chipset
– Up to 3Gb/s transfer speed.
– Supports five SATAII ports (SATA2~6) by B75


USB Chipset:

– 2 x USB 3.0 rear IO ports by Intel® B75
– 1 x USB 3.0 onboard connector by Intel® B75


Internal I/O Connectors
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– CPU x 1 / System x 2 FAN connectors
– 1 x Clear CMOS jumper
– 5 x Serial ATAII connectors
– 1 x Serial ATAIII connector
– 2 x USB 2.0 connectors
– 1 x USB 3.0 connector
– 1 x Serial port connector
– 1 x Parallel port connector
– 1 x Trusted Platform Module (TPM) header
– 1 x Front Panel Audio Connector
– 1 x Front Panel connector
– 1 x Chassis Intrusion connector

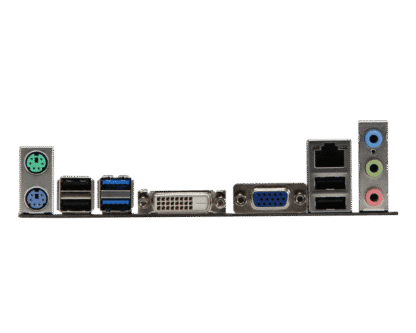

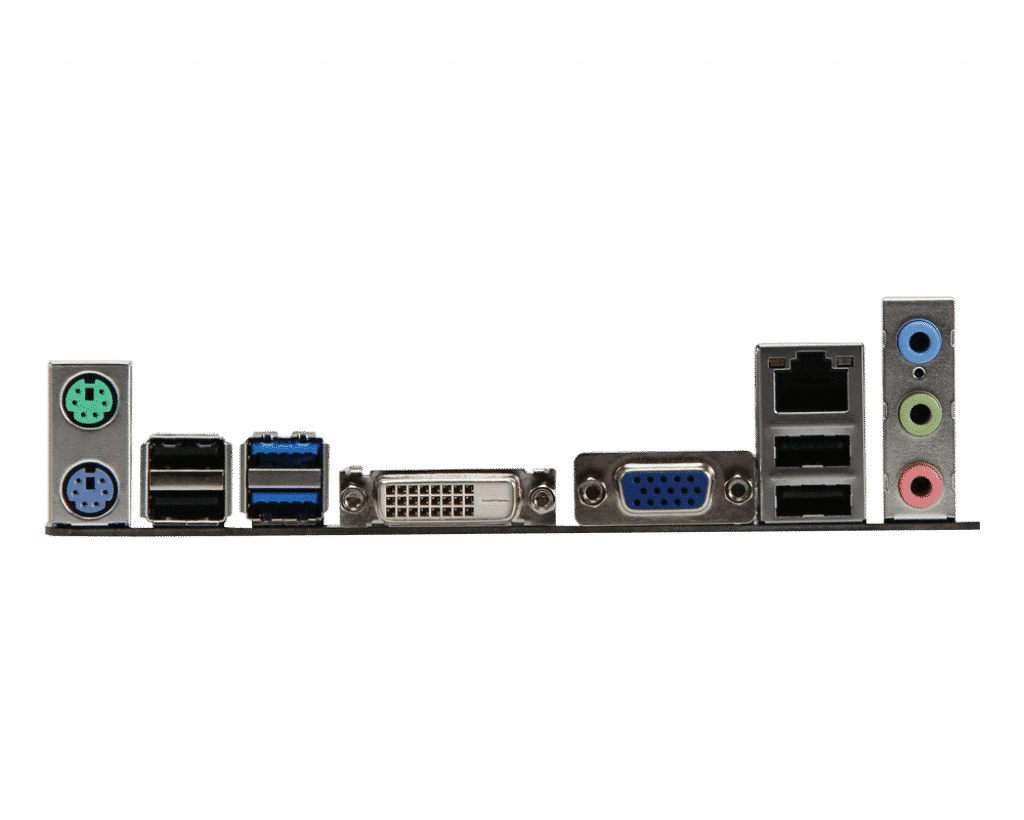

Back Panel Connectors
– 1 x PS/2 keyboard
– 1 x PS/2 mouse port
– 4 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x RJ45 LAN Jack
– 1 x 3 in 1 audio jack
– 1 x DVI-D port with max. resolution up to 1920×1200 @60Hz
– 1 x VGA port with max. resolution up to 2048×1536 @75Hz




BIOS
– The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
– The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.


Operating System
Support for Windows 10/8.1/8/7


Form Factor
– Micro ATX Form Factor; 24.4cm x 22.5cm

Specification

Weight1 kg
Intel

LGA1155

Brand

MSI

Chipset

Intel B75

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 3.0 x16

Socket
