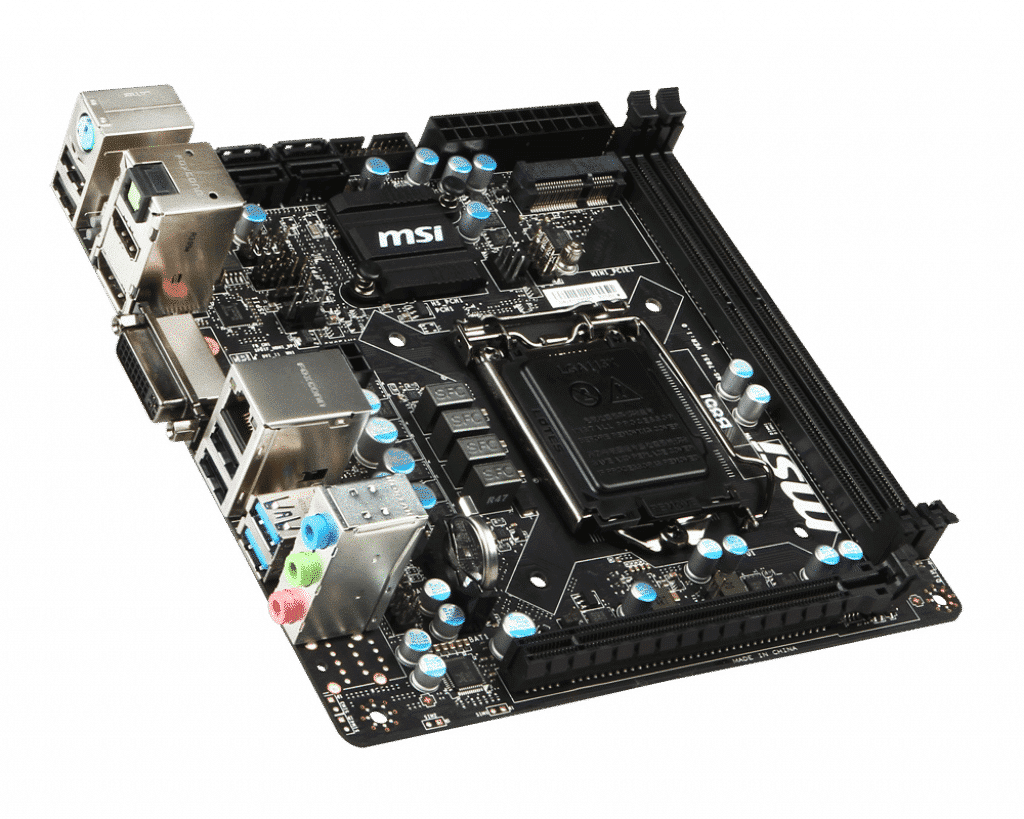

MSI B85I LGA1150 Motherboard

Product: MSI B85I
Socket:
Socket 1150
Brand: MSI
Condition: Used
EAN: 0115971061551, 0824142000403, 4719072307530, 8241420004038
SKU:
7851-030R
Warranty: 6 months

Out of stock

Vergelijk
SKU: MSI B85I Categories: , , Tags: , ,

Description

MSI B85I : motherboard ||Mini-ITX | Intel Socket 1150 | B85 Chipset | DDR3 (max. 16GB) | PCI-e 2.0 x16 | SATA-600 |  USB 2.0 | USB 3.0 | LAN | HDMI | DVI-I | Displayport


Product: MSI B85I
Socket:
Socket 1150
Brand: MSI
Condition: Used
EAN: 0115971061551, 0824142000403, 4719072307530, 8241420004038
SKU:
7851-030R
Warranty: 6 months


package content:
– Motherboard (MSI B85I )
– IO-Shield (tin back plate)
– No manual
– No driver CD
– No cables


CPU
4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket


Chipset
Intel®  B85 Express Chipset


Memory
• Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
– Supports Dual Channel mode
– Supports non-ECC, unbuffered memory
– Supports Intel® Extreme Memory Profile (XMP)


Audio
• Realtek® ALC892 Codec
– 7.1 Channel High Definition Audio
– Supports S/PDIF output


LAN
• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G


Multi-GPU
• Supports AMD CrossFire™ Technology


Expansion Slots
• 1 x PCIe 3.0 x16 slot
• 1 x Half-size mini PCIe slot


Storage Interface
• SATAIII controller integrated in Intel® B85 chipset
– Up to 6Gb/s transfer speed.
– Supports four SATAIII ports (SATA1~4)
– Supports Intel Rapid Start Technology and Intel Smart Connect Technology*
* Supports Intel Core processors on Windows 7 and Windows 8


USB
• 2 x USB 3.0 ports by Intel® H81 (2 ports on the front panel)
• 2 x USB 3.0 ports by RENESAS UPD720202 (2 ports on the back panel)


Internal I/O Connectors

– 1 x ATX 24-Pin power connector
– 1 x 4-pin ATX 12V power connector
– 1 x 4-pin CPU fan connectors
– 1 x 4-pin system fan connectors
– 1 x Clear CMOS jumper
– 4 x Serial ATAIII connectors
– 1 x USB 2.0 connector
– 1 x USB 3.0 connector
– 1 x Serial port connector
– 2 x System panel connectors
– 1 x Front Panel Audio connector

Back Panel Connectors
– 1 x PS/2 keyboard/mouse combo port
– 1 x Clear CMOS button
– 1 x GO2BIOS button
– 4 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x Optical S/PDIF out connector
– 1 x RJ45 LAN Jack
– 1 x 3 in 1 audio jack
– 1 x DVI-I port with max. resolution up to 1920×1200 @60Hz, 24bpp
– 1 x DisplayPort with max. resolution of 4096×2160@24Hz, 24bpp/ 3840×2160@60Hz, 24bpp
– 1 x HDMI® port with max. resolution up to 4096×2160@24Hz, 24bpp/2560×1600@60Hz, 24bpp/1920×1080@60Hz, 36bpp


BIOS
• The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.


Operating System
Support for Windows 10 64-bit


Form Factor
Mini ITX Form Factor
6.7 in. x 6.7 in. (17cm x 17cm)

Additional information

Weight 1 kg
Intel

LGA1150

Brand

MSI

Form Factor

Mini-ITX

Chipset

Intel B85

Memory Type

DDR3 SDRAM

Number of memory slots

2, 4

Maximum memory size

16 GB

Connectors

Displayport, DVI-I, Ethernet (RJ-45), HDMI, PS/2, USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-600

Interfaces

Half Mini-PCI Express Slot, PCI-e 2.0 x16

Socket

Model

B85I

Length

17 cm

Width

17 cm

package content

Motherboard and Backplate (Blende)
