Product information

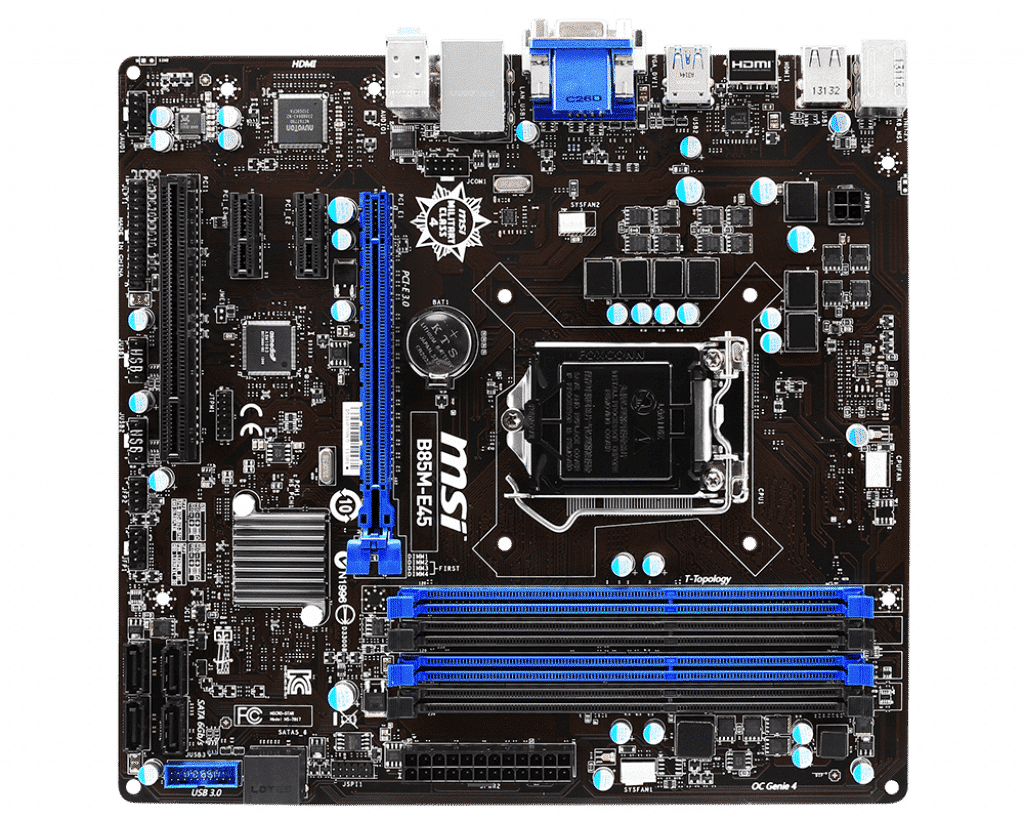

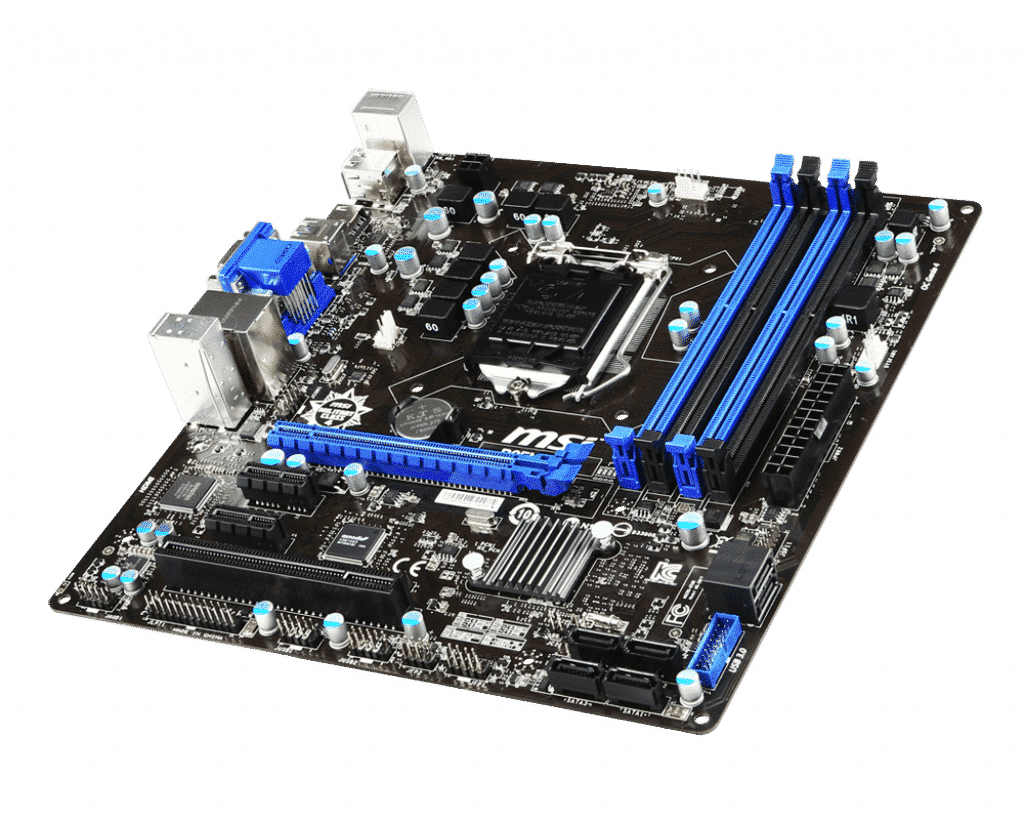

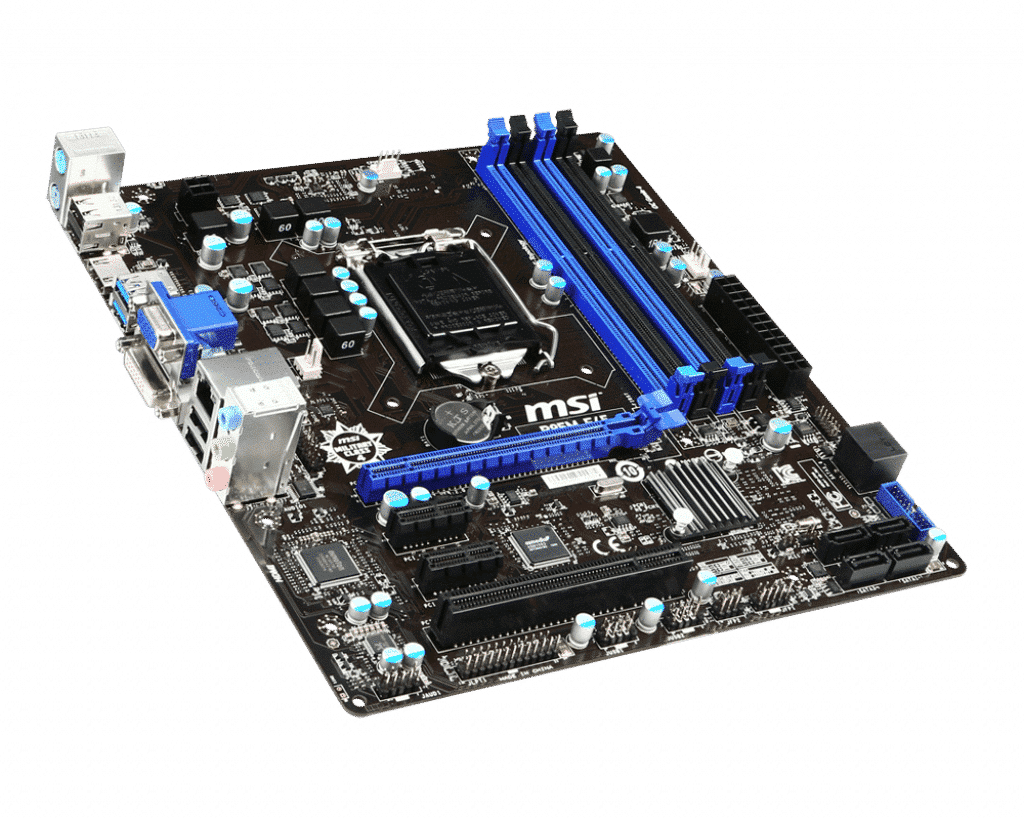

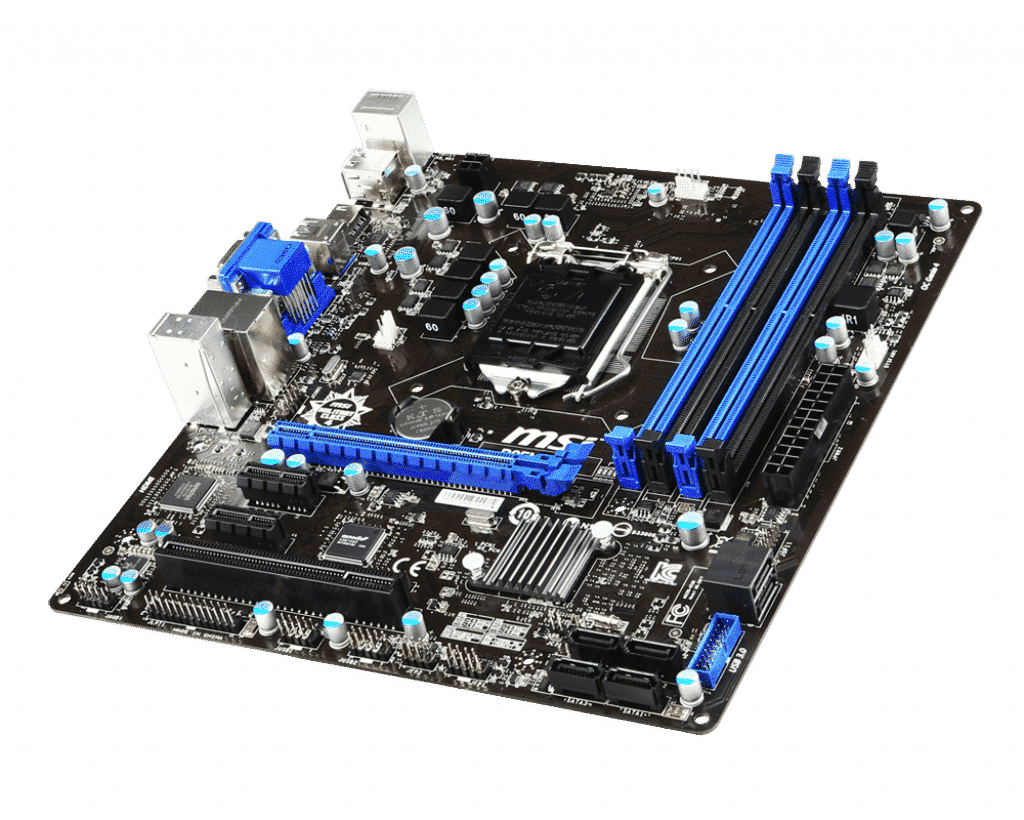

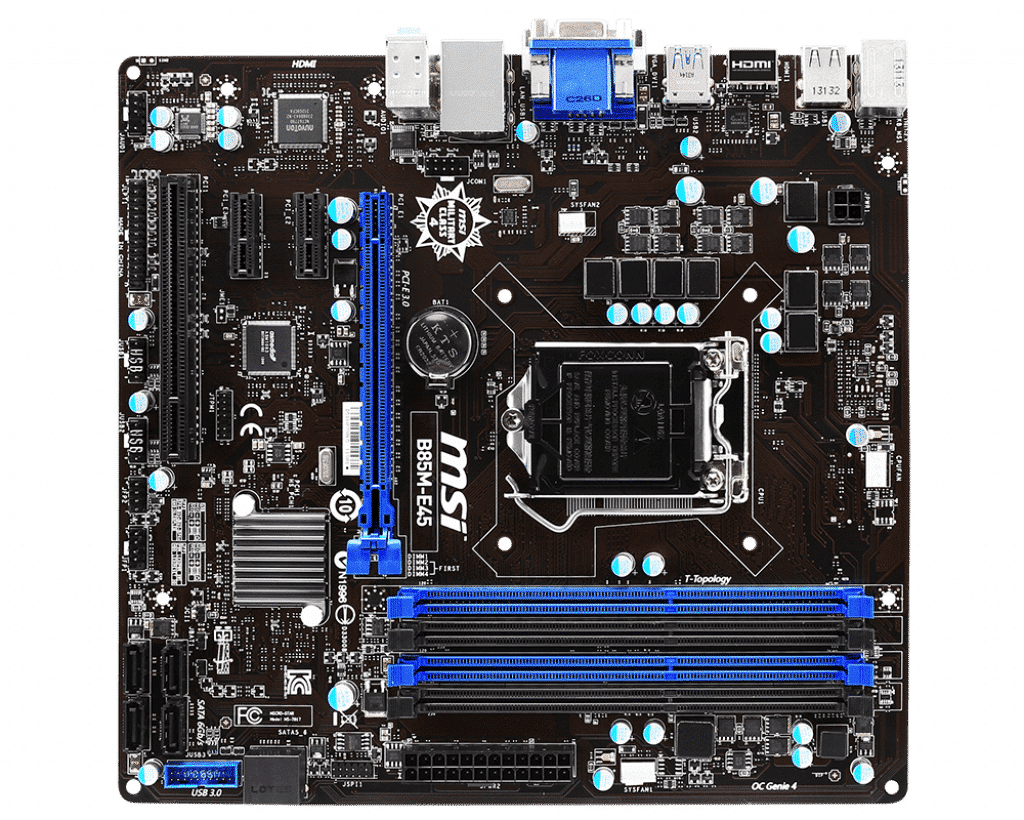

The MSI B85M-E45 is an M-ATX LGA1150 motherboard based on the Intel B85 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the MSI B85M-E45 has 6 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC887 chip.

Features: Motherboard | M-ATX | LGA1150 | 4x DDR3 | 4x SATA 600 | 2x SATA-300 |PCI | PCI-e 2.0 x1 | PCI-e 3.0 x16 | 8x USB 2.0 | 4x USB 3.0| DVI-D | HDMI | VGA (D Sub)

Click here for the supporting CPUs
Click here for the drivers

Product: MSI B85M-E45
Connection: LGA1150
Category: motherboards
Brand: MSI
EAN: 4054842390825, 4719072304393, 4719072306670
State: Used – BIOS updated to the latest version
SKU: 007817-030R, 7817-030R, B85M-E45
Warranty: 6 months

package content:
– Motherboard (MSI B85M-E45)
– Backplate (Blende)
– No manual
– No drivers CD
– cables

CPU
– 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket

Chipset
– Intel® B85 Express Chipset

Memory
– Supports four unbuffered DIMM or 1.5 Volt DDR3 1066/1333/1600 DRAM up to 32GB Max
– Supports Dual channel mode
– Supports non-ECC, un-buffered memory
– Supports Intel® Extreme Memory Profile (XMP)

BIOS
– The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
– The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications

Graphics
– Integrated Graphics Processor – Intel^® HD Graphics support:
1 x D-Sub port
1 x DVI-D port
1 x HDMI port

Audio
– Chip integrated by Realtek® ALC887
– 7.1 Channel High Definition Audio

LAN
– Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek^® 8111G

Slots
– 1 x PCIe 3.0 x16 slot
– 2 x PCIe 2.0 x1 slots
– 1 x PCI slot

Connector
– 1 x ATX 24-Pin power connector
– 1 x 4-pin ATX 12V power connector
– 1 x 4-pin CPU fan connector
– 1 x 4-pin system fan connector
– 1 x 3-pin system fan connector
– 4 x SATA 6Gb/s connectors
– 2 x SATA 3Gb/s connectors
– 1 x Clear CMOS jumper
– 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
– 1 x USB 3.0 connectors (supports additional 2 USB 3.0 ports)
– 1 x Serial port connector
– 1 x Parallel port connector
– 1 x TPM Module connector
– 1 x Front Panel Audio connector
– 1 x Chassis Intrusion connector

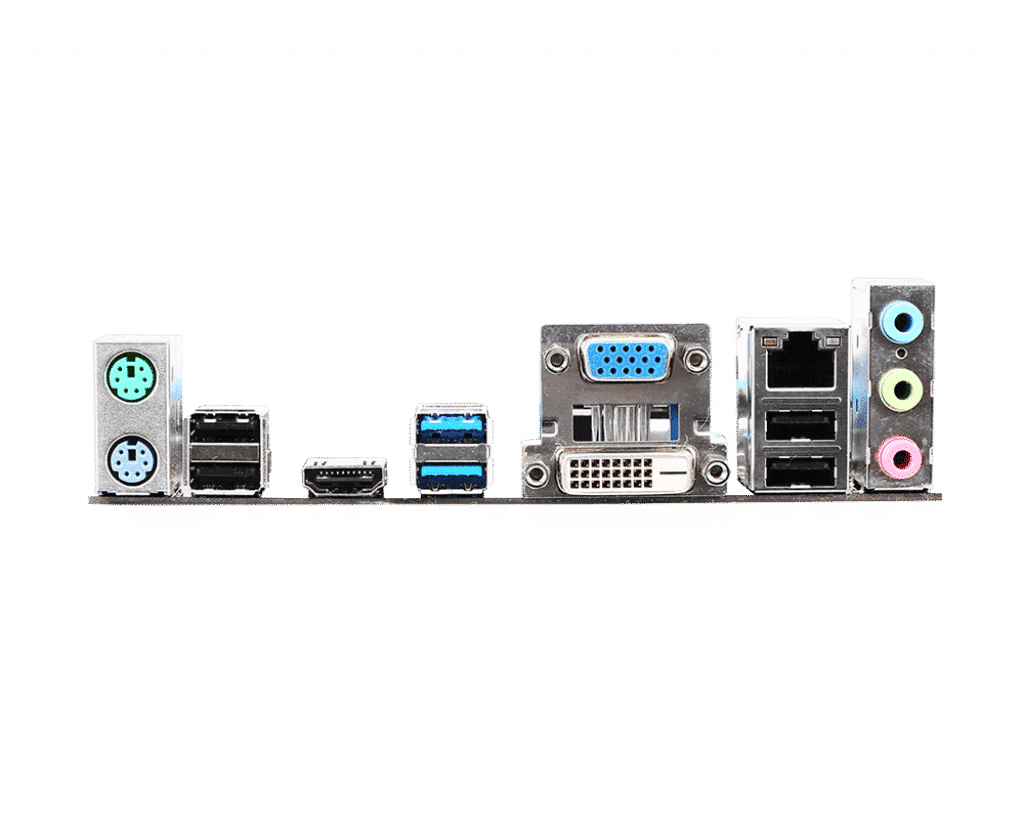

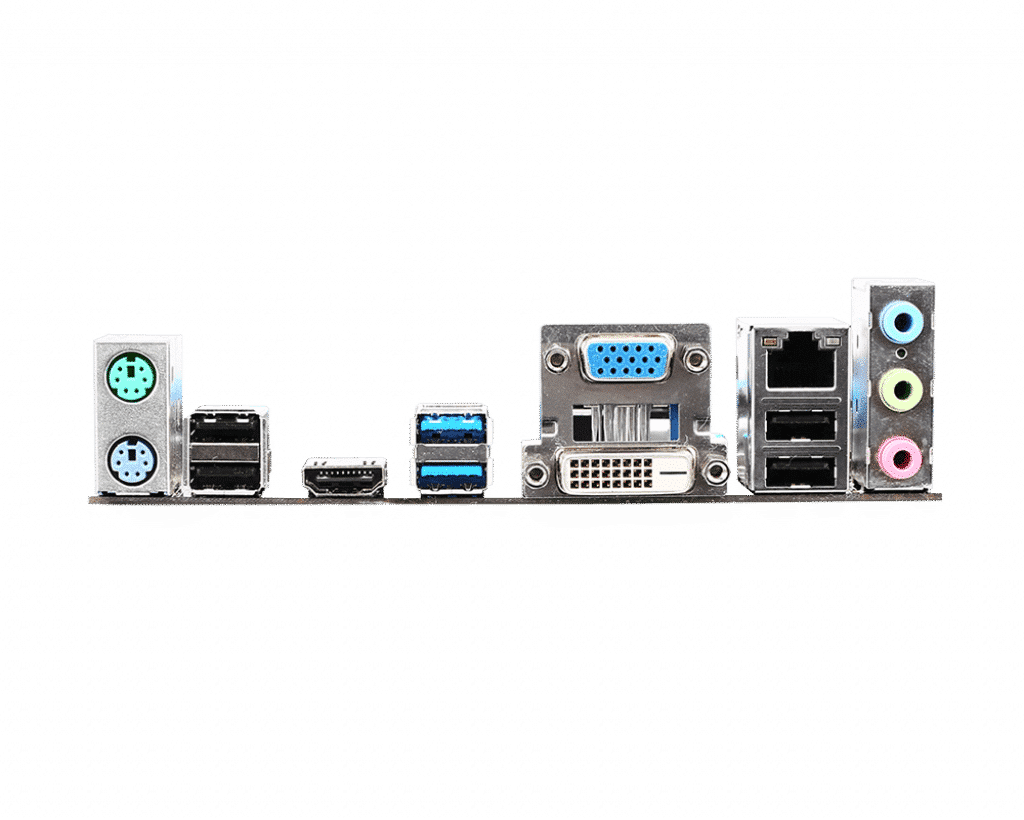

Rear Panel I/O
I/O Panel
– 1 x PS/2 keyboard port
– 1 x PS/2 mouse port
– 4 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x RJ45 LAN Jack
– 1 x 3 in 1 audio jack
– 1 x HDMI port, supporting the maximum resolution of 4096×2160@24Hz, 24bpp/ 2560×1600@60Hz, 24bpp/ 1920×1080@60Hz, 36bpp
– 1 x DVI-D port, supporting a maximum resolution of 1920×1200 @60Hz
– 1 x Graphics port, supporting a maximum resolution of 1920×1200 @60Hz

Accessories
– I/O Shield

Form Factor
– Micro ATX Form Factor; 22.8cm x 24.4cm

OS
– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
