Description

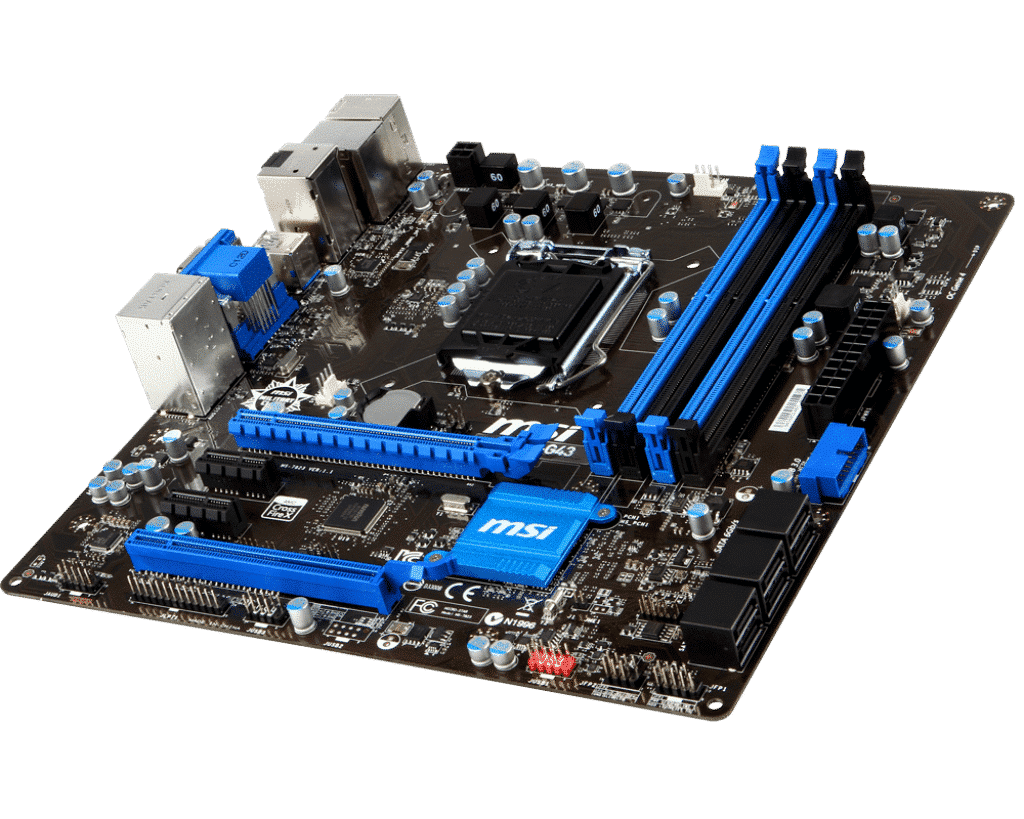

MSI B85M-G43 is an M-ATX Socket 1150 motherboard based on the Intel B85 chipset. The board has to be combined with DDR3 memory, for which 4 slots are available. The MSI B85M-G43 features one PCI Express 3.0 x16, one PCI Express x16 2.0, two PCI Express 2.0 x1 slots, and a wide range of connections such as USB 2.0, USB 3.0, HDMI, DVI-D, and VGA (D-sub).
Product: MSI B85M-G43
Socket: Socket 1150
Category: Motherboards
Brand: MSI
EAN: 0132017758169, 0816909107890, 4054319112103, 4719072297565, 5054533254879, 8169091078908
Condition: Used – BIOS updated to the latest version
SKU: 7823-003R, B85M-G43 Warranty: 6 months
Package contents:
– Motherboard (MSI B85M-G43)
– IO-Shield (Metal backplate)
– No manual
– No driver CD
– Cables
CPU
– 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Chipset
– Intel® B85 Express Chipset
Memory
– Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600 DRAM up to 32GB Max
– Supports Dual channel mode
– Supports non-ECC, un-buffered memory
– Supports Intel® Extreme Memory Profile (XMP)
BIOS
– The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
– The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications
Graphics
– Integrated Graphics Processor – Intel® HD Graphics support:
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1x Displayport
USB
– Intel® B85 Express Chipset
– 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
– 8 x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
Audio
– Chipset integrated by Realtek® ALC892
– Flexible 7-channel audio with jack sensing
– Supports S/PDIF output
LAN
– Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® 8111G
Slots
– 1 x PCIe 3.0 x16 slot
– 1 x PCIe 2.0 x16 slot
– PCI_E4 supports up to PCIe 2.0 x4 speed
– 2 x PCIe 2.0 x1 slots
SATA
• SATAIII controller integrated in Intel® B85 chipset
– Up to 6Gb/s transfer speed.
– Supports four SATAIII ports (SATA1~4) by B85
• SATAII controller integrated in Intel® B85 chipset
– Up to 3Gb/s transfer speed.
– Supports two SATAII ports (SATA5~6) by B85
– Supports Intel Smart Connect Technology*
Connector
– 1 x ATX 24-Pin power connector
– 1 x 4-pin ATX 12V power connector
– 4 x SATAIII connectors
– 2 x SATAII connectors
– 2 x USB 2.0 connectors
– 1 x USB 3.0 connector
– 1 x 4-pin CPU fan connector
– 2 x 4-pin system fan connectors
– 1 x Clear CMOS jumper
– 1 x Front panel audio connector
– 2 x System panel connectors
– 1 x Chassis Intrusion connector
– 1 x Trusted Platform Module (TPM) header
– 1 x Serial port connector
– 1 x Parallel Port connector
Rear Panel I/O
– 1 x PS/2 keyboard/ mouse combo port
– 4 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x Optical S/PDIF-out connector
– 1 x LAN (RJ45) port
– 6 x audio jacks
– 1 x VGA port, supporting a maximum resolution of 1920×1200 @60Hz, 24bpp
– 1 x DVI-D port, supporting a maximum resolution of 1920×1200 @60Hz, 24bpp
– 1 x HDMI™ port, supporting a maximum resolution of 4096×2160 @24Hz, 24bpp/ 2560×1600 @60Hz, 24bpp/1920×1080 @60Hz, 36bpp
– 1 x DisplayPort, supporting a maximum resolution of 4096×2160 @24Hz, 24bpp/ 3840×2160 @60Hz, 24bpp
Accessories
– I/O Shield
Form Factor
– Micro ATX Form Factor; 24.4cm x 24.4cm
OS
– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
