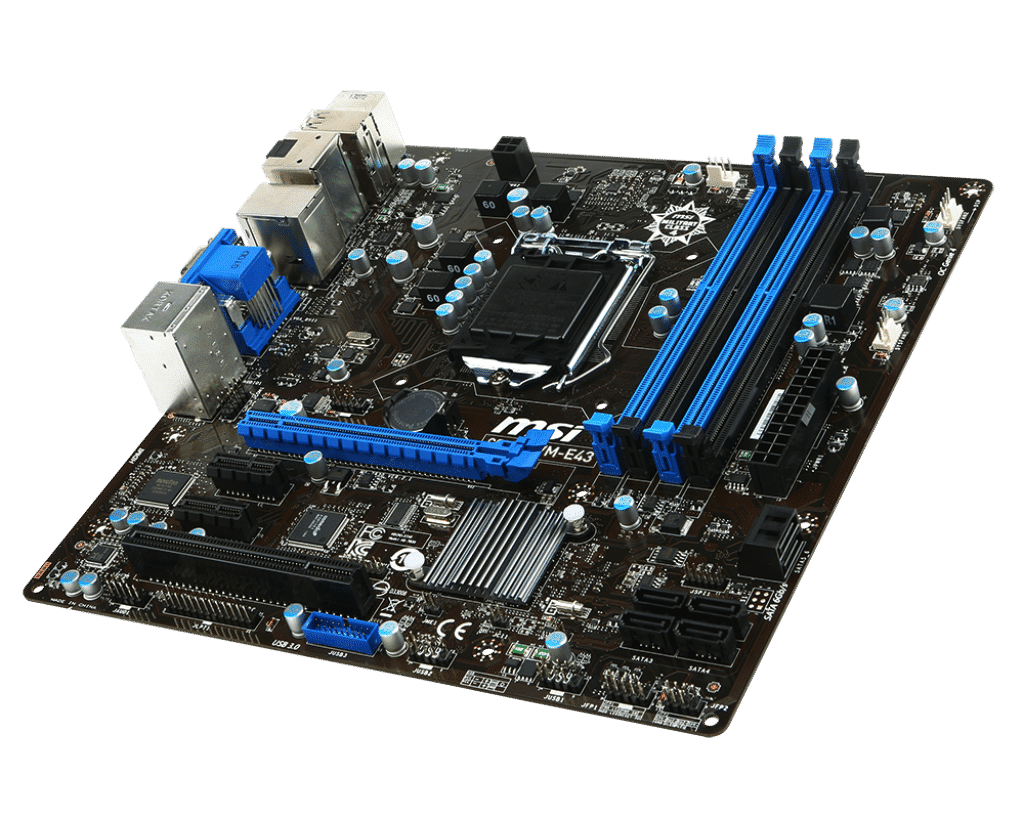

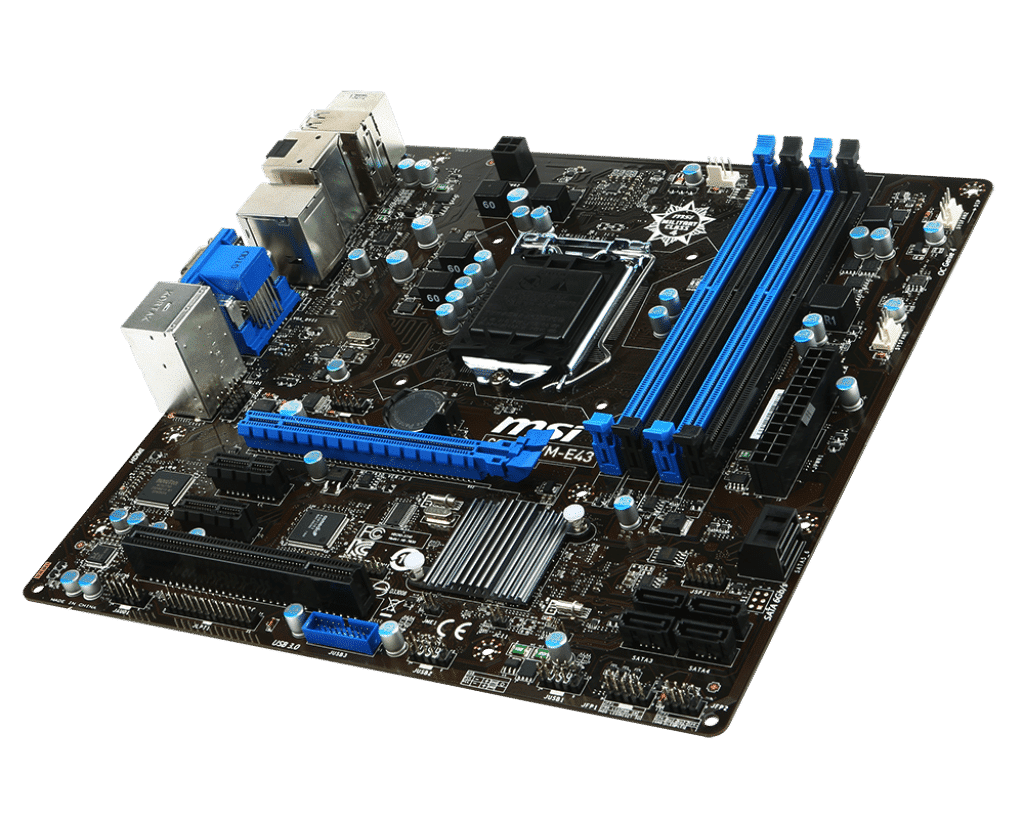

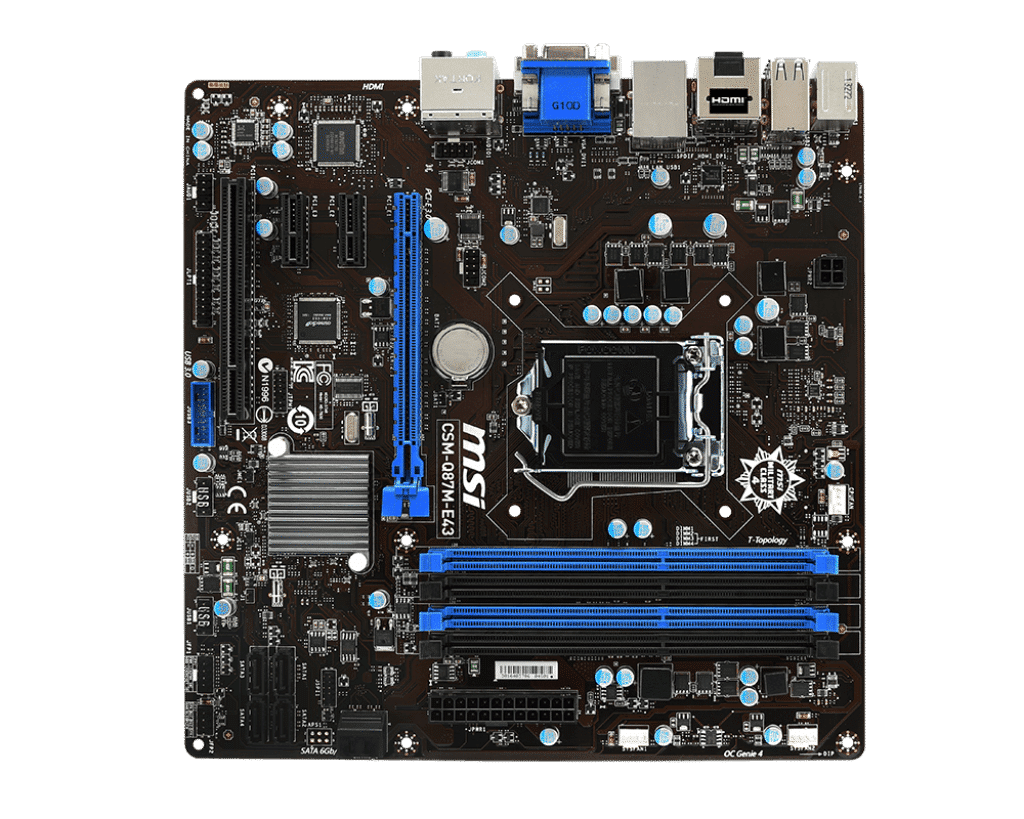

MSI CSM-Q87M-E43 socket 1150 motherboard

MSI CSM-Q87M-E43 is a compact and reliable Micro-ATX motherboard for Intel socket 1150. It supports DDR3 memory, fast storage via SATA 6Gb/s, and extensive connectivity including USB 3.0, Gigabit LAN, and display outputs such as VGA, DVI, and DisplayPort. With business features like Intel® vPro™ and TPM, this motherboard is ideal for professional use.

---

Product: MSI CSM-Q875M-E4
Socket: Socket 1150
Category: Motherboards
Brand: MSI
EAN: 4719072315993
Condition: Used
SKU: 7830-002R, CSM-Q87M-E43
Warranty: 6 months

Package contents:
– Motherboard (MSI CSM-Q875M-E43)
– IO shield (metal backplate)
– No manual
– No driver CD
– Cables

---

CPU

– 4e generatie Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors voor LGA 1150 socket

---

Chipset

– Intel® Q87 Express Chipset
– Supports Intel® Small Business Adcantage
– Supports Intel® vPro™ Technologyt

---

Geheugen

• 4x DDR3 memory slots supporting up to 32GB
– Supports DDR3 1600/ 1333/ 1066 MHz
– Dual channel memory architecture
– Supports non-ECC, un-buffered memory
– Supports Intel® Extreme Memory Profile (XMP)

---

BIOS

– De BIOS van het moederbord biedt “Plug & Play” BIOS die automatisch de randapparatuur en uitbreidingskaarten van het bord detecteert.
– Het moederbord biedt een Desktop Management Interface (DMI) functie die uw moederbord specificaties vastlegt.

---

Grafisch

– Geïntegreerde grafische processor – Intel^® HD Graphics ondersteuning:
1 x D-Sub poort
1 x DVI-D poort
1 x HDMI poort
1 x DisplayPort

---

USB

• Intel^® Q87 Express Chipset
– 4x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB 3.0 connector)
– 8x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

---

Audio

• Realtek^® ALC887 Codec
– 7.1-Channel High Definition Audio

---

LAN

• i217LM Gigabit LAN controller

---

Uitbereidingssleuven

– 1 x PCIe 3.0 x16 slot
– 2 x PCIe 2.0 x1 slots
– 1 x PCI slot

---

SATA

• SATAIII controller integrated in Intel^® Q87 chipset
– 6x SATA 6Gb/s ports
– Supports RAID 0, RAID1, RAID 5 and RAID 10
– Supports Intel® Smart Response Technology, Intel^® Rapid Start Technology and Intel^® Smart Connect Technology
* Supports Intel Core processors on Windows 7 and Windows 8.

---

Connector

1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x USB 3.0 connector (supports additional 2 USB 3.0 ports)
1x 4-pin CPU fan connector
2x 4-pin system fan connectors
1x Clear CMOS jumper
1x Front panel audio connector
2x System panel connectors
1x TPM module connector
2x Serial port connectors
1x Parallel port connector
1x Chassis Intrusion connector

---

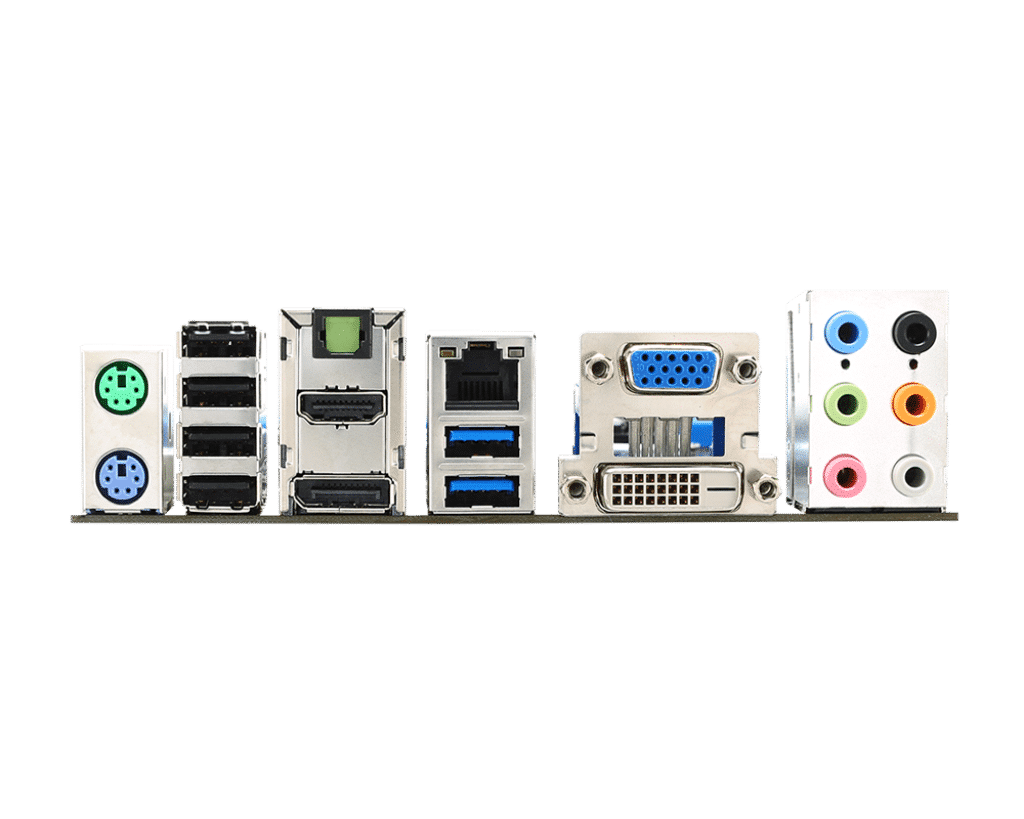

Achterpaneel I/O

1x PS/2 keyboard port
1x PS/2 mouse combo port
4x USB 2.0 ports
1x Optical S/PDIF-Out connector
1x HDMI™ port
1x DisplayPort
1x LAN (RJ45) port
2x USB 3.0 ports
1x VGA port
1x DVI-D port
6x Audio jacks1920x1080 @60Hz, 36bpp
– 1 x DisplayPort, ondersteunt een maximale resolutie van 4096×2160 @24Hz, 24bpp / 3840×2160 @60Hz, 24bpp

---

Accessoires

– I/O Shield

---

Form Factor

– Micro ATX Form Factor; 24.4cm x 24.4cm

---

OS

– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
