Product information

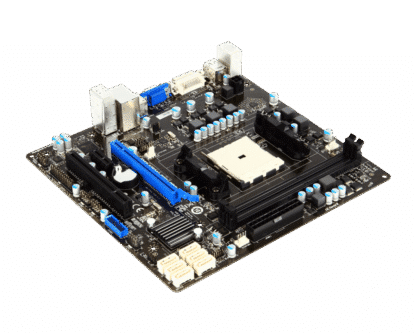

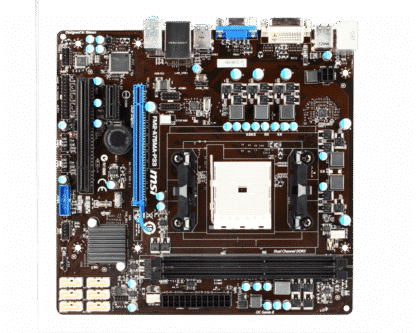

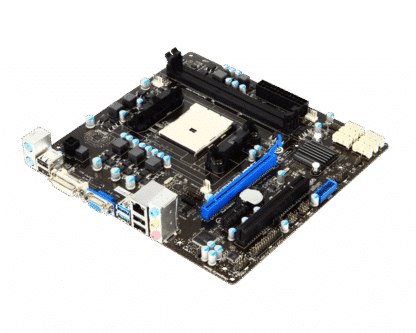

The MSI FM2-A75MA-P33 is a Micro-ATX Socket FM2 motherboard based on the AMD A75 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the MSI FM2-A75MA-P33 has 6 Serial ATA connections for hard disks and SSDs.

Features: Motherboard | Micro ATX | AMD FM2 | 4x DDR3 | SATA 600 | PCI | PCI-e 2.0 x1 | PCI-e 2.0 x16  | USB 2.0 | USB 3.0 | DVI-D | VGA (D Sub)

Click here for the supporting CPUs
Click here for the drivers

Product: MSI FM2-A75MA-P33
Connection: AMD FM2
Category: motherboards
Brand: ASRock
EAN: 0816909104011, 4719072285241
Condition: Refurbished
SKU: 7721-021R, FM2-A75MA-P33
Warranty: 6 months

package content:
– Motherboard (MSI FM2-A75MA-P33)
– Backplate (blende)
– No manual
– No drivers CD
– cables

CPU
– AMD® A10/A8/A6/A4-series processors for the FM2 package

Chipset
– AMD A75 FCH (Hudson-D3)

Memory
–  Supports two unbuffered DIMM or 1.5 Volt DDR3 1066/1333/1600/1866/2133* (*OC) DRAM, 16GB Max
–  Supports Dual Channel mode*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

Audio
– Chipset integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing

LAN
– Realtek PCI-E GbLAN controller RTL8111E
– Supports 10Mb/s, 100Mb/s and 1000Mb/s
– Compliance with PCI-Express Bus specification v1.0a

Slots
– 1 PCIe 2.0 x16 slot
– 1 PCIe 2.0 x1 slot
– 1 PCI slot

USB 3.0
– 2 USB 3.0 rear IO ports by AMD® A75
– 1 USB 3.0 onboard connector by AMD® A75

Connector
– 1 x ATX 24-pin power connector
– 1 x ATX 4-pin 12V CPU power connector
– CPU x 1/System x 2 FAN connectors
– 1 x Front panel audio connector
– 1 x Front panel connector
– 2 x USB 2.0 connectors
– 1 x USB 3.0 connector
– 1 x USB Power Jumper
– 1 x Clear CMOS jumper
– 1 x Serial port connector
– 1 x Parallel connector
– 1 x TPM Module connector
– 1 x Chassis Intrusion connector

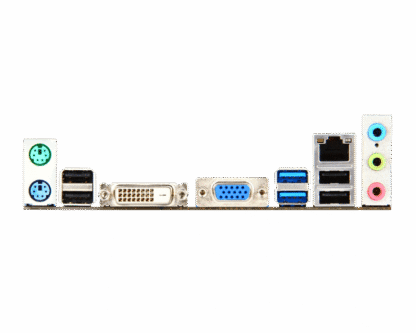

Rear Panel I/O
I/O Panel
– 1 x PS/2 keyboard port
– 1 x PS/2 mouse port
– 4 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x LAN port
– 1 x Graphics card port*
– 1 x DVI-D port* supporting Dual-link DVI
– 3 x audio ports

Accessories
– I/O Shield

Form Factor
– Micro ATX Form Factor: 22.6 cm x 21.6 cm

OS
– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)
