Description

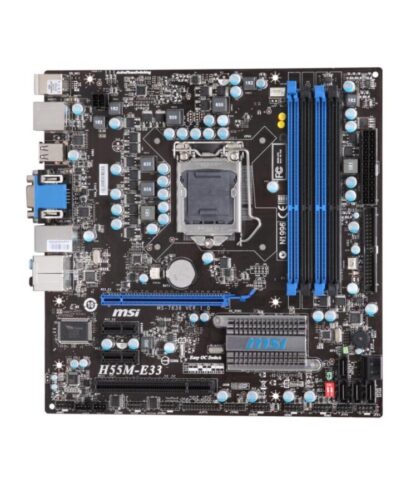

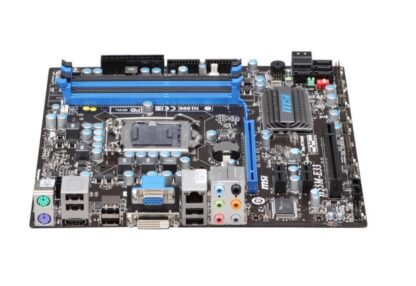

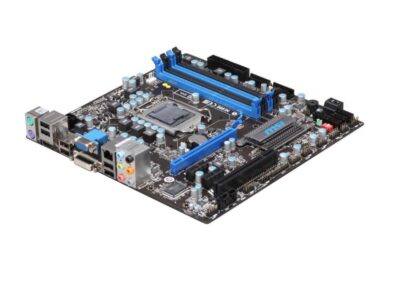

The MSI H55M-E33 is a Micro-ATX LGA1156 motherboard based on the Intel H55 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the MSI H55M-E33 has 6 Serial ATA connections for hard drives and SSDs.
Features: Motherboard | ATX | LGA1156 | 4x DDR3 | 6x SATA-300 | PCI-e x16| PCI-e x1 | PCI-e x4 |PCI | USB 2.0 | eSata
Product: MSI H55M-E33
Socket: LGA1156
Category: motherboards
Brand: MSI
Condition: Used
EAN: 4719072148294
SKU: 7636-010, 7636-010R, H55M-E33
Warranty: 6 months
Package contents:
– Motherboard (MSI H55M-E33)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables
CPU
Intel® Socket 1156 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Chipset
Intel® H55
Memory
4xDIMM, Max. 16GB, DDR3 1066/1333/1600*/2000*/2133* (OC)Non-ECC, Un-buffered Memory
Expansion Slots
1 x PCIe x16
2 x PCIe x1
2x PCI
Storage
Intel® H55 chipset :
6 x SATA 3Gb/s port(s)
Pata-133
LAN
Realtek® RTL8111L
Audio
– Realtek® ALC889
USB Ports
Intel® H55 chipset :
9x USB 2.0 port(s) (6 at back panel, black, 3 at mid-board)
Operating System Support
Windows® 8
Windows® 7
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
1 x HDMI
1x DVI
1x VGA
6 x USB 2.0
Internal I/O Ports
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– CPU x 1 / System x 2 FAN connectors
– CD-in connector
– Front panel audio connector
– Front panel connector
– 1 x chassis intrusion connector
– 3 x USB 2.0 connectors
– 6 x Serial ATAII connectors
– 1 x ATA133 connector
– 1 x OC Switch
– 1 x Clear CMOS jumper
– 1 x SPDIF out connector
– 1 x TPM module connector
– 2 x Serial port connectors
– 1 x Parallel port connector
Accessories
I/O Shield
Form Factor
Micro ATX Form Factor
