Description

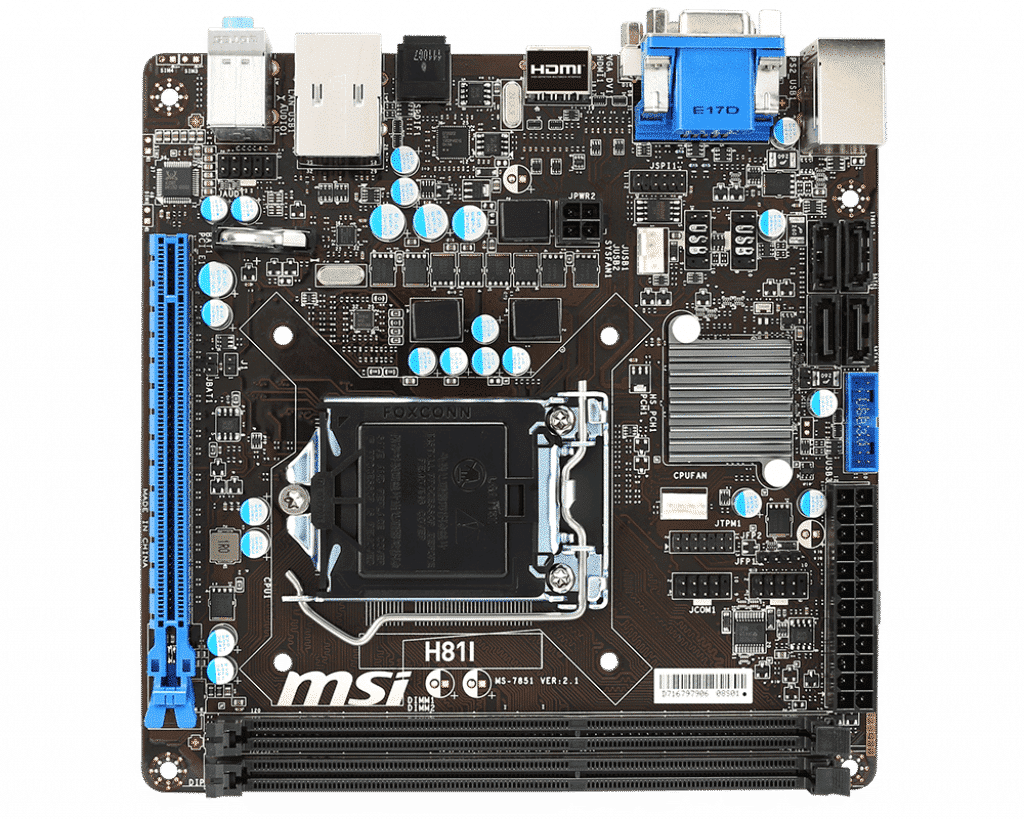

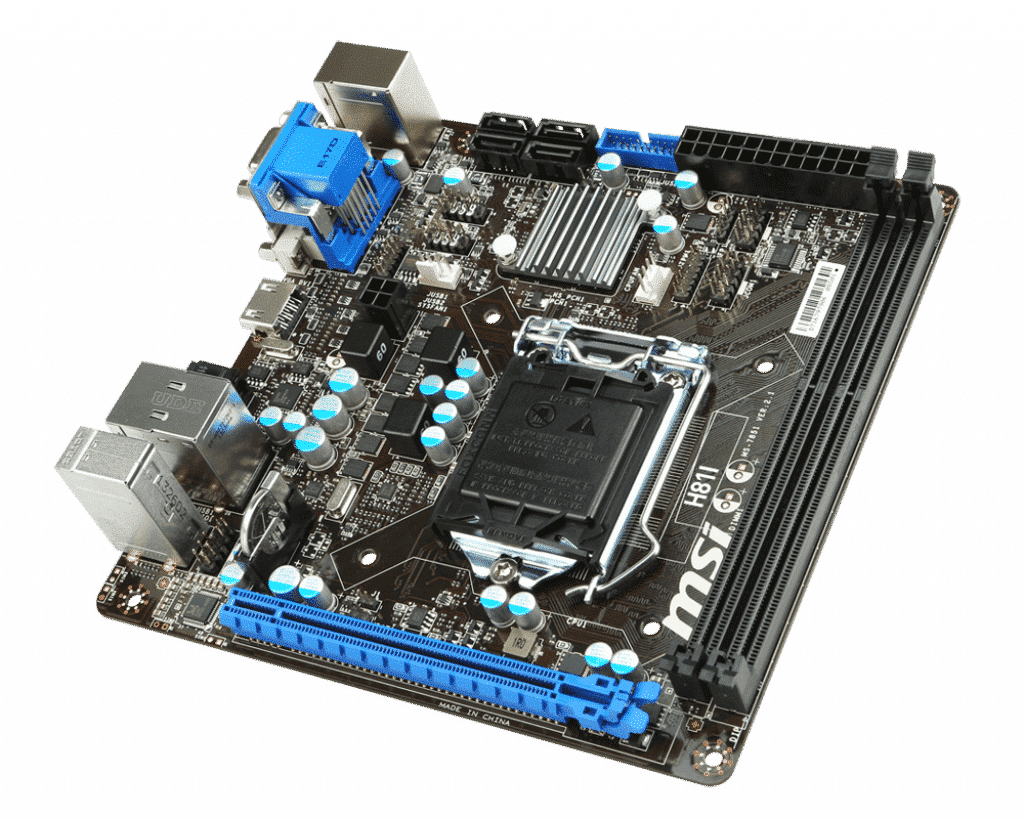

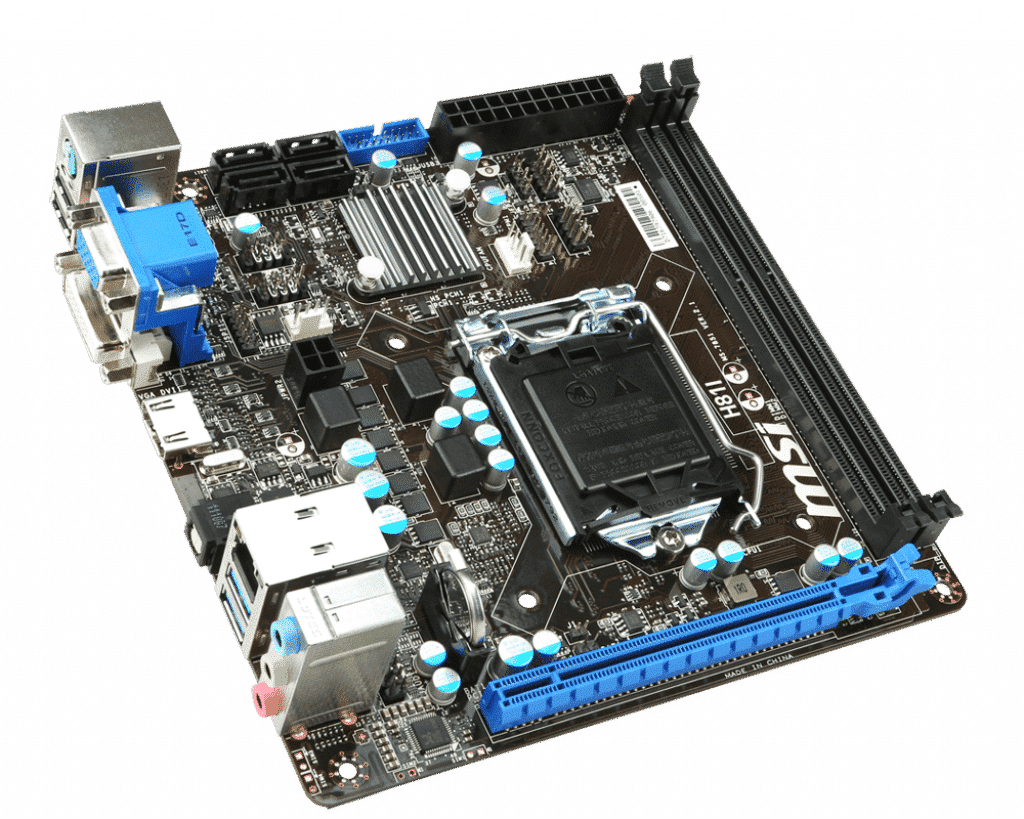

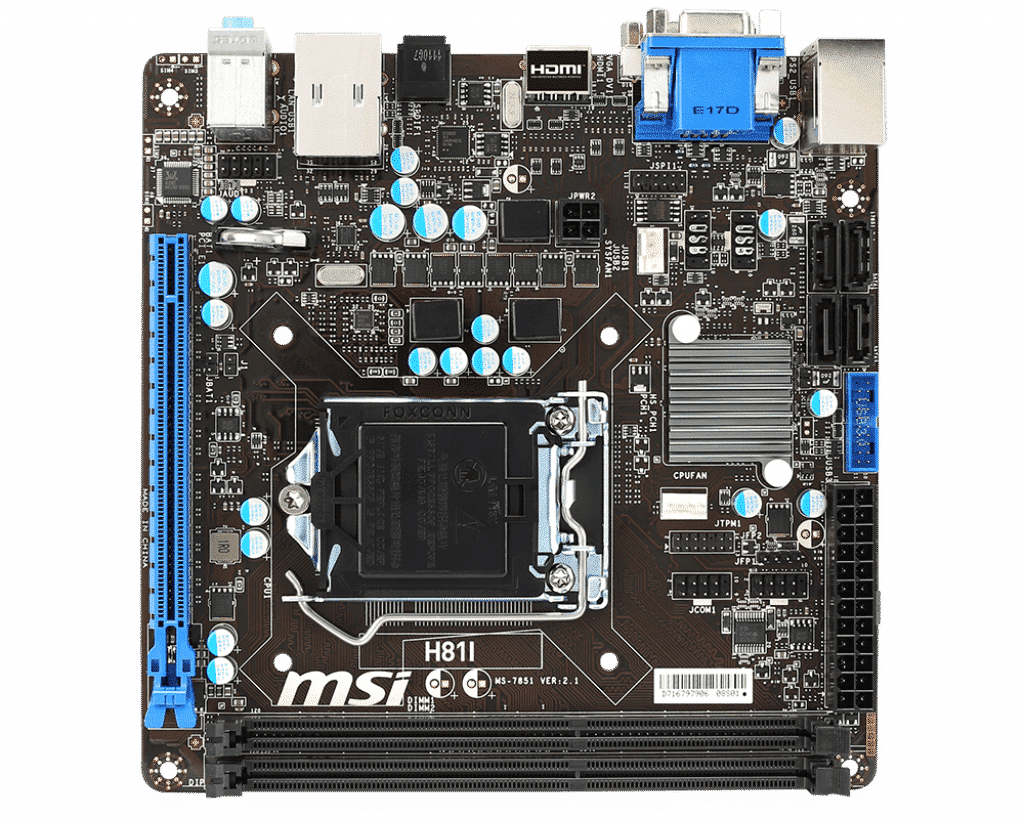

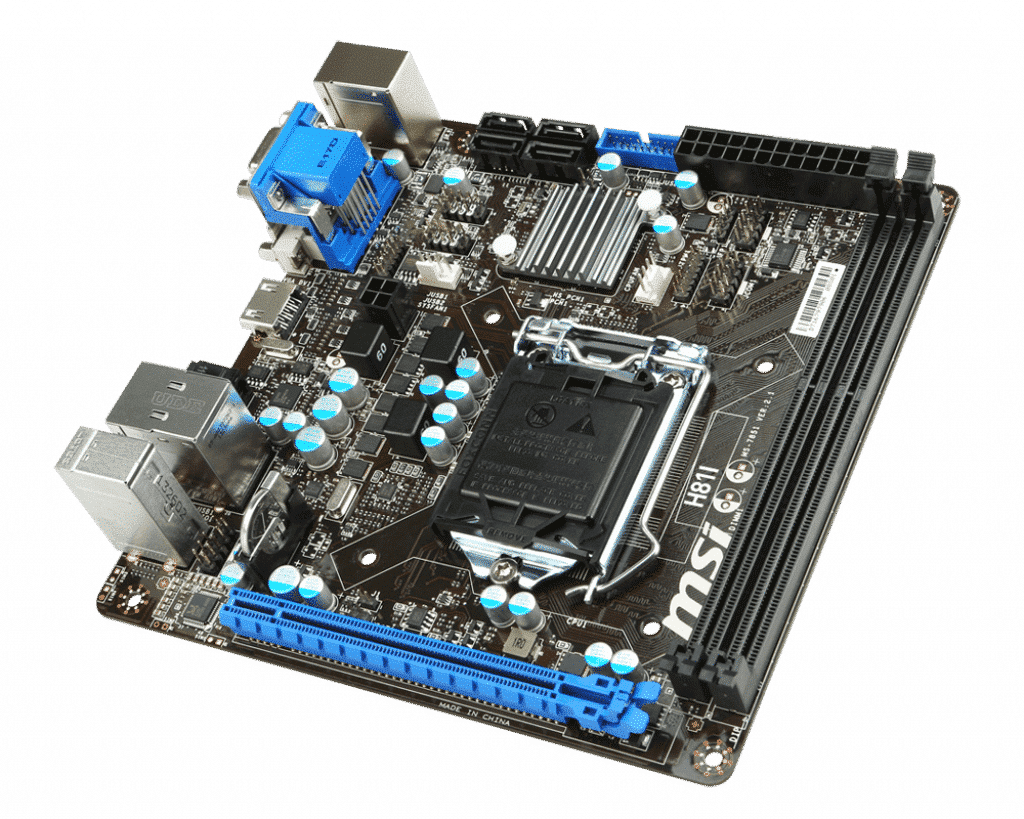

MSI H81I : motherboard |Mini-ITX | Intel Socket 1150 | H81 Chipset | DDR3 (max. 16GB) | PCI-e 2.0 x16 | SATA-300 | SATA 600 | USB 2.0 | USB 3.0 | LAN | HDMI | DVI-D | VGA (D Sub)
Product:MSI H81I
Socket: Socket 1150
Brand: MSI
Condition: Used
EAN: 0824142015926, 4719072313111, 8241420159264
SKU: 7851-040R
Warranty: 6 months
package content:
– Motherboard (MSI H81I )
– Backplate (blende)
– No manual
– No driver CD
– No cables
CPU
4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Chipset
Intel® H81 Express Chipset
Memory
Support two DDR3 DIMMs 1066/1333/1600 MHz. with 22nm Haswell processors up to 16GB Max
– Supports Dual Channel Mode
Audio
• Chipset integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
LAN
• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G
Multi-GPU
• Supports AMD CrossFire™ Technology
Expansion Slots
1 x PCIe 2.0 x16
Storage Interface
• SATAIII controller integrated in Intel® H81 chipset
– Up to 6Gb/s transfer speed.
– Supports two SATAIII ports (SATA1~2) by H81
• SATAII controller integrated in Intel® H81 chipset
– Up to 3Gb/s transfer speed.
– Supports two SATAII ports (SATA3~4) by H81
USB
• 2 x USB 3.0 ports by Intel® H81 (2 ports on the front panel)
• 2 x USB 3.0 ports by RENESAS UPD720202 (2 ports on the back panel)
Internal I/O Connectors
– 4-pin ATX 12V power connector
– 1 x 4-pin CPU fan connector
– 1 x 4-pin system fan connector
– 1 x Clear CMOS jumper
– 2 x Serial ATAIII connectors
– 2 x Serial ATAII connectors
– 2 x USB 2.0 connectors
– 1 x USB 3.0 connector
– 1 x Trusted Platform Module (TPM) header
– 1 x Serial port connector
– 2 x System panel connectors
– 1 x Front Panel Audio connector

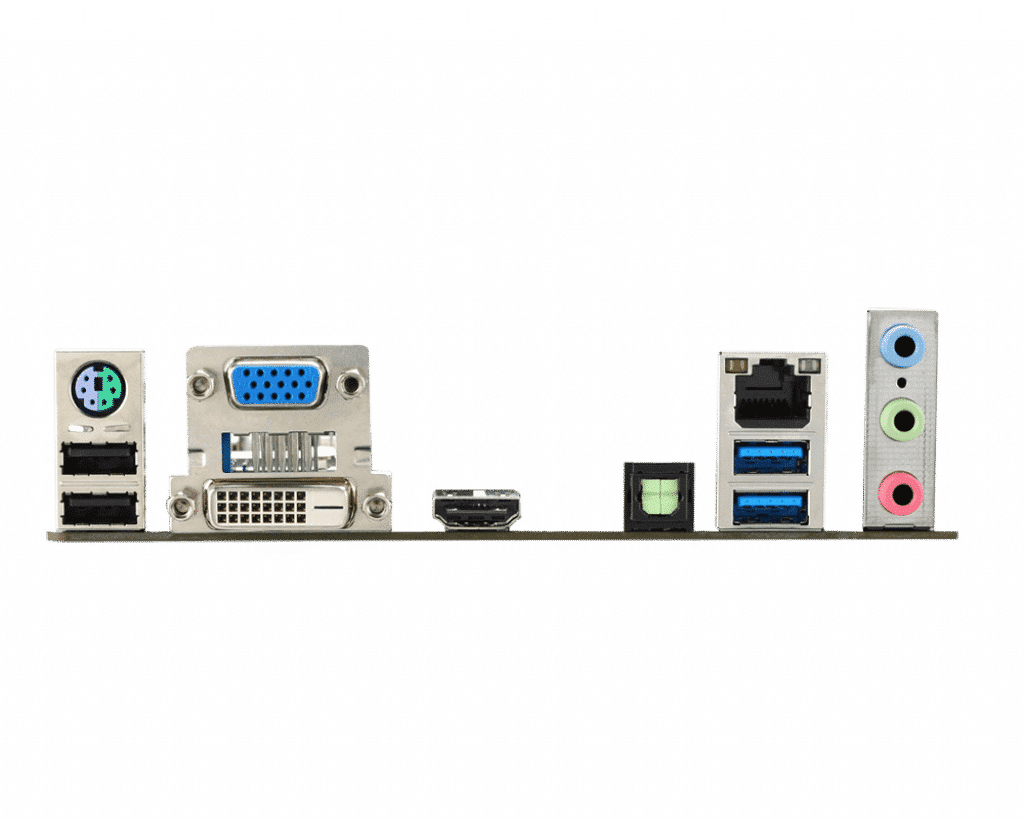

Back Panel Connectors
– 1 x PS/2 keyboard/mouse combo port
– 2 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x Optical S/PDIF out connector
– 1 x RJ45 LAN Jack
– 1 x 3 in 1 audio jack
– 1 x D-sub port
– 1 x HDMI port
– 1 x DVI-D port
BIOS
• The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Operating System
Support for Windows 10 64-bit
Form Factor
Mini ITX Form Factor
6.7 in. x 6.7 in. (17cm x 17cm)
