MSI H81M-P33

0 in stock

Fast delivery

Product: MSI H81M-P33
Connection: Socket 1150
Category: motherboards
Brand: MSI
EAN:
4719072309145
Condition:
Refurbished – BIOS updated to the latest version
SKU:
H81M-P33
Warranty:
6 months


SKU: msi-h81m-p33 Categories: , Tags: , ,

Product information

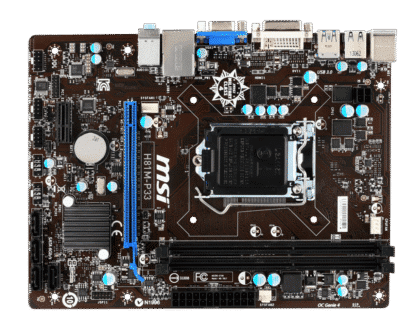

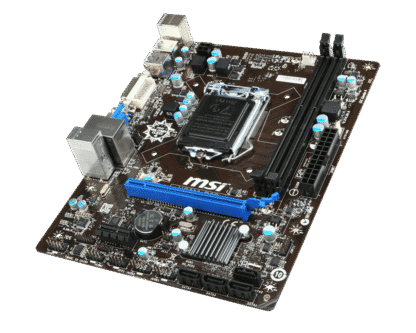

The MSI H81M-P33 is an M-ATX Socket 1150 motherboard based on the Intel H81 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the MSI H81M-P33 has 4 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC887 chip.

Features: Motherboard | M-ATX | Socket 1150 | 2x DDR3 | 2x SATA 600 | 2x SATA-300 |PCI-e x1 | PCI-e 2.0 x16 | 8x USB 2.0 | 2x USB 3.2 (Gen1, 5Gb/s) | DVI-D | VGA (D Sub)

Click here for the supporting CPUs
Click here for the drivers

Product: MSI H81M-P33
Connection: Socket 1150
Category: motherboards
Brand: MSI
EAN: 0824142000496, 4054842390818, 4526541781742, 4719072307950, 4719072309145, 5054230449073, 8241420004960
State: Refurbished – BIOS updated to the latest version
SKU: 7817-019R, H81M-P33
Warranty:
6 months

package content:
– Motherboard (H81M-P33)
– IO-Shield (Tin back plate)
– No manual
– No drivers CD
– cables


CPU
– 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket


Chipset
– Intel® H81 Express Chipset


Memory
– Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
– Supports Dual Channel mode


BIOS
– The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.


Graphics
– Integrated Graphics Processor – Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz


Audio
– Chip integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 spec


LAN
– Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G


Slots
– 1 x PCIe 2.0 x16 slot
– 1 x PCIe x1 slot


Connector
– 1 x ATX 24-Pin power connector
– 1 x 4-pin ATX 12V power connector
– 2 x SATA III connectors
– 2 x SATAII connectors
– 2 x USB 2.0 connectors
– 1 x Serial port connector
– 1 x Trusted Platform Module (TPM) header
– 1 x Chasis intrusion connector
– 1 x Front Panel Audio connector

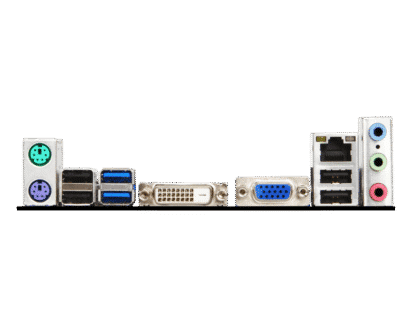

Rear Panel I/O
I/O Panel
– 1 x PS/2 keyboard port
– 1 x PS/2 mouse port
– 4 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x RJ45 LAN Jack
– 1 x 3 in 1 audio jack
– 1 x Graphics card port
– 1 x DVI-D port


Accessories
– I/O Shield


Form Factor
– Micro ATX Form Factor; 22.6cm x 17.3cm


OS
– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Specification

Intel

LGA1150

Brand

MSI

Chipset

Intel H81

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), DVI-D, USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16

Socket
