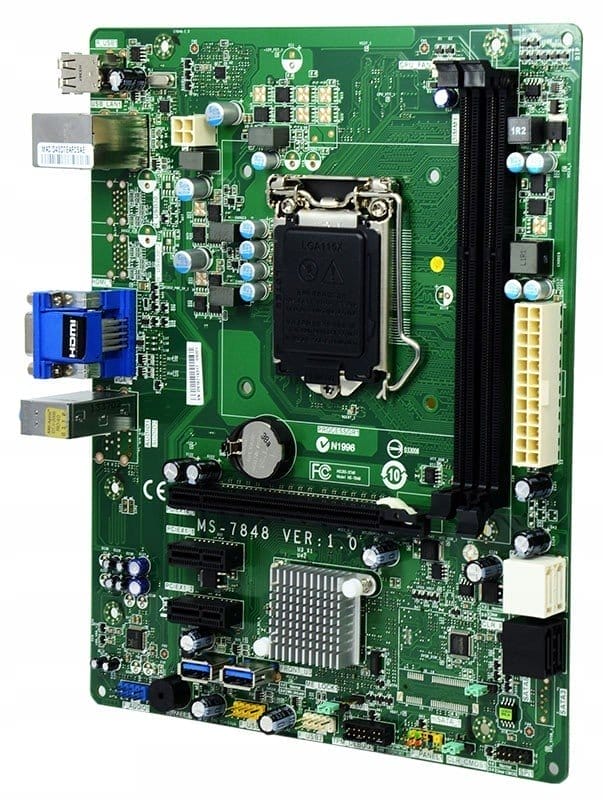

The MSI MS-7848 is an LGA1150 Micro-ATX motherboard which is equipped with 2 DDR3 memory slots. The motherboard is equipped with the H87 Chipset and originally comes from a Medion Computer
Motherboard – LGA1150 | Micro ATX | Intel H87 Chipset | DDR3 up to 16GB | Gigabit Ethernet | PCI-e 2.0 x16 | SATA-300 | Sata-600 | USB 2.0 | USB 3.2 Gen 1 | VGA | HDMI
Product: MSI MS-7848;
Brand: MSI
Condition: Used
Warranty: 6 Months
CPU
socket: LGA1150
Supported architectures
– Intel Celeron Haswell-DT
– Intel Core i3 Haswell-DT
– Intel Core i5 Haswell-DT
– Intel Core i7 Haswell-DT
– Intel Pentium Haswell DT
Chipset
– Intel H87
Memory
– Type: 2x DDR3 1066/1333/1600 MHz (maximum 16GB)
LAN
– Realtek RTL8168 1GB Lan
Slots
1x PCIe x16 slot
2x PCIe x1 slot
SATA
-4 SATA III (6 Gb/s)
Internal Connectors
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– 4x USB 2.0
– 2x USB 3.x (5+ Gb/s)
– Audio headers: Line out, Microphone in
– Header front HD Audio
– TPM header
Back Panel I/O
– 4x USB 2.0 (480 Mb/s)
– 1x RJ-45
– VGA output
– HDMI output
– Audio connectors: Line out, Line in, Microphone in
Accessories
– I/O Shield
Form Factor
– Micro ATX
OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32 bit / XP 64 bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.
Weight | 1 kg |
---|---|
Intel | LGA1150 |
Brand | MSI |
Form Factor | Micro-ATX |
Chipset | Intel H87 |
Memory Type | DDR3 SDRAM |
Number of memory slots | 2 |
Maximum memory size | 16 GB |
Connectors | D-Sub (VGA), Ethernet (RJ-45), HDMI, USB 2.0, USB 3.2 (Gen1, 5Gb/s) |
Storage Interfaces | Serial ATA-600 |
Interfaces | PCI-e 2.0 x1, PCI-e 2.0 x16 |
Socket | |
Model | MS-7848 |
Suitable for | Regular use |
particularities | Onboard Audio |
Length | 22.6 cm |
Width | 17.3 cm |
package content | Motherboard and Backplate (Blende) |
