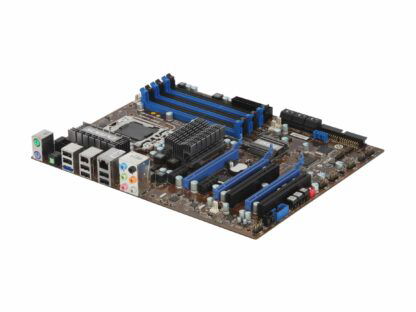

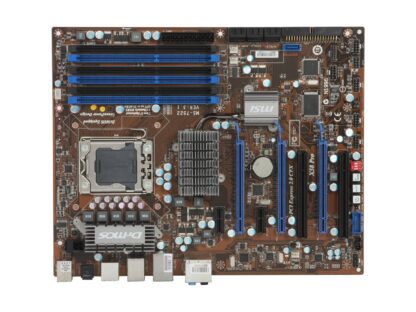

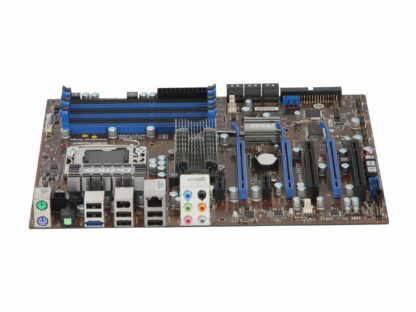

MSI X58 Pro Socket 1366 Motherboard
The MSI X58 Pro Socket 1366 motherboard is an ATX motherboard equipped with 6 DDR3 memory slots. This MSI X58 Pro Socket 1366 motherboard is a premium LGA1366 motherboard featuring a network (RJ-45) connection, IEEE1394, eSATA, and no less than 6 DDR3 memory slots.
Product: MSI X58 Pro Socket 1366
Category: Intel Socket 1366 Motherboards
Brand: MSI
EAN: 4719072104290
SKU: 7522-050
Condition: Used – BIOS updated to the latest version
Warranty: 6 Months
Package contents:
– Motherboard (MSI X58 Pro)
– IO Shield (metal backplate)
– No manual
– No driver CD
– No cables
CPU
– Intel® Socket 1366 Core™ i7 Extreme Edition/Core™ i7 Processors
Chipset
– Intel® X58 Chipset
– Supports QPI up to 6.4GT/s
Intel® ICH10R Chipset
– Hi-Speed USB (USB 2.0) controller, 480Mb/sec, up to 12 ports
– 6 SATA II ports with transfer rates up to 3Gb/s
– PCI Master v2.3, I/O APIC
– ACPI 2.0 compliant
– Serial ATA RAID 0/1/5/10
– Integrated AHCI controller
Memory
– Supports six unbuffered DIMMs of 1.5 Volt DDR3 800/1066/1333*/1600* (OC) DRAM, 24GB max
– Supports 1Gb/2Gb/4Gb DRAM sizes
– Supports x8 / x16 data lines per DIMM
– Supports up to 3 channel mode
Audio
– Integrated Realtek® ALC889 chipset
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
– Meets Microsoft Vista Premium specifications
LAN
– Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111C
IEEE 1394
– JMicron® 381 chipset
– Supports up to two 1394 ports (Rear panel x1, pinheader x1)
– Transfer rate up to 400Mbps
Slots
– 3 PCI Express Gen2 x16 slots
– Two dark blue PCI-E x16 slots (PCI_E2 & PCI_E4) support up to PCI-E x16 speed
– One blue PCI-E x16 slot (PCI_E5) supports up to PCI-E x4 speed
– Supports ATI® CrossFire™
– 2 PCI Express Gen1 x1 slots
– 2 PCI slots, support 3.3V/5V PCI bus interface
On-Board IDE/SATA
– One Ultra DMA 66/100/133 IDE controller integrated in JMicron® 363
– Supports PIO, Bus Master operation modes
– Can connect up to two Ultra ATA drives
– SATA II controller integrated in ICH10R/JMicron® 363 chipset
– Up to 3Gb/s transfer speed
– Supports six SATA II ports by ICH10R (SATA1~6)
– Supports one SATA II port by JMicron 363 (SATA7)
– Supports one eSATA port by JMicron 363
– Supports AHCI controller with SATA RAID 0/1/5/10 by ICH10R
Connector
– ATX 24-pin power connector
– 8-pin ATX 12V power connector
– CPU x1 / System x3 FAN connectors
– CD-in connector
– Front panel audio connector
– Front panel connector
– 1x chassis intrusion connector
– 1x serial port pin header
– 3x USB 2.0 connectors
– 7x Serial ATA II connectors
– 1x ATA133 connector
– 1x IEEE1394 connector supports additional 1 port
– 1x Reset Button
– 1x Power Button
– 1x Clear CMOS Button
– 1x SPDIF-out connector
– 1x TPM module connector
Rear Panel I/O
– 1x PS/2 Keyboard
– 1x PS/2 Mouse
– 1x eSATA port
– 1x IEEE1394 port
– 6x USB 2.0 ports
– 1x RJ45 LAN jack
– 1x 6-in-1 audio jack
– 1x Optical SPDIF-out
BIOS
– The motherboard BIOS provides “Plug & Play” functionality that detects peripheral devices and expansion cards automatically
– The motherboard offers Desktop Management Interface (DMI) functionality that records your motherboard specifications
Accessories
– I/O Shield
Form Factor
– ATX Form Factor
– 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
