Description
MSI X79A-GD45 (8D) : Moederbord | ATX | Socket 2011 | 8x DDR3 (max 64GB) | USB2.0 | USB3.2 | Sata-300 | Sata-600 |

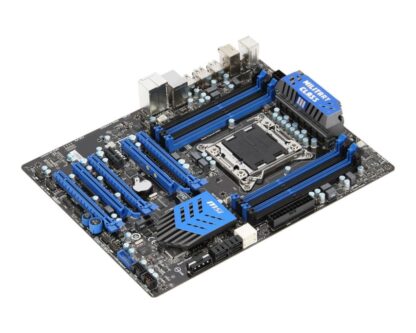

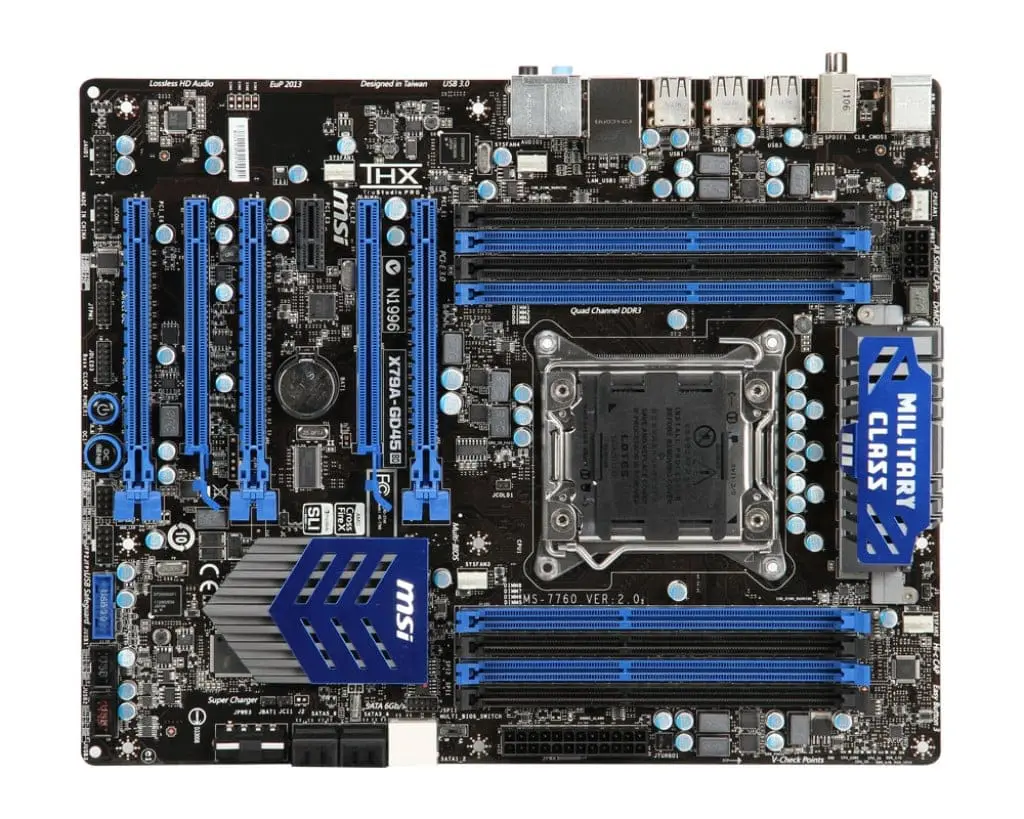

Product: MSI X79A-GD45 (8D)
Socket: Socket 2011
Categorie: moederborden
Merk: Intel
Staat: Used
EAN: 0816909093308, 4719072249540
SKU: 7760-030R, X79A-GD45 (8D)
Garantie: 6 maanden
Inhoud pakket:
– Moederbord (MSI X79A-GD45 (8D))
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels
CPU
Supports Intel® Socket 2011 Core™ i7 Processors
Chipset
Intel® X79 Express Chipset
Memory
8x DDR3
– Supports eight unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600/1800*/2133*/2400* (OC) DRAM, 128GB Max
– Supports Quad channel mode
Expansion slots
– 3 PCI Express gen3 x16 slots
– PCI_E1 & PCI_E4 support up to PCIE x16 speed
– PCI_E6 supports up to PCIE x8 speed
• 2 PCI Express gen2 x16 slots
– PCI_E2 & PCI_E5 support up to PCIE 2.0 x1 speed
• 1 PCIE 2.0 x1 slot
Storage
• SATAII controller integrated in Intel® X79 chipset
– Up to 3Gb/s transfer speed.
– Supports four SATAII ports (SATA3~6) by X79
• SATAIII controller integrated in Intel® X79 chipset
– Up to 6Gb/s transfer speed.
– Supports two SATAIII ports (SATA1~2) by X79
• RAID
– SATA1~2 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1) by Intel X79
– SATA3~6 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1/5/10) by Intel X79
LAN
Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Intel 82579.
USB3.0
1 USB 3.0 internal connector by NEC® D720200
• 2 USB 3.0 rear I/O ports by NEC® D720200
Audio
• Chipset integrated by Realtek® ALC892
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
– Meet Microsoft Vista Premium spec

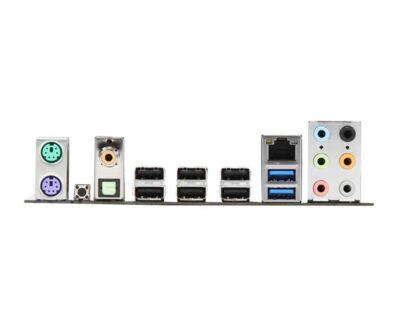

Back panel I/O ports
– 1 x PS/2 Keyboard port
– 1 x PS/2 Mouse port
– 1 x Clear CMOS button
– 1 x Coaxial SPDIF port
– 1 x Optical SPDIF port
– 1 x RJ45 LAN Jack
– 6 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x 6 in 1 audio jack
Internal I/O connectors
– ATX 24-Pin power connector
– 8-pin ATX 12V power connector
– 4-pin Power connector
– CPU x 1 / System x 4 FAN connectors
– Front panel audio connector
– Front panel connector
– 1 x chasis intrusion connector
– 2 x USB 2.0 connectors
– 1 x USB 3.0 connector
– 4 x Serial ATAII connectors
– 2 x Serial ATAIII connectors
– 1 x Serial port connector
– 1 x TPM Module connector
– 1 x Clear CMOS jumper
– 1 x Power button
– 1 x OC Genie button
– 1 x Multi BIOS switch
– 1 x Voice Genie connector
– 1 x MultiConnect Panel connector
BIOS features
• The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Form factor
ATX form factor: 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
