Product information

MSI Z370 Gaming Plus: Motherboard | ATX | Socket 1151 (voor 8e en 9e gen, CPU) | 4x DDR4 (max 64GB) | M.2 (PCI-e 3.0 x4 + SATA) | SATA-600 | PCI-e 3.0 x1 | PCI-e 3.0 x16 | Ethernet 1Gbps | USB 2.0 | USB 3.1

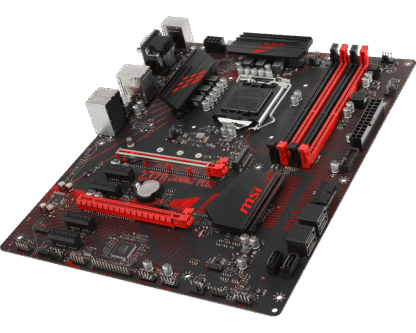

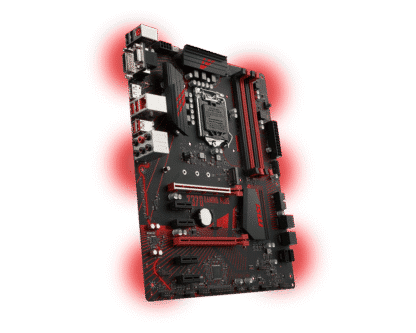

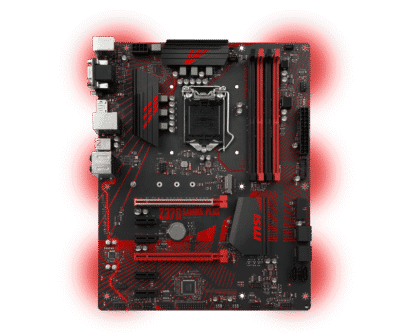

Product:MSI Z370 Gaming Plus
Socket: Socket 1151
Suitable for: 8th and 9th generation processors
Category: motherboards
Brand: MSI
Condition: Refurbished – BIOS updated to the latest version
EAN: 4719072540425
SKU: 7B61-002R, Z370 Gaming Plus, Z370GAMPLUS
Warranty: 6 months

Package content:
– Motherboard (MSI Z370 Gaming Plus)
– Backplate (blende)
– No manual
– No driver CD
– No cables

CPU
– Supports 9th / 8th generation Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

Chipset
-Intel® Z370

Memory
4 x DDR4 memory slots, support up to 64 GB
Supports DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000( OC) /2800(OC)/ 2667/ 2400/ 2133 MHz1
Supports Dual-Channel mode
Supports non-ECC, unbuffered memory
Supports Intel® Extreme Memory Profile (XMP)

Graphics
1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
1x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

Audio
– 7.1 Channel High Definition Audio

LAN
– 1 x Intel^® I219-V Gigabit LAN controller

Slots
– 2 x PCIe 3.0 x16 slots (support x16/x4 mode)
– 4 x PCIe 3.0 x1 slots

Internal connections
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 3.1 Gen1 connectors (supports 4 additional USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports 4 additional USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4 pin fan connector for the water pump
4 x 4-pin system fan connectors
1 x audio jack on the front panel
2 x Front panel connectors
1 x RGB LED connector
1 x TPM module connector
1 x Chassis Intrusion Connector
1 x Parallel Port Connector
1 x serial port connector
1 x Clear CMOS Jumper

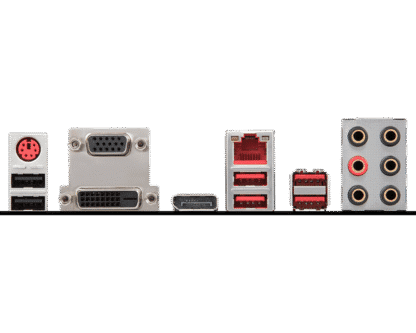

Rear Panel I/O
– Keyboard mouse
– VGA port
– Intel® Gigabit LAN
– Gold audio connectors
-USB 2.0
– DVI-D port
– Display Port
-USB 3.1 Gen1
-USB 3.1 Gen1

Accessories
– I/O Shield

Form Factor
– ATX Form Factor: 12.0in x 9.6in, 30.5cm x 24.4cm

OS
– Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
