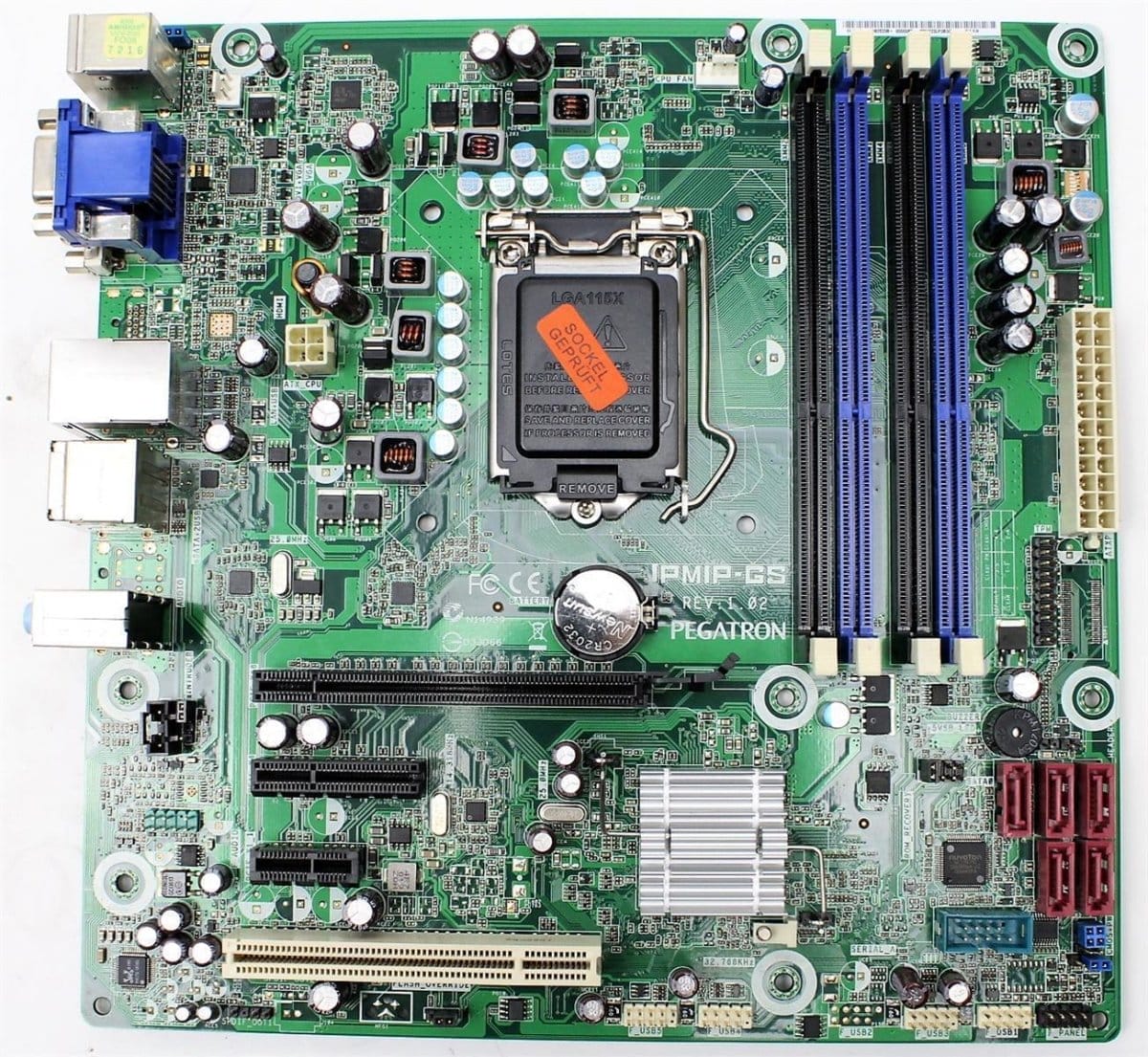

Pegatron IPMIP-GS LGA1156 motherboard

Specifications: Moederbord | LGA1156 | M-ATX | Intel H55 | 4 x DDR3 | VGA | DVI | USB 2.0 | PCI-e 2.0 x16| PCI-e 2.0 x2| PCI-e 2.0 x4 | PCI

Klik hier voor de drivers

Product: Pegatron IPMIP-GS
Categorie: Moederborden
Merk: Pegatron
SKU: IPMIP-GS
Staat: Gebruikt
Garantie: 6 Maanden

pakketinhoud:
– Moederbord
– IO-Shield (blikken achterplaatje)
– geen handleiding
– geen driver-cd
– geen kabels

Processor
Socket: LGA1156 package;
Processors supported: Intel Core i7/Core i5/Core i3;
Support for multi-core processors: yes;

Chipset
Chipset: Intel H55;
BIOS: AMI;
SLI/CrossFire: no;

Memory
Memory: DDR3 DIMM 1333 MHz;
Number of memory slots: 4;
Maximum memory: 16 GB;

Disk controllers
IDE: no;
SATA: number of connectors SATA 3Gb/s: 5;

Expansion slots
1xPCI-E x16,
1xPCI-E x4,
1xPCI-E x1,
1xPCI;

Audio/video
Sound: 5.1CH, HDA, based on the Realtek ALC662;
Network
Ethernet: 1000 Mbps;

Connection
Interfaces:
14x USB,
S/PDIF output,
1x COM,
D-Sub,
DVI,
1x eSATA,
Ethernet,
PS/2 (keyboard),
PS/2 (mouse);

Back panel connectors:
4 USB,
D-Sub,
DVI,
1x eSATA,
Ethernet,
PS/2 (keyboard),
PS/2 (mouse);

Advanced settings
Form factor: microATX;
