Product information

Supermicro X10SLQ: Motherboard | LGA1150/Sockel H | M-ATX | Intel Q87 chipset | 4 x DDR3 | DVI-D | HDMI | VGA | Display port | USB 2.0 | USB 3.2 (Gen1.5 Gb/s) | PCI-e 2.0 x1 | PCI-e 2.0 x4 | PCI-e 3.0 x16 | Mini PCI Express

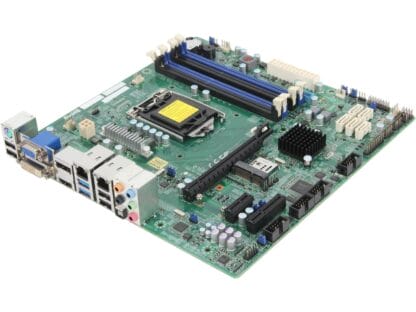

Product: Supermicro X10SLQ
Category: Motherboards
Socket: LGA1150/Sockel H3
Brand: Supermicro
EAN: 0672042134847
SKU: MBD-X10SLQ, X10SLQ
Condition: Used
Warranty: 6 Months

package content:
– Motherboard
– Backplate (blende)
– no manual
– no driver CD
– no cables

CPU
Intel® 4th Generation Core i3 Series, Intel® 4th Generation Core i5 Series, Intel® 4th Generation Core i7 Series, Intel® Celeron®, Intel® Pentium®.
Single socket LGA 1150 supported

Memory
Memory Capacity: Up to 32 GB unbuffered non-ECC UDIMM, in 4 DIMM slots
Memory type: 1600MHz non-ECC DDR3 SDRAM 64-bit, 204-pin gold-plated SODIMMs
DIMM sizes: 1GB, 2GB, 4GB, 8GB
Memory voltage: 1.35V, 1.5V

Onboard
Chipset: Intel® Q87 Express
SATA
Intel® Q87 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
via PCH with Intel RST

Network controllers
One LAN with Intel® PHY I217LM
One LAN with Intel® Ethernet Controller I210-AT

Audio
ALC 888S HD Audio

Graphic
Intel® HD 4600 graphics card
3 independent screens

Input / Output
LAN 2 RJ45 Gigabit Ethernet LAN Ports

USB
8 USB 2.0 ports (4 rear + 4 headers)
4 USB 3.0 ports (2 rear + 2 headers)

Video Out
1 VGA port, 1 HDMI port, 1 DVI – D port, 1 DP (DisplayPort) port,
3 independent screens

Serial port / header
4 COM ports (4 heads)
4 fast UART 16550 serial

TPM: 1 TPM header

Other
PS/2 connector for mouse and keyboard

Expansion Slots
PCI-E
1 PCI-E 3.0 x16 (in x16 slot)
1 PCI-E 2.0 x4
1 PCI-E 2.0 x1
Mini-PCI-E with mSATA support

Dimensions
Form factor microATX
Dimensions 9.6″ x 9.6″ (24.38cm x 24.38cm)

System BIOS
BIOS type
128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features
DMI (SMBIOS) 2.7
ACPI 5.0
USB keyboard support

Manage
Software
AMT, NMI, SuperDoctor® III, vPro, Watchdog
Power Configurations
ACPI power management
Main switch override mechanism
Power On Mode For AC Power Recovery
Internal/external modem ring-on

Power
Voltage : +1.8V, +12V, +3.3V, +5V, +5V standby, 5 phase switching voltage regulator with auto-sense from 0.8375V-1.60V, HT, VBAT

FAN
4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Low noise fan speed control, Pulse width modulated (PWM) fan connections, Status monitor for on/off control, Status monitor for speed control, Support 3-pin fans (without speed control)

Temperature
CPU and chassis environment monitoring, CPU thermal shutdown support, Adaptive Thermal Monitor, PECI 3.0

LED
CPU/System Overheat LED, +5V Standby Warning LED

Other features
Chassis Intrusion Detection, Chassis Intrusion Header
