Product information

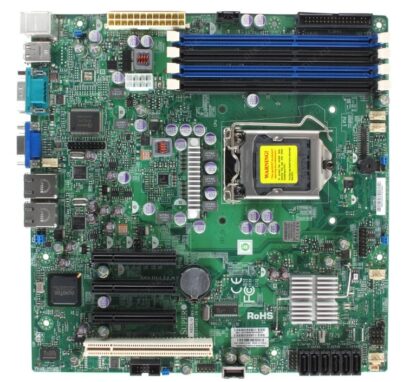

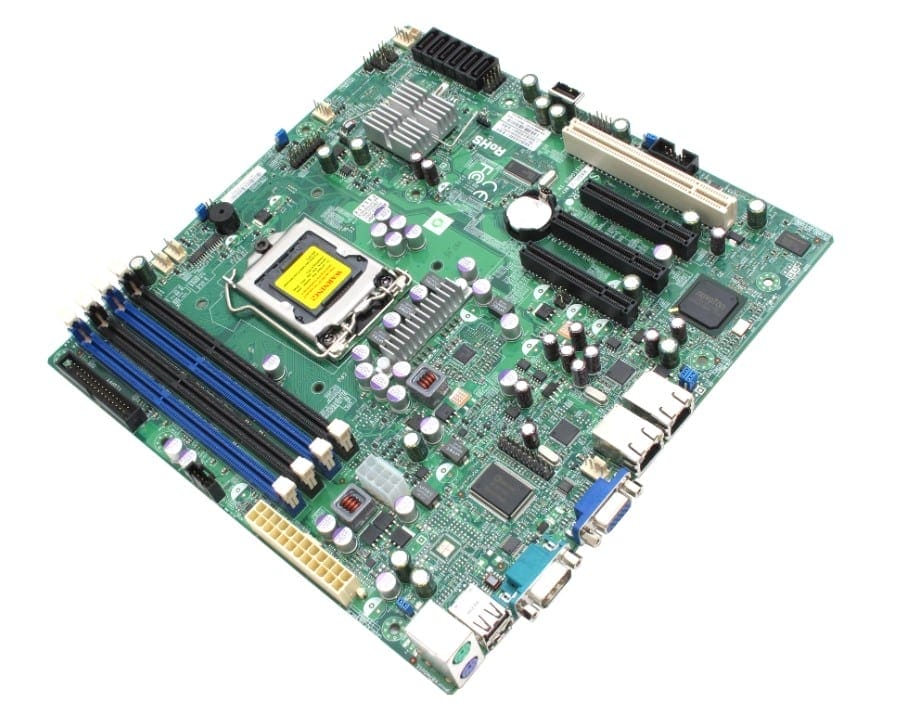

The Supermicro X8SIL-V is a Micro-ATX LGA1156 motherboard based on the Intel 3420 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Supermicro X8SIL-V has 6 Serial ATA connections for hard drives and SSDs.

Specifications: Motherboard | LGA1156 | M-ATX | Intel 3420 chipset | 4 x DDR3 | VGA | USB 2.0 | PCI-e 2.0 x8 | PCI | serial port

Product: Supermicro X8SIL-V-UL-W0002
Category: Motherboards
Brand: Supermicro
SKU: MBD-X8SIL-V
Condition: Used
Warranty: 6 Months

package content:
– Motherboard
– Backplate (Blende)
– no manual
– no driver CD
– no cables

CPU
LGA 1156 Socket
Intel Xeon X3400 series
Intel Xeon L3400 series
Intel Core i3
Intel Pentium G6950
Intel Celeron G1101

Memory
4x 240-pin DDR3 DIMM slots
Supports up to 32 GB DDR3 ECC Registered memory (RDIMM)
Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM)
1333 / 1066 / 800MHz
Dual Core processors of Ci3 and Pentium: support ECC UDIMM only

Onboard

Chipset: Intel 3420 chipset
SATA: 6x SATA (3Gbps)
RAID 0, 1, 5, 10 support (Windows)
RAID 0, 1, 10 support (Linux)
Super I/O: Winbond 83627DHG-P
Clock Generator: CK505

Network controllers
2x Intel® 82574L Gigabit Ethernet Controllers
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Graphic
Matrox G200eW 16MB DDR2

Input / Output

LAN
2x RJ45 LAN ports

USB
2x USB ports on the back
1x USB on board
2x USB internal header (4 ports)
Total 7 USB 2.0 Compatible

VGA
1x VGA port

Keyboard mouse
PS/2 keyboard and mouse ports

Other
Serial Port / Header
1x Fast UART 16550 Serial Port
1x internal head

Expansion Slots

PCI Express
2 (x8) PCI-E 2.0 slot
1 (x4) PCI-E (with x8 slot)

PCI
1 32-bit PCI slot

Dimensions
Form factor microATX
Dimensions 9.6″ x 9.6″ (24.38cm x 24.38cm)

System BIOS
BIOS type
32Mb SPI Flash EEPROM with AMI BIOS

BIOS Features
DMI 2.3
PCI 2.2
ACPI 1.0 / 2.0
USB Keyboard support
SMBIOS 2.3

Power
ACPI / ACPM Power Management
Main Switch Override Mechanism
Wake-On-LAN (WOL) header
Keyboard Wakeup from Soft-Off
Power-on mode for AC power recovery
Internal/External modem ring-on

FAN
Total of 5 fan headers supporting up to 5 fans
Five 4-pin fan headers
5x fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Support 3-pin fans (w/o speed control)
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors

Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
FC temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI

LED
CPU/System Overheat LED, +5V Standby Warning LED

Other features
Chassis Intrusion Detection, Chassis Intrusion Header
