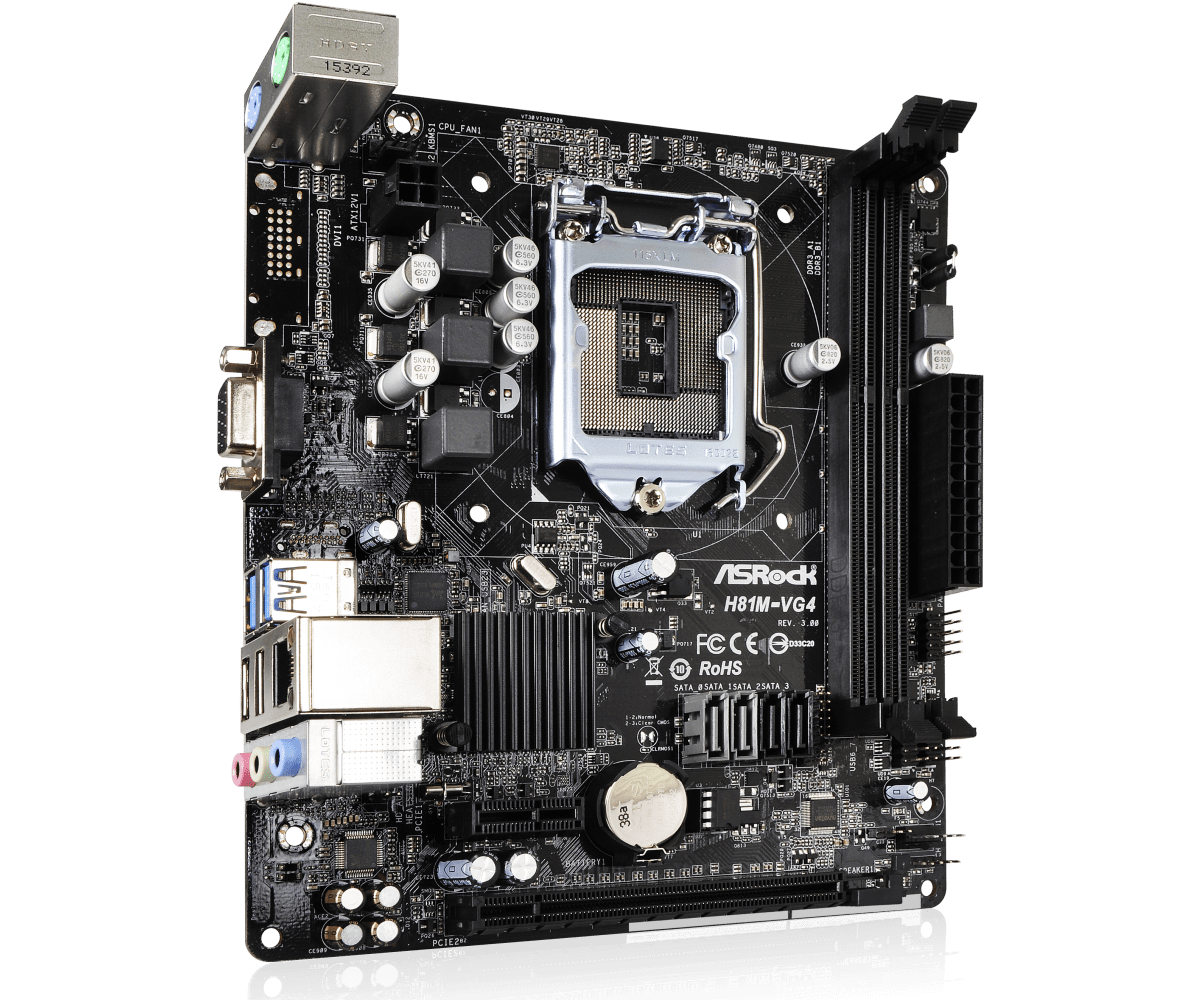

De ASRock H81M-VG4 R3.0 is een Micro-ATX Socket 1150 moederbord gebaseerd op de Intel H81 chipset. Het bord moet worden gecombineerd met DDR3-geheugen, waarvoor 2 slots beschikbaar zijn. In totaal heeft de ASRock H81M-VG4 R3.0 4 Seriële ATA-aansluitingen voor harde schijven en SSD’s. De ingebouwde geluidskaart biedt 7.1-kanaals geluid en is gebaseerd op een Realtek ALC887-chip.
Kenmerken: Moederbord | Micro-ATX | Socket 1150 | 2x DDR3 | 2x SATA-600 | 2x SATA-300 | 1x PCI-e 2.0 x16| 1x PCI-e 2.0 x1 | USB 3.1 (Gen1, 5 Gb / s) | USB 2.0 | HDMI | DVI-D | D-Sub (VGA)
Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers
Product: ASRock H81M-VG4 R3.0
Socket: Socket 1150
Categorie: moederborden
Merk: ASRock
EAN: 4717677329926
Staat: refurbished – BIOS bijgewerkt naar de nieuwste versie
SKU: 90-MXB1J0-A0UAYZ, H81M-VG4 R3.0
Garantie: 6 maanden
Inhoud pakket:
– Moederbord (ASRock H81M-VG4 R3.0)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels
CPU
– Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Supports Intel® Turbo Boost 2.0 Technology
Chipset
– Intel® H81
Memory
– Dual Channel DDR3/DDR3L Memory Technology
– 2 x DDR3/DDR3L DIMM Slots
– Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 32Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 1.1 Compliant wake up events
– SMBIOS 2.3.1 support
– CPU, DRAM Voltage multi-adjustment
Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 1024MB*
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
*The size of maximum shared memory may vary from different operating systems.
**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
***Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
– Supports Surge Protection (ASRock Full Spike Protection)
*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111C
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports PXE
Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode)
– 1 x PCI Express 2.0 x1 Slot
Storage
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
– 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

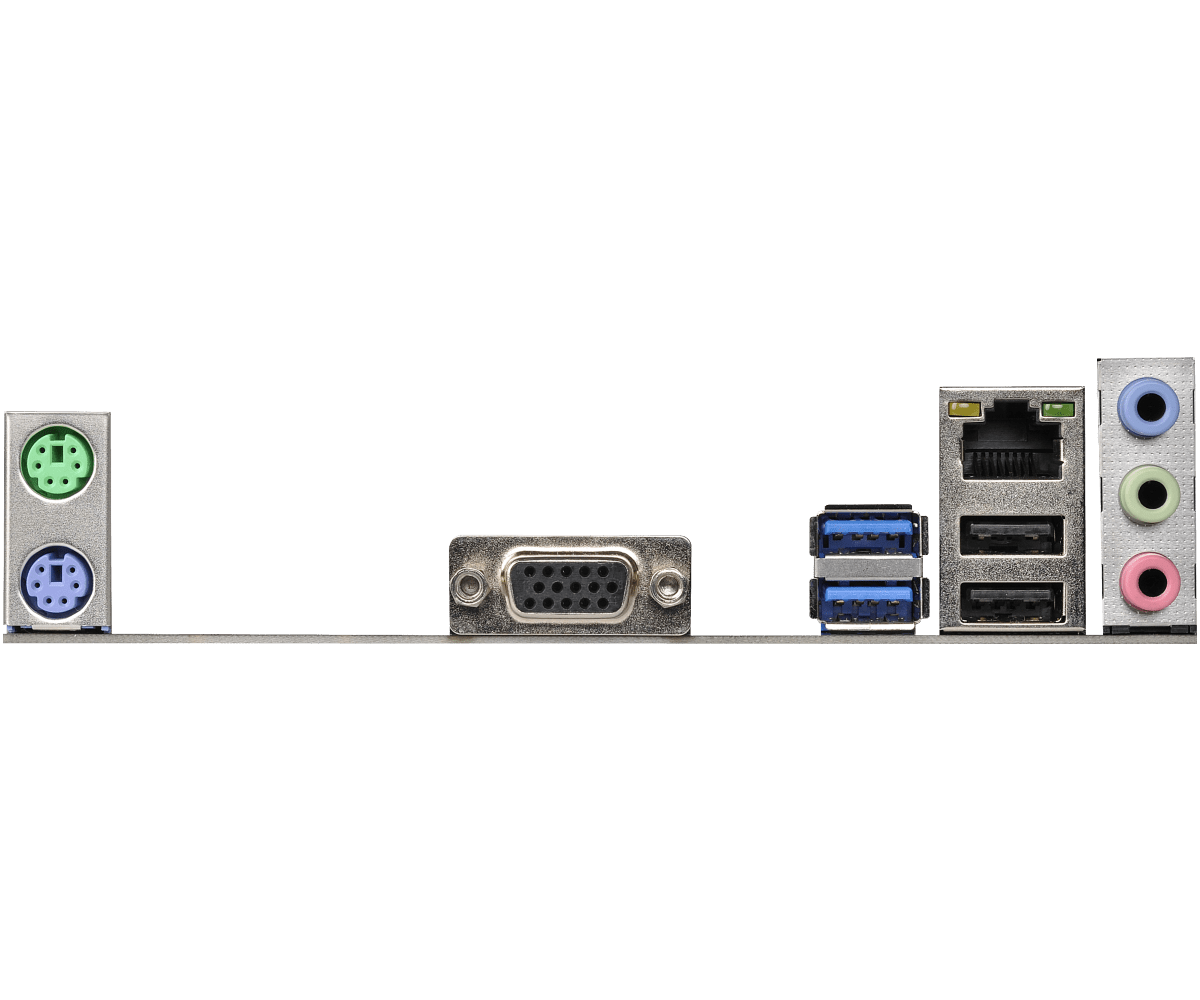

Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Line in / Front Speaker / Microphone
Unique Feature
Software
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)*
UEFI
– ASRock Interactive UEFI
– ASRock UEFI Guide
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock UEFI Tech Service
– ASRock Easy Driver Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
– I/O Shield
Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Tachometer
– CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
– Micro ATX Form Factor
– Solid Capacitor for CPU power
OS
– Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit*
*For the updated Windows® 10 driver, please visit ASRock’s website for details.
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Gewicht | 1 kg |
---|---|
Intel | Socket 1150 |
Merk | Asrock |
Chipset | Intel H81 |
Formaat | Micro-ATX |
Geheugentype | DDR3 |
Aantal geheugenslots | 2 |
Maximale geheugengrootte | 16 GB |
Aansluitingen | D-Sub (VGA), Ethernet (RJ-45), USB 2.0, USB 3.1 Gen1 |
Opslag interfaces | Serial ATA-300, Serial ATA-600 |
Interfaces | PCI-e 2.0 x1, PCI-e 2.0 x16 |
Socket |
Snelle levering
Merk: Asrock
Model: H81M-VG4 R3.0
Socket: Socket 1150
Geheugen: 2x DDR3 (16GB Max)
Form-Factor: Micro-ATX
EAN: 4717677329926
SKU: 90-MXB1J0-A0UAYZ, H81M-VG4 R3.0
