Product informatie

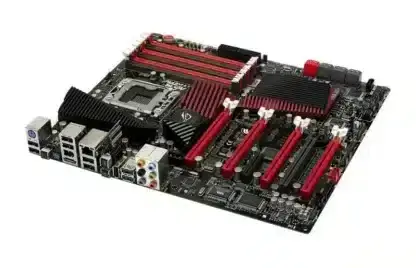

Het Asus Rampage III Extreme Socket 1366 moederbord is een ATX moederbord welke is voorzien van 6 DDR3 geheugensloten. Het Asus Rampage III Extreme is een luxe LGA1366 moederbord welke is voorzien van o.a. een netwerk (RJ-45) aansluiting, IEEE1394, eSATA en maar liefst 6 DDR3 geheugen sloten

Moederbord – Socket LGA1366 | E-ATX | Intel X58 Chipset | 6 x DDR3 up to 24GB | Gigabit Ethernet | PCI | PCI-e 2.0 x16 | PCI-e x4 | eSATA | USB 2.0 | IEEE1394a | SATA-300 | SATA-600

Processoren die ondersteund worden door de Asus Rampage III Extreme
Drivers voor de Asus Rampage III Extreme

Product: Asus Rampage III Extreme Socket 1366;
Categorie: Intel socket 1366 Moederborden;
Merk: ASUS;
EAN: 4719543176023
SKU: 90-MIBC10-G0EAY00Z, Rampage III Extreme
Staat: Gebruikt
Garantie: 3 Maanden

pakketinhoud:
– Moederbord (Asus Rampage III Extreme)
– IO-Shield (blikken achterplaatje)
– geen handleiding
– geen driver-cd
– geen kabels

CPU
LGA1366 socket for Intel® Core™i7 Processor Extreme
Edition / Core™i7 Processor
Supports Intel® Turbo Boost Technology

Chipset
Intel® X58 / ICH10R
System Bus Up to 6.4 GT/s with QuickPath Interconnection

Memory
Tri-channel memory architecture
6 x DIMM, max. 24GB, DDR3 2200(O.C.)/2133(O.C.)/
2000(O.C)/1800(O.C.)/1600/1333/1066 MHz, 2000(O.C)/1800(O.C.)/1600/1333/1066 MHz,
non-ECC, un-buffered memory modules non-ECC, un-buffered memory modules
* Hyper DIMM support is subject to the physical
characteristics of individual CPUs. characteristics of individual CPUs.
* Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.asus.com or user manual for the
Memory QVL(Qualified Vendors List). Memory QVL(Qualified Vendors List).

Expansion Slots
4 x PCIe2.0 x16 slots, support x16; x16/x16; x16/x8/x8
and x8/x8/x8/x8 configurations and x8/x8/x8/x8 configurations
1 x PCIe x4
1 x PCI 2.2

Multi-GPU Technology
Support NVIDIA 3-Way SLI™ / ATI CrossFireX™
Technology Technology
4 PCIe x16 slots ready for 4 single PCB graphic cards

Storage
Intel® ICH10R Southbridge:
– 6 x SATA 3.0 Gb/s ports
– Intel® Matrix Storage Technology supports RAID
0, 1, 5, and 10
JMicron® 363 controller:
– 1 x SATA 3.0 Gb/s port
– 1 x External SATA 3.0 Gb/s port (SATA On-the-Go)
Marvell® PCIe SATA 6Gb/s controller:
– 2 x SATA 6.0 Gb/s ports – 2 x SATA 6.0 Gb/s ports

LAN
Gigabit Intel® PHY

High Definition Audio
8-channel High Definition Audio CODEC
– Blu-ray audio layer Content Protection
– Supports Jack-Detection, Multi-streaming, Front
Panel Jack-Retasking
– Supports 1 Optical S/PDIF out port at back I/O

Bluetooth Module
Accessory Card
Bluetooth V2.0/V2.1+EDR
RC Bluetooth On/Off Switch

IEEE 1394a
2 x 1394a ports (1 port at back I/O, 1 port onboard)

USB
NEC® USB 3.0 controller
– 2 x USB 3.0/2.0 ports (at back panel)
Intel® ICH10R Southbridge
– 9 x USB 2.0/1.1 ports (2 ports at midboard; 6 ports
at back panel, 1 reserved for ROG Connect)

ROG Exclusive Overclocking Features
ROG Connect
RC Bluetooth
ROG Extreme Engine Digi+
– 8-phase CPU power 8-phase CPU power
– 3-phase QPI/DRAM power 3-phase QPI/DRAM power
– 3-phase NB power 3-phase NB power
– 3-phase Memory power 3-phase Memory power
– ML Caps on CPU, Memory and QPI respectively ML Caps on CPU, Memory and QPI respectively
ProbeIt
iROG
Extreme Tweaker
BIOS Flashback with onboard switch button
USB BIOS Flashback
Loadline Calibration
ROG Extreme OC kit
– LN2 Mode LN2 Mode
– PCIe x16 Lane Switch PCIe x16 Lane Switch
– Q_Reset Q_Reset
– Double Power Supply with dual 8-pin (CPU) and Double Power Supply with dual 8-pin (CPU) and
dual 4-pin (VGA) molex power connectors dual 4-pin (VGA) molex power connectors
Intelligent overclocking tools:
– ASUS AI Booster Utility ASUS AI Booster Utility
– O.C Profile O.C Profile
Overclocking Protection:
– COP EX (Component Overheat Protection-EX) COP EX (Component Overheat Protection-EX)
– Voltiminder LED Voltiminder LED
– ASUS C.P.R.(CPU Parameter Recall) ASUS C.P.R.(CPU Parameter Recall)

Other Special Features

CPU Level Up
MemOK!
Onboard Switches: Power / Reset / Clr CMOS (at rear)
ASUS MyLogo3
ASUS Fan Xpert
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
Q-Fan Plus
ROG BIOS Wallpaper
ASUS Q-Connector
ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
ASUS Q-Slot
ASUS Q-DIMM

BIOS Features
16Mb AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5,
ACPI2.0a Multi-Language BIOS

Manageability
WOL by PME, WOR by PME, PXE

Back Panel
I/O Ports 1 x PS/2 Keyboard port (purple)
2 x USB 3.0/2.0 ports
7 x USB 2.0 ports (1 port also for ROG Connect)
1 x External SATA port
1 x LAN (RJ45) port
1 x Clr CMOS switch
1 x ROG Connect On/Off switch
1 x S/PDIF Out (Optical)
1 x IEEE1394a port
8-channel Audio I/O

Internal I/O Connectors
9 x SATA connectors: 2 x SATA 6G connectors (Red);
7 x standard SATA connectors (6 in Grey, 1 in Black) 7 x standard SATA connectors (6 in Grey, 1 in Black)
8 x Fan connectors: 1 x CPU / 1 x PWR / 3 x Chassis /
3 x Optional 3 x Optional
1 x Connector for optional fan-thermal module
8 x ProbeIt Measurement Points
3 x Thermal sensor connectors
1 x IEEE1394a connector
1 x SPDIF_Out Connector
1 x 24-pin ATX Power connector
2 x 8-pin ATX 12V Power connectors
1 x En/Dis-able Clr CMOS header
1 x LN2 Mode Header
1 x START (Power On) button
1 x RESET button
2 x EZ Plug connectors (4-pin Molex Power connectors)
1 x OC Station header
1 x RC Bluetooth header
1 x Go Button
1 x BIOS Switch button
1 x ROG light connector
1 x CD Audio in
1 x Audio front panel
1 x System panel connector

Form Factor
extended ATX Form Factor, 12”x 10.6” (30.5cm x 26.9cm)
