Product informatie

Het Gigabyte GA-Z87X-OC moederbord is een ATX moederbord met plaats voor 4 DDR3 geheugen modules, met een maximum van 32GB. Het Gigabyte GA-Z87X-OC moederbord is voorzien van PCI, PCI-e x1 enPCI-e 3.0 x16 sloten.

Specificaties:
 moederbord | Socket LGA1150 | Intel Z87-chipset | PCI | PCI-e 2.0 x1 | PCI-e x16 | PCI-e  x1 | Sata-600 | USB 2.0 | USB 3.0 | Displayport | 2x HDMI


Product:GA-Z87X-OC
Socket: 1150
Categorie:
Moederborden
Merk: Gigabyte
Staat: Gebruikt
EAN: 0781608517007, 0818313017000, 0907753426708, 4719331815271, 8183130170002
SKU:
GA-Z87X-OC
Garantie: 6 maanden


Drivers voor de Gigabyte GA-Z87X-OC
Processoren die door de Gigabyte GA-Z87X-OC worden ondersteund


pakketinhoud:
– Moederbord (GA-Z87X-OC)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels


CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)


Chipset
Intel® Z87 Express Chipset


Memory
4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules


Onboard Graphics
2 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
1 x DisplayPort port, supporting a maximum resolution of 3840 x 2160 @ 60 Hz / 2560 x 1600 @ 60 Hz
* Support for DisplayPort 1.2 version.
Maximum shared memory of 1 GB


Audio
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In
Support for S/PDIF Out


LAN
Intel® GbE LAN chip (10/100/1000 Mbit)


Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one expansion card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. It will operate at up to x8 mode when the PCIEX16 is populated.

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
* The PCIEX4_1 slot shares bandwidth with the PCIEX16 and PCIEX8 slots. When it is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 slot will operate at up to x4 mode.
* When installing a x8 or above card in the PCIEX4_1 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4. (Refer to Chapter 2, “BIOS Setup,” “Peripherals,” for more information.)
(The PCIEX16, PCIEX8, and PCIEX4_1 slots conform to PCI Express 3.0 standard.)

1 x PCI Express x1 slot
(The PCIEX4_2 and PCIEX1_1 slots conform to PCI Express 2.0 standard.)

2 x PCI slots


Chipset:
6 x SATA 6Gb/s connectors (SATA3 0~5) supporting up to 6 SATA 6Gb/s devices
Support for RAID 0, RAID 1, RAID 5, and RAID 10


USB Chipset:
Up to 2 USB 3.0/2.0 ports (available through the internal USB header)
Up to 8 USB 2.0/1.1 ports (2 ports on the back panel, 2 ports onboard, 4 ports available through the internal USB headers)
Chipset + 2 Renesas® uPD720210 USB 3.0 Hubs:
Up to 8 USB 3.0/2.0 ports (6 ports on the back panel, 2 ports available through the internal USB header)


Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x OC PEG power connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling fan header (CPU_OPT)
6 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x S/PDIF In header
2 x USB 3.0/2.0 headers
2 x USB 2.0/1.1 headers
2 x USB 2.0/1.1 ports
1 x serial port header
1 x Clear CMOS jumper
1 x power button
1 x reset button
1 x Clear CMOS button
1 x Gear button
1 x OC Turbo button
1 x OC Tag button
1 x CPU BCLK Down button
1 x CPU BCLK Up button
1 x CPU Ratio Down button
1 x CPU Ratio Up button
1 x Memory Safe button
1 x Settings Lock button
1 x Direct to BIOS button
1 x OC Trigger switch
1 x OC PCIe switch
1 x Clear Battery button
2 x BIOS switches
1 x onboard voltage measurement module

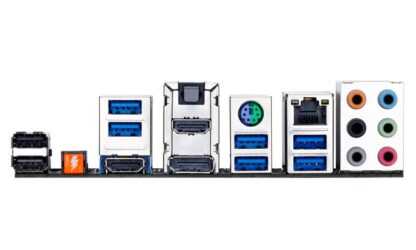

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x OC Ignition button
6 x USB 3.0/2.0 ports
1 x optical S/PDIF Out connector
2 x HDMI ports
1 x DisplayPort
1 x PS/2 keyboard/mouse port
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)


I/O Controller
iTE® I/O Controller Chip


H/W Monitoring
System voltage detection
CPU/System/Chipset temperature detection
CPU/CPU OPT/System fan speed detection
CPU/System overheating warning
CPU/CPU OPT/System fan fail warning
CPU/CPU OPT/System fan speed control


BIOS
2 x 128 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Unique Features
Support for Q-Flash
Support for Xpress Install
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
ON/OFF Charge2
USB Blocker


Operating System
Support for Windows 10/8.1/8/7


Form Factor
ATX Form Factor; 30.5cm x 24.4cm

Specificaties

Gewicht 1 kg
Intel

Socket 1150

Merk

Gigabyte

Chipset

Intel Z87

Formaat

ATX

Geheugentype

DDR3

Aantal geheugenslots

4

Maximale geheugengrootte

32 GB

Aansluitingen

Displayport, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.0

Opslag interfaces

Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

Model

GA-Z87X-OC

Lengte

30.5 cm

Breedte

24.4 cm

Pakketinhoud

Moederbord en I/O-Shield

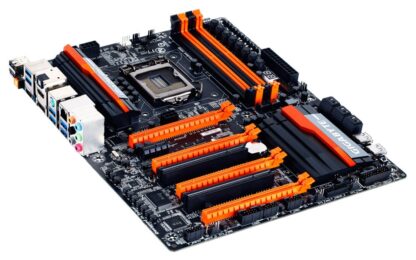

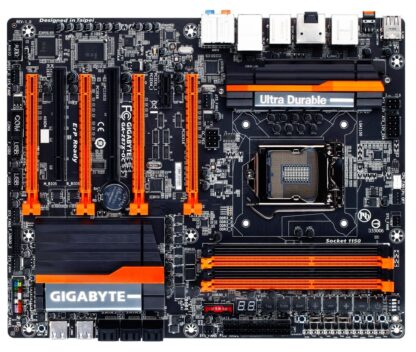

Gigabyte GA-Z87X-OC socket 1150 moederbord

Snelle levering

  • Ondersteunt 4e generatie Intel® Core™-processors
  • GIGABYTE Ultra Durable™ 5 Plus-technologie
  • Alle IR Digital Power-ontwerp
  • GIGABYTE UEFI DualBIOS™
  • Exclusieve GIGABYTE OC-functies
  • GIGABYTE-geheugenkluis/instelslot/direct naar BIOS
  • Unieke OC-ontstekingsfunctie
  • Unieke OC Brace-functie
  • Vergulde DDR/PCIe-slots en stroomaansluitingen
  • Premium 4-way CrossFire™-ondersteuning
  • Duurzame zwarte vaste condensatoren
  • GIGABYTE On/Off Charge™ 2 voor USB-apparaten
  • Intel® LAN met hoge ESD-bescherming
  • Nieuw koellichaamontwerp met 8 ingebouwde ventilatoraansluitingen
  • 10 USB 3.0-poorten
