Product informatie

MSI H87I : moederbord |Mini-ITX | Intel Socket 1150 | H87 Chipset | DDR3 (max. 16GB) | PCI-e 2.0 x16 | SATA-600 |  USB 2.0 | USB 3.0 | Wifi | LAN | HDMI | DVI-1 | Displayport

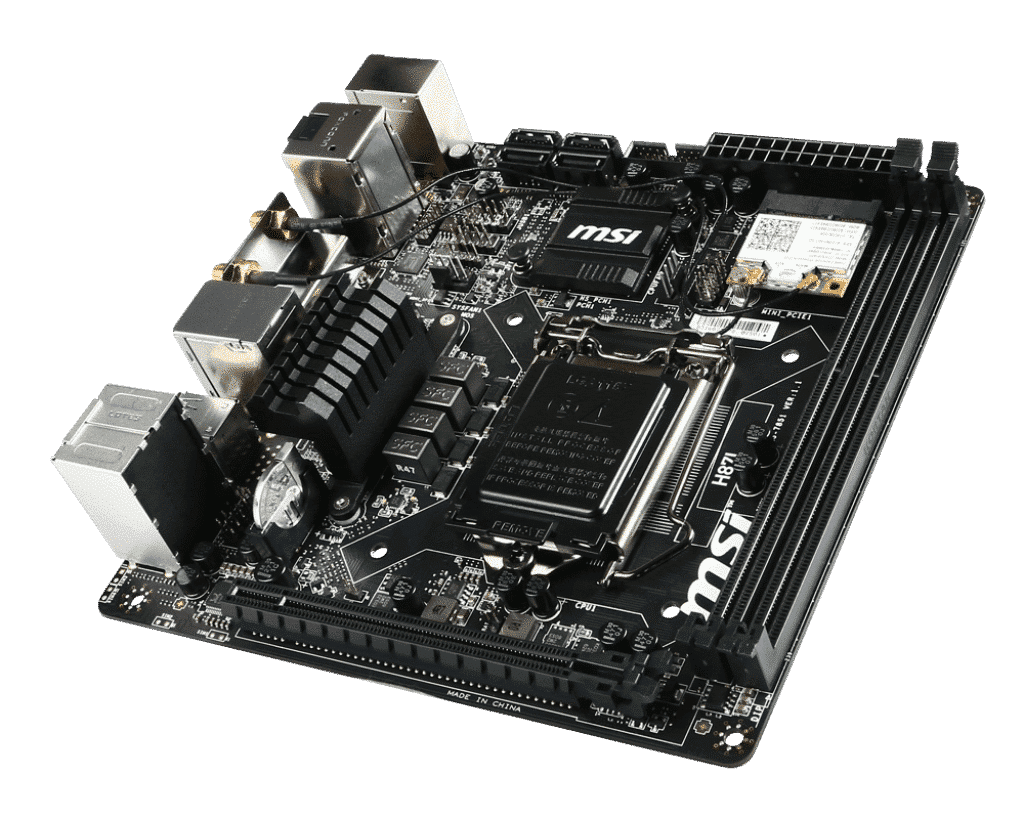

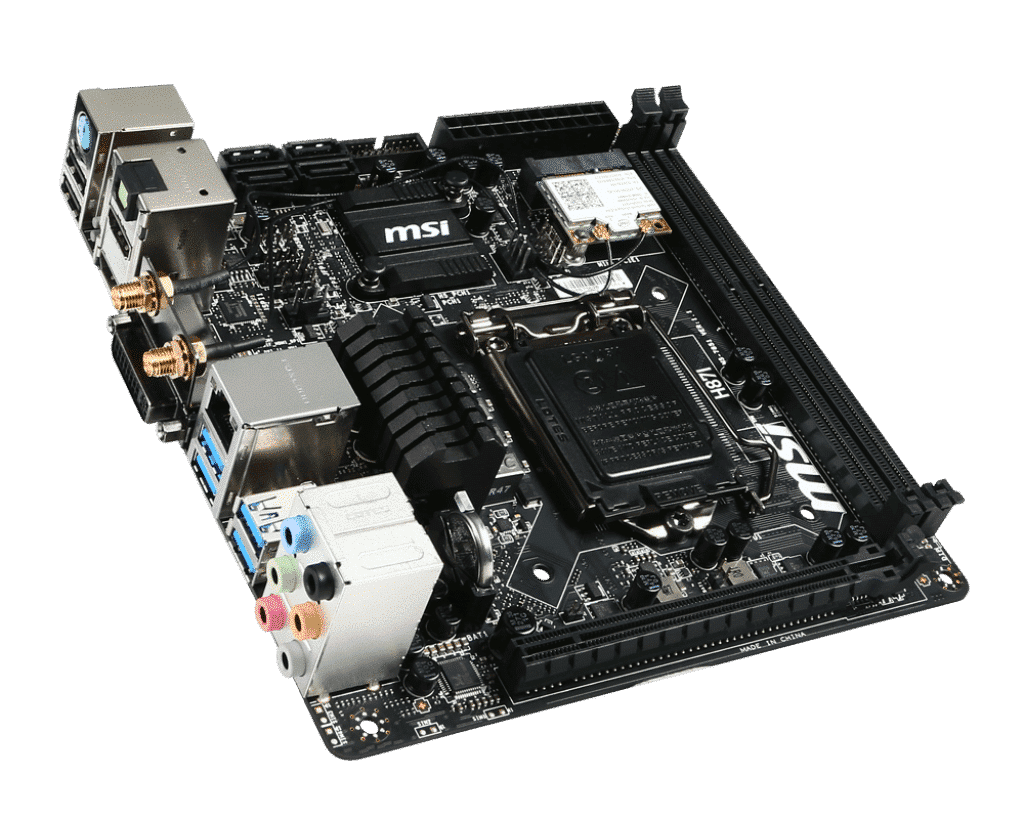

Product: MSI H87I
Socket: Socket 1150
Merk: MSI
Staat: Used, Bios ge-update naar de laatst beschikbare versie
EAN: 4719072301903
SKU:7851-020R
Garantie: 6 maanden

Drivers voor de MSI H87I
Processoren ondersteund door de MSI H87I

pakketinhoud:
– Moederbord (MSI H87I )
– IO-Shield (blikken achterplaatje)
– Geen antennes
– Geen handleiding
– Geen driver-cd
– Geen kabels

CPU
4th Generation Intel^® Core™ i7 / Core™ i5 / Core™ i3 / Pentium^® / Celeron^® processors for LGA 1150 socket

Chipset
Intel^®  H87 Express Chipset

Memory
Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
– Supports Dual-Channel mode
– Supports non-ECC, un-buffered memory
– Supports Intel® Extreme Memory Profile (XMP)

Audio
• Realtek® ALC892 Codec
– 7.1-Channel High Definition Audio
– Supports S/PDIF output

Wireless LAN (optional)
Wi-Fi/Bluetooth mini-PCIe card with Intel Centrion Wireless-N 2230 chip.
– Supports Wi-Fi 802.11 b/g/n, dual band up to 300 Mbps speed.
– Supports Intel® Wireless Display (WiDi)

Bluetooth(optional)
 Wi-Fi/Bluetooth mini-PCIe card with Intel Centrion Wireless-N 2230 chip.
– Supports Bluetooth v4.0 (includes BLE* and Bluetooth 3.0+HS
* BLE: Bluetooth Low Energy

LAN
• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek^® RTL8111G

Multi-GPU
• Supports AMD CrossFire™ Technology

Expansion Slots
• 1 x PCIe 3.0 x16 slot
– 1 x Half-size mini-PCIe slot*
*An Intel Centrion Wireless-N 2230 Wi-Fi/Bluetooth card pre-installed.

Storage Interface•
SATAIII controller integrated in Intel® H87 chipset
– Up to 6Gb/s transfer speed.
– Supports four SATAIII ports (SATA1~4) by H87
– Supports Intel Smart Response Technology*
– Supports Intel Rapid Start Technology and Intel Smart Connect Technology*
* Supports Intel Core processors on Windows 7 and Windows 8

USB
• 6x USB 3.0 ports (4 ports on the back panel, 2 ports available through the internal USB connectors)
• 4x USB 2.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)

Internal I/O Connectors
– 1 x ATX 24-Pin power connector
– 1 x 4-pin ATX 12V power connector
– 1 x 4-pin CPU fan connectors
– 1 x 4-pin system fan connectors
– 1 x Clear CMOS jumper
– 4 x Serial ATAIII connectors
– 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
– 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
– 1 x Serial port connector
– 2 x System panel connectors
– 1 x Front Panel Audio connector

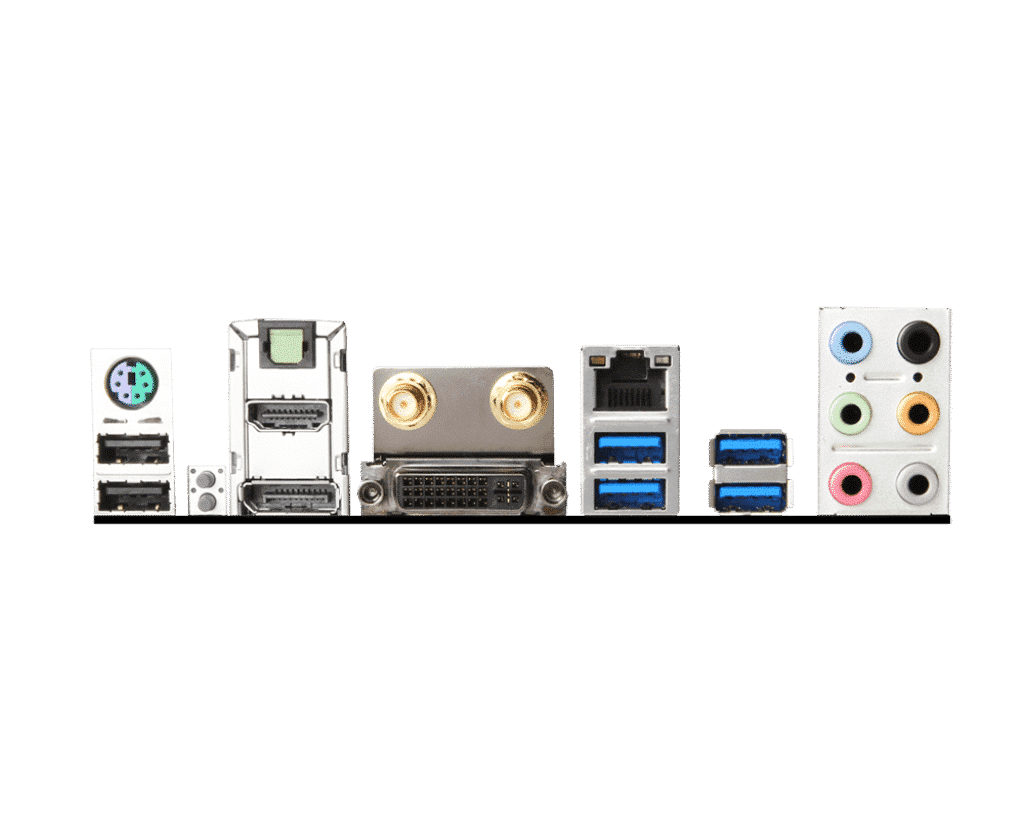

Back Panel Connectors
– 1 x PS/2 keyboard/ mouse combo port
– 1 x Clear CMOS button
– 1 x GO2BIOS button
– 2 x USB 2.0 ports
– 4 x USB 3.0 ports
– 1 x Optical S/PDIF-out connector
– 1 x RJ45 LAN Jack
– 1 x 6 in 1 audio jack
– 1 x DisplayPort with max. resolution of 4096×2160@24Hz, 24bpp/ 3840×2160@60Hz, 24bpp
– 1 x HDMI® port with max. resolution up to 4096×2160@24Hz, 24bpp/2560×1600@60Hz, 24bpp/1920×1080@60Hz, 36bpp
– 1 x DVI-I port with max. resolution up to 1920×1200 @60Hz, 24bpp

MSI Reminds You…
• This motherboard supports dual-display function by any two onboard graphics output ports (HDMI+DVI,DVI+DisplayPort or DisplayPort+HDMI).

BIOS
• The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Operating System
Support for Windows 10 64-bit

Form Factor
Mini-ITX Form Factor
6.7 in. x 6.7 in. (17 cm x 17 cm)
