Product information

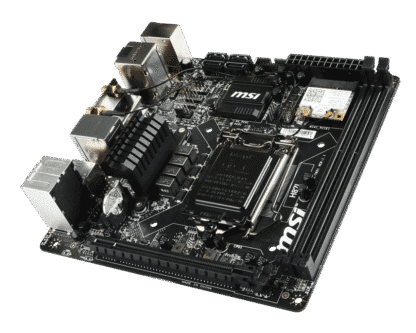

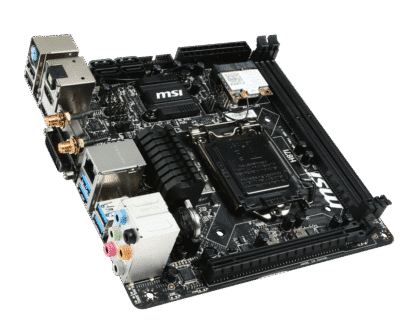

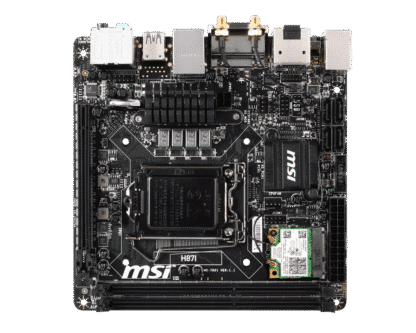

MSI H87I : motherboard |Mini-ITX | Intel Socket 1150 | H87 Chip Set | DDR3 (max. 16GB) | PCIe 2.0 x16 | SATA-600 | USB 2.0 | USB 3.0 | Wi-Fi | LAN | HDMI | DVI-1 | Display port


Product: MSI H87I
Socket:
Socket 1150
Brand: MSI
Condition: Used, Bios updated to latest available version
EAN: 4719072301903
SKU:
7851-020R
Warranty: 6 months


package content:
– Motherboard (MSI H87I )
– Backplate (Blende)
No antennas
– No manual
– No driver CD
– No cables


CPU
4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket


Chipset
Intel®  H87 Express Chipset


Memory
Support two DDR3 DIMMs 1066/1333/1600MHz, up to 16GB Max
– Supports Dual Channel mode
– Supports non-ECC, unbuffered memory
– Supports Intel® Extreme Memory Profile (XMP)


Audio
• Realtek® ALC892 Codec
– 7.1 Channel High Definition Audio
-Support S/PDIF output


Wireless LAN (optional)
Wi-Fi/Bluetooth mini-PCIe card with Intel Centrion Wireless-N 2230 chip.
– Supports Wi-Fi 802.11 b/g/n, dual band up to 300 Mbps speed.
– Supports Intel® Wireless Display (WiDi)


Bluetooth(optional)
 Wi-Fi/Bluetooth mini-PCIe card with Intel Centrion Wireless-N 2230 chip.
– Supports Bluetooth v4.0 (includes BLE* and Bluetooth 3.0+HS
*BLE:Bluetooth Low Energy


LAN
• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G


Multi GPU
• Supports AMD CrossFire™Technology


Expansion Slots
• 1 x PCIe 3.0 x16 slot
– 1 x Half-size mini-PCIe slot*
*An Intel Centrion Wireless-N 2230 Wi-Fi/Bluetooth card pre-installed.


Storage Interface•
SATAIII controller integrated in Intel® H87 chipset
– Up to 6Gb/s transfer speed.
– Supports four SATAIII ports (SATA1~4) by H87
-Supports Intel Smart Response Technology*
– Supports Intel Rapid Start Technology and Intel Smart Connect Technology*
* Supports Intel Core processors on Windows 7 and Windows 8


USB
• 6x USB 3.0 ports (4 ports on the back panel, 2 ports available through the internal USB connectors)
• 4x USB 2.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)


Internal I/O Connectors
– 1 x ATX 24-Pin power connector
– 1 x 4-pin ATX 12V power connector
– 1 x 4-pin CPU fan connector
– 1 x 4-pin system fan connectors
– 1 x Clear CMOS jumper
– 4 x Serial ATAIII connectors
– 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
– 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
– 1 x Serial port connector
– 2 x System panel connectors
– 1 x Front Panel Audio connector

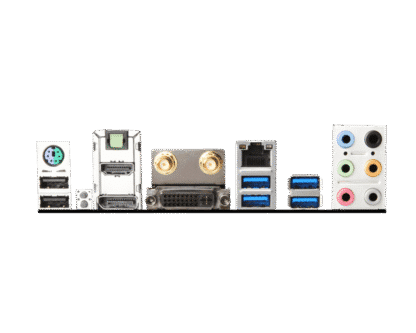

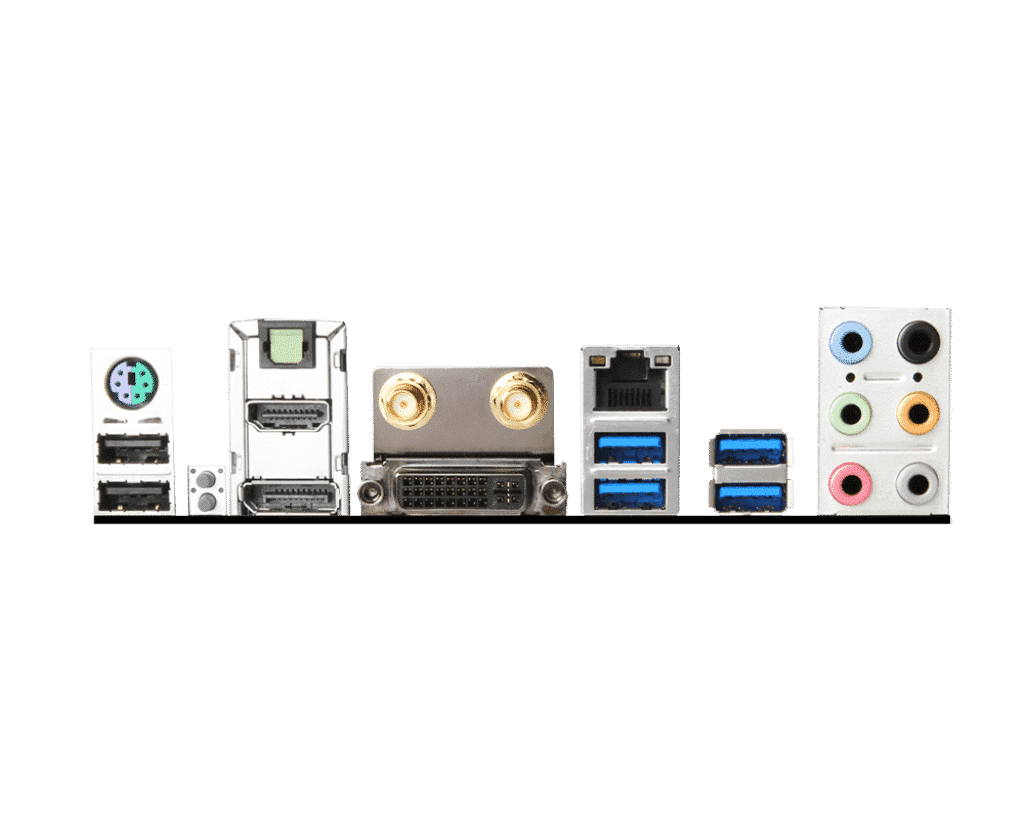

Back Panel Connectors
– 1 x PS/2 keyboard/mouse combo port
– 1 x Clear CMOS button
– 1 x GO2BIOS button
– 2 x USB 2.0 ports
– 4 x USB 3.0 ports
– 1 x Optical S/PDIF out connector
– 1x RJ45 LAN Jack
– 1 x 6 in 1 audio jack
– 1 x DisplayPort with max. resolution of 4096×2160@24Hz, 24bpp/ 3840×2160@60Hz, 24bpp
– 1 x HDMI® port with max. resolution up to 4096×2160@24Hz, 24bpp/2560×1600@60Hz, 24bpp/1920×1080@60Hz, 36bpp
– 1 x DVI-I port with max. resolution up to 1920×1200 @60Hz, 24bpp

MSI Reminds You…
• This motherboard supports dual-display function by any two onboard graphics output ports (HDMI+DVI,DVI+DisplayPort or DisplayPort+HDMI).


BIOS
• The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.


Operating System
Support for Windows 10 64 bit


Form Factor
Mini ITX Form Factor
6.7in. x 6.7in. (17cm x 17cm)

Specification

Weight 1 kg
Intel

LGA1150

Brand

MSI

Form Factor

Mini-ITX

Chipset

Intel H87

Memory Type

DDR3 SDRAM

Number of memory slots

2, 4

Maximum memory size

16 GB

Connectors

Displayport, DVI-D, Ethernet (RJ-45), HDMI, PS/2, USB 2.0, USB 3.0, Wifi

Storage Interfaces

Serial ATA-600

Interfaces

Half Mini-PCI Express Slot, PCI-e 2.0 x16

Socket

Model

H87I

Length

17 cm

Width

17 cm

package content

Motherboard and Backplate (Blende)
