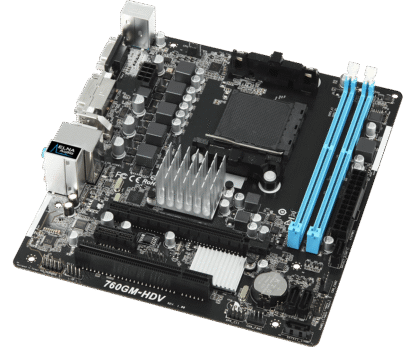

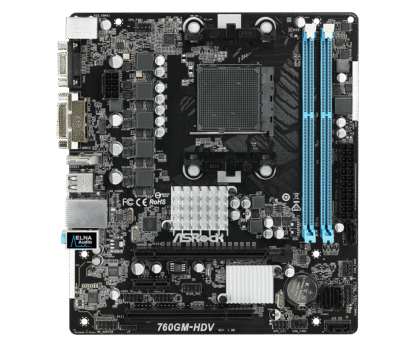

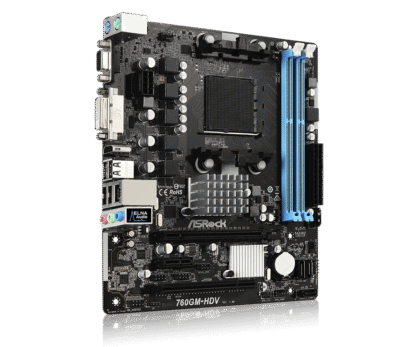

ASRock 760GM-HDV AM3+ motherboard

  • Form Factor: Micro-ATX
  • Socket: AM3+
  • Memory: 2 DDR3 DIMM slots, up to 32GB
  • USB Ports: 4 x USB 2.0
  • Expansion Slots: 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 1 x PCI
  • Graphics Output: HDMI, DVI-D, VGA (D-Sub)

Out of stock

Vergelijk
SKU: ASRock 760GM-HDV Categories: , , Tags: , , ,

Description

ASRock 760GM-HDV is a reliable and compact micro-ATX motherboard for AMD AM3+ processors, perfect for budget-friendly builds. It features VGA, DVI-D, and HDMI video outputs, two DDR3 memory slots (max. 32GB), SATA2 ports for storage, a PCIe x16 slot for graphics cards, and multiple USB 2.0 and USB 3.0 connections. Ideal for everyday use or a basic work PC.


Product: ASRock 760GM-HDV
Socket: AMD AM3(+)
Category: Motherboards
Brand: ASRock
Condition: Refurbished – Latest available BIOS version installed
EAN: 4717677335880
SKU: 760GM-HDV, 90-MXB7U0-A0UAYZ
Warranty: 6 months


Drivers for the ASRock 760GM-HDV
Processors supported by the 760GM-HDV


Package contents:
– Motherboard (760GM-HDV)
– IO-Shield (metal backplate)
No manual
No driver CD
No cables


CPU

  • Supports Socket AM3+ processors
  • Supports Socket AM3 processors: AMD Phenom™ II X6/X4/X3/X2 (except 920/940) / Athlon II X4/X3/X2 / Sempron processors
  • Supports 8-Core CPU
  • Supports AMD OverDrive™ with ACC feature (Advanced Clock Calibration)
  • 4 + 1 Power Phase design
  • Supports CPU up to 125W
  • AMD LIVE!™ Ready
  • Supports AMD’s Cool ‘n’ Quiet Technology
  • FSB 2600 MHz (5.2 GT/s)
  • Supports Untied Overclocking Technology
  • Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipset

  • Northbridge: AMD 760G
  • Southbridge: AMD SB710

Memory

  • Dual Channel DDR3 Memory Technology
  • 2 x DDR3 DIMM Slots
  • Supports DDR3 1800(OC)/1600(OC)/1333/1066 non-ECC, un-buffered memory
  • Max. capacity of system memory: 32GB*

*Due to OS limitation, actual memory size may be less than 4GB for system usage on Windows® 32-bit OS. No such limitation on Windows® 64-bit OS with 64-bit CPU.


BIOS

  • 8Mb AMI Legal BIOS
  • Supports “Plug and Play”
  • ACPI 1.1 Compliance Wake Up Events
  • Supports jumperfree
  • SMBIOS 2.3.1 Support
  • CPU, VCCM, NB Voltage Multi-adjustment

Graphics

  • Integrated AMD Radeon 3000 Graphics
  • DX10 class iGPU, Pixel Shader 4.0
  • Max. shared memory 1024MB
  • Three graphics output options: D-Sub, DVI-D, and HDMI*
  • HDMI max. resolution: 1920×1080 @ 60Hz
  • DVI-D max. resolution: 1920×1080 @ 60Hz
  • D-Sub max. resolution: 2048×1536 @ 60Hz
  • Supports HDCP on DVI-D and HDMI Ports
  • Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback via DVI-D

*DVI-D and HDMI cannot be used simultaneously


Audio

  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
  • Supports Surge Protection
  • ELNA Audio Caps

*To configure 7.1 CH HD Audio, an HD front panel audio module is required, and multi-channel audio must be enabled via the driver.


LAN

  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111H
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports LAN Cable Detection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE

Expansion Slots

  • 1 x PCI Express 2.0 x16 Slot (PCIE1: x16 mode)
  • 1 x PCI Express 2.0 x1 Slot
  • 1 x PCI Slot

Storage

  • 4 x SATA2 3.0 Gb/s Connectors
  • Supports RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug

Connectors

  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (4-pin)
  • 2 x Chassis Fan Connectors (4-pin)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Supports 4 USB 2.0 ports) (Supports ESD Protection)

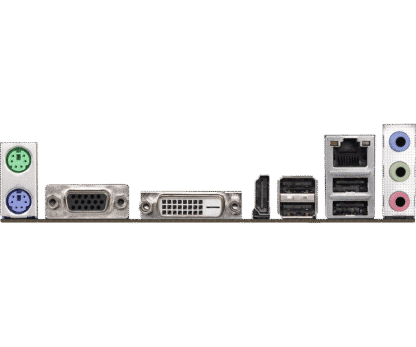

Rear I/O Panel

  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 4 x USB 2.0 Ports (Supports ESD Protection)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Line in / Front Speaker / Microphone

Unique Features

ASRock Super Alloy

  • Sapphire Black PCB
  • High Density Glass Fabric PCB

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


Accessories

  • I/O Shield

Hardware Monitor

  • CPU, Chassis temperature sensing
  • CPU, Chassis Fan Tachometer
  • CPU, Chassis Quiet Fan
  • CPU, Chassis Fan multi-speed control
  • CASE OPEN detection
  • Voltage monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

  • Micro ATX Form Factor: 8.6-in x 7.6-in, 21.8 cm x 19.3 cm
  • Solid Capacitor design

OS

  • Microsoft® Windows® 10 64-bit / 7 32-bit / 7 64-bit

*To ensure proper functionality of Win10 19H1 VGA driver, please install OS and drivers from our support CD without LAN cable connected.


Certifications

  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)

Additional information

Weight 1 kg
AMD-en

AM3(+)

Brand

Asrock

Form Factor

Micro-ATX

Chipset

AMD 760G

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, PS/2, USB 2.0

Storage Interfaces

Serial ATA-300

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

Model

760GM-HDV

Length

21.8 cm

Width

19.3 cm

package content

Motherboard and Backplate (Blende)
