Product informatie

ASRock 760GM-HDV:  moederbord | Micro-ATX | AMD AM3(+) | AMD 970 Chipset | 2x DDR3 (max. 32GB) | PCI Express 2.0 x16 | PCI Express 2.0 x1 | PCI | SATA3 | USB 2.0 | VGA (D-Sub) | HDMI | DVI-D

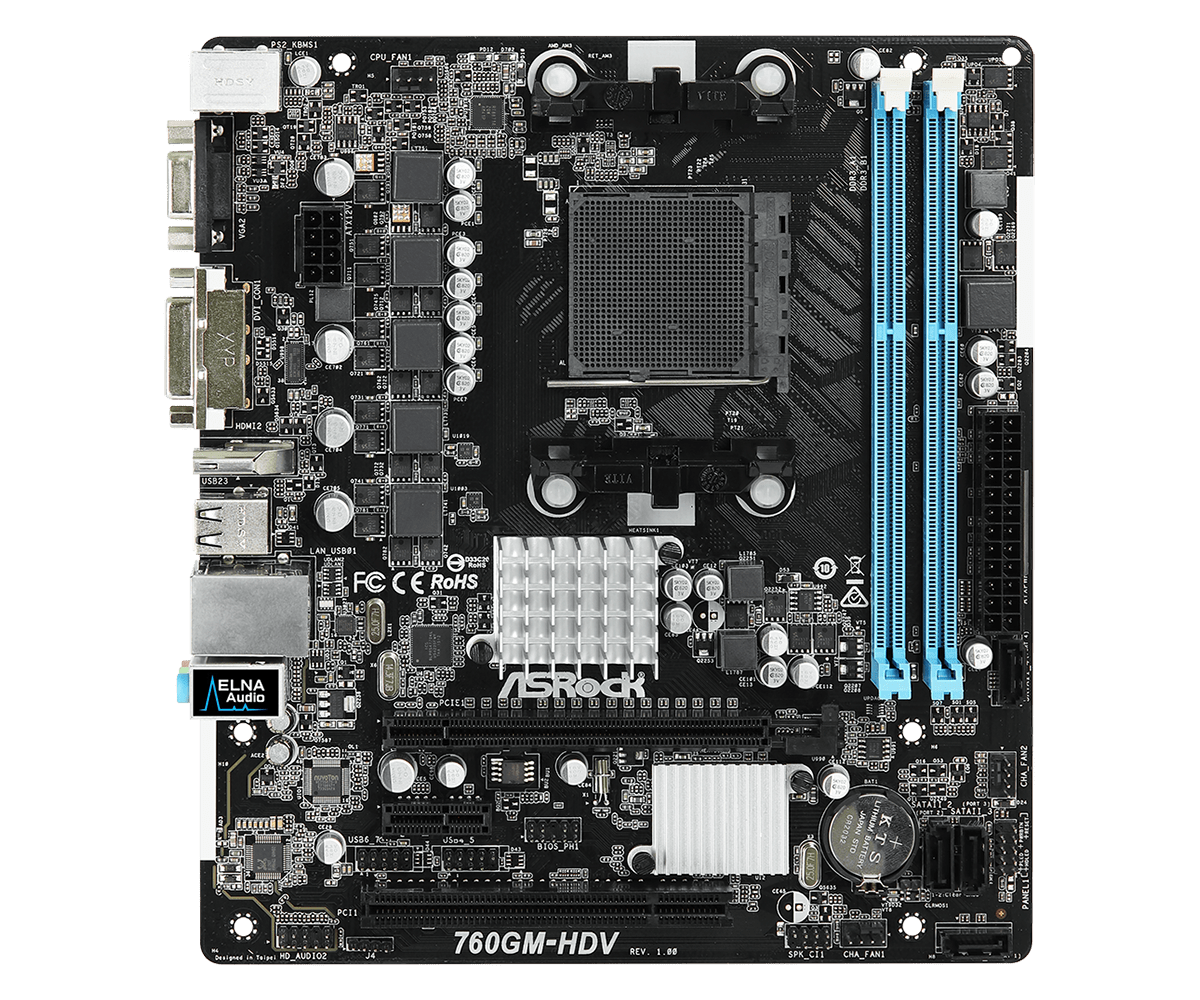

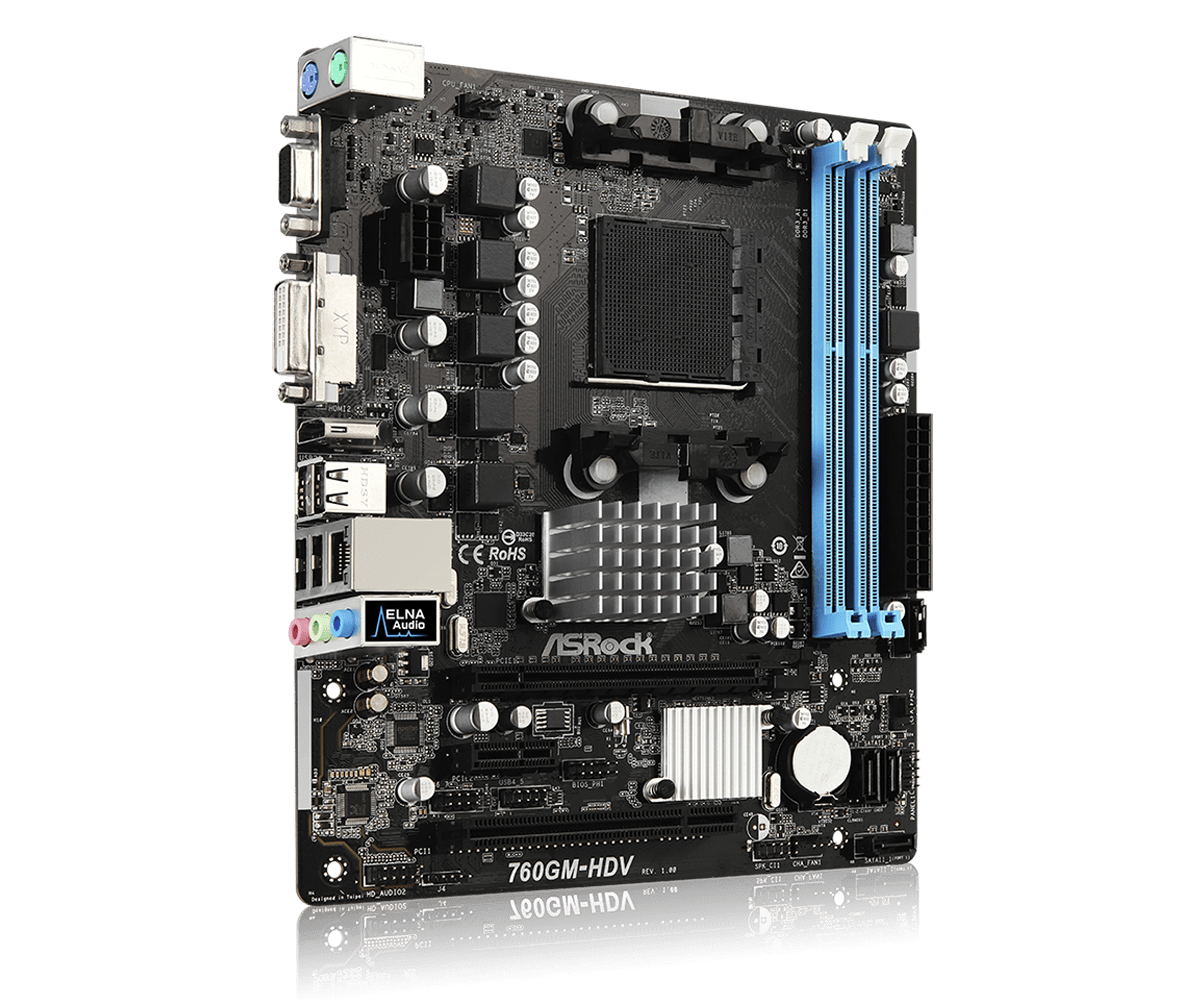

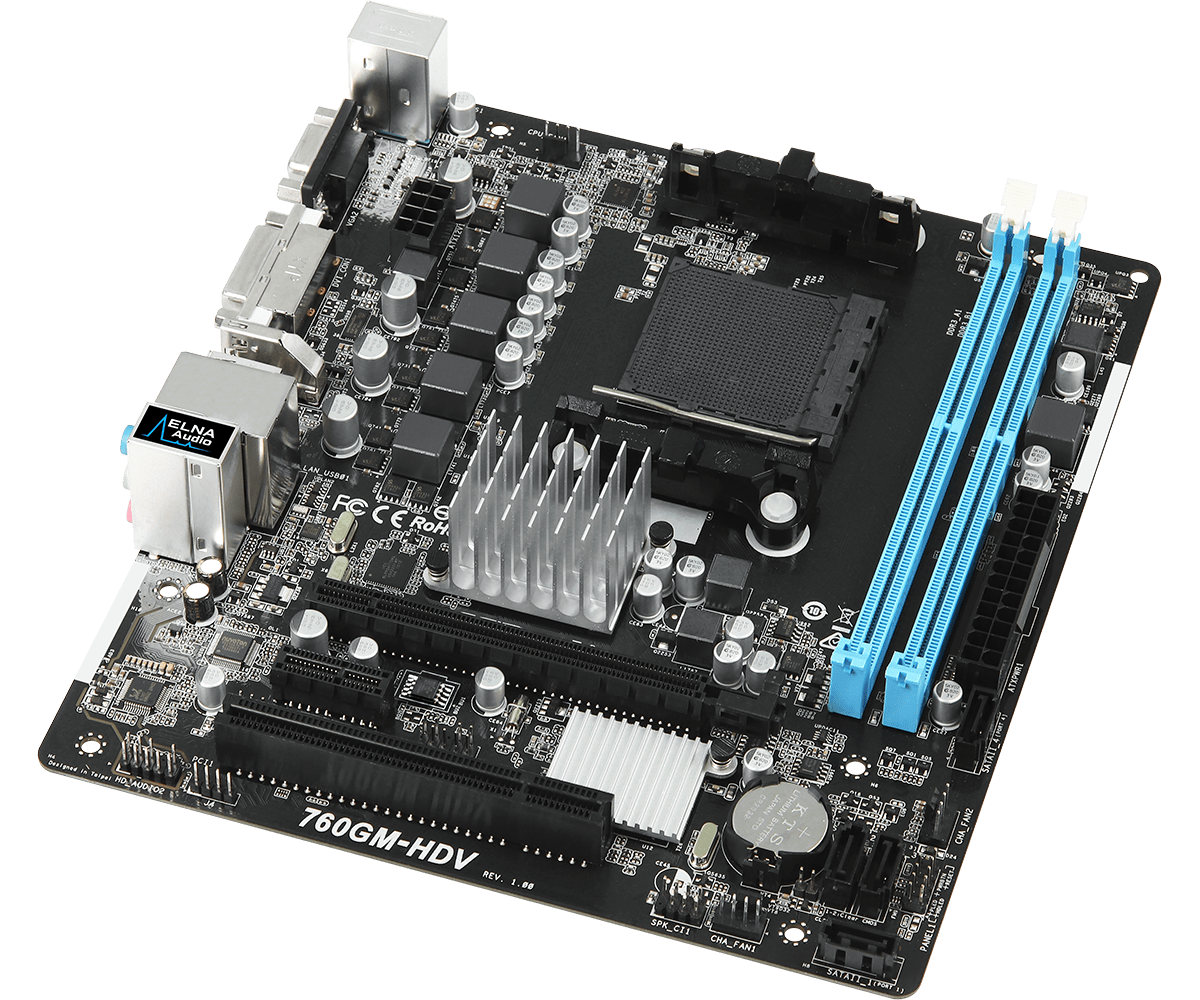

Product:ASRock 760GM-HDV
Socket: AMD AM3(+)
Categorie: Moederborden
Merk: ASRock
Staat: Refurbished – Laatst beschikbare BIOS versie geïnstalleerd
EAN: 4717677335880
SKU: 760GM-HDV, 90-MXB7U0-A0UAYZ
Garantie: 6 maanden

Drivers voor de ASRock 760GM-HDV
Processoren die door worden ondersteund door de 760GM-HDV

pakketinhoud:
– Moederbord (760GM-HDV)
– IO-Shield (blikken achterplaatje)
– geen handleiding
– geen driver-cd
– geen kabels

CPU
– Supports Socket AM3+ processors
– Supports Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
– Supports 8-Core CPU
– Supports AMD OverDrive™ with ACC feature (Advanced Clock Calibration)
– 4 + 1 Power Phase design
– Supports CPU up to 125W
– AMD LIVE!™ Ready
– Supports AMD’s Cool ‘n’ Quiet Technology
– FSB 2600 MHz (5.2 GT/s)
– Supports Untied Overclocking Technology
– Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipset
– Northbridge: AMD 760G
– Southbridge: AMD SB710

Geheugen
– Dual Channel DDR3 Memory Technology
– 2 x DDR3 DIMM Slots
– Supports DDR3 1800(OC) / 1600(OC) / 1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 8Mb AMI Legal BIOS
– Supports “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumperfree
– SMBIOS 2.3.1 Support
– CPU, VCCM, NB Voltage Multi-adjustment

Grafisch
– Integrated AMD Radeon 3000 Graphics
– DX10 class iGPU, Pixel Shader 4.0
– Max. shared memory 1024MB
– Three graphics output options: D-Sub, DVI-D and HDMI*
– Supports HDMI with max. resolution up to 1920×1080 @ 60Hz
– Supports DVI-D with max. resolution up to 1920×1080 @ 60Hz
– Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz
– Supports HDCP with DVI-D and HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D Port

*DVI-D and HDMI cannot work simultaneously

Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
– Supports Surge Protection
– ELNA Audio Caps

*Om 7.1 CH HD Audio te configureren is het vereist een HD front panel audio module te gebruiken en de multi-channel audio functie VIA® het audio stuurprogramma aan te zetten.

LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Sloten
– 1 x PCI Express 2.0 x16 Slot (PCIE1: x16 mode)
– 1 x PCI Express 2.0 x1 Slot
– 1 x PCI Slot

Opslaan
– 4 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug

Aansluitingen
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)
– 2 x Chassis Fan Connectors (4-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

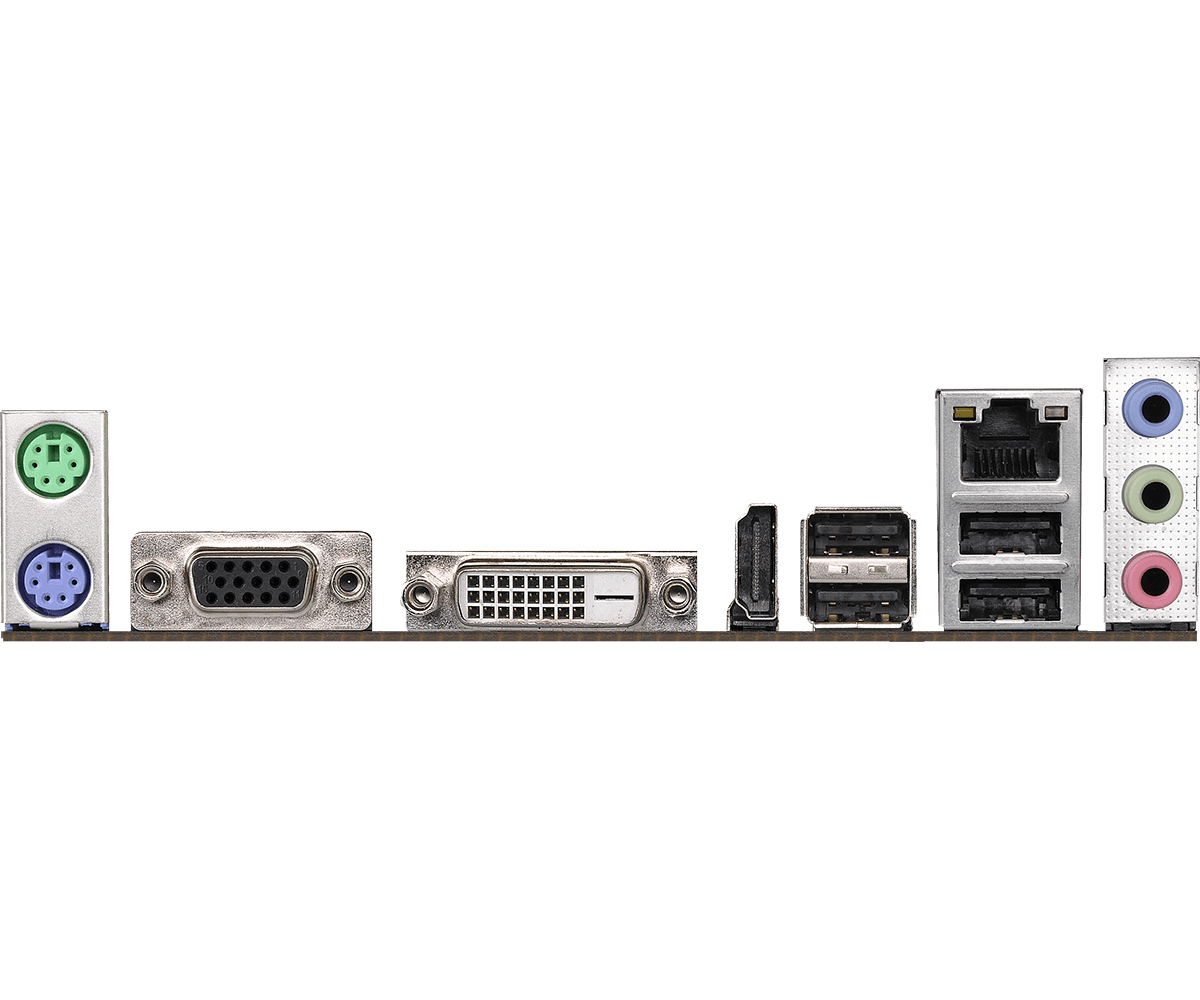

I/O Achterpaneel
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 4 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

Unieke Eigenschappen
ASRock Super Alloy
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

Accesoires
– I/O Shield

Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, Vcore

Vorm factor
– Micro ATX Form Factor: 8.6-in x 7.6-in, 21.8 cm x 19.3 cm
– Solid Capacitor design

OS
– Microsoft® Windows® 10 64-bit / 7 32-bit / 7 64-bit

*To make sure Win10 19H1 VGA driver works properly, please install OS and drivers from our support CD without LAN Cable connected.

Certificaten
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
