Product informatie

Het Gigabyte GA-MA78LM-S2 moederbord is een Micro-ATX moederbord met plaats voor 2 DDR3 geheugen modules, met een maximum van 8GB. Het Gigabyte GA-MA78LM-S2 moederbord is voorzien van PCI, PCI-e x1 enPCI-e 3.0 x16 sloten.

Specificaties:
 moederbord | Socket AM3 / AM2+ / AM2 |  AMD 760G chipset | PCI | PCI-e 2.0 x1 | PCI-e 3.0 x16 | 8x USB 2.0 | 4x USB 3.0 | DVI-D | VGA (D-Sub)

Product: GA-MA78LM-S2
Socket:AMD AM3 / AM2+ / AM2
Categorie:
Moederborden
Merk: Gigabyte
Staat: Gebruikt. voorzien van de laatst beschikbare BIOS versie
EAN: 4719331834180
SKU:
GA-MA78LM-S2
Garantie: 6 maanden

Drivers voor de Gigabyte GA-MA78LM-S2
Processoren die door de Gigabyte GA-MA78LM-S2worden ondersteund

pakketinhoud:
– Moederbord (GA-MA78LM-S2)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels


CPU

Support for Socket AM3 / AM2+ / AM2 processors: AMD Phenom™ II processor/ AMD Phenom™ processor/ AMD Athlon™ II processor/ AMD Athlon™ processor/ AMD Sempron™ processor


Hyper Transport Bus
5200/2000 MT/s

Chipset
– North Bridge: AMD 760G
– South Bridge: AMD SB710


Memory
– 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
– Dual channel memory architecture
– Support for DDR2 1200(O.C.) /1066/800 MHz memory modules
– Support for non-ECC memory modules


Onboard Graphics
1 x D-Sub
1 x DVI-D


Audio
Realtek ALC888B codec
High Definition Audio
2/4/5.1/7.1-channel (Note 3)
Support for S/PDIF In
Support for S/PDIF Out
Support for CD In


LAN
Realtek 8111D chip (10/100/1000 Mbit)


Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
1 x PCI Express x1 slots
2 x PCI slots


Storage Interface
– South Bridge:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 10 and JBOD
– iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive


Chipset:
-North Bridge: AMD 760G
– South Bridge: AMD SB710


USB Chipset:

– Up to 12 USB 2.0/1.1 ports (8 ports on the back panel, 4 ports available through the internal USB headers)


Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In/Out header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x clearing CMOS jumper

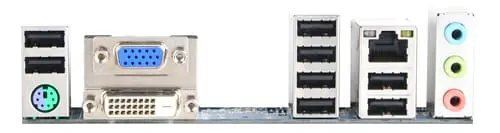

Back Panel Connectors
1 x PS/2 keyboard or PS/2 mouse port
1 x D-Sub port
1 x DVI-D port (Note 2)
8 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)


I/O Controller
iTE IT8718 chip


H/W Monitoring
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control


BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b


Unique Features
Support for @BIOS
Support for Q-Flash
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune


Operating System
Support for Windows 10/8.1/8/7


Form Factor
– Micro ATX Form Factor; 24.3cm x 20.0cm

Specificaties

Gewicht 1 kg
AMD

AM2, AM3(+)

Merk

Gigabyte

Chipset

AMD 760G, AMD SB710

Formaat

Micro-ATX

Geheugentype

DDR3

Aantal geheugenslots

2

Maximale geheugengrootte

8 GB

Aansluitingen

D-Sub (VGA), DVI-D, Ethernet (RJ-45), USB 2.0

Opslag interfaces

Pata-100, PATA-133, Serial ATA-300

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

,

Model

GA-MA78LM-S2

Geschikt voor

Regulier gebruik

Bijzonderheden

Onboard Audio

Lengte

24.4 cm

Breedte

20cm

Pakketinhoud

Moederbord en I/O-Shield

Gigabyte GA-MA78LM-S2 AMD AM3 moederbord

Snelle levering

  • Supports new generation of AMD Phenom™ II X6 processors
  • Supports AMD AM3 Phenom™ II/ Phenom™/ Athlon™ processors
  • Solid capacitors design for CPU VRM
  • Dual Channel DDR2 1200+* for remarkable system performance
  • Integrated ATI Radeon HD 3000 graphics (DirectX10)
  • Ultimate graphics performance with PCI-E 2.0 x16 interface
  • Integrated 6/8* Channel High Definition audio
  • Integrated DVI interface with HDCP support
  • Patented DualBIOS with dual hardware BIOS protection
  • Compatible with Window 7 to deliver the best operation experience
