Product informatie

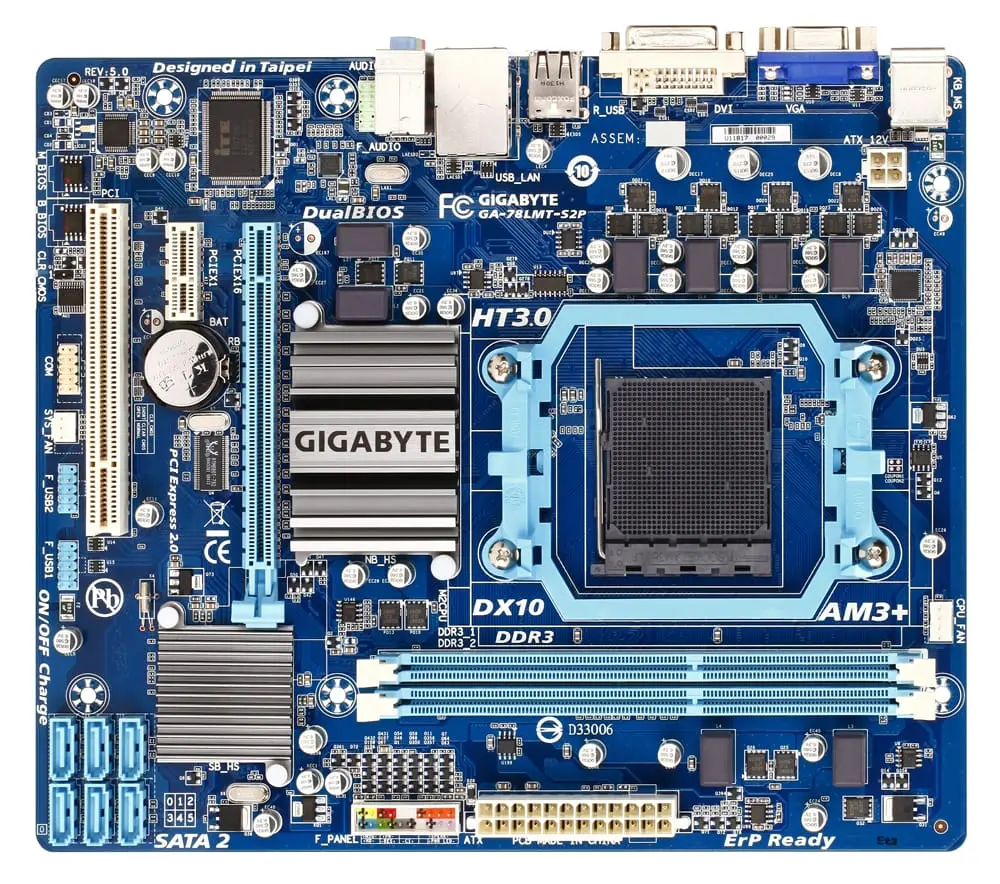

Het Gigabyte GA-78LMT-S2P Rev 5 moederbord is een Micro-ATX moederbord met plaats voor 2 DDR3 geheugen modules, met een maximum van 8GB. Het Gigabyte GA-78LMT-S2P Rev 5 moederbord is voorzien van PCI, PCI-e x1 enPCI-e 3.0 x16 sloten.

Specificaties:
 moederbord | AMD AM3(+) |  AMD 760G chipset | PCI | PCI-e 2.0 x1 | PCI-e 3.0 x16 | 8x USB 2.0 | 4x USB 3.0 | DVI-D | VGA (D-Sub)

Product:GA-78LMT-S2P Rev 5
Socket: AMD AM3(+)
Categorie:
Moederborden
Merk: Gigabyte
Staat: Gebruikt. voorzien van de laatst beschikbare BIOS versie
SKU:GA-78LMT-S2P Rev 5
Garantie: 6 maanden

Drivers voor de Gigabyte GA-78LMT-S2P Rev 5
Processoren die door de Gigabyte GA-78LMT-S2P Rev 5 worden ondersteund

pakketinhoud:
– Moederbord (GA-78LMT-S2P Rev 5)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels


CPU
Support for AMD AM3+ processor
Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor


Hyper Transport Bus
5200/2000 MT/s

Chipset
– North Bridge: AMD 760G
– South Bridge: AMD SB710


Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for 1333+ (O.C.)/1066/800 MHz memory module


Onboard Graphics
1 x D-Sub
1 x DVI-D, supporting a maximum resolution of 1920×1200


Audio
Realtek ALC887 HD codec
High Definition Audio
2/4/5.1/7.1-channel


LAN
Atheros GbE LAN chip (10/100/1000 Mbit)


Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
1 x PCI Express x1 slots
1 x PCI slots


Storage Interface
– South Bridge:
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 10, and JBOD


Chipset:
-North Bridge: AMD 760G
– South Bridge: AMD SB710


USB Chipset:

– Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)


Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x clearing CMOS jumper

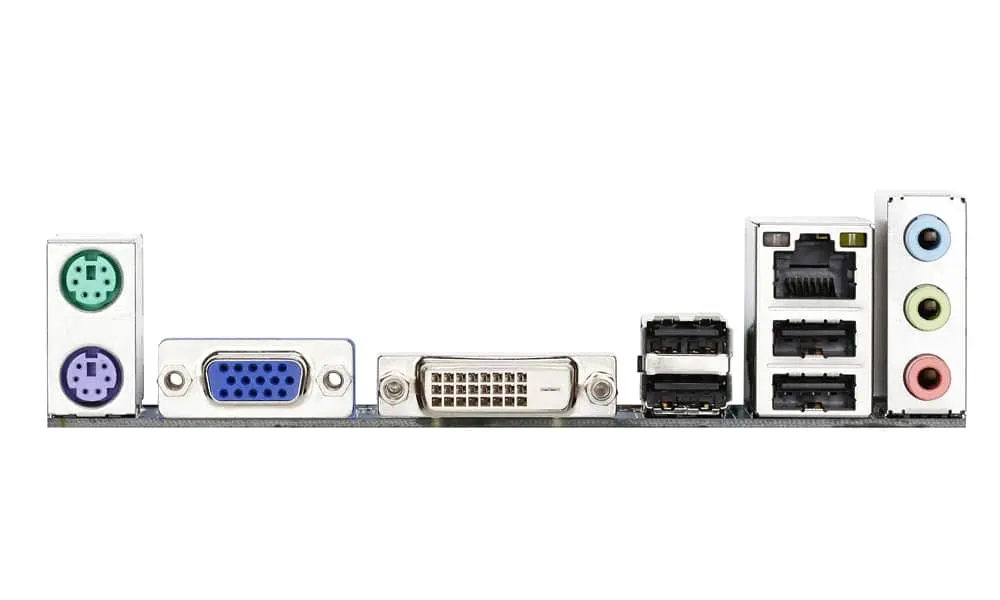

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)


I/O Controller
iTE IT8728 chip


H/W Monitoring

System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control


BIOS
2 x 16 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b


Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune (Note 5)
Support for Auto Green
Support for On/Off Charge
Support 3TB+ Unlock
Support for Q-Share


Operating System
Support for Windows 10/8.1/8/7


Form Factor
– Micro ATX Form Factor; 24.3cm x 20.6cm

Specificaties

Gewicht 1 kg
AMD

AM3(+)

Merk

Gigabyte

Chipset

AMD 760G, AMD SB710

Formaat

Micro-ATX

Geheugentype

DDR3

Aantal geheugenslots

2

Maximale geheugengrootte

16 GB

Aansluitingen

D-Sub (VGA), DVI-D, Ethernet (RJ-45), USB 2.0

Opslag interfaces

Serial ATA-300

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

Gigabyte GA-78LMT-S2P Rev 5 AMD AM3(+) moederbord

Snelle levering

  • Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
  • GIGABYTE Ultra Durable 4 Classic with high quality components designed
  • Supports AMD AM3+ FX/AM3 Phenom™ II & Athlon™ II series processors
  • Integrated ATI Radeon HD 3000 graphics (DirectX10)
  • PCI-E 2.0 x16 interface for ultimate graphics support
  • Integrated DVI port and HDCP support
  • All 50,000 hours solid capacitors design
  • Hybrid EFI technology with DualBIOS for 3TB HDD suppo

Artikelnummer: GA-78LMT-S2P Categorieën: , Tags: , ,
