Description

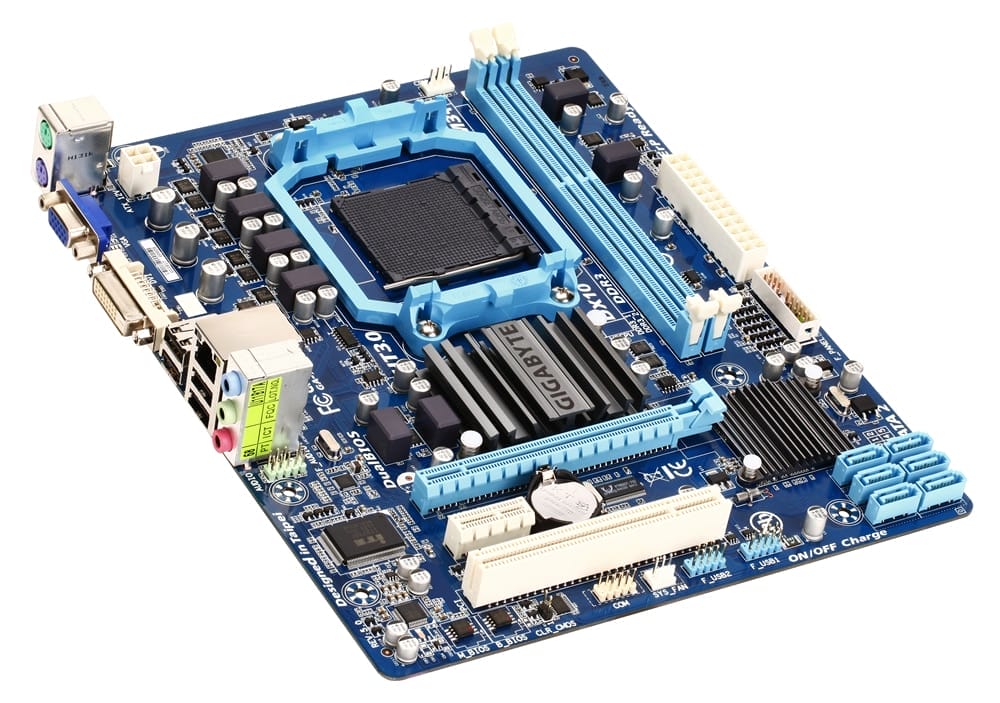

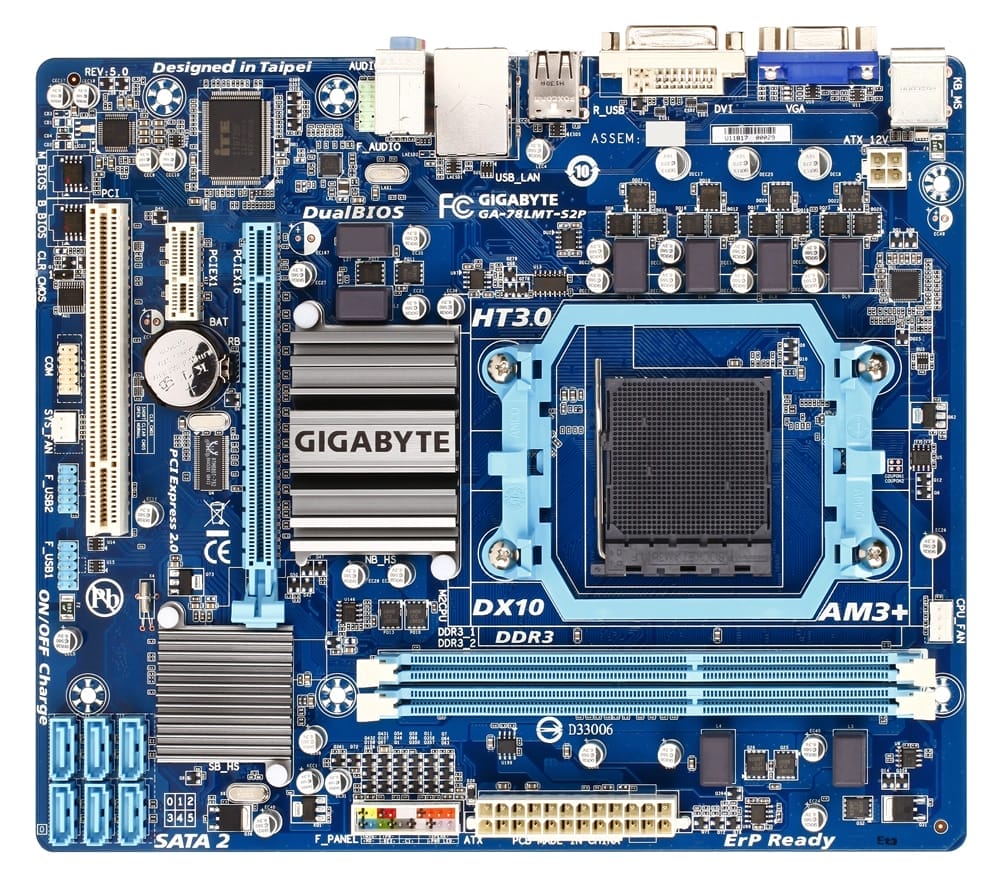

The Gigabyte GA-78LMT-S2P Rev 5 motherboard is a Micro-ATX motherboard with space for 2 DDR3 memory modules, with a maximum of 8GB. The Gigabyte GA-78LMT-S2P Rev 5 motherboard features PCI, PCI-e x1 and PCI-e 3.0 x16 slots.
Specifications: motherboard | AMD AM3(+) | AMD 760G chipset | PCI | PCI-e 2.0 x1 | PCI-e 3.0 x16 | 8x USB 2.0 | 4x USB 3.0 | DVI-D | VGA (D Sub)
Product:GA-78LMT-S2P Rev 5
Socket: AMD AM3(+)
Category: Motherboards
Brand: Gigabyte
Condition: Used. equipped with the latest available BIOS version
SKU:GA-78LMT-S2P Rev 5
Warranty: 6 months
Drivers for the Gigabyte GA-78LMT-S2P Rev 5
Processors which are supported by the Gigabyte GA-78LMT-S2P Rev 5
package content:
– Motherboard (GA-78LMT-S2P Rev 5)
– Backplate (Blende)
– No manual
– No driver CD
– No cables
CPU
Support for AMD AM3+ processor
Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor
5200/2000 MT/s
Chipset
– North Bridge: AMD 760G
– South Bridge: AMD SB710
Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for 1333+ (O.C.)/1066/800 MHz memory module
Onboard Graphics
1 x D Sub
1 x DVI-D, supporting a maximum resolution of 1920×1200
Audio
Realtek ALC887 HD codec
High Definition Audio
2/4/5.1/7.1 channel
LAN
Atheros GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
1 x PCI Express x1 slots
1 x PCI slots
Storage Interface
– South Bridge:
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 10, and JBOD
Chip set:
-North Bridge: AMD 760G
– South Bridge: AMD SB710
USB Chipset:
– Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x Front Panel Audio Header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clearing CMOS Jumper

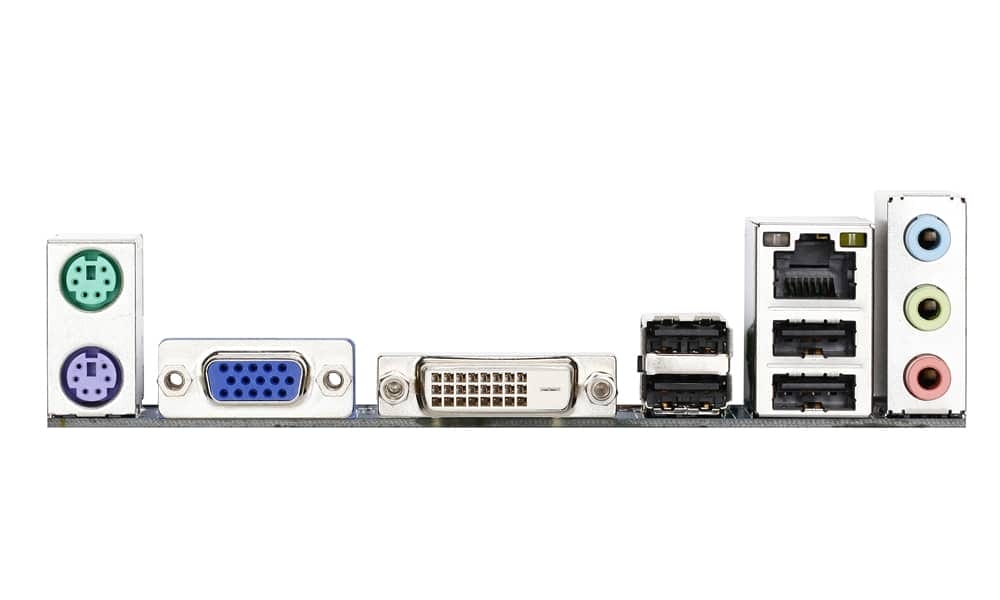

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
iTE IT8728 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
BIOS
2 x 16 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune (Note 5)
Support for Auto Green
Support for On/Off Charge
Support 3TB+ Unlock
Support for Q-Share
Operating System
Support for Windows 10/8.1/8/7
Form Factor
– Micro ATX Form Factor; 24.3cm x 20.6cm
