Description

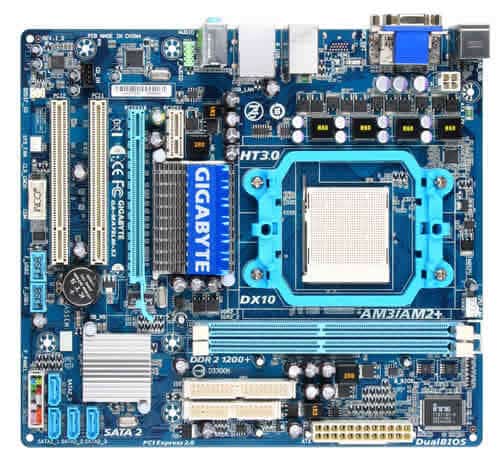

The Gigabyte GA-MA78LM-S2 motherboard is a Micro-ATX motherboard with space for 2 DDR3 memory modules, with a maximum of 8GB. The Gigabyte GA-MA78LM-S2 motherboard features PCI, PCI-e x1 and PCI-e 3.0 x16 slots.
Specifications: motherboard | AMD AM3 / AM2+ / AM2 | AMD 760G chipset | PCI | PCI-e 2.0 x1 | PCI-e 3.0 x16 | 8x USB 2.0 | 4x USB 3.0 | DVI-D | VGA (D Sub)
Product: GA-MA78LM-S2
Socket:AMD AM3 / AM2+ / AM2
Category: Motherboards
Brand: Gigabyte
Condition: Used. equipped with the latest available BIOS version
EAN: 4719331834180
SKU:GA-MA78LM-S2
Warranty: 6 months
package content:
– Motherboard (GA-MA78LM-S2)
– Backplate (blende)
– No manual
– No driver CD
– No cables
CPU
Support for Socket AM3 / AM2+ / AM2 processors: AMD Phenom™ II processor/ AMD Phenom™ processor/ AMD Athlon™ II processor/ AMD Athlon™ processor/ AMD Sempron™ processor
5200/2000 MT/s
Chipset
– North Bridge: AMD 760G
– South Bridge: AMD SB710
Memory
– 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
– Dual channel memory architecture
– Support for DDR2 1200(O.C.) /1066/800 MHz memory modules
– Support for non-ECC memory modules
Onboard Graphics
1 x D Sub
1 x DVI-D
Audio
Realtek ALC888B codec
High Definition Audio
2/4/5.1/7.1 channel (Note 3)
Support for S/PDIF In
Support for S/PDIF Out
Support for CD In
LAN
Realtek 8111D chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
1 x PCI Express x1 slots
2 x PCI slots
Storage Interface
– South Bridge:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 10 and JBOD
– iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
Chip set:
-North Bridge: AMD 760G
– South Bridge: AMD SB710
USB Chipset:
– Up to 12 USB 2.0/1.1 ports (8 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x Front Panel Audio Header
1 x CD In connector
1 x S/PDIF In/Out header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clearing CMOS Jumper

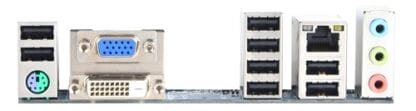

Back Panel Connectors
1 x PS/2 keyboard or PS/2 mouse port
1 x D-Sub port
1 x DVI-D port (Note 2)
8 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
iTE IT8718 chip
H/W Monitoring
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for @BIOS
Support for Q-Flash
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
Operating System
Support for Windows 10/8.1/8/7
Form Factor
– Micro ATX Form Factor; 24.3cm x 20.0cm
