Product information

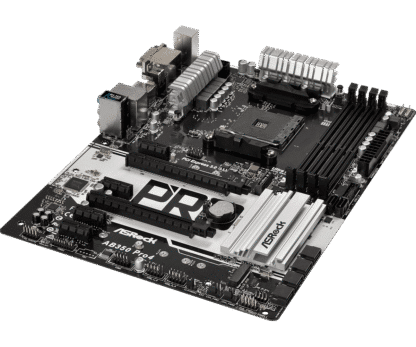

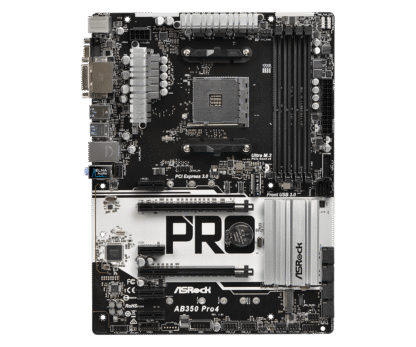

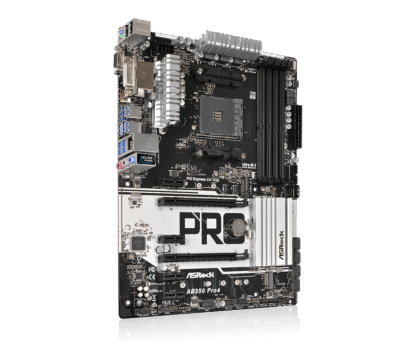

The ASRock AB350 Pro4:  motherboard | ATX | AMD AM4 | AMD B350 Chipset | 4x DDR4 (max. 64GB) | M.2 (PCI-e 3.0 x4) | M.2 (SATA) | SATA 600 | PCI-e 2.0 x1 | PCI-e 3.0 x16 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | USB 3.2 (Gen1, 5Gb/s) type-c | DVI-D | HDMI | VGA (D Sub)


Product: ASRock AB350 Pro4
Socket: AMD AM4
Category: Motherboards
Brand: ASRock
Condition: New
EAN: 4717677333169
SKU:
90-MXB510-A0UAYZ, AB350 PRO4
Warranty: 6 months

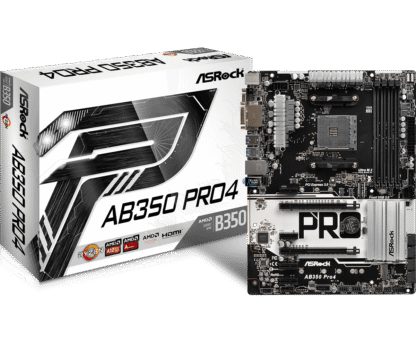

package content:
– Motherboard (AB350 Pro4)
– Backplate (blende)
– instruction manual
– driver CD
– cables


Unique Feature
ASRock Super Alloy
– Premium 42A Power Choke
– Sapphire Black PCB
– High-Density Glass Fabric PCB
– 2oz Copper PCB
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU
– Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge, and Pinnacle Ridge)
– Digi Power design
– 9 Power Phase design


Chipset
– AMD Promontory B350


Memory
– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD 7th Gen A-Series APUs support DDR4 2400 / 2133 non-ECC, un-buffered memory*
– Max. capacity of system memory: 64GB**
– 15μ Gold Contact in DIMM Slots

*For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to the below table for DDR4 UDIMM maximum frequency support.

A-Series APUs:

A-Series APU

Ryzen Series CPUs (Matisse):

Ryzen Series CPUs (Matisse)

Ryzen Series CPUs (Pinnacle Ridge):

Ryzen Series CPUs (Pinnacle Ridge)

Ryzen Series CPUs (Picasso):

Ryzen Series CPUs (Picasso)

Ryzen Series CPUs (Summit Ridge):

Ryzen Series CPUs (Summit Ridge)

Ryzen Series CPUs (Raven Ridge):

Ryzen Series CPUs (Raven Ridge)
SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– Support “Plug and Play”
– ACPI 5.1 compliance wake up events
– Support jumper free
– SMBIOS 2.3 support
– DRAM Voltage multi-adjustment


Graphics
– Integrateed AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– Integrated AMD Radeon™ R-Series Graphics in A-series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Three graphics output options: D-Sub, DVI-D, and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP 1.4 with DVI-D and HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– ELNA Audio Caps


LAN
– PCI-E x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots

AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
– 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4))*
AMD 7th A-Series APUs
– 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE2); dual at x8 (PCIE2) / x2 (PCIE4))*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
– 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE2); dual at x8 (PCIE2) / x4 (PCIE4))*
AMD Athlon series CPUs
– 2 x PCI Express 3.0 x16 Slots (single at x4 (PCIE2); dual at x4 (PCIE2) / x2 (PCIE4))*

– 4 x PCI Express 2.0 x1 Slots
– Supports AMD Quad CrossFireX™ and CrossFireX™

*Supports NVMe SSD as boot disks

**This feature is only supported with Ryzen Series CPUs (Summit Ridge and Raven Ridge).


Storage
– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
– 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)**
– 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module

*M2_2 and SATA3_3 share lanes. If either one of them is in use, the other one will be disabled.

**If M2_1 is occupied, PCIE4 will be disabled.
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 1 x AMD Fan LED Header*
– 1 x CPU Fan Connector (4-pin)**
– 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*Supports in total up to 12V/3A, 36W LED Strip
The AMD Fan LED Header supports LED strips of a maximum load of 3A (36W) and lengths up to 2.5M.

**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

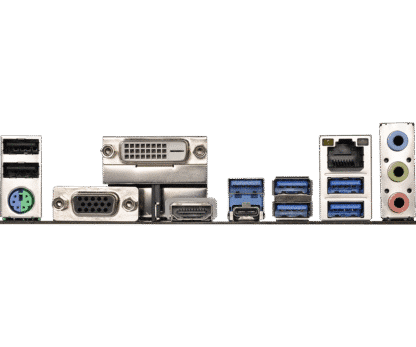

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
– 5 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock RGB LED
– ASRock APP Charger
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar


Accessories
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 2 x Screws for M.2 Sockets


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, Vcore


Form Factor
– ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit / 11 64-bit*

*Bristol Ridge and Summit Ridge do not officially support Windows® 11.


Certifications
– FCC, CE
– ERP/EuP ready (ErP/EuP ready power supply is required)

Specification

Weight 1 kg
AMD-en

AM4

Brand

Asrock

Form Factor

ATX

Chipset

AMD B350

Memory Type

DDR4 SDRAM

Number of memory slots

4

Maximum memory size

64 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.1 Gen1, USB 3.1 Gen1 Type-C

Storage Interfaces

Serial ATA-600, Ultra M.2 Socket

Interfaces

M.2, PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

Model

AB350 Pro4

Length

30.5 cm

Width

22.5 cm

package content

Retail – Original box with all accessories

ASRock AB350 Pro4 – AM4 – New – motherboard

20 in stock

Fast delivery
54,95

  • ATX
  • ASRock Super Alloy
  • Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge & Raven Ridge)
  • Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU)
  • 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output: HDMI, DVI-D, D-Sub
  • Supports Triple Monitor
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3)
  • 8 USB 3.1 Gen1 (1 Type-C, 2 Front, 5 Rear)
  • Realtek Gigabit LAN
