Product information

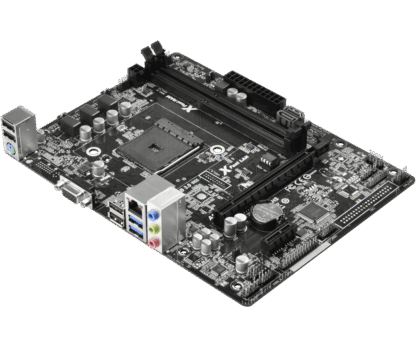

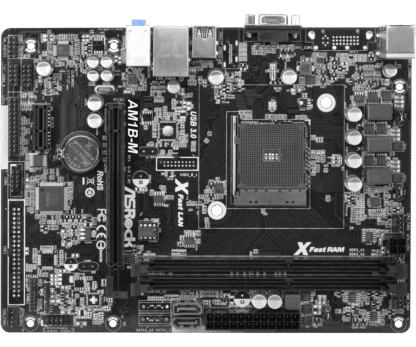

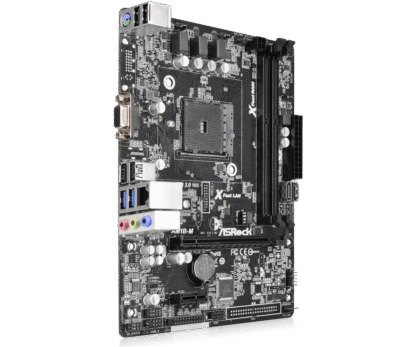

ASRock AM1B-M: Motherboard – Micro-ATX – AMD AM1 – DDR3 – AMD Radeon ™ R3 Series -HDMI – USB 3.0 – SATA 3.0 – Gigabit Lan – HD Audio (6 channel)


Product: ASRock AM1B-M
Category: Motherboards
Socket: AMD AM1
Brand: ASRock
EAN: 4717677322880
SKU: 90-MXGSV0-A0UAYZ, AM1B-M

Note: This is a refurbished motherboard updated with the latest BIOS version, the product warranty period is 90 days.


Package Contents:
– Motherboard
– Backplate (blende)
– No manual
– No driver CD
– No cables


A-Style
– ASRock Cloud


CPU
– Supports AMD Socket AM1 Athlon / Sempron APU


Memory
– 2 x DDR3 DIMM Slots
Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Maximum capacity of system memory: 32GB *

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– DRAM Voltage multi-adjustment


Graphics
– Integrated AMD Radeon ™ R3 Series Graphics in A-series / E-series APU
– DirectX 11.1, Pixel Shader 5.0
– Max. shared memory 2GB
Supports D-Sub with max. Resolution up to 2048×1536 @ 60Hz


Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
Supports Surge Protection (ASRock Full Spike Protection)


LAN
– PCIe x1 Gigabit LAN 10/100/1000 Mb / s
– Realtek RTL8111GR
– Supports Wake-On-WAN
– Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE


Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE1 @ x4 mode)
– 1 x PCI Express 2.0 x1 Slot


Storage
– 2 x SATA3 6.0 Gb / s Connectors, support NCQ, AHCI, and Hot Plug


Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))


Rear Panel I / O
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x D-Sub Port
– 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone


Unique Feature
– ASRock A-Tuning
– ASRock APP Shop
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good Night LED


Accessories
– I / O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU Quiet Fan
CPU Fan multi-speed control
– CASE OPEN detection
Voltage monitoring: + 12V, + 5V, + 3.3V, Vcore


Form Factor
– Micro ATX Form Factor
– All Solid Capacitor design
– High-Density Glass Fabric PCB


OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit


Certifications – FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)

Specification

Weight 1 kg
AMD-en

AM1

Brand

Asrock

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), Ethernet (RJ-45), USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

Model

AM1B-M

Suitable for

Regular use

particularities

Onboard Audio

Length

22.6 cm

Width

17.3 cm

package content

Motherboard and Backplate (Blende)

ASRock AM1B-M

11 in stock

Fast delivery
14,95

  • All Solid Capacitor design
  • Supports AMD Socket AM1 Athlon/Sempron APU
  • Supports DDR3 1600 memory, 2 x DIMM slots, Max. 32GB
  • 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
  • Integrated AMD Radeon™ R3 Series Graphics in A-series / E-series APU
  • 1 D-Sub, 1 Print Port Header, 1 COM Port Header
  • 2 USB 3.1 Gen1, 8 USB 2.0 (4 Front, 4 Rear), 2 SATA3
  • Realtek Gigabit LAN
  • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  • Supports ASRock Full Spike Protection, A-Tuning, APP Shop, FAN-Tastic Tuning, UEFI Tech Service, USB Key
