Product informatie

ASRock AM1B-M: Moederbord – Micro-ATX – AMD AM1 – DDR3 – AMD Radeon ™ R3 Serie -HDMI – USB 3.0 – SATA 3.0 – Gigabit Lan – HD Audio (6 kanaals)

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

Socket: AMD AM1B-M
Categorie: Moederborden
Merk: ASRock
EAN: 4717677322880
SKU: 90-MXGSV0-A0UAYZ, AM1B-M

Opmerking: dit is een refurbished moederbord dat is bijgewerkt met de nieuwste BIOS-versie, de garantieperiode van het product is 90 dagen.

pakketinhoud:
– Moederbord
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels


A-Style
– ASRock Cloud


CPU
– Supports AMD Socket AM1 Athlon/Sempron APU


Memory
– 2 x DDR3 DIMM Slots
– Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– DRAM Voltage multi-adjustment


Graphics
– Integrated AMD Radeon™ R3 Series Graphics in A-series / E-series APU
– DirectX 11.1, Pixel Shader 5.0
– Max. shared memory 2GB
– Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz


Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
– Supports Surge Protection (ASRock Full Spike Protection)


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-WAN
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE1 @ x4 mode)
– 1 x PCI Express 2.0 x1 Slot


Storage
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug


Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))


Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Unique Feature
– ASRock A-Tuning
– ASRock APP Shop
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good Night LED


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU Quiet Fan
– CPU Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, Vcore


Form Factor
– Micro ATX Form Factor
– All Solid Capacitor design
– High Density Glass Fabric PCB


OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht 1 kg
AMD

AM1

Merk

Asrock

Formaat

Micro-ATX

Geheugentype

DDR3

Aantal geheugenslots

2

Maximale geheugengrootte

16 GB

Aansluitingen

D-Sub (VGA), Ethernet (RJ-45), USB 2.0, USB 3.1 Gen1

Opslag interfaces

Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

Model

AM1B-M

Geschikt voor

Regulier gebruik

Bijzonderheden

Onboard Audio

Lengte

22.6 cm

Breedte

17.3 cm

Pakketinhoud

Moederbord en I/O-Shield

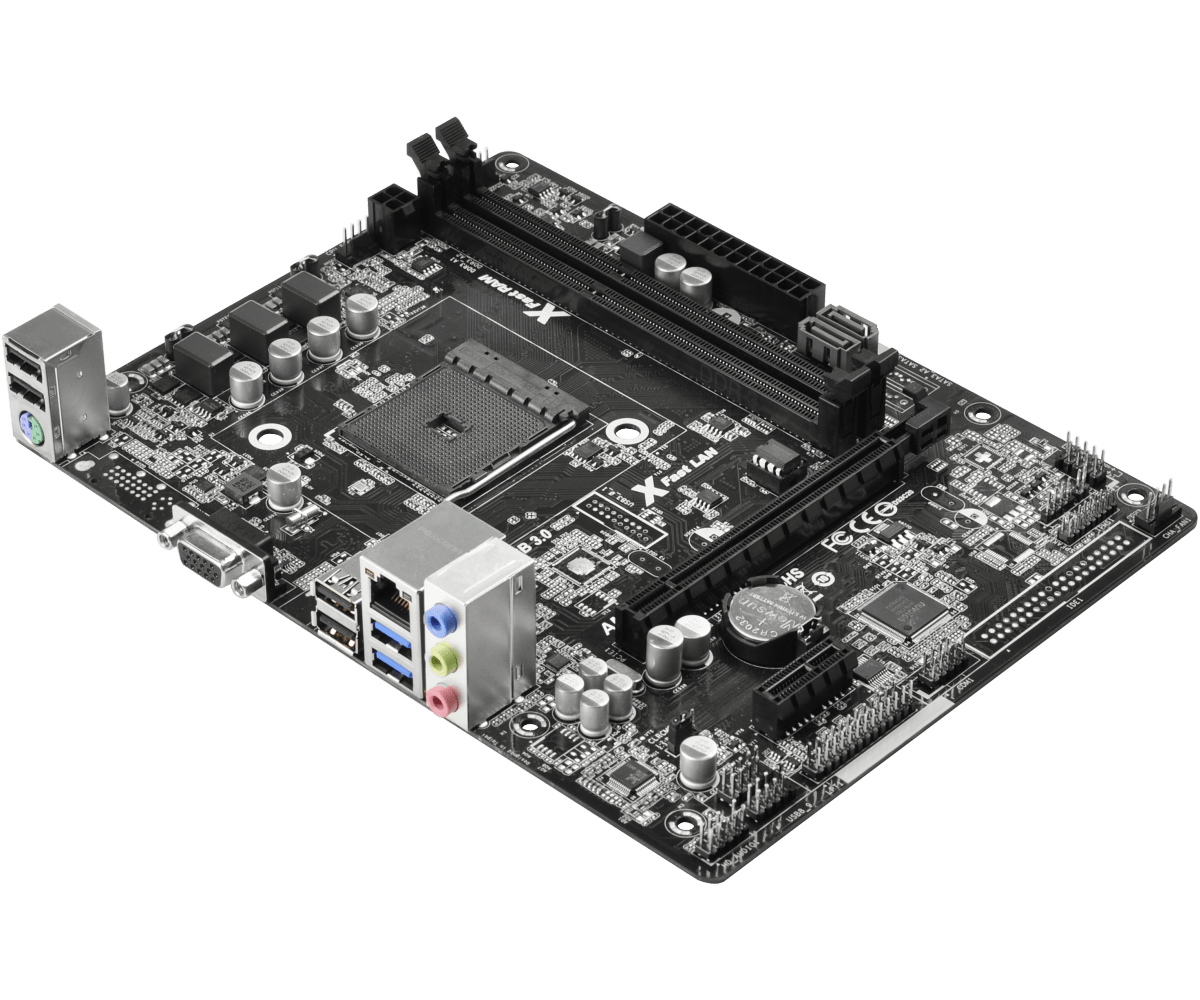

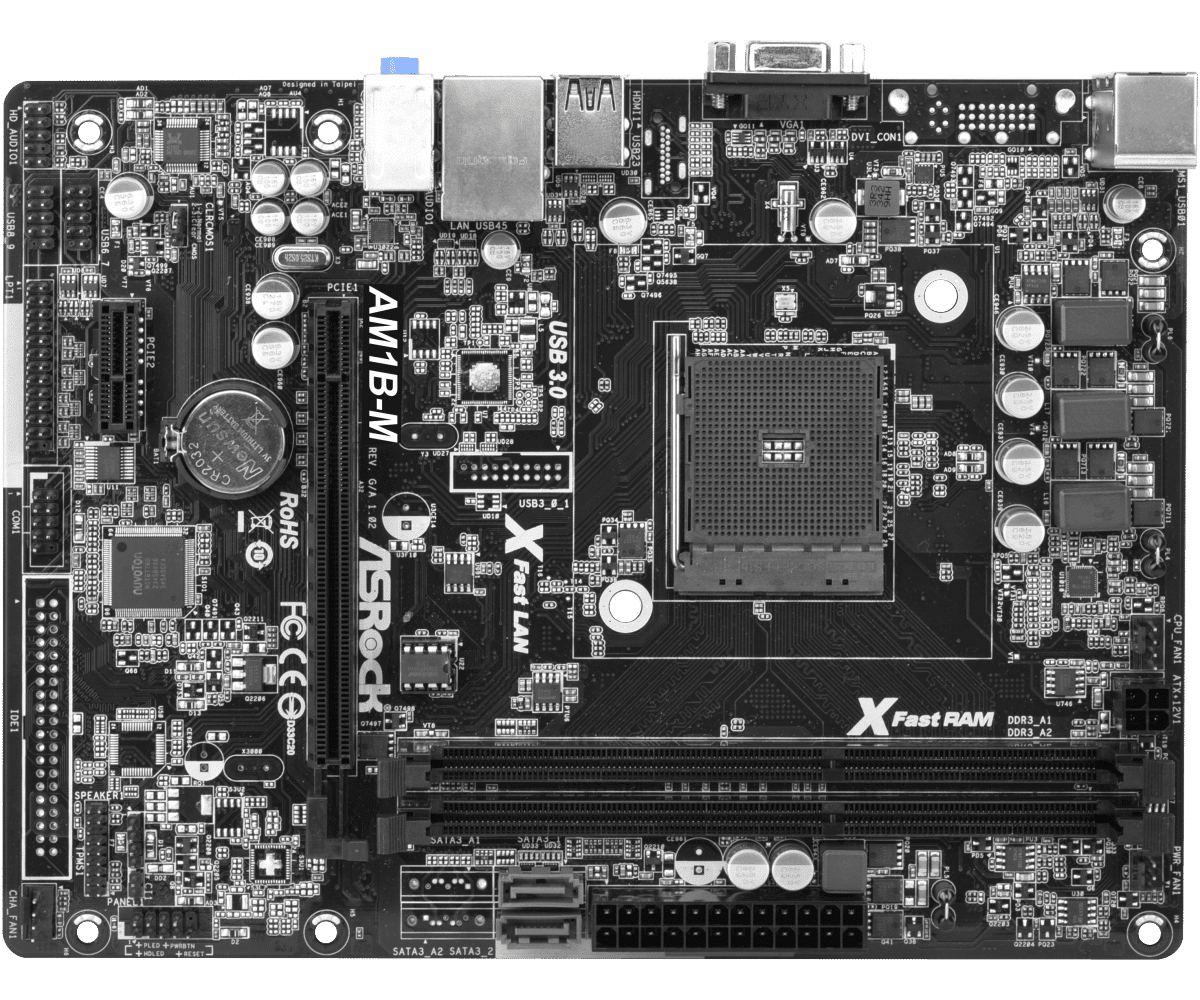

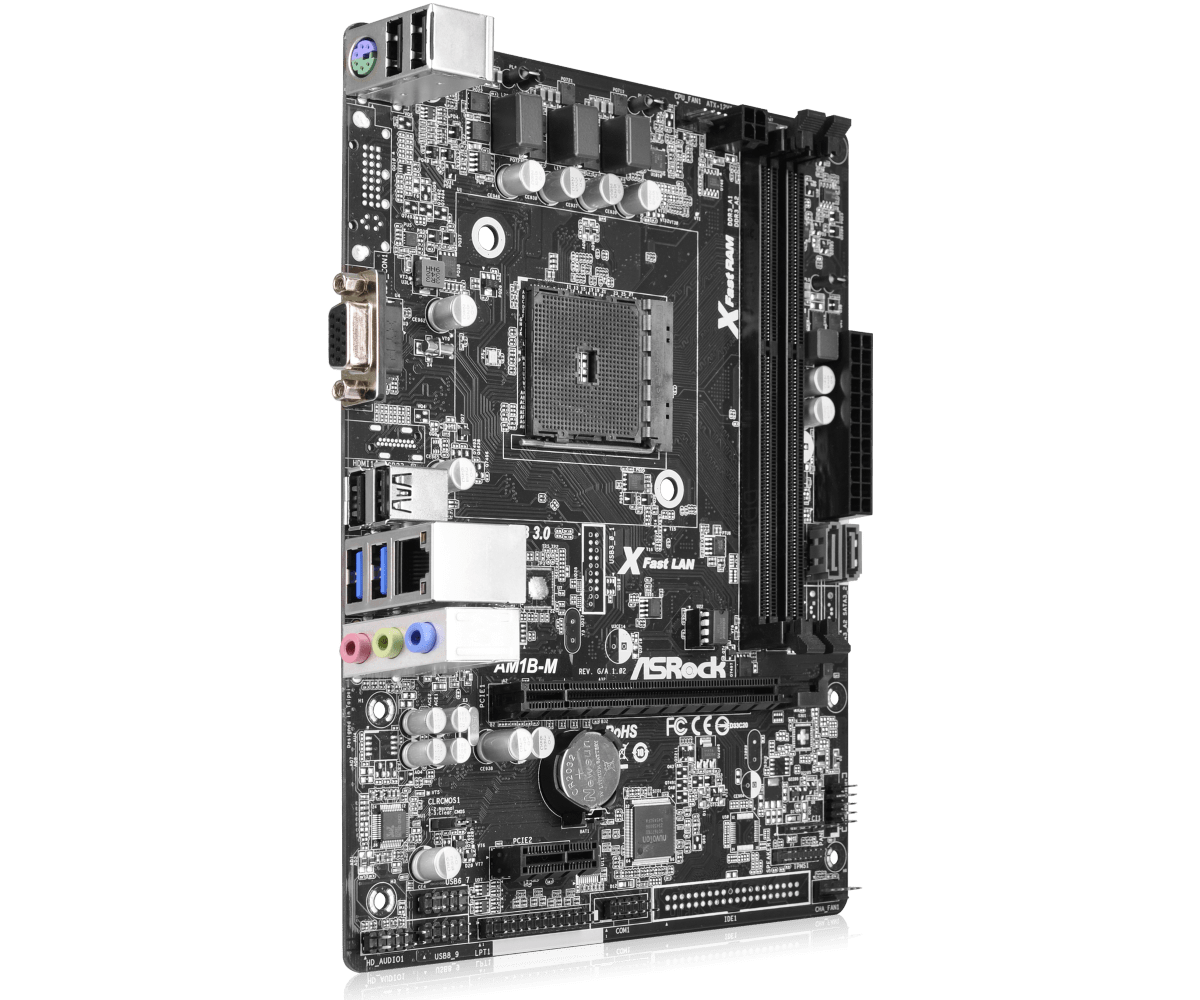

ASRock AM1B-M socket AM1 moederbord

11 op voorraad

Snelle levering
14,95

  • Geheel solide condensatorontwerp
  • Ondersteunt AMD Socket AM1 Athlon/Sempron APU
  • Ondersteunt DDR3 1600-geheugen, 2 x DIMM-slots, Max. 32 GB
  • 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
  • Geïntegreerde AMD Radeon™ R3-serie graphics in A-serie / E-serie APU
  • 1 D-Sub, 1 printpoortkop, 1 COM-poortkop
  • 2 USB 3.1 Gen1, 8 USB 2.0 (4 voor, 4 achter), 2 SATA3
  • Realtek Gigabit LAN
  • 5.1 CH HD-audio (Realtek ALC662-audiocodec)
  • Ondersteunt ASRock Full Spike Protection, A-Tuning, APP Shop, FAN-Tastic Tuning, UEFI Tech Service, USB Key
