Description

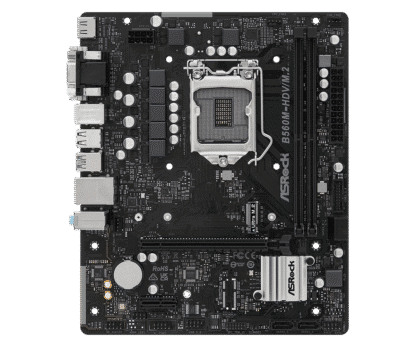

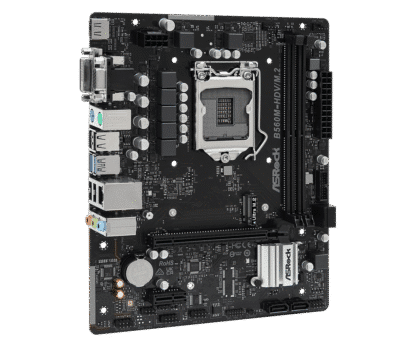

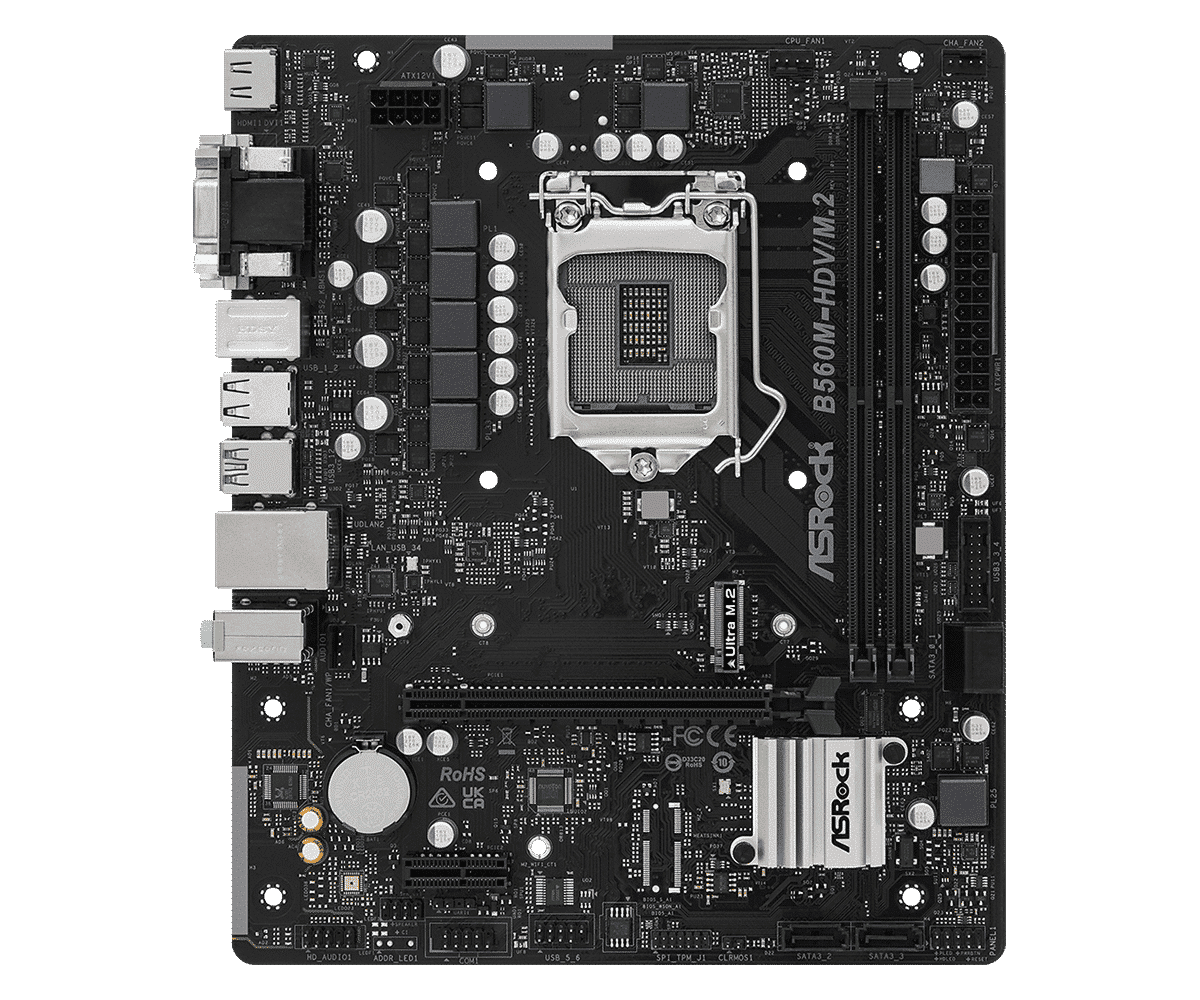

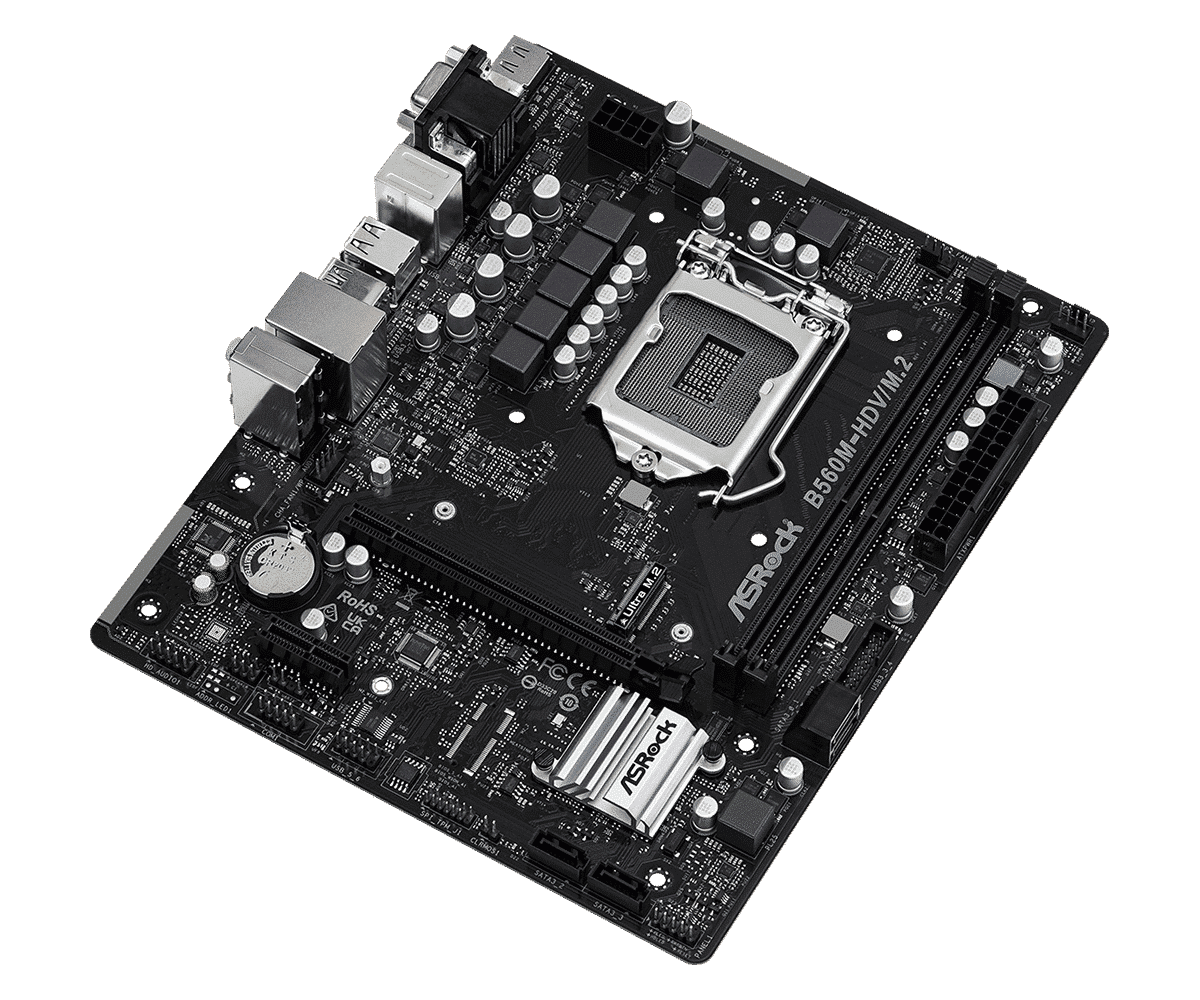

Asrock B560M-HDV/M2 Motherboard is a Micro-ATX motherboard based on the Intel B560 chipset and supports 10th and 11th generation processors (Comet Lake, Tiger Lake, Rocket Lake). The motherboard is equipped with dual-channel DDR4 memory slots with a maximum capacity of 64GB RAM. Additionally, the ASRock B560 Pro4 motherboard features one PCI Express 4.0 x16, one PCI Express 3.0 x1, and one M.2 slot. The Asrock B560 Pro4 LGA1200 motherboard also includes HDMI, D-Sub (VGA), DVI-D, USB 3.2 Gen1 Type-A, and USB 2.0 ports.
Asrock B560M-HDV/M2
Type: Motherboard
Socket: LGA1200 (compatible with 10th and 11th generation processors)
Brand: ASRock
Condition: Refurbished
Warranty: 6 months
EAN: 4710483942174
Manufacturer Code: 90-MXBLE0-A0UAYZ, B560M-HDV/M.2
Drivers for the Asrock B560M-HDV/M2
Processors supported by the Asrock B560M-HDV/M2
Package Contents
- Asrock B560M-HDV/M2 motherboard
- IO Shield
- No manual, driver CD, or cables included
Specifications
Unique Feature
ASRock Super Alloy
– Premium 50A Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Auto Driver Installer
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
– Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
– 5 Power Phase design
– Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
– Intel® B560
Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4000+(OC)*
– 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 3600+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB
– Supports Intel® Extreme Memory Profile (XMP) 2.0
*11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.
10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.
BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment
Graphics
– 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
– Three graphics output options: D-Sub, DVI-D and HDMI**
– Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz with 11th Gen Intel® Core™ Processors
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz with 10th Gen Intel® Core™ Processors
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports
– Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors)
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.* Graphics specifications may vary between CPU types.
**Supports up to 2 displays simultaneously
Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots
11th Gen Intel® Core™ Processors
– 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel® Core™ Processors
– 1 x PCI Express 3.0 x16 Slot*
– 1 x PCI Express 3.0 x1 Slot
*Supports NVMe SSD as boot disks
Storage
– 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
**Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Connector
– 1 x COM Port Header
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x Chassis Fan Connector (4-pin)**
– 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power.
***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

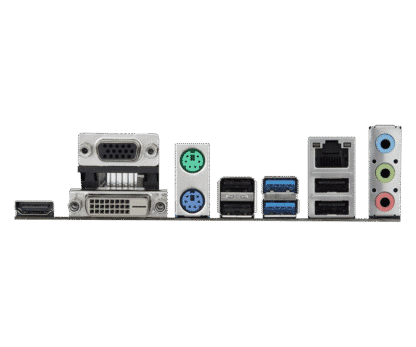

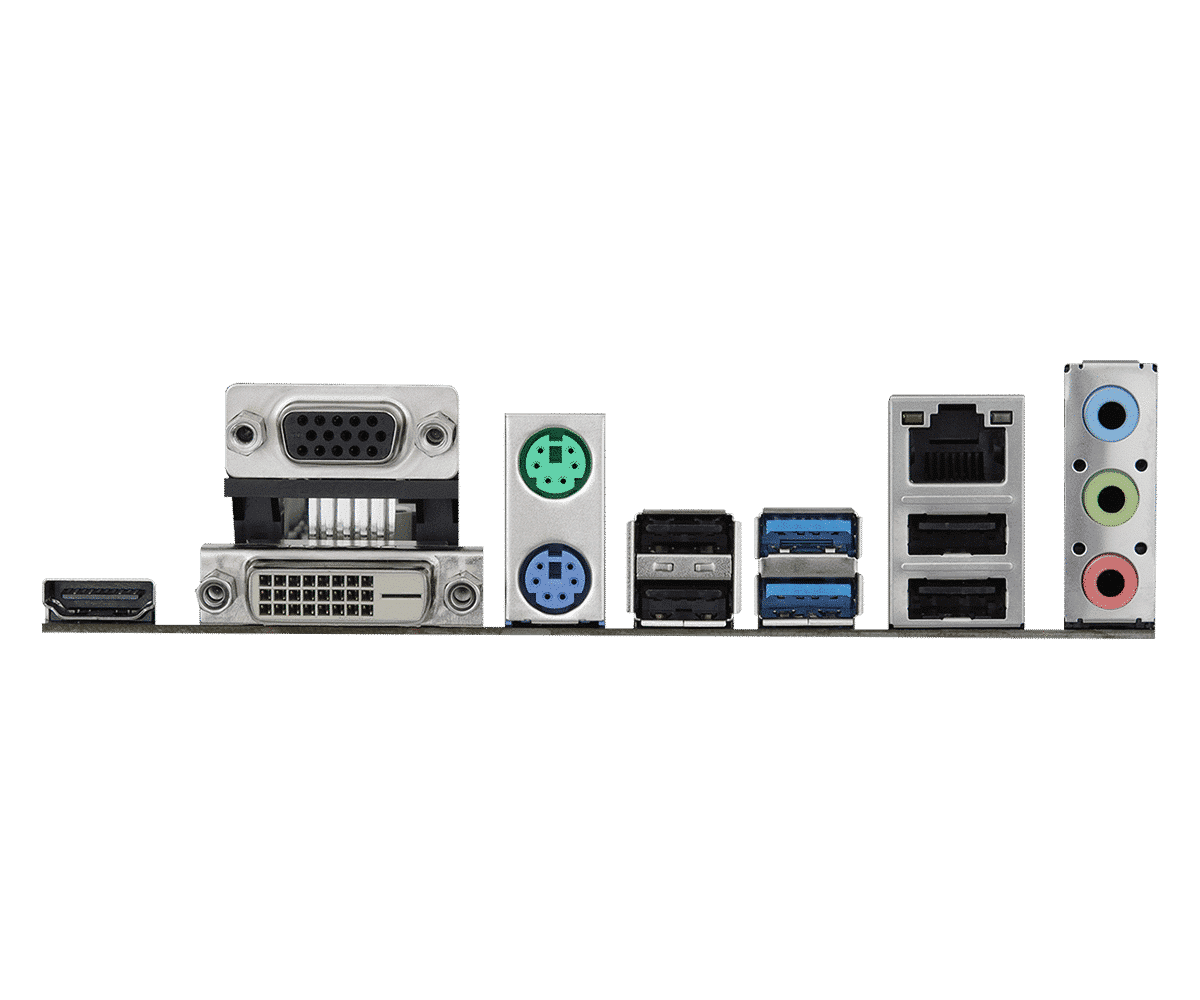

Rear Panel I/O
– 1 x PS/2 Keyboard Port
– 1 x PS/2 Mouse Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 4 x USB 2.0 Ports (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Internet Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
– 1 x I/O Shield
Hardware Monitor
– Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
Form Factor
– Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
– Solid Capacitor design
OS
– Microsoft Windows® 10 64-bit / 11 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
