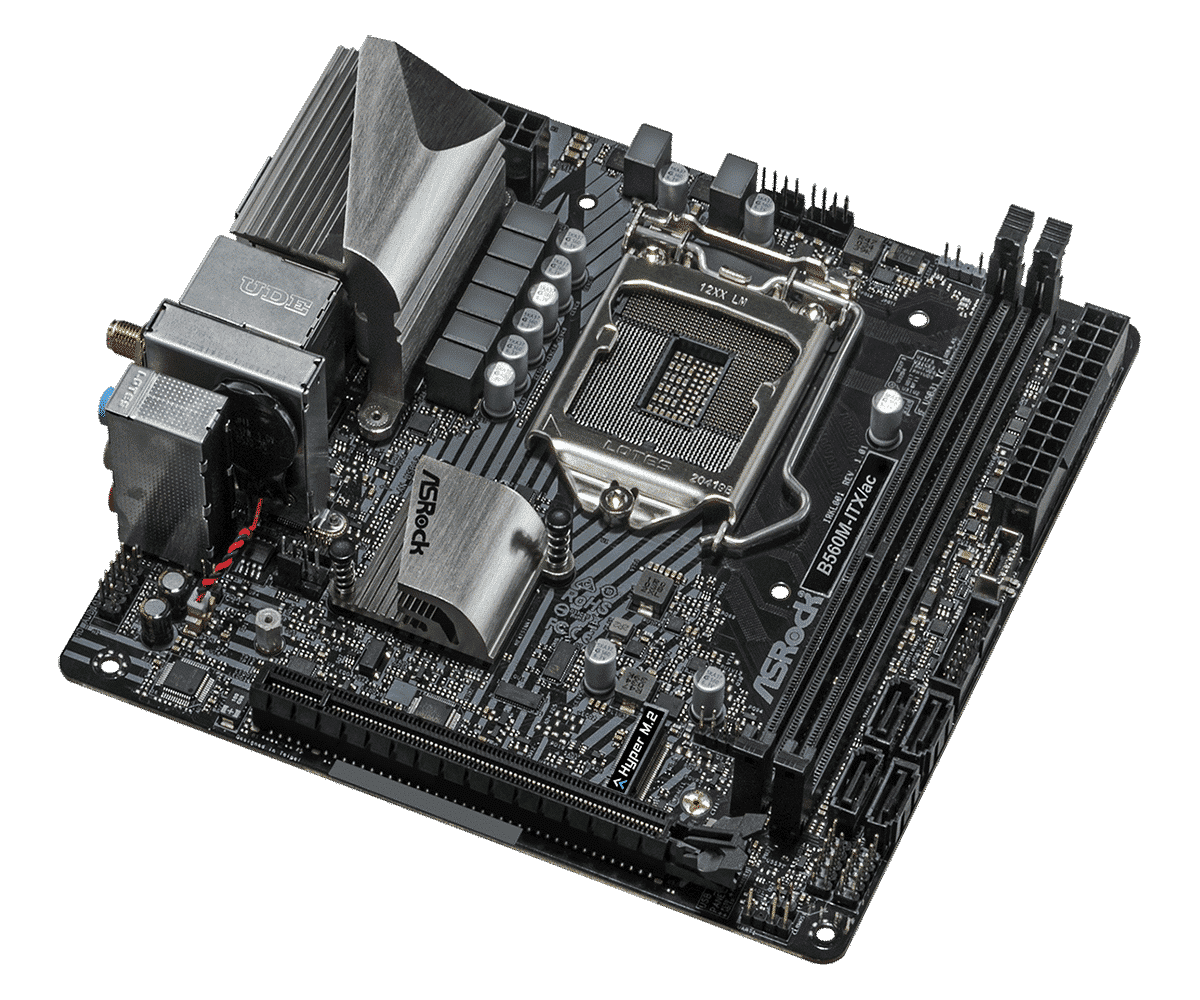

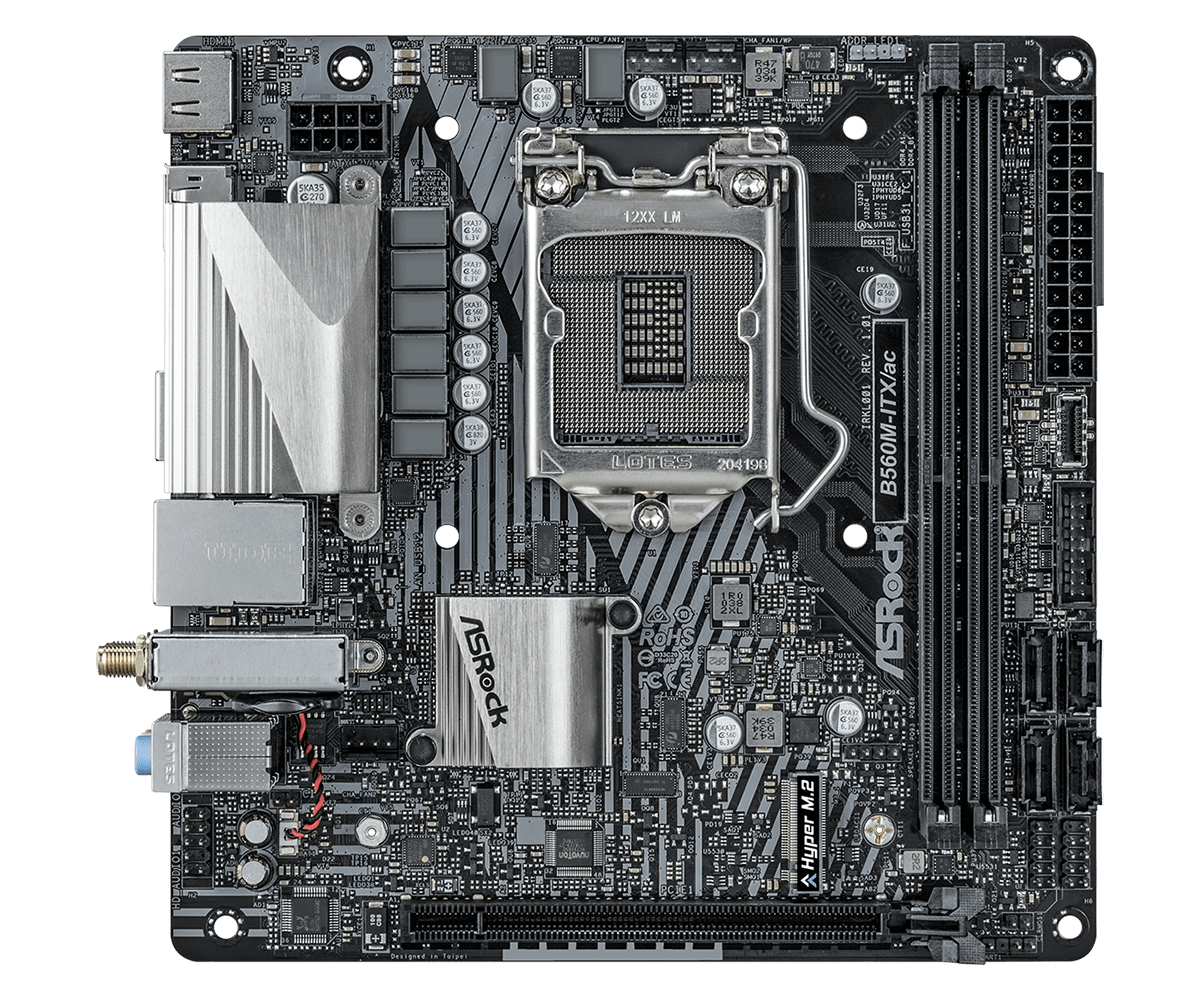

ASRock B560M-ITX/ac LGA1200 retail

The ASRock B560M-ITX/ac Motherboard is a Mini-ITX motherboard based on the Intel B560 chipset and supports the 10th and 11th generation processors (Comet Lake, Tiger Lake, Rocket Lake). The motherboard is equipped with dual-channel DDR4 memory slots with a maximum capacity of 64GB RAM.

The ASRock B560M-ITX/ac motherboard features one PCI Express 4.0 x16, one PCI Express 3.0 x1, and one M.2 slot, and is equipped with an Intel 802.11ac Wi-Fi module with Bluetooth 4.2. Furthermore, the ASRock B560M-ITX/ac LGA1200 motherboard also has several connectors such as HDMI, DisplayPort 1.4, USB 3.2 Gen1, and USB 2.0 ports.

---

ASRock B560M-ITX/ac

Type: Motherboard
Socket: LGA1200 (suitable for 10th and 11th generation processors)
Brand: ASRock
Condition: Refurbished
Warranty: 6 months
EAN: 4710483933912
Manufacturer Code: 90-MXBEZ0-A0UAYZ, B560M-ITX/ac

---



Package Contents

• ASRock B560M-ITX/ac motherboard
• IO-Shield
• 2 antennas
• manual, driver CD and cables

---

Specifications

Unique Feature

ASRock Super Alloy
– Premium 60A Power Choke
– 50A Dr.MOS
– Sapphire Black PCB
– High Density Glass Fabric PCB
Intel® 802.11ac WiFi
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

---

CPU

– Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
– Digi Power design
– 6 Power Phase design
– Supports Intel® Turbo Boost Max 3.0 Technology

---

Chipset

– Intel® B560

---

Memory

– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)*
– 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4400+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0

*11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.
10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

---

BIOS

– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, CPU GT, VCCSA, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST Voltage Multi-adjustment

---

Graphics

– 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
– Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
– Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz with 11th Gen Intel® Core™ Processors
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz with 10th Gen Intel® Core™ Processors
– Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.2 with DisplayPort and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors)

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Graphics specifications may vary between CPU types.

---

Audio

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection

---

LAN

– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

---

Wireless LAN

– Intel® 802.11ac WiFi Module
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual-Band (2.4/5 GHz)
– Supports high speed wireless connections up to 433Mbps
– Supports Bluetooth 4.2 / 3.0 + High speed class II

---

Slots

11th Gen Intel® Core™ Processors
– 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel® Core™ Processors
– 1 x PCI Express 3.0 x16 Slot*

– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)

*Supports NVMe SSD as boot disks

---

Storage

– 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*
– 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4 x4 (64 Gb/s) (with 11th Gen Intel® Core™ Processors) or Gen3 x4 (32 Gb/s) (with 10th Gen Intel® Core™ Processors)**

*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

**Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

---

Connector

– 1 x Chassis Intrusion Header
– 1 x Addressable LED Header*
– 1 x CPU Fan Connector (4-pin)**
– 1 x Chassis Fan Connector (4-pin)***
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

*Support in total up to 5V/3A, 15W LED Strip

**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

***The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

---

Rear Panel I/O

– 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

---

Software and UEFI

Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

---

Accessories

– I/O Shield
– 2 x Antennas

---

Hardware Monitor

– Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCCSA

---

Form Factor

– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– Solid Capacitor design

---

OS

– Microsoft Windows® 10 64-bit / 11 64-bit

---

Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
