Product information

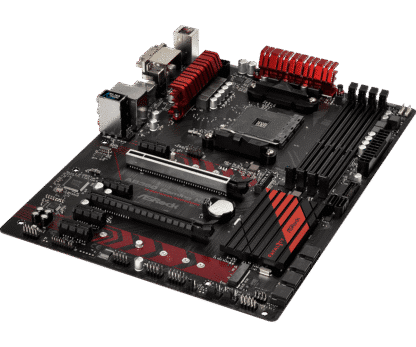

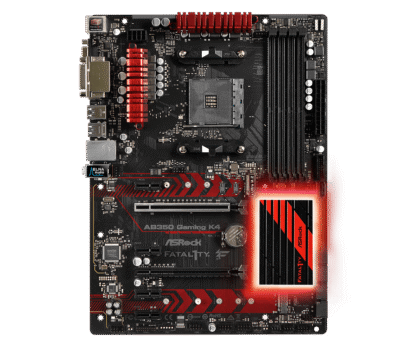

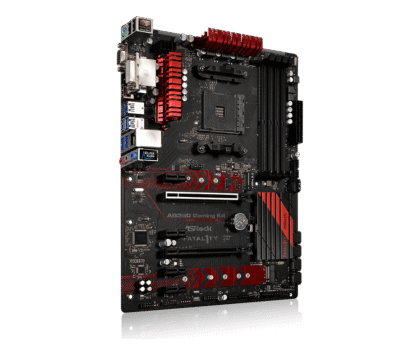

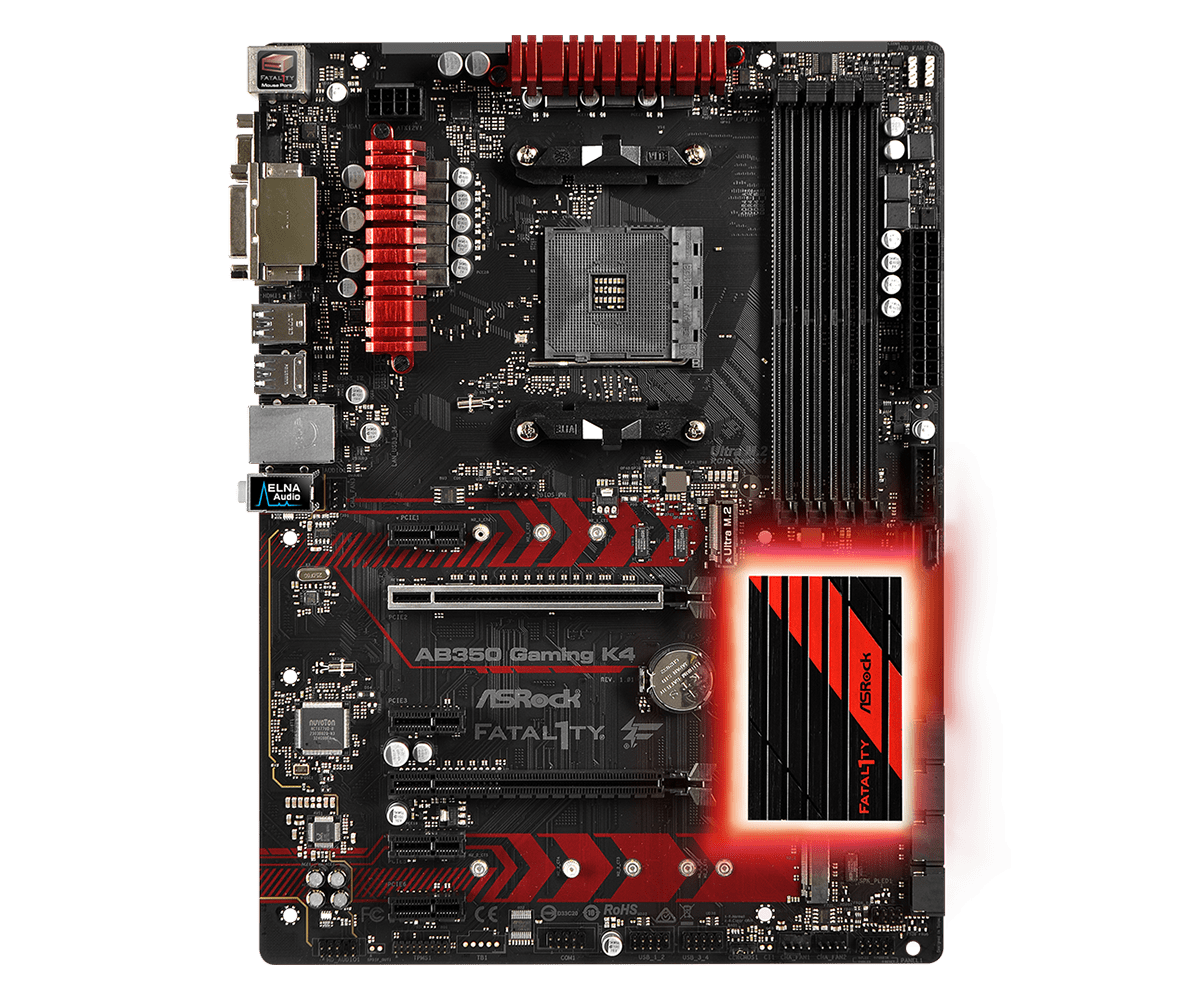

ASRock Fatal1ty AB350 Gaming K4:  motherboard | ATX | AMD AM4 | AMD B350 Chipset | 4x DDR4 (max. 64GB) | PCI Express 3.0 x16 | PCI Express 2.0 x1 | Ultra M.2 Socket (M2_1) | M.2 Socket (M2_2) | Sata-600 | USB 3.1 Gen1 Type-C  | USB 3.1 Gen1 | USB 2.0  | D-Sub (VGA) | DVI-D | HDMI


Product: ASRock Fatal1ty AB350 Gaming K4
Socket:
AMD AM4
Category: Motherboards
Brand: ASRock
Condition: Refurbished
EAN: 4717677333152
SKU:
90-MXB530-A0UAYZ, AB350 GAMING K4
Warranty: 6 months


package content:
– Motherboard (Fatal1ty AB350 Gaming K4)
– Backplate (Blende)
No manual
No driver CD
No cables


Gaming Armor
Memory
– 15μ Gold Contact in DIMM Slots
Audio
– Creative Sound Blaster™ Cinema 3
Unique Feature
ASRock Super Alloy
– Premium Power Choke
– Matte Black PCB
– High Density Glass Fabric PCB
– 2oz Copper PCB
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU
– Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
– Digi Power design
– 9 Power Phase design


Chipset
– AMD Promontory B350


Memory
– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, unbuffered memory*
– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, unbuffered memory*
– AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, unbuffered memory*
– AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, unbuffered memory*
– AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD 7th Gen A-Series APUs support DDR4 2400 / 2133 non-ECC, unbuffered memory*
– Max. capacity of system memory: 64GB**
– 15μ Gold Contact in DIMM Slots

*For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to below table for DDR4 UDIMM maximum frequency support.

A-Series APUs:

Ryzen Series CPUs (Matisse):

Ryzen Series CPUs (Pinnacle Ridge):
Ryzen Series CPUs (Pinnacle Ridge)

Ryzen Series CPUs (Picasso):
Ryzen Series CPUs (Picasso)

Ryzen Series CPUs (Summit Ridge):
Ryzen Series CPUs (Summit Ridge)

Ryzen Series CPUs (Raven Ridge):
Ryzen Series CPUs (Raven Ridge):
SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– Support “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumper free
– SMBIOS 2.3 support
– DRAM Voltage multi-adjustment


Graphics
– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– Integrated AMD Radeon™ R-Series Graphics in A-series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
– Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 1.4 Ports

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray Audio support
– Support Surge Protection
– ELNA Audio Caps
– PCB Isolate Shielding
– Individual PCB Layers for R/L Audio Channel
– Supports Creative Sound Blaster™ Cinema 3


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
– 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4))*
AMD 7th A-Series APUs
– 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE2); dual at x8 (PCIE2) / x2 (PCIE4))*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
– 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE2); dual at x8 (PCIE2) / x4 (PCIE4))*
AMD Athlon series CPUs
– 2 x PCI Express 3.0 x16 Slots (single at x4 (PCIE2); dual at x4 (PCIE2) / x2 (PCIE4))*

– 4 x PCI Express 2.0 x1 Slots
– Supports AMD Quad CrossFireX™ ​​and CrossFireX™**

*Supports NVMe SSD as boot disks
If M2_1 is occupied, PCIE4 will be disabled.

**This feature is only supported with Ryzen Series CPUs (Matisse, Summit Ridge, Pinnacle Ridge, Picasso and Raven Ridge).


Storage
– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
– 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)**
– 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module

*M2_2 and SATA3_3 share lanes. If either one of them is in use, the other one will be disabled.

**If M2_1 is occupied, PCIE4 will be disabled.
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 1 x AMD Fan LED Header*
– 1 x CPU Fan Connector (4-pin)**
– 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed ​​Control)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*Supports in total up to 12V/3A, 36W LED Strip
The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.

**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

***CHA_FAN2 and CHA_FAN3 can auto detect if 3-pin or 4-pin fan is in use.

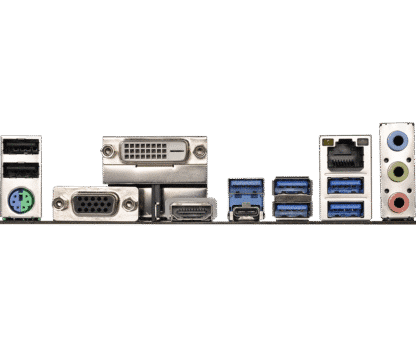

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Support ESD Protection)*
– 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
– 5 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

*1 x Fatal1ty Mouse Port (USB 2.0) is included


Software and UEFI
Software
– ASRock F-Stream
– ASRock RGB LED
– ASRock Key Master
– ASRock APP Charger
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, Vcore


Form Factor
– ATX Form Factor: 12.0-in x 8.8-in, 30.5cm x 22.4cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit / 11 64-bit*

*Bristol Ridge and Summit Ridge do not officially support Windows®

Specification

Weight 1 kg
AMD-en

AM4

Brand

Asrock

Chipset

AMD Promontory B350

Form Factor

ATX

Memory Type

DDR4 SDRAM

Number of memory slots

4

Maximum memory size

64 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.1 Gen1, USB 3.1 Gen1 Type-C

Storage Interfaces

Serial ATA-600, Ultra M.2 Socket

Interfaces

M.2, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Model

Fatal1ty AB350 Gaming K4

Length

30.5 cm

Width

22.5 cm

package content

Motherboard and Backplate (Blende)

Socket

ASRock Fatal1ty AB350 Gaming K4 AM4 motherboard

99 in stock

Fast delivery
59,95

  • ATX
  • ASRock Super Alloy
  • Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge & Raven Ridge)
  • Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU)
  • 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output: HDMI, DVI-D, D-Sub
  • Supports Triple Monitor
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Supports Creative Sound Blaster™ Cinema 3
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3)
  • 8 USB 3.1 Gen1 (1 Type-C, 2 Front, 5 Rear)
  • Realtek Gigabit LAN
Quantity:
  • Free shipping from €100,-
  • Reliable for more than 10 years!
  • Fast delivery
  • Monthly payments are possible!
SKU: ASRock Fatal1ty AB350 Gaming K4 Categories: , , Tags: , , , ,

Pros and cons
According to our computer expert

  • 4x DDR4
  • 2x M.2 Slot
