ASRock Fatal1ty X99 Professional/3.1 (No Backplate)

0 in stock

Free delivery
209,95

Brand: Asrock
Model: Fatal1ty X99 Professional / 3.1 (No Backplate)
Socket: LGA2011-3
Chipset: Intel X99
Memory: 8x DDR4 (128GB Max)
Form-Factor: EATX
EAN: 4717677326352
SKU: 90-MXGY70-A0UAYZ, Fatal1ty X99 Professional / 3.1

Out of stock

SKU: X99 Professional/3.1 Categories: , Tags: , ,

Product information

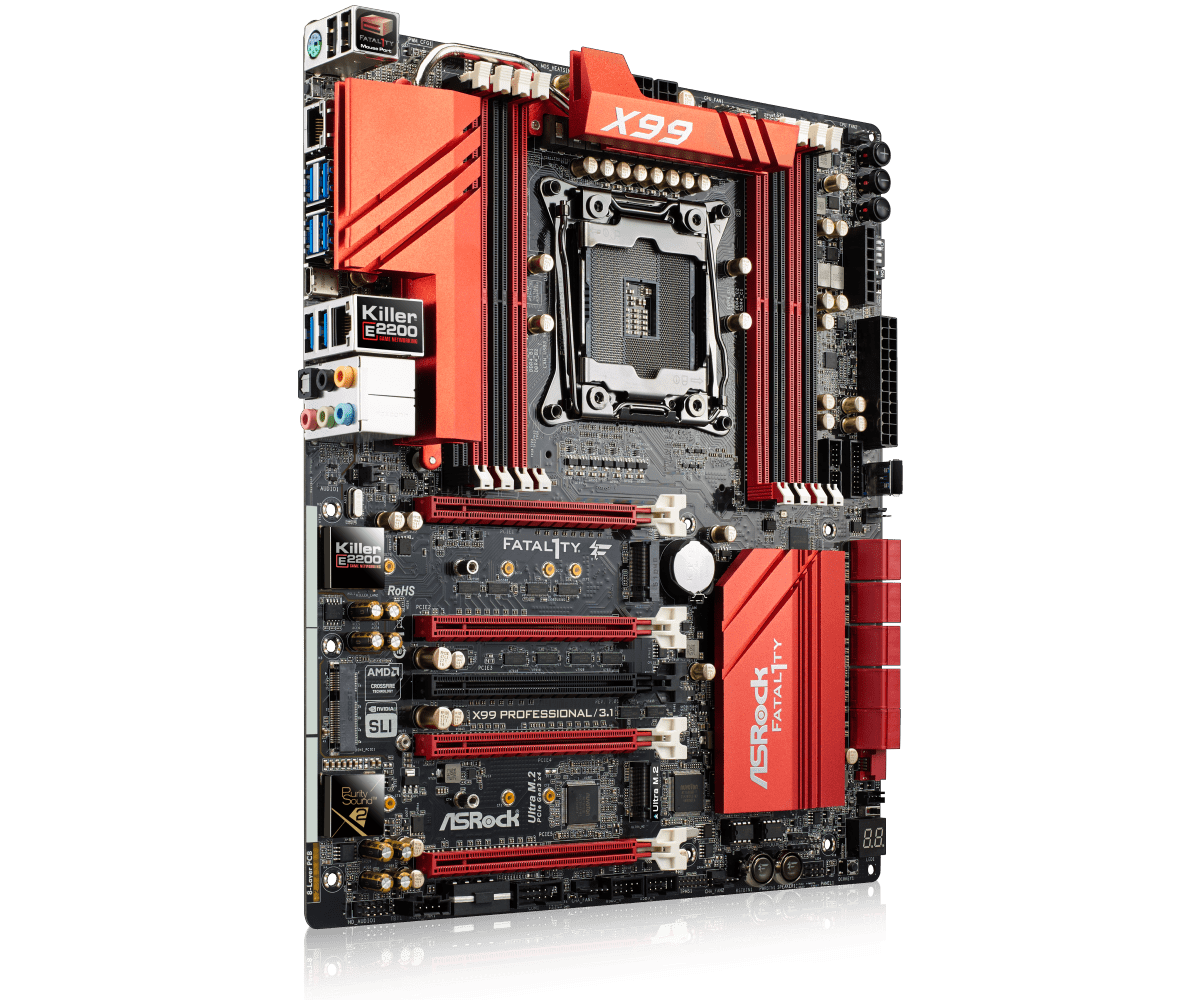

The ASRock Fatal1ty X99 Professional / 3.1 is an ATX Socket 2011-3 motherboard based on the Intel X99 chipset, suitable for Intel Core i7 / Xeon processors. The board must be combined with DDR4 memory, for which 8 slots are available. USB 3.0 provides the board 10x and USB 2.0 7x. In total, the ASRock Fatal1ty X99 Professional / 3.1 has 10 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC1150 chip. The board offers 2 network connections, where you can connect with a maximum of 1000 Mbps.

Features: Motherboard | ATX | Socket 2011-3 | 8x DDR4 | Intel X99 Chipset | M.2 (PCI-e 3.0 x4) | M.2 (S600 / Pcie2.0x4) | 10x SATA-600 | mini PCI Express | 5x PCI-e 3.0 x16 | 6x USB 2.0 | 11x USB 3.2 (Gen1, 5Gb / s) | AMD Crossfire | Nvidia SLI / NVLink

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock Fatal1ty X99 Professional / 3.1
Socket: 2011-3
Category: Motherboards
Brand: ASRock
Condition: Refurbished – Bios updated to the latest version
EAN: 4717677326352
SKU: 90-MXGY70-A0UAYZ, Fatal1ty X99 Professional / 3.1
Warranty: 6 Months

Package Contents:
– Motherboard (ASRock Fatal1ty X99 Professional / 3.1)
No Backplate(blende)
– no manual
– no driver CD
– no cables


Gaming Armor
CPU Power
– Hi-Density Power Connector
– Ultra Dual-N MOSFET (UDM)
Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)
– PCIe Power Connector
Internet
– Intel® LAN
– Qualcomm® Atheros® Killer ™ LAN
Cooling
– XXL Aluminum Alloy Heatsink
– 8 Layer PCB
– 4 x 2oz copper
– Heat Pipe Design
Audio
– Purity Sound ™ 2


Unique Feature
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– Ultra Dual-N MOSFET (UDM)
Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
– Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock HDD Saver Technology
ASRock Full Spike Protection
ASRock Cloud
ASRock APP Shop


CPU
Supports Intel® Core ™ i7 and Xeon® 22-Core Processors Family for the LGA 2011-3 Socket
– Digi Power design
12 Phase CPU Power design (Supports up to 1300w)
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Untied Overclocking Technology


Chipset
– Intel® X99


Memory
– Quad Channel DDR4 Memory Technology
– 8 x DDR4 DIMM Slots
Supports DDR4 3400+ (OC) * / 2933 (OC) / 2800 (OC) / 2400 (OC) / 2133 non-ECC, un-buffered memory
Supports non-ECC x8 (8 bit) RDIMM (Registered DIMM) / x8 (8 bit) UDIMM
Supports DDR4 ECC x8 (8 bit) RDIMM / x8 (8 bit) UDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket, but not include x4 (4 bit) RDIMM / x4 (4 bit) UDIMM.
– Max. capacity of system memory: 128GB (with Core ™ i7 CPU Broadwell-E, Xeon® CPU) or 64GB (with Core ™ i7 CPU Haswell-E)
Supports Intel® Extreme Memory Profile (XMP) 2.0

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

** Please refer to Memory Support List on ASRock’s website for more information.


BIOS
– 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment


Graphics
– n / a


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
Supports Surge Protection (ASRock Full Spike Protection)
Supports Purity Sound ™ 2
– Nichicon Fine Gold Series Audio Caps
115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolate shielding
– Supports DTS Connect


LAN
– 1 x Intel® I218V (Gigabit LAN PHY 10/100/1000 Mb / s)
– 1 x Qualcomm® Atheros® Killer ™ E2200 Series (PCIE x1 Gigabit LAN 10/100/1000 Mb/s)
– Supports Qualcomm® Atheros® Security Wake On Internet Technology (on Qualcomm® Atheros® Killer™ E2200 Series)
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 5 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE4); triple at x8 (PCIE1) / x8 (PCIE2) / x16 (PCIE4); quad at x8 (PCIE1) / x8 (PCIE2) / x8 (PCIE4) / x8 (PCIE5))*
– 1 x Half Mini-PCI Express Slot
– Supports AMD Quad CrossFireX™, 4-Way CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
– Supports NVIDIA® Quad SLI™, 4-Way SLI™, 3-Way SLI™ and SLI™***

*If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE4/PCIE5 will run at x16/x0/x4/x8/x0 or x8/x8/x4/x8/x0, and PCIE5 will be disabled.

**If Ultra M.2 PCI Express module is installed, PCIE3 slot will be disabled.

***If you install CPU with 28 lanes, 4-Way CrossFireX™ and 4-Way SLI™ are not supported.

****To support 3-Way CrossFireX™ and 3-Way SLI™ when using CPU with 28 lanes, please install VGA cards to PCIE1/PCIE2/PCIE4 (x8/x8/x8).

*****To support 4-Way CrossFireX™ and 4-Way SLI™, please install the CPU with 40 lanes.


Storage
– 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology*
– 1 x Ultra M.2 Socket (ULTRA_M2), supports M Key M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
– 1 x M.2_SSD (NGFF) Socket 3 (M2_1), supports M Key M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s)

*S_SATA3_3 connector is shared with M.2 Socket (M2_1)

**RAID is supported on SATA3_0 ~ SATA3_5 ports only.


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
– 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x HDD Saver Connector
– 1 x PCIe Power Connector
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector*
– 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Vertical Type A USB 3.1 Gen1
– 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Dr. Debug with LED
– 1 x Power Switch with LED
– 1 x Reset Switch with LED
– V-Probe™: 7-set of onboard voltage measurement points laid
– Rapid OC Buttons: +/- buttons to adjust OC frequency
– 1 x Menu Button
– 1 x PCIe ON/OFF Switch
– 1 x Slow Mode Switch
– 1 x LN2 Mode Switch
– 1 x BIOS Selection Switch
– 1 x Direct Key Button

*Please update to the latest BIOS to support Thunderbolt™ technology.

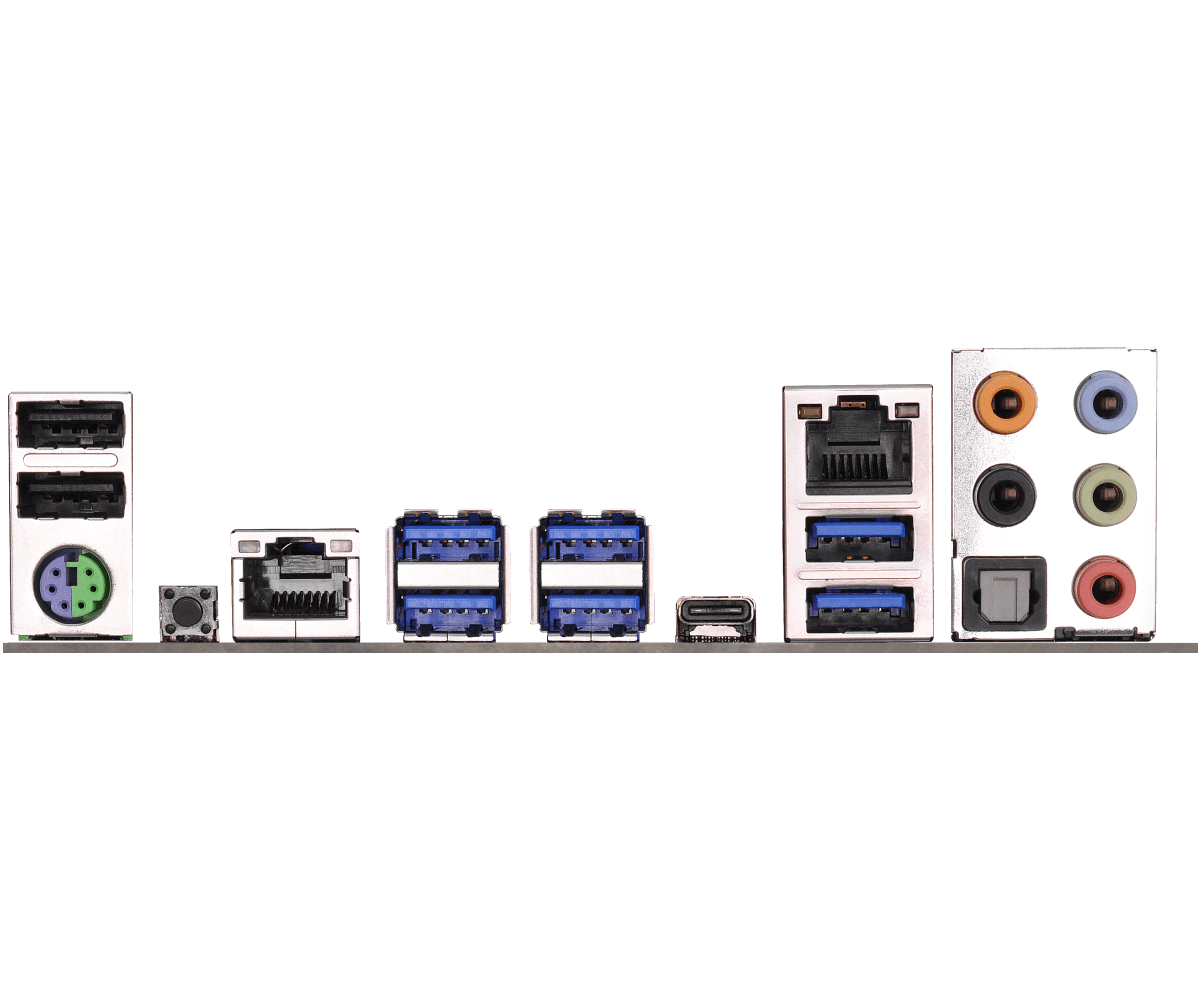

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x Optical SPDIF Out Port
– 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1 x Clear CMOS Switch
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock F-Stream
– ASRock Disk Health Report
– ASRock USB Key
– ASRock Key Master
– ASRock Timing Configurator
– ASRock APP Charger
– ASRock XFast RAM
– ASRock Restart to UEFI

UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer


Accessories
– None


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages
– Multi Thermal Sensor


Form Factor
– EATX Form Factor
– 8 Layer PCB
– 4 x 2oz copper
– High Density Glass Fabric PCB


OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specification

Intel

LGA2011-3

Brand

Asrock

Chipset

Intel X99

Form Factor

EATX

Memory Type

DDR4

Number of memory slots

8

Maximum memory size

128 GB

Connectors

2x RJ-45 LAN, USB 2.0, USB 3.1 Gen1

Storage Interfaces

M.2_SSD (NGFF) Socket 3, Serial ATA-600, Ultra M.2 Socket

Interfaces

Half Mini-PCI Express Slot, PCI-e 3.0 x16

Socket

Intel LGA2011-3
