Product information

ASRock Fatal1ty X99M Killer/3.1: Motherboard | Micro ATX | LGA2011-3 | 4x DDR4 | M.2 (PCI-e 3.0 x4 + SATA) | SATA Express (Gen2, 10Gb/s) | SATA 600 | PCI-e 2.0 x16 | PCI-e 3.0 x16 | eSATA | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | USB 3.2 (Gen2, 10Gb/s) | Ethernet (RJ45)

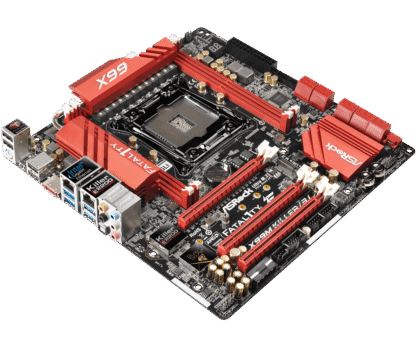

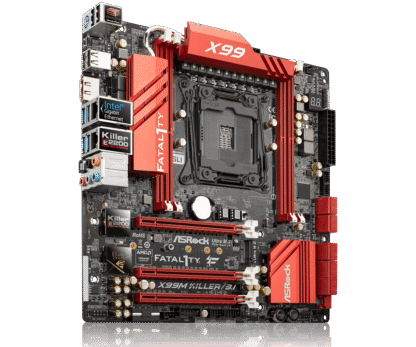

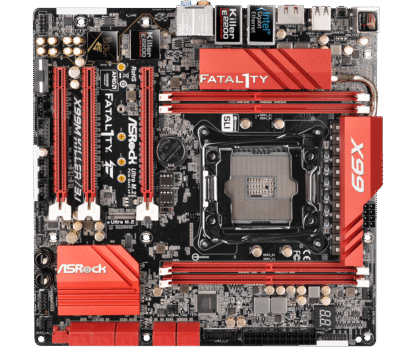

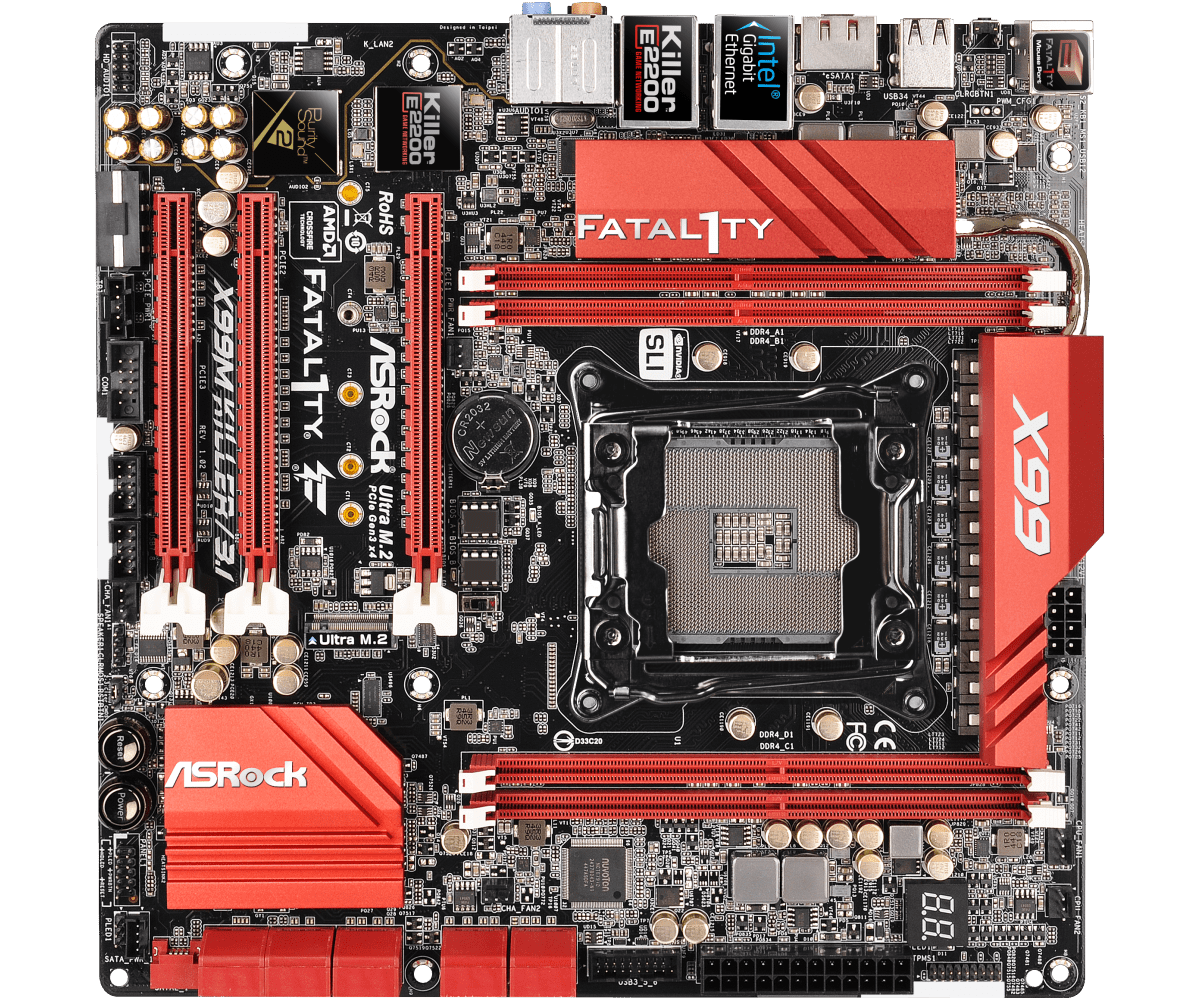

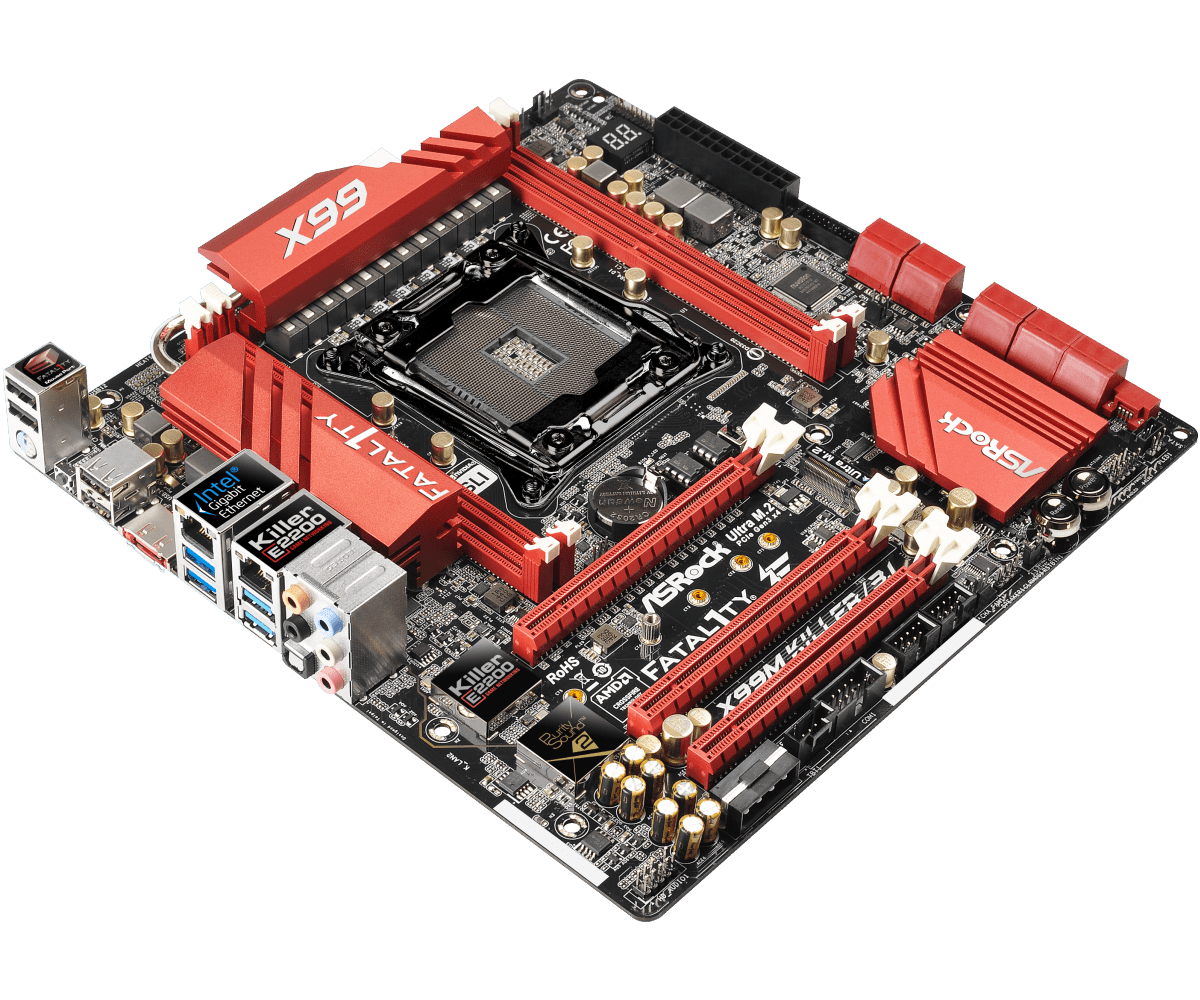

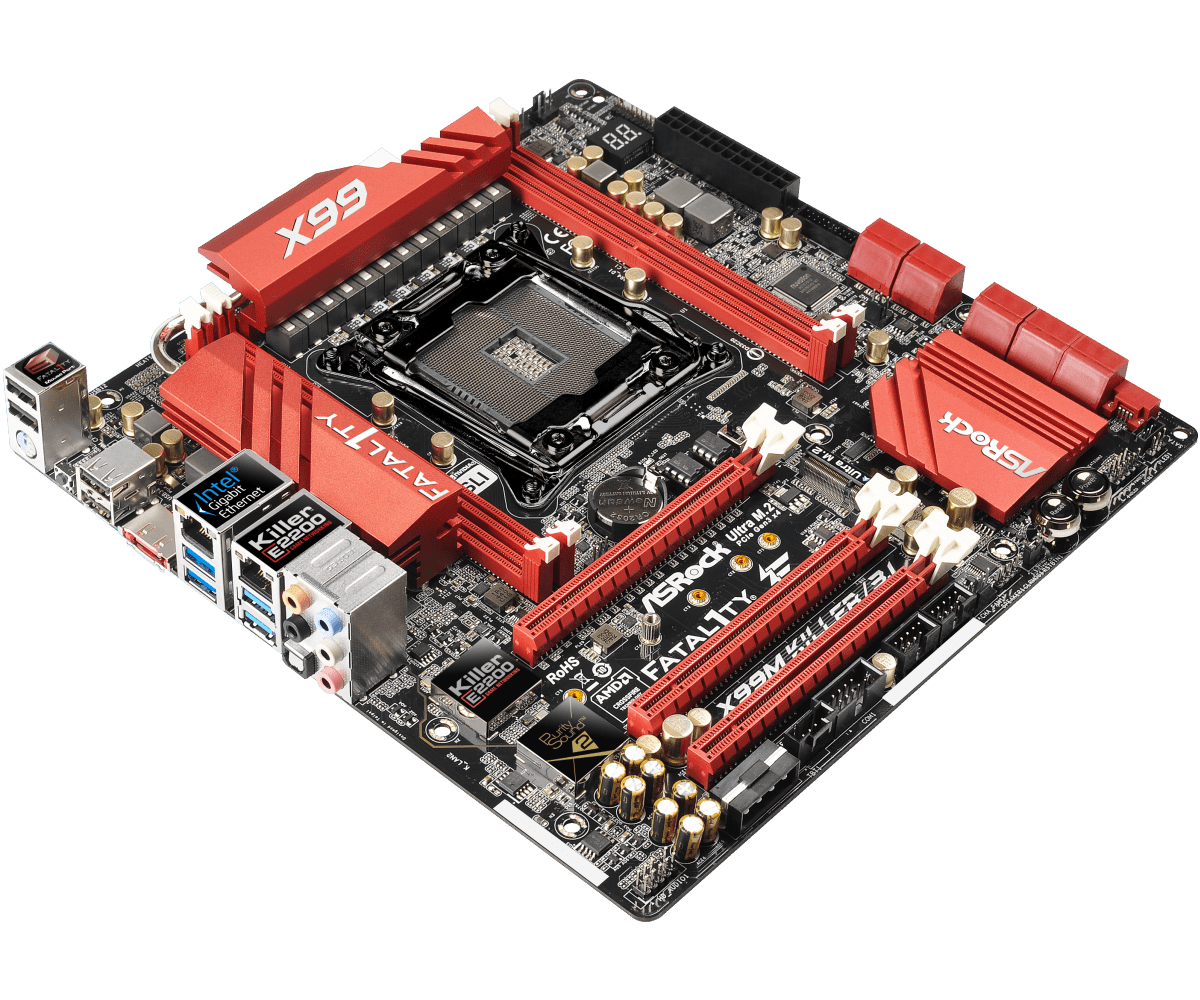

Product: ASRock Fatal1ty X99M Killer/3.1
Socket: LGA2011-3 /Socket R3
Category: motherboards
Brand: ASRock
Condition: Refurbished – BIOS updated to the latest version
EAN: 4717677326031
SKU: 90-MXGXT0-A0UAYZ, Fatal1ty X99M Killer/3.1
Warranty: 6 months

package content:
– Motherboard (ASRock Fatal1ty X99M Killer/3.1)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables

Gaming Armor
CPU Power
– Hi-Density Power Connector
– Ultra Dual-N MOSFET (UDM)
Memory
– NexFET™ MOSFET
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE2)
– PCIe Power Connector
Internet
– Intel® LAN
– Qualcomm® Atheros® Killer™ LAN
Cooling
– XXL Aluminum Alloy Heatsink
Audio
– Purity Sound™ 2

Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Ports (10 Gb/s)
ASRock X Series OC Socket
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– Ultra Dual-N MOSFET (UDM)
– NexFET™ MOSFET
– Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
– Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock HDD Saver Technology
ASRock Full Spike Protection
ASRock APP Shop

CPU
– Supports Intel® Core™ i7 and Xeon® 22-Core Processors Family for the LGA 2011-3 Socket
– Digi Power design
– 12 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Untied Overclocking Technology

Chipset
– Intel® X99

Memory
– Quad Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 3200+(OC)*/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, unbuffered memory
– Supports non-ECC RDIMM (Registered DIMM)
– Supports DDR4 ECC, un-buffered memory/RDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket
– Max. capacity of system memory: 128GB (with Core™ i7 CPU Broadwell-E) or 64GB (with Core™ i7 CPU Haswell-E) or 256GB (With Xeon® CPU)**
– Supports Intel® Extreme Memory Profile (XMP) 2.0

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

** Please refer to Memory Support List on ASRock’s website for more information.

BIOS
– 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment

Graphics
– n/a

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– Supports Purity Sound™ 2
– Nichicon Fine Gold Series Audio Caps
– 115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolation shielding
– Supports DTS Connect

LAN
– 1 x Intel® I218V (Gigabit LAN PHY 10/100/1000 Mb/s)
– 1 x Qualcomm® Atheros® Killer™ E2200 Series (PCIE x1 Gigabit LAN 10/100/1000 Mb/s)
– Supports Qualcomm® Atheros® Security Wake On Internet Technology (on Qualcomm® Atheros® Killer™ E2200 Series)
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 2 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE2 @ x16 mode)*
– 1 x PCI Express 2.0 x16 Slot (PCIE3 @ x4 mode) **
– Supports AMD Quad CrossFireX™ ​​and CrossFireX™
– Supports NVIDIA® Quad SLI™ and SLI™

*If you install CPU with 28 lanes, PCIE1/PCIE2 will run at x16/x8.

**If SATA Express 10 Gb/s Connector is occupied, PCIE3 slot will run at x2 mode.

Storage
– 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology*
– 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4 and SATA3_5)
– 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

*S_SATA3_3 connector is shared with the eSATA port; S_SATA3_2 connector is shared with Ultra M.2 Socket; RAID is supported on SATA3_0 ~ SATA3_5 ports only.

**Support to be announced.

Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed ​​Control)
– 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed ​​Control)
– 1 x Power Fan Connector (3 pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x HDD Saver Connector
– 1 x PCIe Power Connector
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector
– 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Dr. Debug with LED
– 1 x Power Switch with LED
– 1 x Reset Switch with LED
– 1 x BIOS Selection Switch

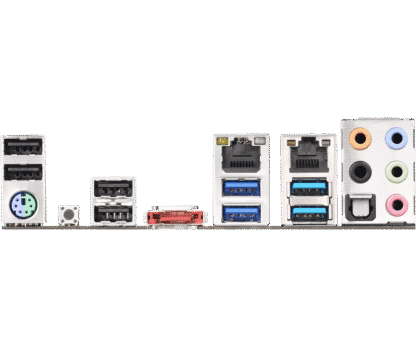

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x Optical SPDIF Out Port
– 1 x eSATA Connector
– 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen2 Type-A Ports (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Intel® X99) (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1 x Clear CMOS Switch
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock F-Stream
– ASRock Disk Health Report
– ASRock USB Key
– ASRock Key Master
– ASRock APP Charger
– ASRock XFast RAM
– ASRock Restart to UEFI
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer

Accessories
– I/O Shield

Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages

Form Factor
– Micro ATX Form Factor
– High Density Glass Fabric PCB

OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
