ASRock FM2A55 Pro+

Fast delivery
29,95

Brand: Asrock
Model: ASRock FM2A55 Pro +
Socket: AMD FM2 (+)
Memory: 2x DDR3 (32GB Max)
Form-Factor: ATX
EAN: 4717677321890
SKU: 90-MXGRQ0-A0UAYZ, FM2A55 PRO +, FM2A55PRO +

Out of stock

SKU: ASRock FM2A55 Pro+ Categories: , Tags: , ,

Product information

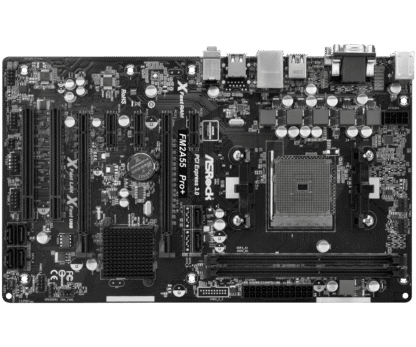

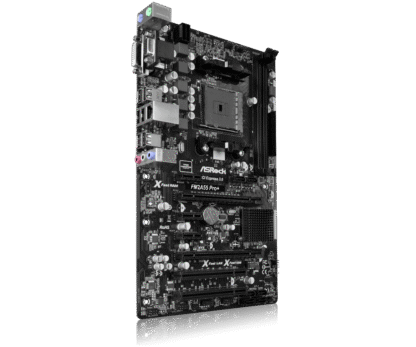

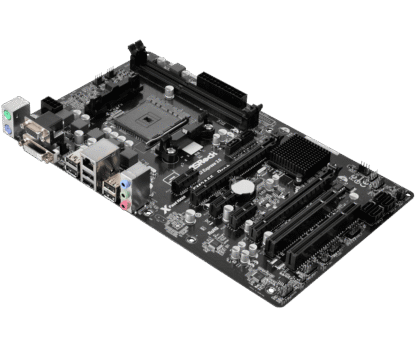

The ASRock FM2A55 Pro + is an ATX Socket FM2 + motherboard based on the AMD A55 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the ASRock FM2A55 Pro + has 6 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 5.1 channel sound and is based on a Realtek ALC662 chip.

Features:
Motherboard | ATX | Socket FM2 + | 2x DDR3 (Max32GB) | 6x SATA-300 | 10x USB2.0 | DVI-D | VGA

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock FM2A55 Pro +
Socket: FM2 +
Category: Motherboards
Brand: ASRock
EAN: 4717677321890
Condition: Refurbished – With the latest available BIOS version
SKU: 90-MXGRQ0-A0UAYZ, FM2A55 PRO +, FM2A55PRO +
Warranty:
6 Months

Package Contents:
– Motherboard (ASRock FM2A55 Pro +)
– Backplate (blende)
– No manual
– No driver CD
– No cables


CPU
Supports Socket FM2 + 95W / FM2 100W processors


Chipset
– AMD A55 FCH (Hudson-D2)


Memory
– Dual Channel DDR3 Memory Technology
– 2 x DDR3 DIMM Slots
Supports DDR3 1866/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB *
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
Supports AMD Memory Profile (AMP)

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliant wake up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– DRAM, CPU Voltage multi-adjustment


Graphics
– Integrated AMD Radeon ™ R7 / R5 Series Graphics in A-series APU
– DirectX 11.1, Pixel Shader 5.0 with FM2 + CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
– Max. shared memory 2GB
– Two graphics output options: support DVI-D and D-Sub ports by independent display controllers
Supports Dual-link DVI-D with max. Resolution up to 2560×1600 @ 60Hz
Supports D-Sub with max. Resolution up to 1920×1200 @ 60Hz
Supports AMD Steady Video ™ 2.0: New video post processing capability for automatic jitter reduction on home / online video
Supports HDCP with DVI-D Port
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port


Audio
5.1 CH HD Audio (Realtek ALC662 Audio Codec)
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb / s
– Realtek RTL8111G
– Supports Wake-On-LAN
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE2 @ x16 mode)
– 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)
– 3 x PCI Express 2.0 x1 Slots
– 2 x PCI Slots
– Supports AMD Quad CrossFireX ™, CrossFireX ™ and Dual Graphics

* PCIE 3.0 is only supported with FM2 + CPU. With FM2 CPU, it only supports PCIE 2.0.


Storage
– 6 x SATA2 3.0 Gb / s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug


Connector
– 1 x IR Header
– 1 x COM Port Header
– 1 x SPDIF Out Connector
– 1 x Power LED Header
– 1 x CPU Fan Connector (4-pin)
– 2 x Chassis Fan Connectors (2 x 4-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

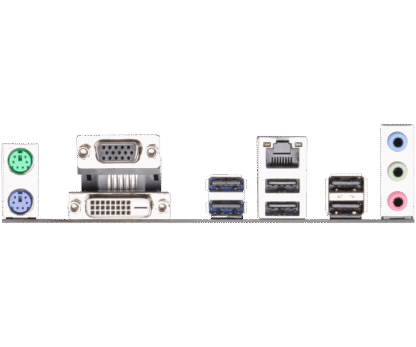

Rear Panel I / O
– 1 x PS / 2 Mouse Port
– 1 x PS / 2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 6 x USB 2.0 Ports
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone


Unique Feature
– ASRock A-Tuning
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock X-Boost
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– ASRock U-COP


Accessories
– I / O Shield


Hardware Monitor
CPU temperature sensing
Chassis temperature sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
Voltage monitoring: + 12V, + 5V, + 3.3V, Vcore


Form Factor
– ATX Form Factor
– All Solid Capacitor design


OS
Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

* Carrizo FM2r2 processor supports Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.


Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)

Specification

Weight1 kg
AMD-en

FM2(+)

Brand

Asrock

Chipset

AMD A55 FCH (Hudson-D2)

Form Factor

ATX

Memory Type

DDR3

Number of memory slots

2

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, USB 2.0

Storage Interfaces

Serial ATA-300

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

AMD FM2(+)
