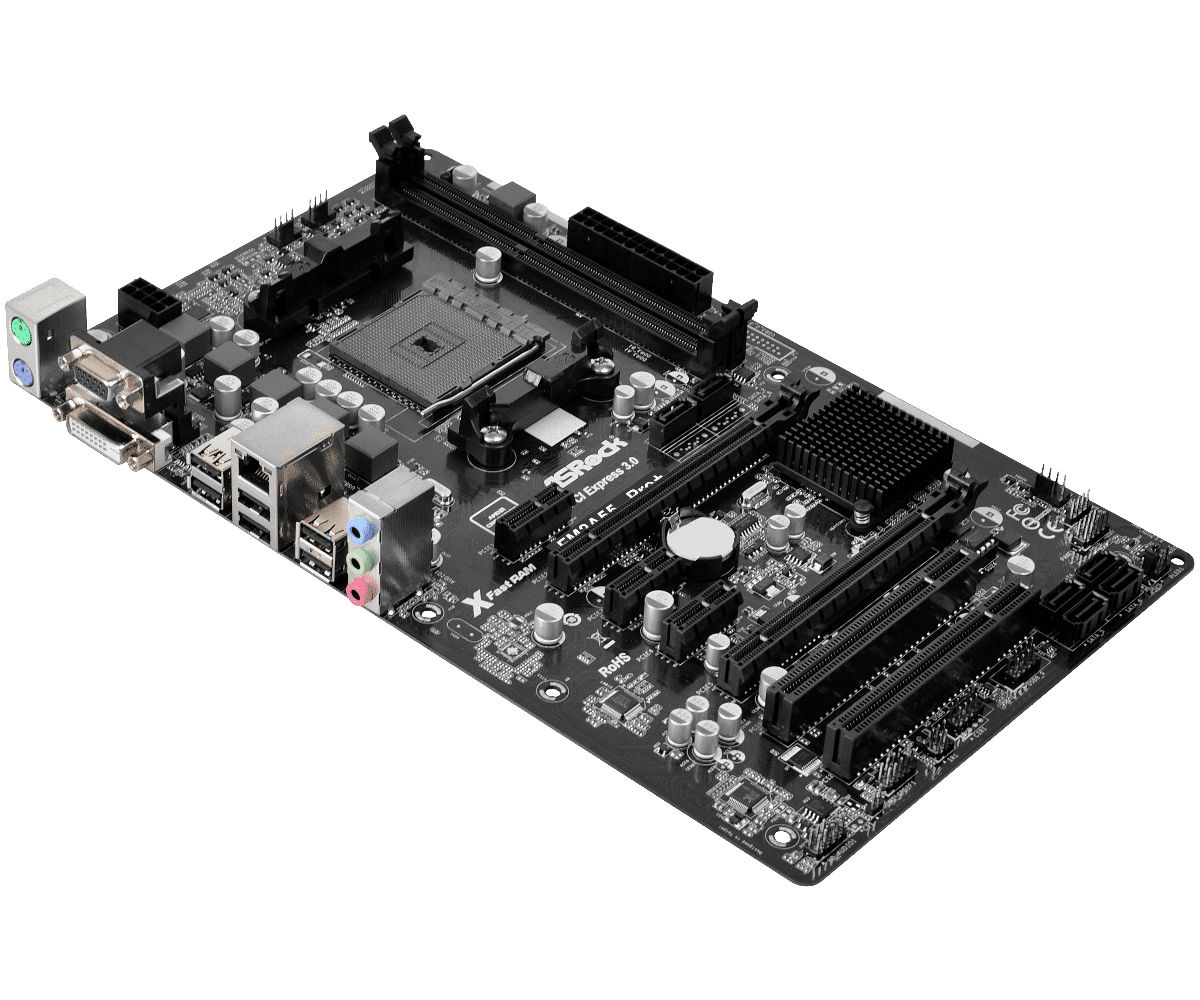

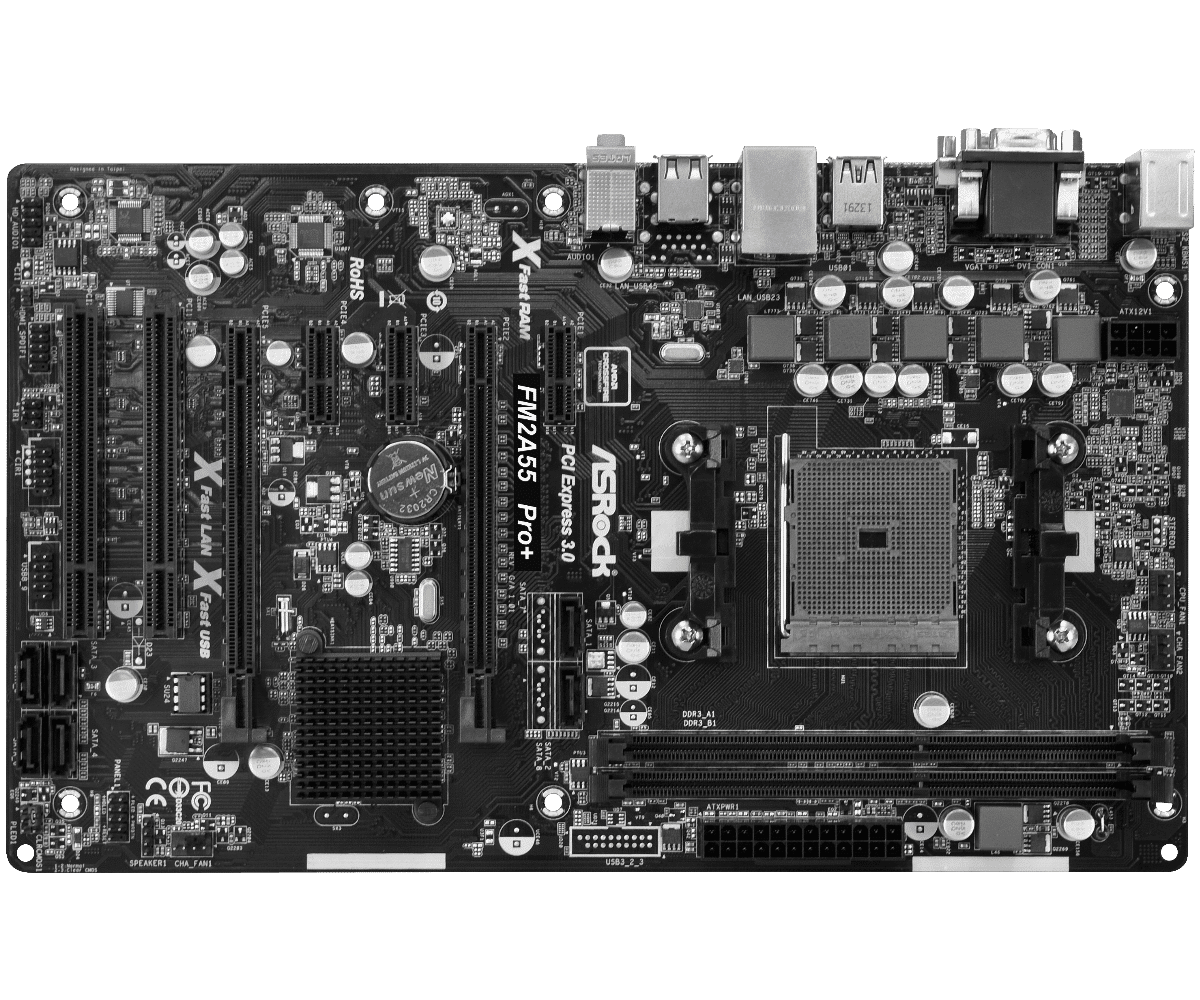

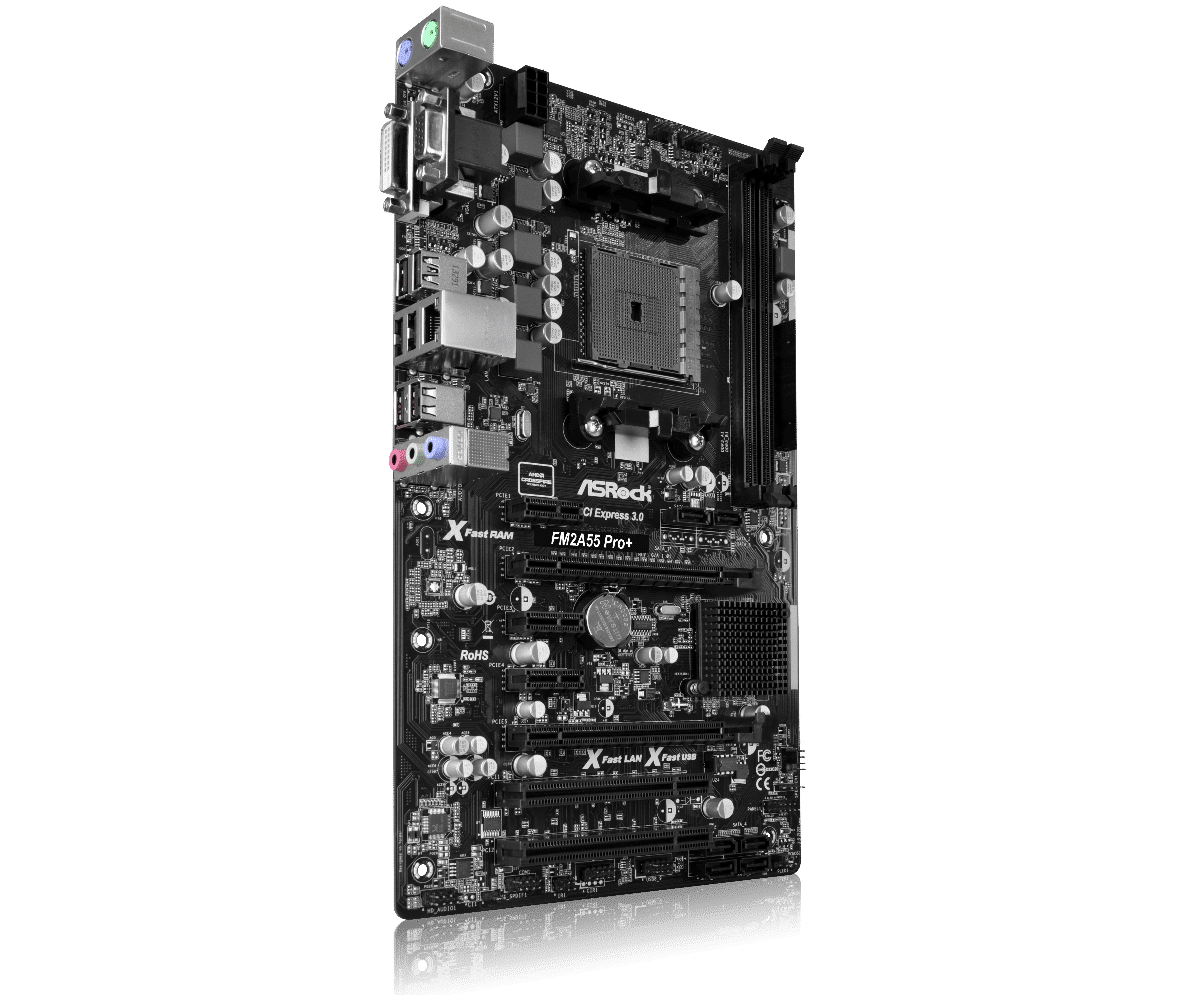

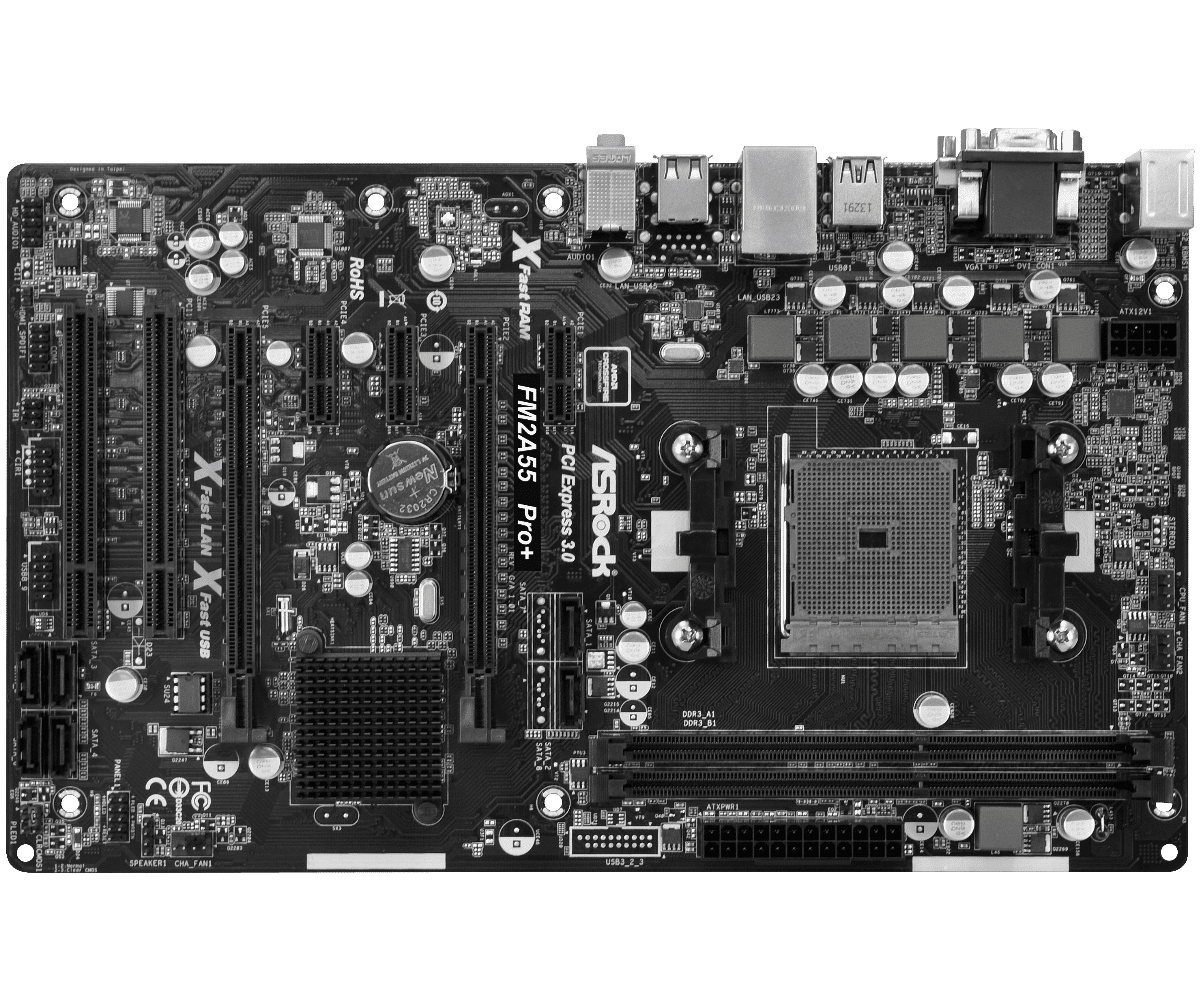

ASRock FM2A55 Pro+

Snelle levering
29,95

Merk: Asrock
Model: ASRock FM2A55 Pro+
Socket: AMD FM2(+)
Geheugen: 2x DDR3 (32GB Max)
Form-Factor: ATX
EAN: 4717677321890
SKU: 90-MXGRQ0-A0UAYZ, FM2A55 PRO+, FM2A55PRO+

Uitverkocht

Artikelnummer: ASRock FM2A55 Pro+ Categorieën: , Tags: , ,

Product informatie

De ASRock FM2A55 Pro+ is een ATX Socket FM2+ moederbord gebaseerd op de AMD A55 chipset. Het bord dient gecombineerd te worden met DDR3 geheugen, waarvoor 2 sloten beschikbaar zijn. In totaal heeft de ASRock FM2A55 Pro+ 6 Serial ATA aansluitingen voor harddisks en SSD’s. De onboard geluidskaart biedt 5.1 kanaals geluid en is gebaseerd op een Realtek ALC662 chip.

Eigenschappen:
Moederbord | ATX | Socket FM2+ | 2x DDR3 (Max32GB) | 6x SATA-300 | 10x USB2.0 | DVI-D | VGA

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

Product: ASRock FM2A55 Pro+
Socket: FM2+
Categorie: Moederborden
Merk: ASRock
EAN: 4717677321890
Staat: Refurbished – Voorzien van de laatst beschikbare BIOS versie
SKU: 90-MXGRQ0-A0UAYZ, FM2A55 PRO+, FM2A55PRO+
Garantie:
6 Maanden

pakketinhoud:
– Moederbord (ASRock FM2A55 Pro+)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels


CPU
– Supports Socket FM2+ 95W / FM2 100W processors


Chipset
– AMD A55 FCH (Hudson-D2)


Memory
– Dual Channel DDR3 Memory Technology
– 2 x DDR3 DIMM Slots
– Supports DDR3 1866/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
– Supports AMD Memory Profile (AMP)

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliant wake up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– DRAM, CPU Voltage multi-adjustment


Graphics
– Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
– DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
– Max. shared memory 2GB
– Two graphics output options: support DVI-D and D-Sub ports by independent display controllers
– Supports Dual-link DVI-D with max. resolution up to 2560×1600 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video
– Supports HDCP with DVI-D Port
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port


Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111G
– Supports Wake-On-LAN
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE2 @ x16 mode)
– 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)
– 3 x PCI Express 2.0 x1 Slots
– 2 x PCI Slots
– Supports AMD Quad CrossFireX™, CrossFireX™ and Dual Graphics

*PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.


Storage
– 6 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug


Connector
– 1 x IR Header
– 1 x COM Port Header
– 1 x SPDIF Out Connector
– 1 x Power LED Header
– 1 x CPU Fan Connector (4-pin)
– 2 x Chassis Fan Connectors (2 x 4-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)


Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 6 x USB 2.0 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Unique Feature
– ASRock A-Tuning
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock X-Boost
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– ASRock U-COP


Accessories
– I/O Shield


Hardware Monitor
– CPU temperature sensing
– Chassis temperature sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, Vcore


Form Factor
– ATX Form Factor
– All Solid Capacitor design


OS
– Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

*Carrizo FM2r2 processor supports Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht 1 kg
AMD

FM2(+)

Merk

Asrock

Chipset

AMD A55 FCH (Hudson-D2)

Formaat

ATX

Geheugentype

DDR3

Aantal geheugenslots

2

Maximale geheugengrootte

32 GB

Aansluitingen

D-Sub (VGA), DVI-D, USB 2.0

Opslag interfaces

Serial ATA-300

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

AMD FM2(+)
