Product information

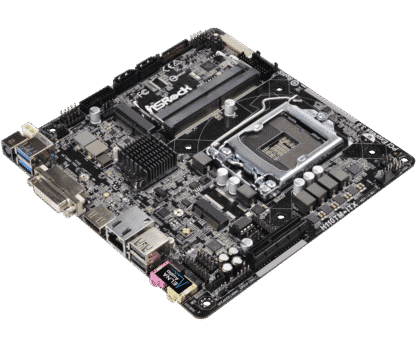

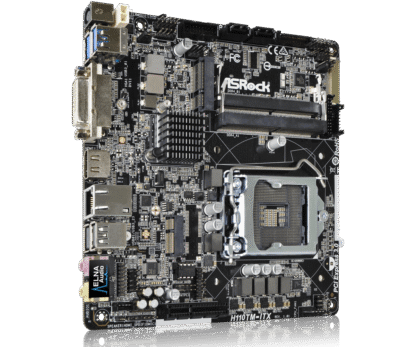

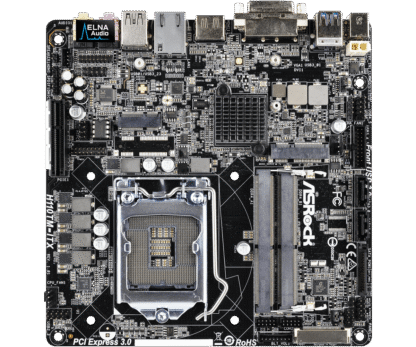

The ASRock H110TM-ITX is a Mini-ATX LGA1151 motherboard based on the Intel H110 chipset. The board must be combined with DDR4 SO-DIMM memory, for which 2 slots are available. The power supply must be regulated with a 19V power adapter (not included). In total, the ASRock H110TM-ITX has 2 Serial ATA connections for hard drives and SSDs. The built-in sound card offers 7.1-channel sound and is based on a Realtek ALC892 chip.

Features: Motherboard | Mini-ATX | LGA1151 | 2x DDR4 SO-DIMM | 2x SATA-600 | 1x mSATA | 1x M.2 Socket (Key E), | PCI-e 3.0 x4 | USB 2.0 | USB 3.1 (Gen1, 5 Gb / s) | DVI-D | HDMI

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock H110M-G / M.2
Connection: LGA1151
Supports: 6th en 7th Generation Processors
Category: motherboards
Brand: ASRock
EAN: 4717677331134, 4717677332223
Condition: refurbished
SKU: 90-MXB230-A0UAYZ, 90-MXB4G0-A0UAYZ, H110TM-ITX
Warranty: 6 months

Package content:
– Motherboard (ASRock H110TM-ITX)
– No backplate (blende)
– No 19V Adapter
– No manual
– No CD with drivers
– No cables

Unique Feature
ASRock Super Alloy
– Ultra Dual-N MOSFET (UDM)
– Matte Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & amp; APP Shop

CPU
Supports 7th and 6th Generation Intel® Core ™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
Supports CPU up to 65W
– Digi Power design
– 5 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology

Chipset
– Intel® H110

Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 SO-DIMM Slots
Supports DDR4 2400/2133 non-ECC, un-buffered memory *
Supports ECC SO-DIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 32GB **
– Supports Intel® Extreme Memory Profile (XMP) 2.0

* 7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.

** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 64Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– DRAM Voltage Multi-adjustment

Graphics
Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru ™ 3D, Intel® Clear Video HD Technology, Intel® Insider ™, Intel ® HD Graphics 510/530/630
– Pixel Shader 5.0, DirectX 12
– Max. shared memory 1024MB *
– Three graphics output options: HDMI, DVI-D and LVDS
Supports HDMI with max. Resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
Supports DVI-D with max. Resolution up to 1920×1200 @ 60Hz
Supports LVDS with max. Resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports Accelerated Media Codecs: HEVC, VP8, VP9
– Supports HDCP with DVI-D and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

* The size of maximum shared memory may vary from different operating systems.

** Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

*** Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8/8 64-bit / 7/7 64-bit.

**** Intel® InTru ™ 3D is only supported under Windows® 8/8 64-bit / 7/7 64-bit.

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) *
– Premium Blu-ray Audio support
Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps

* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN
– Gigabit LAN 10/100/1000 Mb / s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 1 x PCI Express 3.0 x4 Slot *
– 1 x M.2 Socket (Key E), supports type 2230 WiFi / BT module

* Supports NVMe SSD as boot disks

Storage
– 2 x SATA3 6.0 Gb / s Connectors, support NCQ, AHCI and Hot Plug
– 1 x mSATA Connector, support NCQ, AHCI and Hot Plug *

* MINI_SATA1: RST utility port0; SATA3_0: RST utility port2; SATA3_1: RST utility port3

Connector
– 1 x CIR Header
– 2 x COM Port Headers
– 1 x TPM Header
– 1 x SPDIF Out Connector
– 1 x Monitor Switch Header
– 1 x Backlight Power Jumper
– 1 x Panel Power Jumper
– 1 x Backlight & amp; Amp Volume Control Header
– 1 x LVDS Connector
– 1 x Home Theater PC Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed ​​Control) **
– 1 x Front Panel Audio Connector
– 1 x Analog Surround Audio Header
– 1 x Digital MIC Header
– 1 x 3W Audio AMP Output Wafer Header
– 1 x Internal Power Header
– 1 x SATA Power Connector
– 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection)) ***

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

** CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.

*** USB3_4_5 is shared with USB4_5.

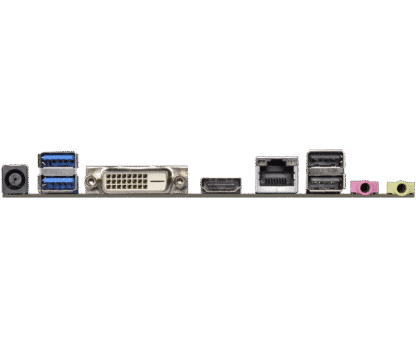

Rear Panel I / O
– 1 x DC Jack (Compatible with the 19V power adapter)
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT / LINK LED and SPEED LED)
– HD Audio Jacks: Front Speaker / Microphone

Software and UEFI
Software
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)

UEFI
– ASRock EZ Mode
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI Tech Service
– ASRock Easy Driver Installer

* These utilities can be downloaded from ASRock Live Update & amp; APP Shop.

Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
Voltage monitoring: + 12V, + 5V, + 3.3V, CPU Vcore

Form Factor
Thin Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm (Compatible with Mini-ITX)
– Solid Capacitor design

OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit *

* To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock’s website for details.

Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)
