ASRock H110TM-ITX (geen I/O-shield)

Snelle levering
49,95

Merk: Asrock
Model: H110TM-ITX
Socket: Socket 1151
Geheugen: 2x DDR4 SO-DIMM(32GB Max)
Form-Factor: Mini-ITX
EAN: 717677331134, 4717677332223
SKU: 90-MXB230-A0UAYZ, 90-MXB4G0-A0UAYZ, H110TM-ITX

Uitverkocht

Artikelnummer: H110TM-ITX Categorieën: , Tags: , ,

Product informatie

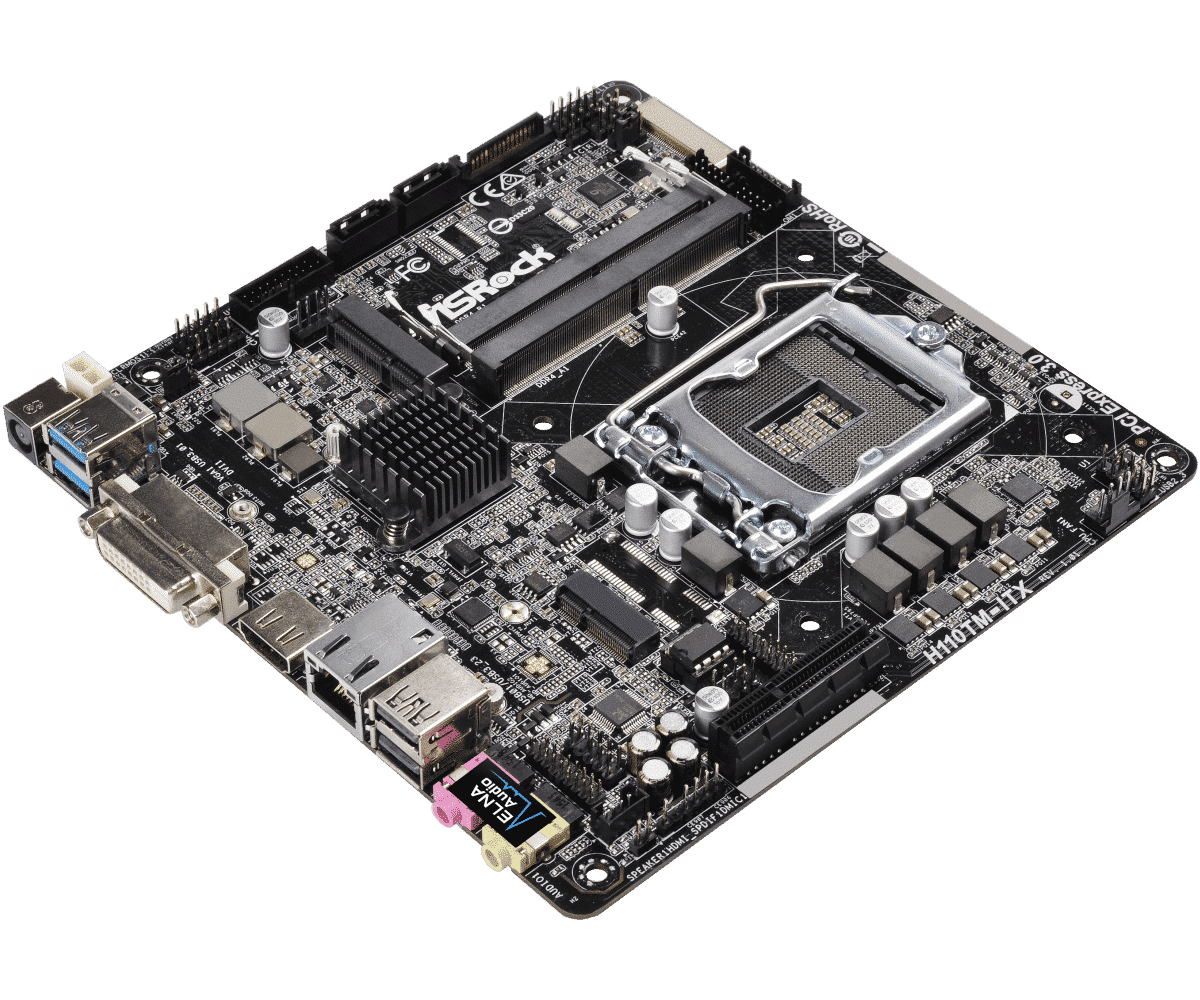

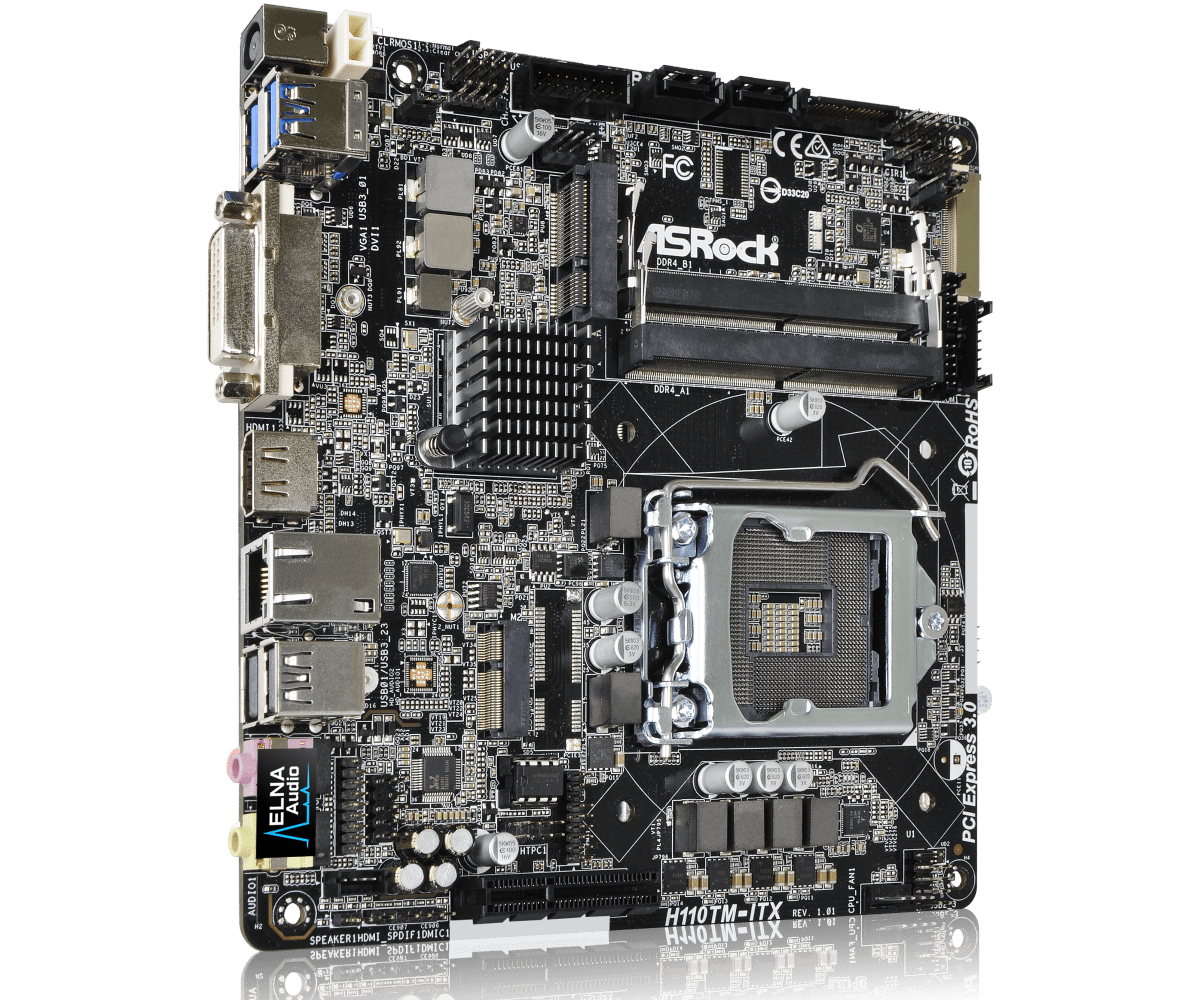

De ASRock H110TM-ITX is een Mini-ATX Socket 1151 moederbord gebaseerd op de Intel H110 chipset. Het bord moet worden gecombineerd met DDR4 SO-DIMM-geheugen, waarvoor 2 slots beschikbaar zijn. De stroom voorziening moet worden geregeld met een 19V power adapter (die niet is inbegrepen). In totaal heeft de ASRock H110TM-ITX 2 Seriële ATA-aansluitingen voor harde schijven en SSD’s. De ingebouwde geluidskaart biedt 7.1-kanaals geluid en is gebaseerd op een Realtek ALC892-chip.

Kenmerken: Moederbord | Mini-ATX | Aansluiting S1151 | 2x DDR4 SO-DIMM | 2x SATA-600 | 1x mSATA | 1x M.2 Socket (Key E), | PCI-e 3.0 x4 | USB 2.0 | USB 3.1 (Gen1, 5 Gb / s) | DVI-D | HDMI

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

Product: ASRock H110M-G / M.2
Verbinding: Socket 1151
Categorie: moederborden
Merk: ASRock
EAN: 4717677331134, 4717677332223
Staat: refurbished
SKU: 90-MXB230-A0UAYZ, 90-MXB4G0-A0UAYZ, H110TM-ITX
Garantie:
6 maanden

Inhoud pakket:
– Moederbord (ASRock H110TM-ITX)
Geen I/O-Shield (blikken achterplaatje)
Geen 19V Adapter
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels


Unique Feature
ASRock Super Alloy
– Ultra Dual-N MOSFET (UDM)
– Matte Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop


CPU
– Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
– Supports CPU up to 65W
– Digi Power design
– 5 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology


Chipset
– Intel® H110


Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 SO-DIMM Slots
– Supports DDR4 2400/2133 non-ECC, un-buffered memory*
– Supports ECC SO-DIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 32GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0

*7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– DRAM Voltage Multi-adjustment


Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530/630
– Pixel Shader 5.0, DirectX 12
– Max. shared memory 1024MB*
– Three graphics output options: HDMI, DVI-D and LVDS
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports LVDS with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports Accelerated Media Codecs: HEVC, VP8, VP9
– Supports HDCP with DVI-D and HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x4 Slot*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

*Supports NVMe SSD as boot disks


Storage
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
– 1 x mSATA Connector, support NCQ, AHCI and Hot Plug*

*MINI_SATA1: RST utility port0; SATA3_0: RST utility port2; SATA3_1: RST utility port3


Connector
– 1 x CIR Header
– 2 x COM Port Headers
– 1 x TPM Header
– 1 x SPDIF Out Connector
– 1 x Monitor Switch Header
– 1 x Backlight Power Jumper
– 1 x Panel Power Jumper
– 1 x Backlight & Amp Volume Control Header
– 1 x LVDS Connector
– 1 x Home Theater PC Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x Front Panel Audio Connector
– 1 x Analog Surround Audio Header
– 1 x Digital MIC Header
– 1 x 3W Audio AMP Output Wafer Header
– 1 x Internal Power Header
– 1 x SATA Power Connector
– 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))***

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.

***USB3_4_5 is shared with USB4_5.


Rear Panel I/O
– 1 x DC Jack (Compatible with the 19V power adapter)
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Front Speaker / Microphone


Software and UEFI
Software
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)

UEFI
– ASRock EZ Mode
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI Tech Service
– ASRock Easy Driver Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Thin Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm (Compatible with Mini-ITX)
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*

*To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock’s website for details.


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht 1 kg
Intel

Socket 1151

Merk

Asrock

Chipset

Intel H110

Formaat

Mini-ITX

Geheugentype

DDR4-SO-Dimm

Aantal geheugenslots

2

Maximale geheugengrootte

32 GB

Aansluitingen

DVI-D, HDMI, USB 2.0, USB 3.1 Gen1

Opslag interfaces

mSATA, Serial ATA-600

Interfaces

M.2 Socket (Key E), PCI-e 3.0 x4

Socket

Intel Socket 1151
