Description
The ASRock H510M-ITX/ac is a powerful Mini-ITX motherboard for 10th and 11th generation Intel Core processors with LGA1200 socket. It supports up to 64GB of DDR4 memory and offers HDMI, DisplayPort, USB 3.2 Gen1, USB 2.0, and gigabit LAN. With built-in Wi-Fi, Bluetooth, an M.2 slot, and multiple SATA3 ports, this motherboard is ideal for compact PC builds with plenty of connectivity options.

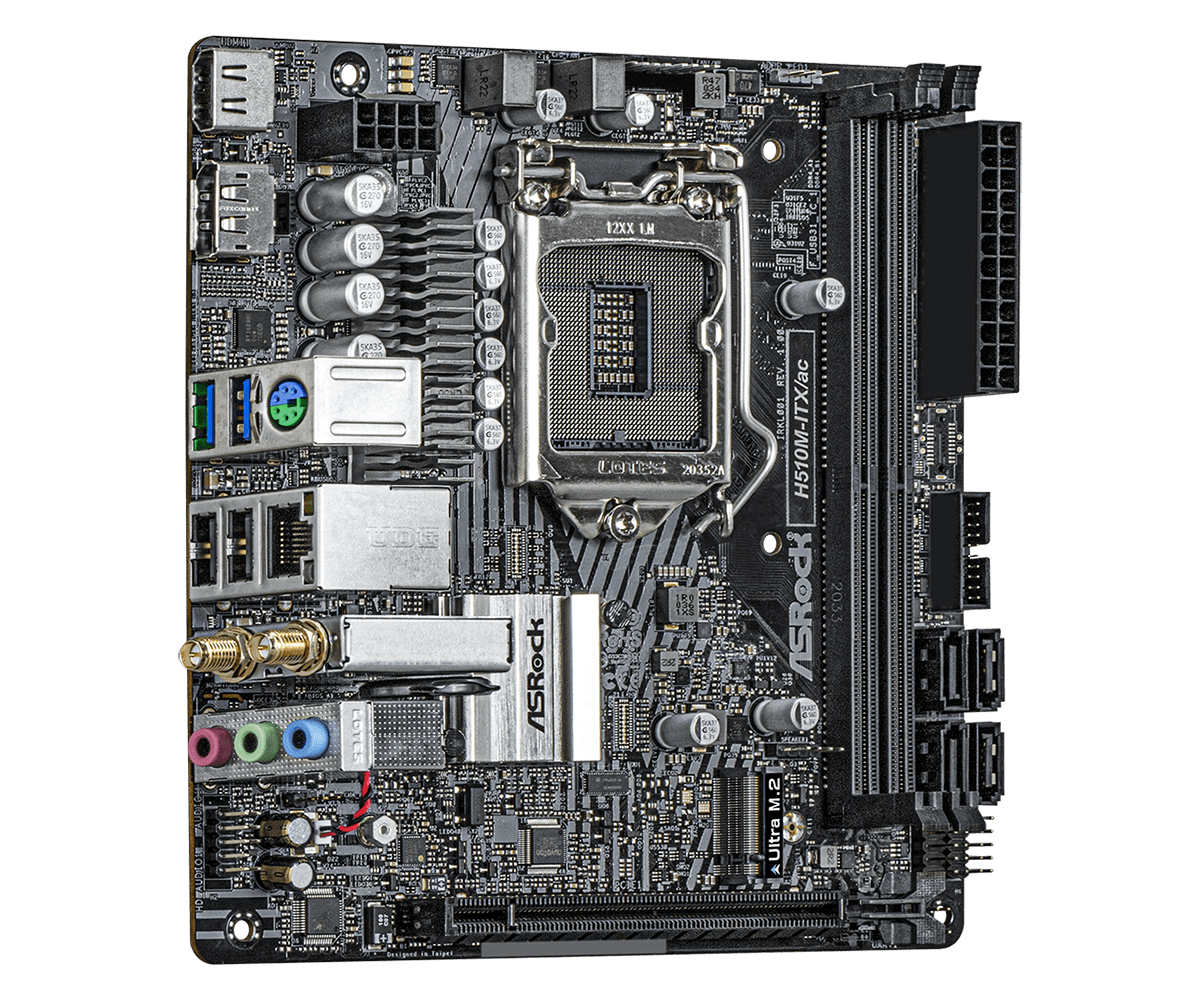

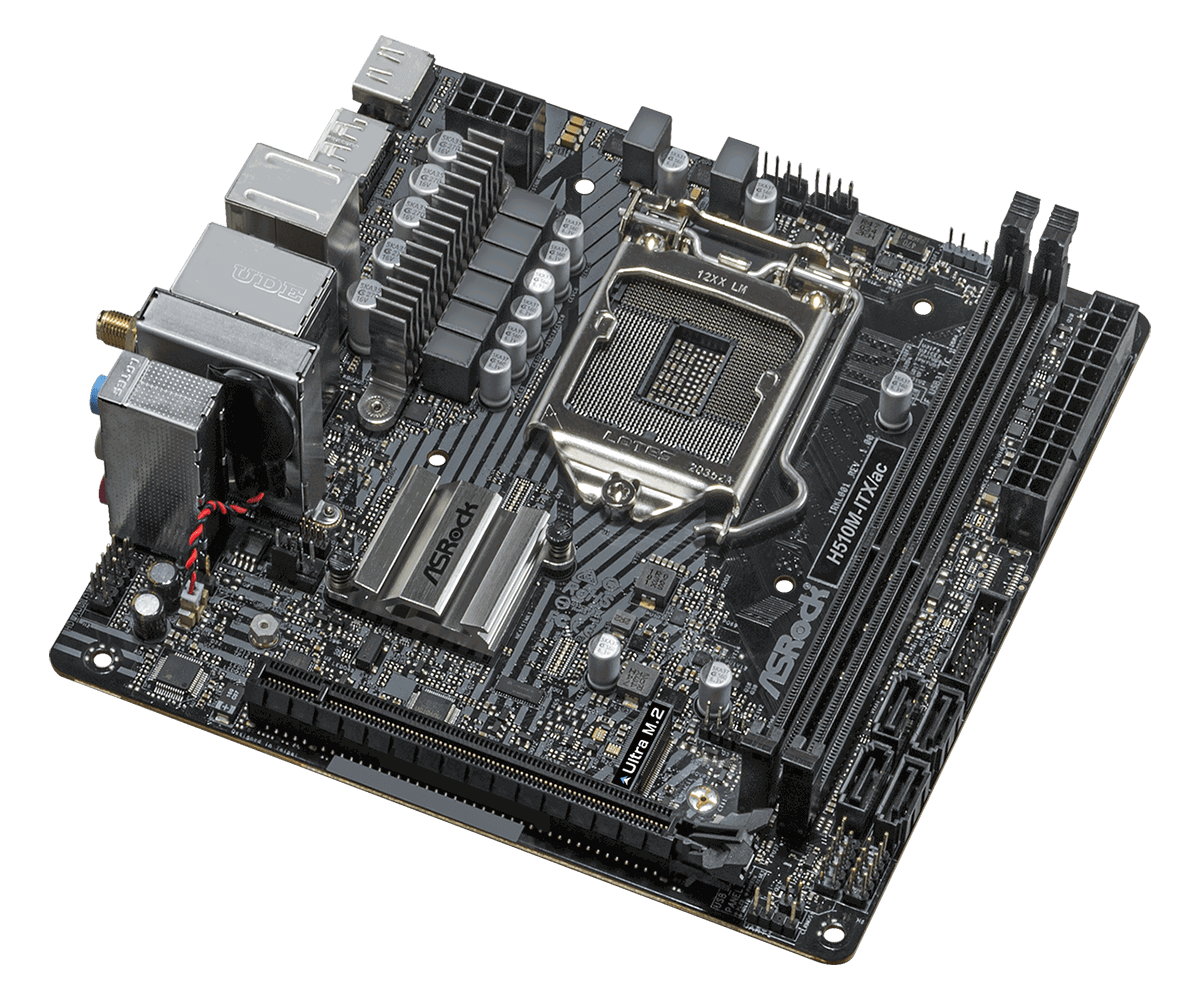

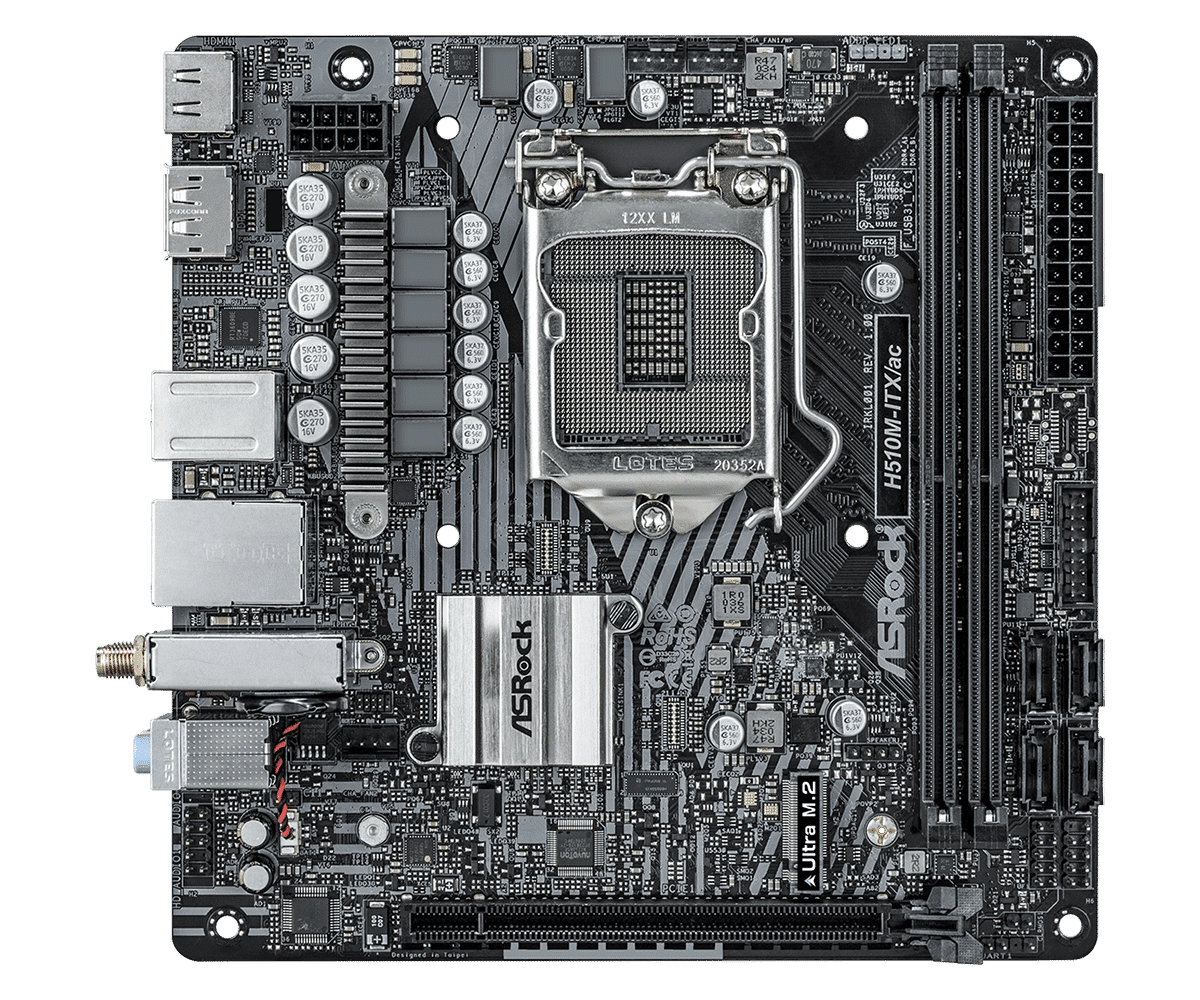

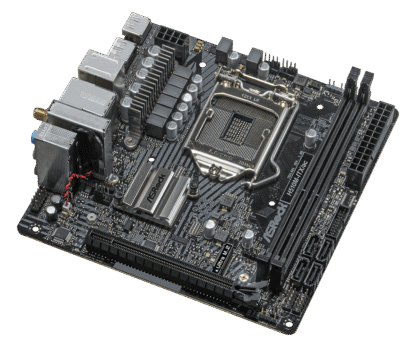

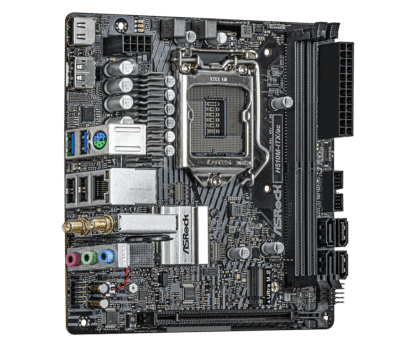

ASRock H510M-ITX/ac
Type: Motherboard
Socket: LGA1200 (compatible with 10th and 11th generation processors)
Brand: ASRock
Condition: Refurbished
Warranty: 6 months
EAN: 4710483933929
Manufacturer Code: 90-MXBF30-A0UAYZ, H510M-ITX/ac
Drivers for the ASRock H510M-ITX/AC
Processors supported by the ASRock H510M-ITX/AC
Package Contents
- ASRock H510M-ITX/AC motherboard
- IO shield
- Antennas
- No manual, driver CD, or cables included
Unique Feature
ASRock Super Alloy
– Premium 60A Power Choke
– 50A Dr.MOS
– Sapphire Black PCB
– High Density Glass Fabric PCB
IntelĀ® 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
– Supports 10th Gen IntelĀ® Coreā¢ Processors and 11th Gen IntelĀ® Coreā¢ Processors (LGA1200)
– Digi Power design
– 6 Power Phase design
– Supports IntelĀ® Turbo Boost Max 3.0 Technology
Chipset
– IntelĀ® H510
Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– 11th Gen IntelĀ® Coreā¢ Processors support DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
– 10th Gen IntelĀ® Coreā¢ Processors support DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB**
– Supports IntelĀ® Extreme Memory Profile (XMP) 2.0
*11th Gen IntelĀ® Coreā¢ (i9/i7/i5) support DDR4 3200 natively; Coreā¢ (i3), PentiumĀ® and CeleronĀ® support DDR4 2666 natively.
10th Gen IntelĀ® Coreā¢ (i9/i7) support DDR4 2933 natively; Coreā¢ (i5/i3), PentiumĀ® and CeleronĀ® support DDR4 2666 natively.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under WindowsĀ® 32-bit OS. For WindowsĀ® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, CPU GT, VCCSA, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST Voltage Multi-adjustment
Graphics
– 11th Gen IntelĀ® Coreā¢ Processors support IntelĀ® Xe Graphics Architecture (Gen 12). 10th Gen IntelĀ® Coreā¢ Processors support Gen 9 Graphics
– Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
– Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz with 11th Gen IntelĀ® Coreā¢ Processors
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz with 10th Gen IntelĀ® Coreā¢ Processors
– Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.2 with DisplayPort and HDMI Ports (HDCP 2.3 ready with 11th Gen IntelĀ® Coreā¢ Processors)
*IntelĀ® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Graphics specifications may vary between CPU types.
Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY IntelĀ® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Wireless LAN
– IntelĀ® 802.11ac WiFi Module
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual-Band (2.4/5 GHz)
– Supports high speed wireless connections up to 433Mbps
– Supports Bluetooth 4.2 / 3.0 + High speed class II
Slots
11th Gen IntelĀ® Coreā¢ Processors
– 1 x PCI Express 4.0 x16 Slot*
10th Gen IntelĀ® Coreā¢ Processors
– 1 x PCI Express 3.0 x16 Slot*
– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
*Supports NVMe SSD as boot disks
Storage
– 4 x SATA3 6.0 Gb/s Connectors, support IntelĀ® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
**Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Connector
– 1 x Chassis Intrusion Header
– 1 x Addressable LED Header*
– 1 x CPU Fan Connector (4-pin)**
– 1 x Chassis Fan Connector (4-pin)***
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
*Support in total up to 5V/3A, 15W LED Strip
**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
***The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

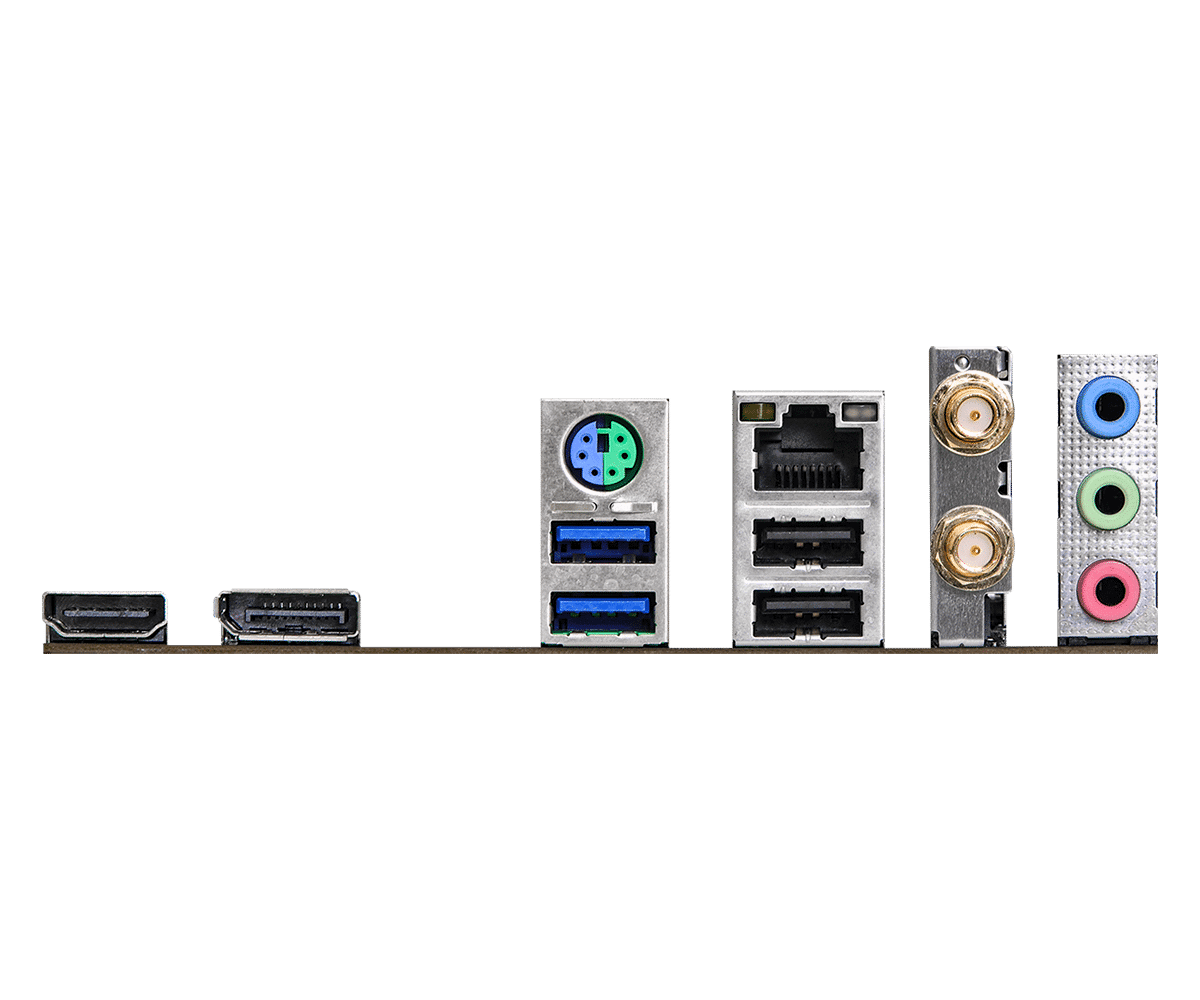

Rear Panel I/O
– 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
– I/O Shield
Hardware Monitor
– Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCCSA
Form Factor
– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– Solid Capacitor design
OS
– Microsoft WindowsĀ® 10 64-bit / 11 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
