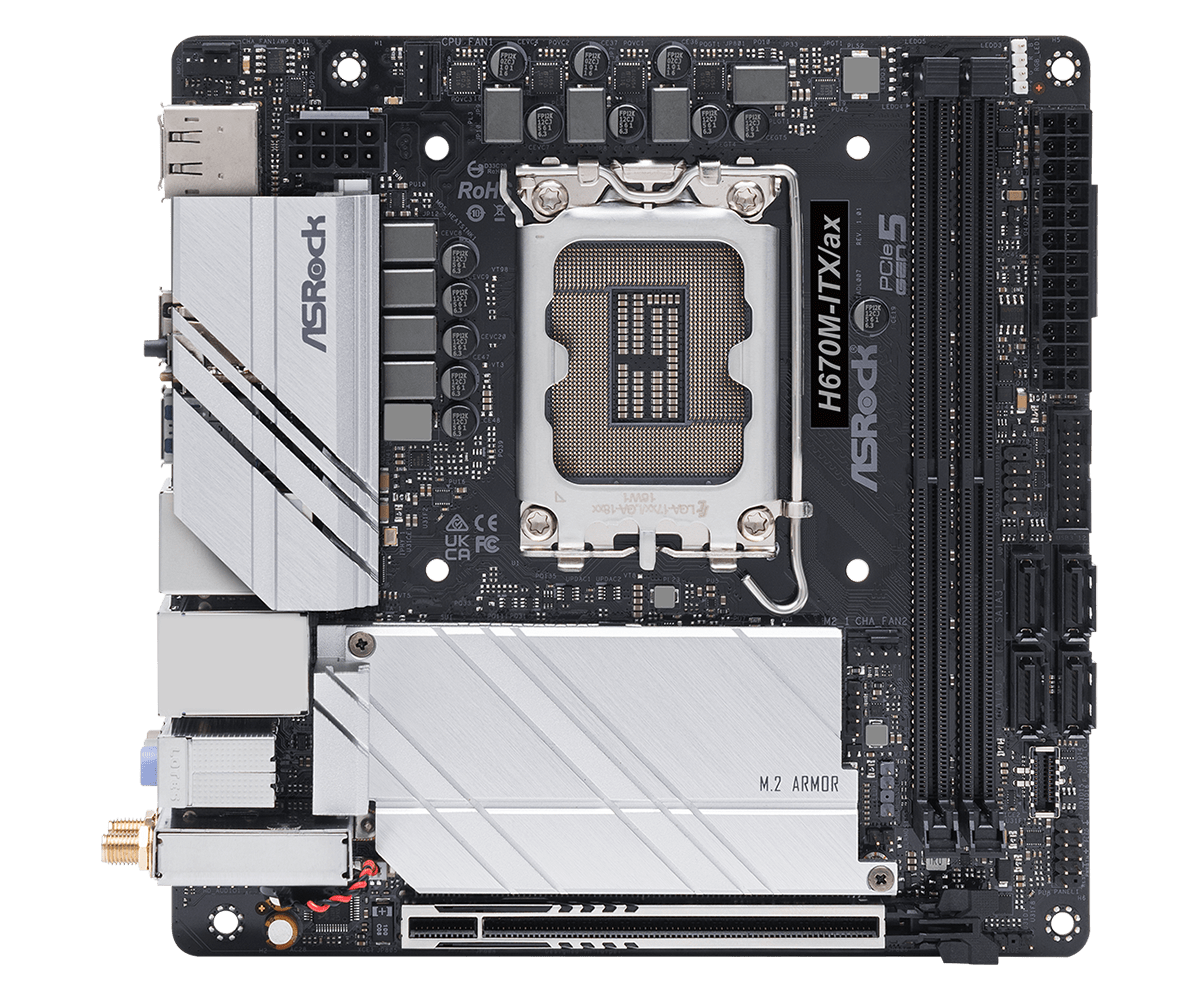

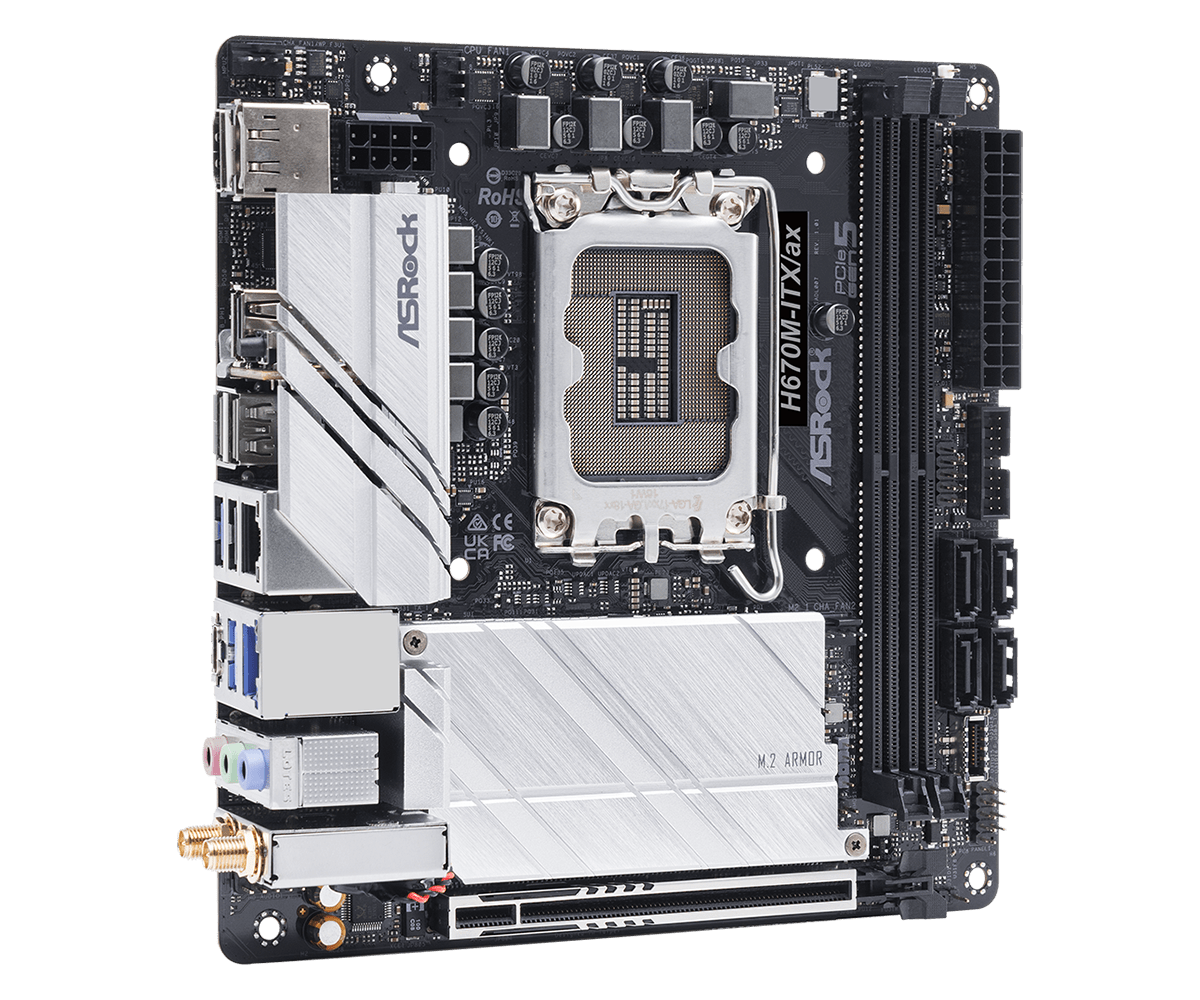

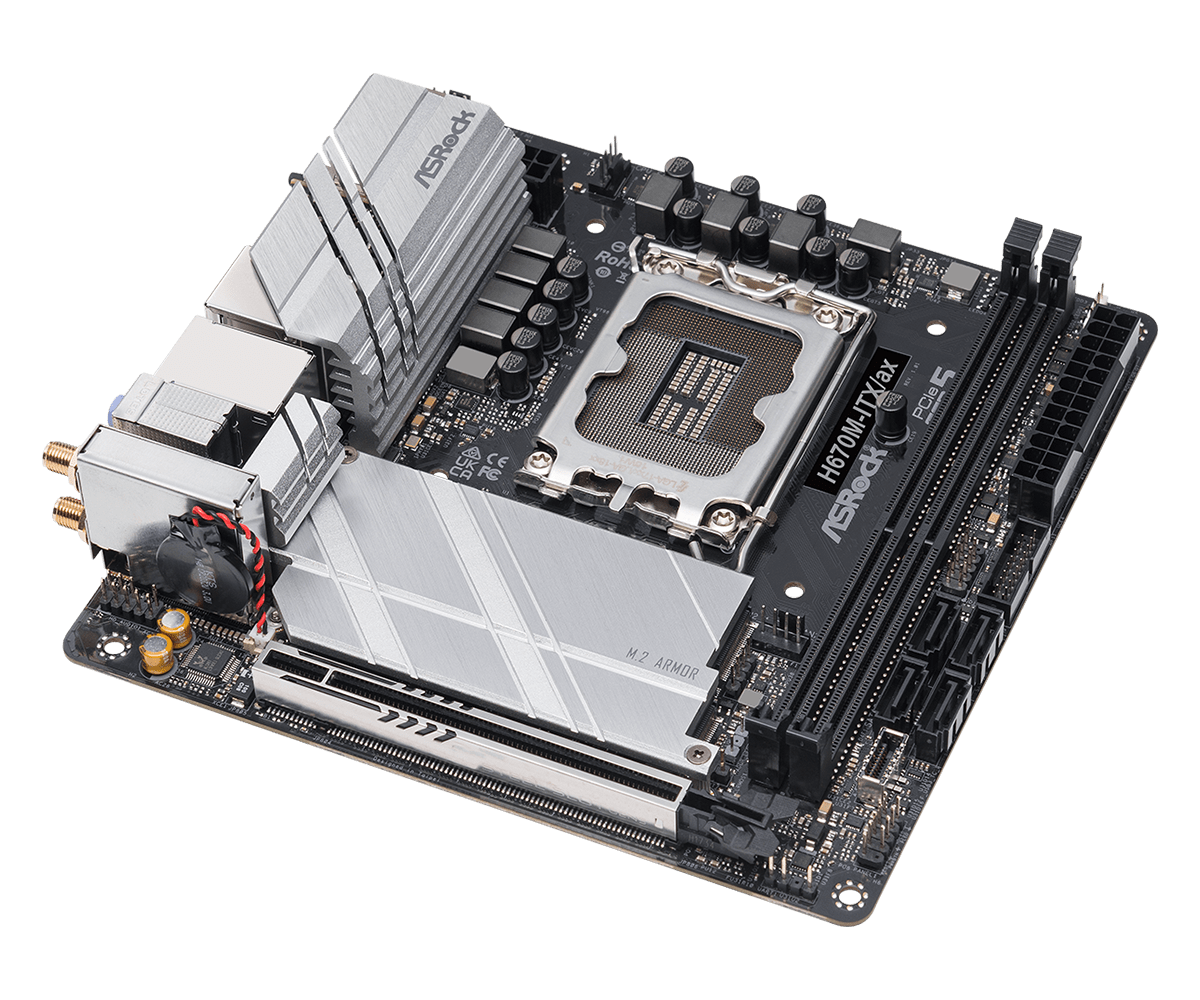

ASRock H670M-ITX/AX LGA1700

The H670M-ITX/AX is a powerful motherboard option for compact builds, offering extensive connectivity options. This motherboard supports 12th, 13th, and 14th generation Intel processors and is equipped with various ports, including USB 3.2 Gen 2×2, Wi-Fi 6E, and Bluetooth 5.2, ensuring you always benefit from fast and reliable connections. With an M.2 slot for fast storage and support for both HDMI and DisplayPort outputs, the H670M-ITX/AX offers an ideal solution for users looking for a small yet powerful setup for gaming, creative work, or daily use. Thanks to its robust build quality and advanced network options, the H670M-ITX/AX is perfect for those who don’t want to compromise on performance.

---

Product: ASRock H670M-ITX/AX
Socket: LGA1700
Category: Motherboards
Brand: ASRock
Condition: Refurbished
Ean: 4710483936531
SKU: 90-MXBHZ0-A0UAYZ
Warranty: 6 months

---

Drivers for the ASRock H670M-ITX/AX
Processors supported by the ASRock H670M-ITX/AX

---

Package contents:
– Motherboard (ASRock H670M-ITX/AX)
– IO Shield (metal rear plate)
– 2 Antennas
– No Manual
– No  Driver CD
– NoCables

---

Unique Feature

ASRock Super Alloy
– Premium Power Choke
– 50A Dr.MOS
– Sapphire Black PCB
– High Density Glass Fabric PCB
802.11ac WiFi
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

---

CPU

– Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– Digi Power design
– 6 Power Phase design
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology

---

Chipset

– Intel® B660

---

Memory

– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB
– Supports Intel® Extreme Memory Profile (XMP) 2.0

*Supports DDR4 3200 natively.

---

BIOS

– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

---

Graphics

– Intel® Xe Graphics Architecture (Gen 12)
– Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
– Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz
– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

---

Audio

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection

---

LAN

– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports UEFI PXE

---

Wireless LAN

– 802.11ac WiFi Module
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual-Band (2.4/5 GHz)
– Supports high speed wireless connections up to 433Mbps
– Supports Bluetooth + High speed class II

---

Slots

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

*Supports NVMe SSD as boot disks

---

Storage

CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
Chipset:
– 4 x SATA3 6.0 Gb/s Connectors**

*Supports Intel® Optane™ Memory H Series
Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

** If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
RAID
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

---

Connector

– 1 x Addressable LED Header*
– 1 x CPU Fan Connector (4-pin)**
– 1 x Chassis Fan Connector (4-pin)***
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

*Supports in total up to 5V/3A, 15W LED Strip

**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

***The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

---

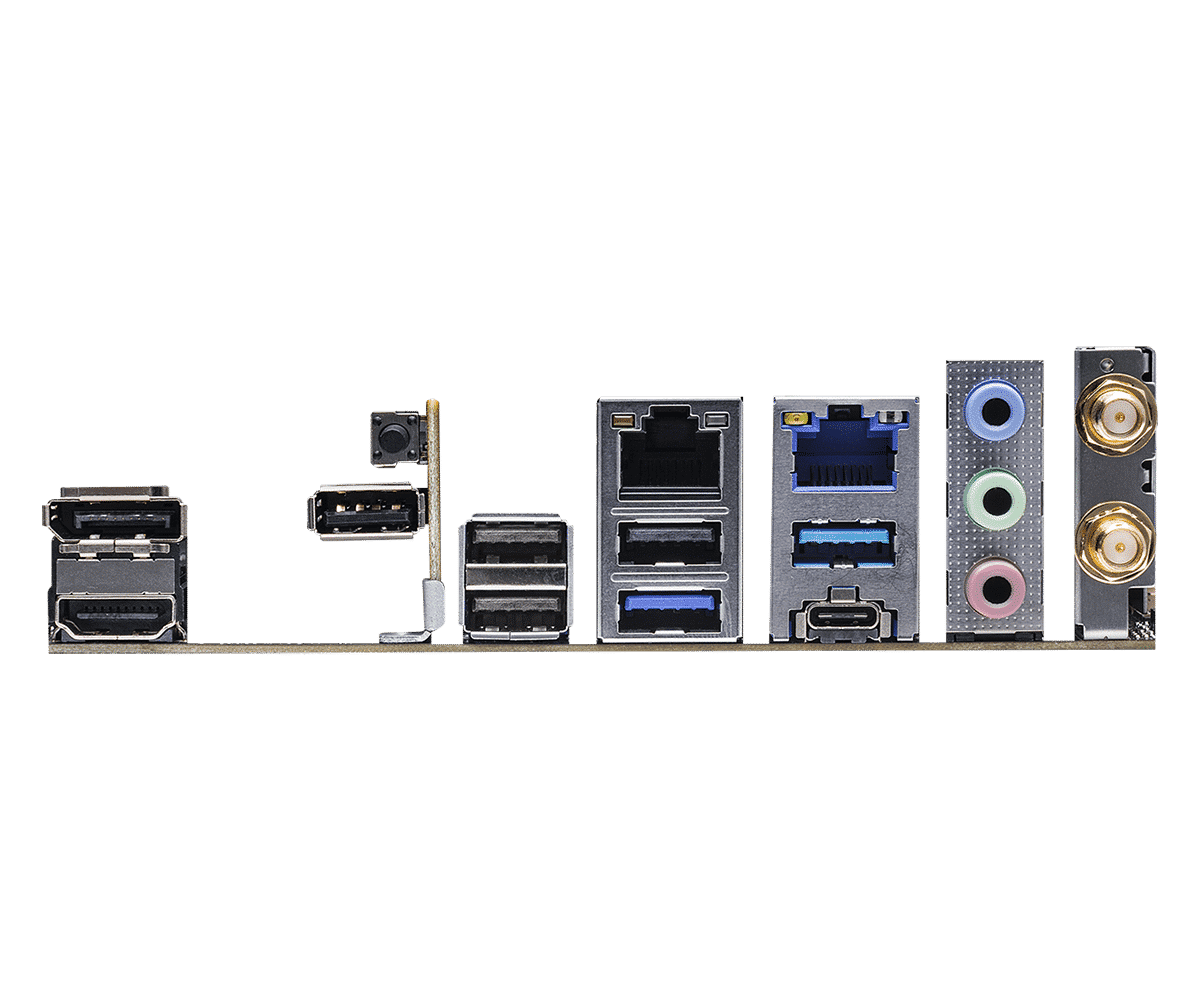

Rear Panel I/O

– 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

---

Software and UEFI

Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

---

Accessories

– I/O Shield
– 2 x WiFi Antennas

---

Hardware Monitor

– Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
– Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V, +1.05V PCH

---

Form Factor

– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– Solid Capacitor design

---

OS

– Microsoft Windows® 10 64-bit / 11 64-bit

---

Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
