Product information

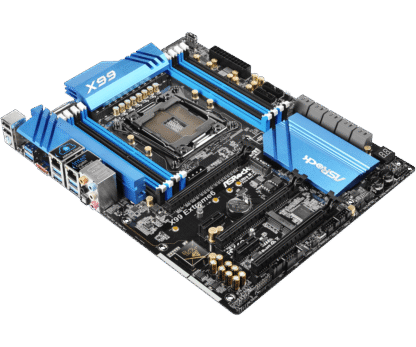

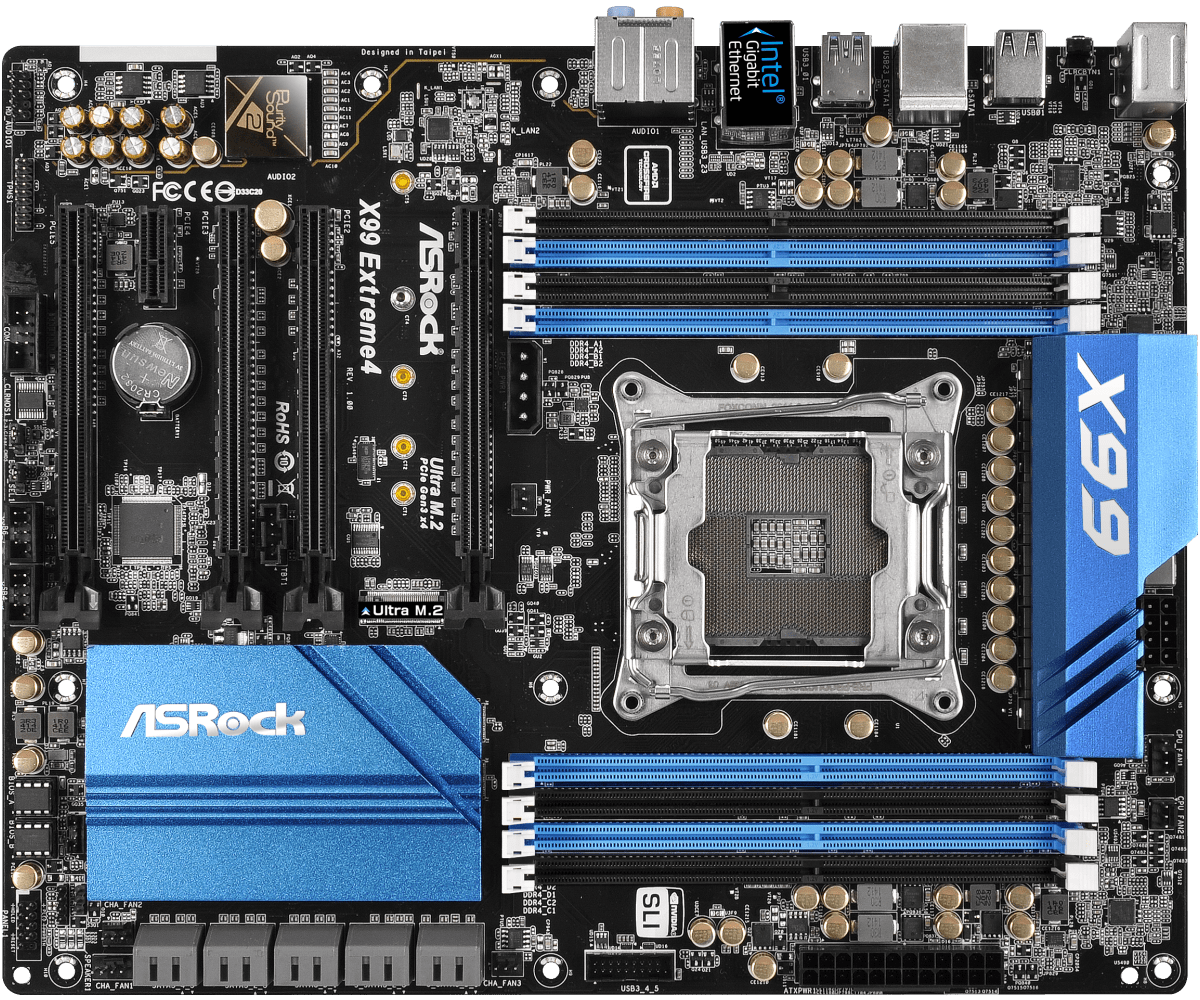

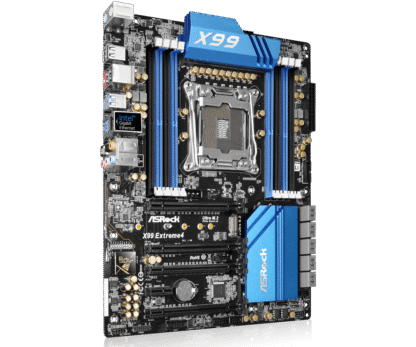

ASRock X99 Extreme4: Motherboard | ATX | LGA2011-3 | 8x DDR4 (max 128GB) | M.2 (PCI-e 3.0 x4 + SATA) | 10x SATA 600 | PCI-e 2.0 x1 | PCI-e 2.0 x16 | PCI-e 3.0 x16 | eSATA | USB 2.0 | USB 3.2 (Gen1, 5Gb/s)


Product: ASRock X99 Extreme4
Socket: LGA2011-3 /Socket R3
Category: motherboards
Brand: ASRock
Condition: Refurbished – BIOS updated to the latest version
EAN:
4717677324396
SKU: 90-MXGVL0-A0UAYZ, X99 Extreme4
Warranty:
6 months


Package contents:
– Motherboard (ASRock X99 Extreme4)
– Backplate (blende)
– No manual
– No drivers CD
– No cables


Unique Feature
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– Ultra Dual-N MOSFET (UDM)
– Nichicon 12K Platinum Caps (100% Japan-made high quality conductive polymer capacitors)
– Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock HDD Saver Technology
ASRock Full Spike Protection
ASRock APP Shop


CPU
– Supports Intel® Core™ i7 and Xeon® 22-Core Processors Family for the LGA 2011-3 Socket
– Digi Power design
– 12 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Untied Overclocking Technology


Chipset
– Intel® X99


Memory
– Quad Channel DDR4 Memory Technology
– 8 x DDR4 DIMM Slots
– Supports DDR4 3000+(OC)*/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, unbuffered memory
– Supports non-ECC RDIMM (Registered DIMM)
– Supports DDR4 ECC, un-buffered memory/RDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket
– Max. capacity of system memory: 128GB (with Core™ i7 CPU Broadwell-E) or 64GB (with Core™ i7 CPU Haswell-E) or 256GB (With Xeon® CPU)
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

** Please refer to Memory Support List on ASRock’s website for more information.


BIOS
– 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 5.0 Compliant wake-up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment


Graphics
– n/a


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– Supports Purity Sound™ 2
– Nichicon Fine Gold Series Audio Caps
– 115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolation shielding
– Supports DTS Connect


LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I218V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 3 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE3 @ x16 mode; PCIE5 @ x8 mode)*
– 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x4 mode)
– 1 x PCI Express 2.0 x1 Slot
– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™, ​​and CrossFireX™
– Supports NVIDIA® Quad SLI™, 3-Way SLI™, and SLI™***
– 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)

*If you install CPU with 28 lanes, PCIE1/PCIE3/PCIE5 will run at x16/x8/x4.

**If M.2 PCI Express module is installed, PCIE5 slot will be disabled.

***If you install CPU with 28 lanes, 3-Way SLI™ is not supported.

****To support 3-Way SLI™, please install the CPU with 40 lanes.
storage
– 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
– 1 x eSATA Connector, supports NCQ, AHCI, and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

*S_SATA3_3 connector is shared with the eSATA port, S_SATA3_2 connector is shared with Ultra M.2 Socket

**RAID is supported on SATA3_0 ~ SATA3_5 ports only.


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
– 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x HDD Saver Connector
– 1 x PCIe Power Connector
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector*
– 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

*Please update to the latest BIOS to support Thunderbolt™ technology.

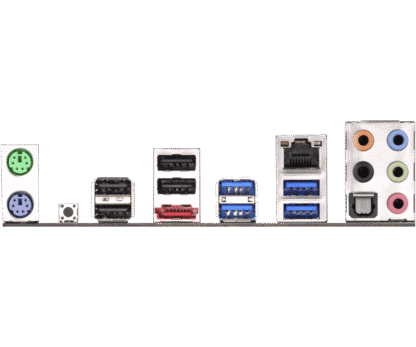

Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x eSATA Connector
– 1 x Optical SPDIF Out Port
– 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x Clear CMOS Switch
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages


Form Factor
– ATX Form Factor
– 2oz Copper PCB
– High-Density Glass Fabric PCB


OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specification

Weight1 kg
Intel

LGA2011-3

Brand

Asrock

Form Factor

ATX

Memory Type

DDR4 SDRAM

Number of memory slots

8

Maximum memory size

128 GB

Connectors

eSATA, USB 2.0, USB 3.2 (Gen1, 5Gb/s)

Storage Interfaces

M.2 (PCI-e 3.0 x4 + SATA), Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

ASRock X99 Extreme4 LGA2011-3 motherboard

Free delivery

  • ASRock Super Alloy
    – XXL Aluminum Alloy Heatsink
    – Premium 60A Power Choke
    – Premium Memory Alloy Choke
    – Ultra Dual-N MOSFET (UDM)
    – Nichicon 12K Platinum Caps
    – Sapphire Black PCB
  • Supports Intel® Core™ i7 and Xeon® 22-Core Processors Family for the LGA 2011-3 Socket
  • Digi Power, 12 Power Phase design
  • Supports Quad Channel DDR4 3000+(OC) memory with max. capacity up to 128GB
  • Supports ECC*, RDIMM Memory (*ECC is supported with Intel® Xeon® processors)
  • 3 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
  • Supports AMD 3-Way CrossFireX™ and NVIDIA® 3-Way SLI™
  • 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 2 & DTS Connect
  • Intel® Gigabit LAN
  • 10 SATA3, 1 eSATA, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6 USB 3.1 Gen1 (2 Front, 4 Rear), 8 USB 2.0 (4 Front, 4 Back)
  • 1 COM Port Header, 1 Thunderbolt™ AIC Connector
  • Supports ASRock HDD Saver Technology, Full Spike Protection, APP Shop
