Description

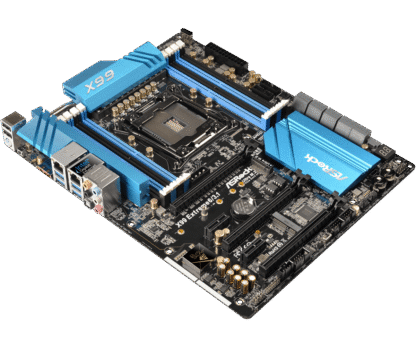

The ASRock X99 Extreme6/3.1 is an ATX Socket 2011-3 motherboard based on the Intel X99 chipset, suitable for Intel Core i7 / Xeon processors. The board must be combined with DDR4 memory, for which 8 slots are available. The motherboard supports the latest USB 3.1 standard and offers 3 connections. In total, the ASRock X99 Extreme6 / 3.1 has 10 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC1150 chip. The board offers 2 network connections, where you can connect with a maximum of 1000 Mbps.
Features: Motherbord | ATX | LGA2011-3 | 8x DDR4 | Intel X99 Chipset | M.2 (S600 / Pcie3.0x4) | SATA Express (Gen2 | 10Gb / s) | 10x SATA-600 | mini PCI Express | 2x PCI-e 2.0 x1 | 3x PCI-e 3.0 x16 | eSATA | 7x USB 2.0 | 8x USB 3.2 (Gen1, 5Gb / s) | 2x USB 3.2 (Gen2. 10Gb / s) | USB 3.2 (Gen2, 10Gb / s) type-c
Click here for the supporting CPUs
Click here for the drivers
Product: ASRock X99 Extreme6/3.1
Socket: LGA2011-3
Category: Motherboards
Brand: ASRock
EAN: 4717677326154
Condition: Refurbished – Bios updated to the latest version
SKU: 90-MXGY80-A0UAYZ, X99 Extreme6/3.1
Warranty: 6 Months
Note: The ASRock USB 3.1 Gen2 / A + C is NOT included.
Package Contents:
– Motherboard (ASRock X99 Extreme6/3.1)
– Backplate (blende)
– no manual
– no driver CD
– no cables
Unique Feature
ASRock X Series OC Socket
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– Ultra Dual-N MOSFET (UDM)
Nichicon 12K Platinum Caps (100% Japan-made high-quality conductive polymer capacitors)
– Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & amp; SATA3)
ASRock HDD Saver Technology
ASRock Full Spike Protection
ASRock APP Shop
CPU
Supports Intel® Core ™ i7 and Xeon® 22-Core Processors Family for the LGA 2011-3 Socket
– Digi Power design
– 12 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Untied Overclocking Technology
Chipset
– Intel® X99
Memory
– Quad Channel DDR4 Memory Technology
– 8 x DDR4 DIMM Slots
Supports DDR4 3200+ (OC) * / 2933 (OC) / 2800 (OC) / 2400 (OC) / 2133 non-ECC, un-buffered memory
Supports non-ECC RDIMM (Registered DIMM)
Supports DDR4 ECC, un-buffered memory / RDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket
– Max. capacity of system memory: 128GB (with Core ™ i7 CPU Broadwell-E) or 64GB (with Core ™ i7 CPU Haswell-E) or 256GB (With Xeon® CPU)
Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
** Please refer to the Memory Support List on ASRock’s website for more information.
BIOS
– 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 5.0 Compliant wake-up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment
Graphics
– n / a
Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
Supports Surge Protection (ASRock Full Spike Protection)
Supports Purity Sound ™ 2
– Nichicon Fine Gold Series Audio Caps
115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600-ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolate shielding
– Supports DTS Connect
LAN
– 1 x Intel® I218V (Gigabit LAN PHY 10/100/1000 Mb / s)
– 1 x Qualcomm® Atheros® AR8171 (PCIe x1 Gigabit LAN 10/100/1000 Mb / s)
Supports Qualcomm® Atheros® Security Wake On Internet Technology (on Qualcomm® Atheros® AR8171)
– Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots
– 3 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE3 @ x16 mode; PCIE5 @ x8 mode) *
– 2 x PCI Express 2.0 x1 Slots
– 1 x mini PCI Express Slot
– Supports AMD Quad CrossFireX ™, 3-Way CrossFireX ™ and CrossFireX ™
Supports NVIDIA® Quad SLI ™, 3-Way SLI ™ and SLI ™ **
– 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)
* If M.2 PCI Express module is installed, the PCIE5 slot will be disabled.
If you install CPU with 28 lanes, PCIE1 / PCIE3 / PCIE5 will run at x16 / x8 / x4.
** If you install CPU with 28 lanes, 3-Way SLI ™ is not supported. To support 3-Way SLI ™, please install the CPU with 40 lanes.
Storage
– 10 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology (SSATA3_3 connector is shared with the eSATA port) (SSATA3_2 connector is shared with Ultra M.2 Socket) *
– 1 x SATA Express 10 Gb / s Connector (shared with SATA3_4 and SATA3_5)
– 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key M.2 SATA3 6.0 Gb / s module and M.2 PCI Express module up to Gen3 x4 (32 Gb / s) **
* RAID is supported on SATA3_0 ~ SATA3_5 ports only.
** Support to be announced.
USB 3.1
– 2 x USB 3.1 Gen2 Type-A Ports (10 Gb / s) (Supports ESD Protection (ASRock Full Spike Protection))
Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
– 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x HDD Saver Connector
– 1 x PCIe Power Connector
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt ™ AIC Connector
– 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Vertical Type A USB 2.0
– 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Dr. Debug with LED
– 1 x Power Switch with LED
– 1 x Reset Switch with LED
– 1 x BIOS Selection Switch
Rear Panel I / O
– 1 x PS / 2 Mouse / Keyboard Port
– 1 x Optical SPDIF Out Port
– 1 x eSATA Connector
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb / s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x RJ-45 LAN Ports with LED (ACT / LINK LED and SPEED LED)
– 1 x Clear CMOS Switch
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI
UEFI
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock UEFI Guide
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
Accessories
– I / O Shield
Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust the chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
Voltage monitoring: + 12V, + 5V, + 3.3V, CPU Input Voltage, CPU Internal Voltages
Form Factor
– ATX Form Factor
– 2oz Copper PCB
– High-Density Glass Fabric PCB
Multiple Filter Cap (MFC) (Filter different noise by 3 different capacitors: DIP solid cap, POSCAP and MLCC)
OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)
