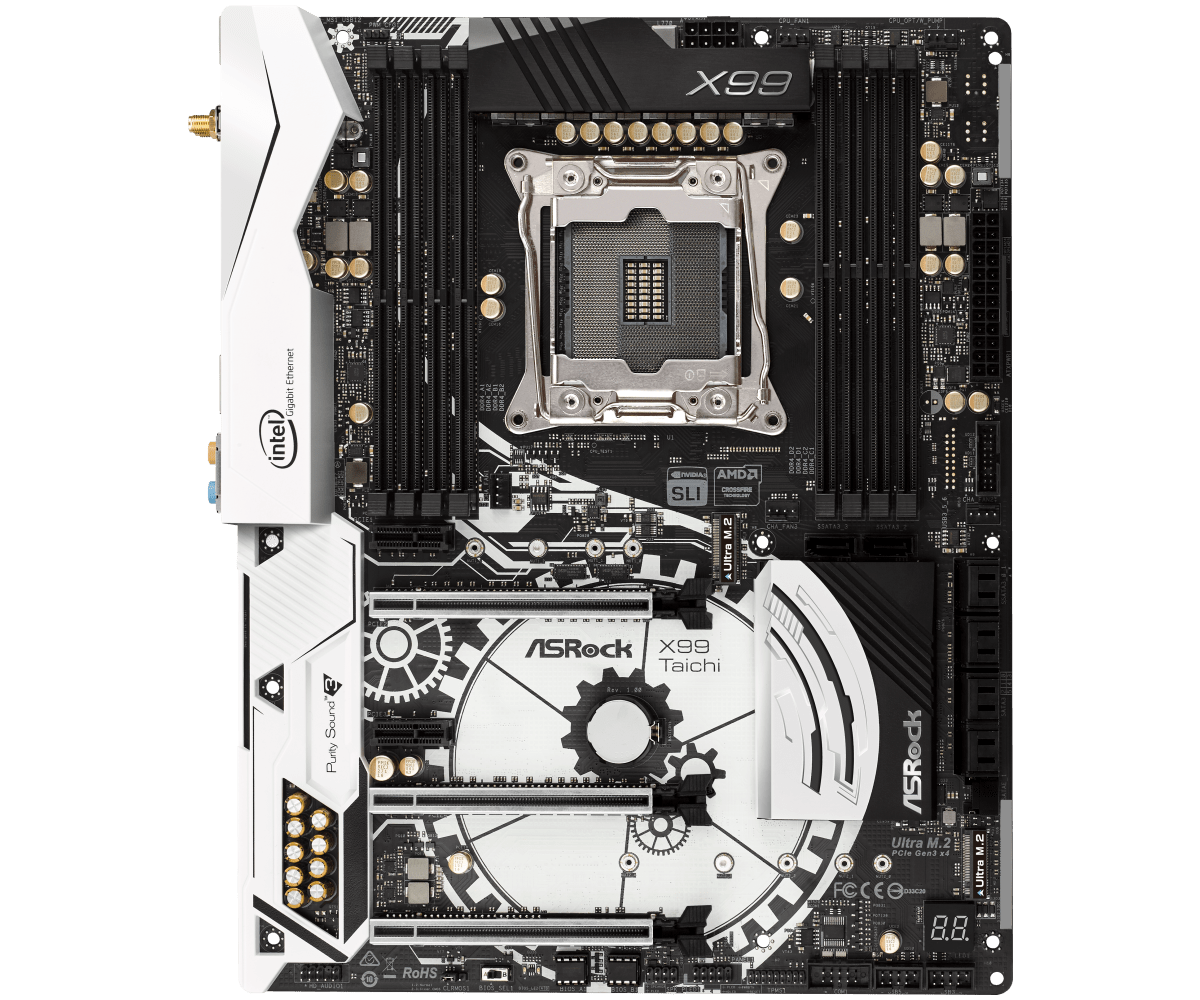

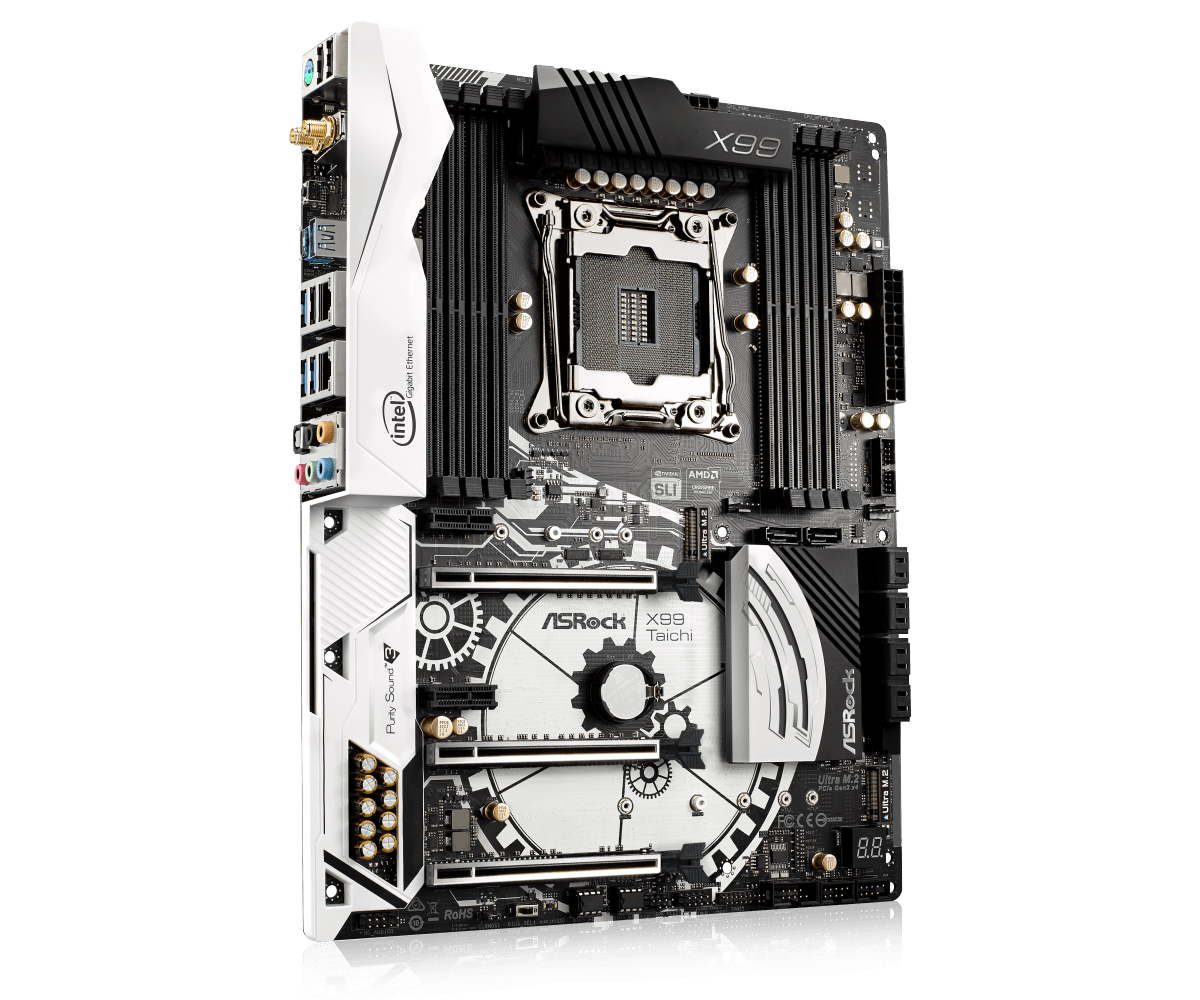

ASRock X99 Taichi LGA 2011-3 Motherboard

Product: ASRock X99 Taichi
Socket: 2011-3
Category: motherboards
Brand: ASRock
Condition: Refurbished – BIOS updated to the latest version
EAN:
4717677331219
SKU:90-MXB380-A0UAYZ, X99 Taichi
Warranty:
6 months

Out of stock

Vergelijk
SKU: Fatal1ty X99 Taichi Categories: , , Tags: , , , ,

Description

The ASRock X99 Taichi: Motherboard | ATX | LGA2011-3 | 8x DDR4 (max 128GB) | M.2 (PCI-e 3.0 x4 + SATA) | SATA Express (Gen2, 10Gb/s) | 10x SATA 600 | PCI-e 2.0 x1 | PCI-e 3.0 x16 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | USB 3.2 (Gen2, 10Gb/s) | USB 3.2 (Gen2, 10Gb/s) type-c


Product: ASRock X99 Taichi
Socket: LGA2011-3
Category: motherboards
Brand: ASRock
Condition: Refurbished – BIOS updated to the latest version
EAN:
4717677331219
SKU:90-MXB380-A0UAYZ, X99 Taichi
Warranty:
6 months


Package contents:
– Motherboard (Fatal1ty X99 Taichi )
– Backplate (Blende)
– No antennas
– No manual
– No drivers CD
– No cables


Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock X Series OC Socket
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– Ultra Dual-N MOSFET (UDM)
– Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Steel Slots
ASRock 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection
ASRock Live Update & APP Shop


CPU
– Supports Intel® Core™ i7 and Xeon® 22-Core Processors Family for the LGA 2011-3 Socket
– Digi Power design
– 12 Power Phase design
– Supports Intel® Turbo Boost Max Technology 3.0*
– Supports Untied Overclocking Technology

*Intel® Core™ i7-59xx/58xx processors only support Intel® Turbo Boost Max Technology 2.0.


Chipset
– Intel® X99


Memory
– Quad Channel DDR4 Memory Technology
– 8 x DDR4 DIMM Slots
– Supports DDR4 3300+(OC)*/3200(OC)/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, un-buffered memory
– Supports non-ECC RDIMM (Registered DIMM)
– Supports DDR4 ECC, un-buffered memory/RDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket
– Max. capacity of system memory: 128GB (with Core™ i7 CPU Broadwell-E) or 64GB (with Core™ i7 CPU Haswell-E) or 256GB (With Xeon® CPU)*
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
Please refer to Memory Support List on ASRock’s website for more information.


BIOS
– 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment


Graphics
– n/a


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– Supports Purity Sound™ 3
– Nichicon Fine Gold Series Audio Caps
– 115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Pure Power In
– Direct Drive Technology
– PCB isolation shielding
– Supports DTS Connect


LAN
– Gigabit LAN 10/100/1000 Mb/s
– 1 x Giga PHY Intel® I218V, 1 x GigaLAN Intel® I211AT
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Dual LAN with Teaming*
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

*Not supported under Windows® 10


Wireless LAN
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual Band (2.4/5 GHz)
– Supports high speed wireless connections up to 433Mbps
– Supports Bluetooth 4.0 / 3.0 + High speed class II


Slots
– 3 x PCI Express 3.0 x16 Slots (PCIE2 @ x16 mode; PCIE4 @ x16 mode; PCIE5 @ x0 mode) (PCIE2 @ x16 mode; PCIE4 @ x8 mode; PCIE5 @ x8 mode)*
– 2 x PCI Express 2.0 x1 Slots
– SuPorts AMD Quad CrossFireX™, 3-Way CrossFireX™ ​​and CrossFireX™
– Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT module
– 15μ Gold Contact in VGA PCIe Slot (PCIE2 and PCIE4)

*If you install CPU with 28 lanes, PCIE2/PCIE4/PCIE5 will run at x16/x0/x8 or x8/x8/x8.
Supports NVMe SSD as boot disks.


Storage
– 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13), NCQ, AHCI, Hot Plug*
– 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4 and SATA3_5)**
– 1 x Ultra M.2 Socket (M2_2), support M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s )***
– 1 x Ultra M.2 Socket (M2_1), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* **

*SSATA3_3 connector is shared with the M2_1; SSATA3_2 connector is shared with the M2_2.
RAID is supported on SATA3_0 ~ SATA3_5 ports only.

**Support to be announced.

***If you install CPU with 28 lanes, the M2_1 only supports SATA type M.2 module.
Supports NVMe SSD as boot disks.
Supports ASRock U.2 Kit.


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 1 x CPU Fan Connector (4-pin) (Smart Fan Speed ​​Control)*
– 1 x CPU Optional/Water Pump Fan Connector (4-pin)**
– 3 x Chassis Fan Connectors (4-pin)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Headers (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Dr. Debug with LED
– 1 x BIOS Selection Switch

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

***CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

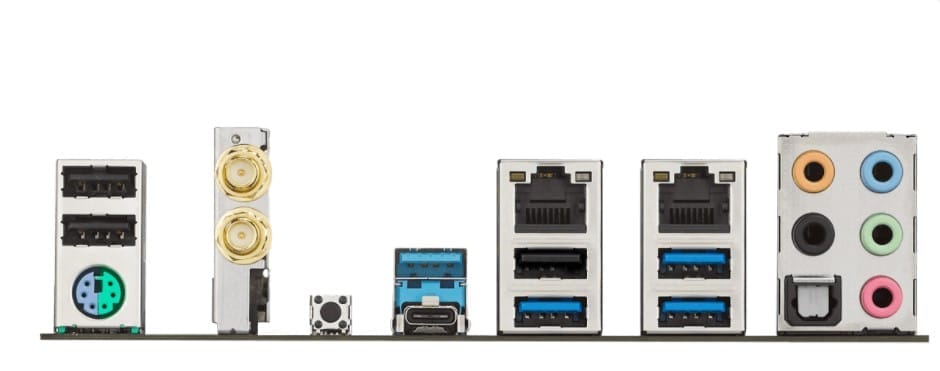

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x Optical SPDIF Out Port
– 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
– 3 x USB 3.1 Gen1 Ports (Intel® X99) (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1 x Clear CMOS Switch
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI
– ASRock Fast Boot (Fast Boot, Restart to UEFI)*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock UEFI Guide
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis, CPU Optional/Water Pump temperature sensing
– CPU, Chassis, CPU Optional/Water Pump Fan Tachometer
– CPU, Chassis, CPU Optional/Water Pump Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis, CPU Optional/Water Pump Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages


Form Factor
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB
– 4 x 2oz Copper


OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Additional information

Weight 1 kg
Intel

LGA2011-3

Brand

Asrock

Form Factor

ATX

Memory Type

DDR4 SDRAM

Number of memory slots

8

Maximum memory size

128 GB

Connectors

2x RJ-45 LAN, USB 2.0, USB 3.1 Gen1 Type-C, USB 3.1 Gen2 Type-A, USB 3.2 (Gen1, 5Gb/s), Wireless LAN

Storage Interfaces

M.2 (PCI-e 3.0 x4 + SATA), SATA Express 10 Gb/s, Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 3.0 x16
