ASRock X99 WS-E

Free delivery
299,95

Brand: Asrock
Model: X99 WS-E
Socket: LGA2011-3
Chipset: Intel X99
Memory: 8x DDR4 (128GB Max)
Form-Factor: EATX
EAN: 4717677325423
SKU: 90-MXGW30-A0UAYZ, X99 WS-E

Out of stock

SKU: X99 WS-E Categories: , Tags: , , ,

Product information

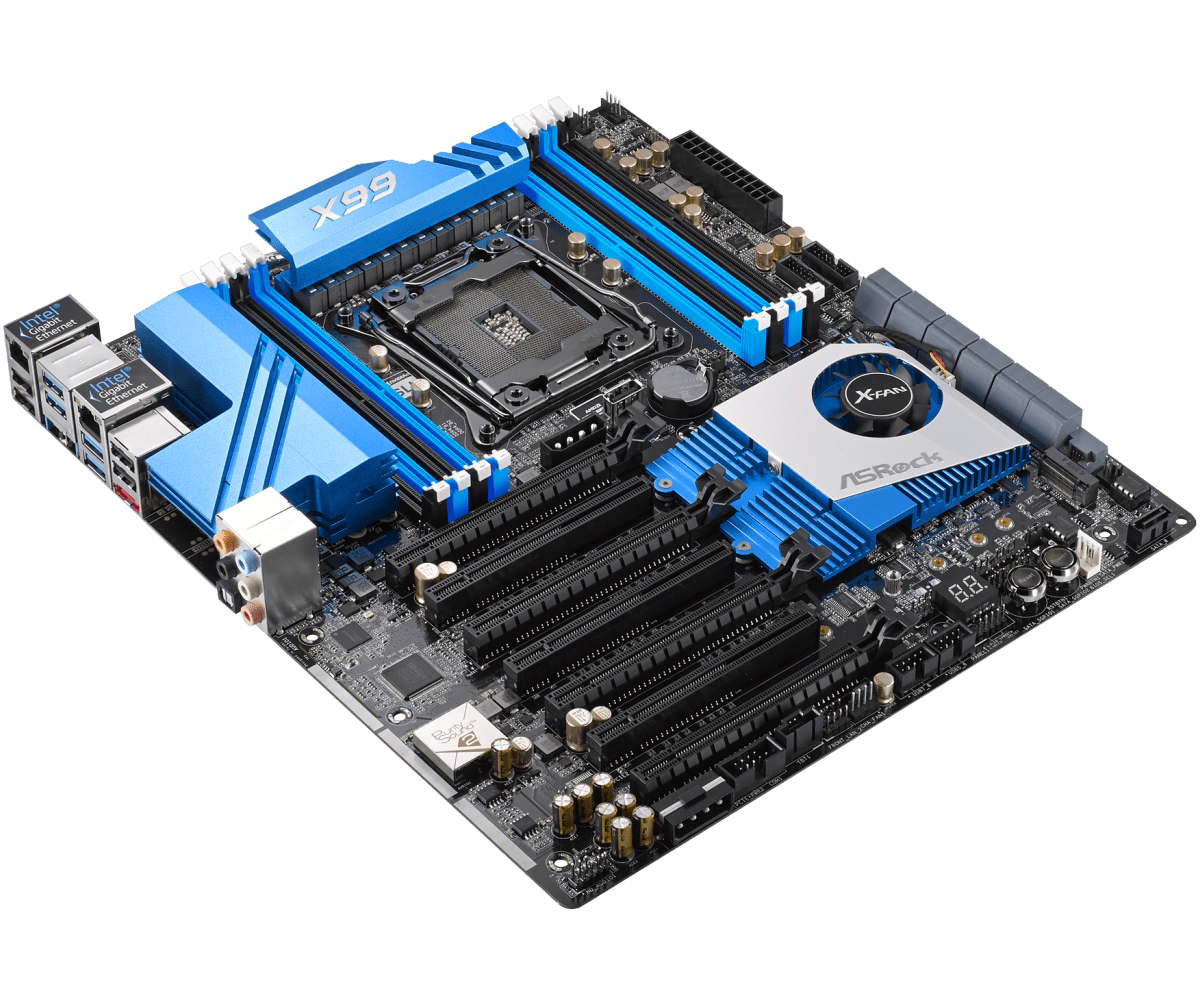

The ASRock X99 WS-E is an E-ATX Socket 2011-3 motherboard based on the Intel X99 chipset, suitable for Intel Core i7 / Xeon processors. The board must be combined with DDR4 memory, for which 8 slots are available. USB 3.0 provides the board 8x and USB 2.0 8x. In total, the ASRock X99 WS-E has 10 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC1150 chip. The board offers 2 network connections, where you can connect with a maximum of 1000 Mbps.

Features: Motherboard | ATX | Socket 2011-3 | 8x DDR4 | Intel X99 Chipset | M.2 (PCI-e 3.0 x4) | M.2 (S600 /Pcie2.0x4) | 12x SATA-600 | 7x PCI-e 3.0 x16 | 8x USB 2.0 | 8x USB 3.2 (Gen1, 5Gb/s) | AMD Crossfire | Nvidia SLI/NVLink

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock X99 WS-E
Socket: 2011-3
Category: Motherboards
Brand: ASRock
Condition: New – Bios updated to the latest version
EAN: 4717677325423
SKU: 90-MXGW30-A0UAYZ, X99 WS-E
Warranty: 6 Months

Package Contents:
– Motherboard (ASRock X99 WS-e)
– Backplate (Blende
– instruction manual
– driver CD
– cables

original box is somewhat damaged


Unique Feature
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– Ultra Dual-N MOSFET (UDM)
Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
– Sapphire Black PCB
ASRock Full Spike Protection
ASRock APP Shop


CPU
Supports Intel® Core ™ i7 and Xeon® E5-1600 / 2600 v3 Processor Family for the LGA 2011-3 Socket, up to 22 Cores and 160W
– Digi Power design
– 12 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Untied Overclocking Technology


Chipset
– Intel® X99


Memory
– Quad Channel DDR4 Memory Technology
– 8 x DDR4 DIMM Slots
Supports DDR4 3200+ (OC) * / 2933 (OC) / 2800 (OC) / 2400 (OC) / 2133 non-ECC, un-buffered memory
Supports non-ECC RDIMM (Registered DIMM)
Supports DDR4 ECC, un-buffered memory / RDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket
– Max. capacity of system memory: 128GB (with Core ™ i7 CPU Broadwell-E) or 64GB (with Core ™ i7 CPU Haswell-E) or 256GB (With Xeon® CPU)
Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

** Please refer to Memory Support List on ASRock’s website for more information.


BIOS
– 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment


Graphics
– n / a


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
Supports Surge Protection (ASRock Full Spike Protection)
Supports Purity Sound ™ 2
– Nichicon Fine Gold Series Audio Caps
115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolate shielding
– Supports DTS Connect


LAN
– 2 x Gigabit LAN 10/100/1000 Mb / s (Supported by 2 x Intel® I210AT)
– Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
– Supports Dual LAN with Teaming
Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 7 x PCI Express 3.0 x16 Slots (PCIE1 / PCIE2 / PCIE3 / PCIE4 / PCIE5 / PCIE6 / PCIE7: single at x16 (PCIE7); dual at x16 (PCIE7) / x16 (PCIE3); triple at x16 (PCIE7) / x16 (PCIE5) / x16 (PCIE3); quad at x16 (PCIE7) / x16 (PCIE5) / x16 (PCIE3) / x16 (PCIE1))
– 2 x embedded PLX PEX 8747
Supports AMD Quad CrossFireX ™, 4-Way CrossFireX ™, 3-Way CrossFireX ™ and CrossFireX ™
Supports NVIDIA® Quad SLI ™, 4-Way SLI ™, 3-Way SLI ™ and SLI ™
– 15μ Gold Contact in VGA PCIe Slot (PCIE1, PCIE3, PCIE5 and PCIE7)


Storage
-10 x SATA3 6.0 Gb / s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid Storage 13), NCQ, AHCI and Hot Plug *
– 2 x SATA3 6.0 Gb / s Connectors by Marvell SE9172, support RAID (RAID 0 and RAID 1), NCQ, AHCI and Hot Plug **
– 1 x SATA DOM Connector (shared with S_SATA3_2)
– 1 x SATA Express 10 Gb / s Connector (shared with SATA3_4 and SATA3_5) ***
– 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug
– 1 x M.2_SSD (NGFF) Socket 3, supports M Key M.2 SATA3 6.0 Gb / s module and M.2 PCI Express module up to Gen2 x4 (20 Gb / s) ****

* S_SATA3_2 is shared with the SATA DOM; S_SATA3_3 is shared with the eSATA. RAID is supported on SATA3_0 ~ SATA3_5 ports only.

** Marvell SE9172 RAID is supported with Windows® OS only.

*** Support to be announced.

**** If M2_1 is occupied by a SATA-type M.2 device, S_SATA3_0 will be disabled.
If you install a M.2 PCI Express module and the SATA_EXP0 is in use, the M2_1 will downgrade to x2 mode.


Connector
– 1 x COM Port Header
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed ​​Control)
3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x SB Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x SATA DOM Power Header
– 2 x PCIe Power Connectors
– 1 x SATA DOM Power Jumper
– 3 x SATA Serial General Purpose Input / Output Headers
– 1 x Front LAN LED Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB DOM Connector
– 2 x USB 3.1 Gen1 Headers (Supports 4 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Dr. Debug with LED
– 1 x Power Switch with LED
– 1 x Reset Switch with LED
– 1 x BIOS Selection Switch


Rear Panel I / O
– 1 x Optical SPDIF Out Port
– 1 x eSATA Connector
– 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x RJ-45 LAN Ports with LED (ACT / LINK LED and SPEED LED)
– 1 x Clear CMOS Switch
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI

UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer


Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)


Accessories
– 1 x ASRock Flexible SLI ™ Bridge Connector Cable (14 cm)
– 1 x ASRock 3-Way SLI ™ Bridge Card
– 1 x ASRock 4-Way SLI ™ Bridge Card
– Quick Installation Guide, Support CD, I / O Shield
– 6 x SATA Data Cables
– 1 x Screw for M.2 Socket


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power, SB Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis, SB Fan multi-speed control
Voltage monitoring: + 12V, + 5V, + 3.3V, CPU Input Voltage, CPU Internal Voltages


Form Factor
– EATX Form Factor
– 8 Layer PCB
– 4 x 2oz Copper PCB
– High Density Glass Fabric PCB


OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Server 2012 R2 64-bit / Server 2012 64 -bit / Server 2008 R2 64-bit
Certifications
– FCC, CE
– ErP / EuP ready (ErP / EuP ready power supply is required)

Specification

Intel

LGA2011-3

Brand

Asrock

Chipset

Intel X99

Form Factor

EATX

Memory Type

DDR4

Number of memory slots

8

Maximum memory size

128 GB

Connectors

2x RJ-45 LAN, eSATA, USB 2.0, USB 3.2 (Gen1, 5Gb/s)

Storage Interfaces

M.2 Socket (M2_2), SATA Express 10 Gb/s

Interfaces

PCI-e 3.0 x16

Socket

Intel LGA2011-3
