Description
ASRock X99E-ITX/ac: Motherboard | Mini ITX | LGA2011-3 | 8x DDR4 (max 128GB) | M.2 (PCI-e 3.0 x4 + SATA) | SATA Express (Gen2, 10Gb/s) | 10x SATA 600 | PCI-e 2.0 x1 | PCI-e 3.0 x16 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | USB 3.2 (Gen2, 10Gb/s) | USB 3.2 (Gen2, 10Gb/s) type-c

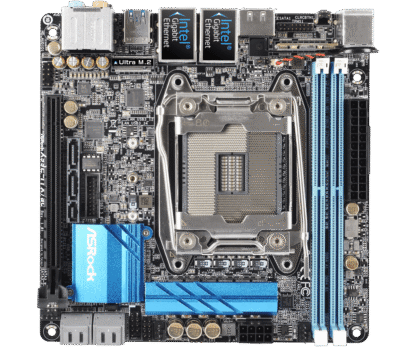

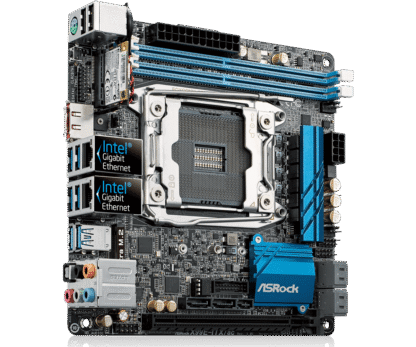

Product: ASRock X99E-ITX/ac
Socket: LGA2011-3
Category: motherboards
Brand: ASRock
Condition: Refurbished – BIOS updated to the latest version
EAN: 4717677325911
SKU: 90-MXGXS0-A0UAYZ, X99E-ITX/ac, X99EITXAC
Warranty: 6 months
Package contents:
– Motherboard (Fatal1ty X99E-ITX/ac)
– Backplate (Blende)
– No antennas
– No manual
– No drivers CD
– No cables
Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Ports (10 Gb/s)
ASRock X Series OC Socket
ASRock Super Alloy
– Premium 60A Power Choke
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– Fairchild 60A Dual Cool™ DrMOS
– Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
– Sapphire Black PCB
ASRock 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection
ASRock APP Shop
CPU
– Supports Intel® Core™ i7 and Xeon® 22-Core Processors Family for the LGA 2011-3 Socket
– Digi Power design
– 6 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Untied Overclocking Technology
Chipset
– Intel® X99
Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 3200+(OC)*/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, unbuffered memory
– Supports non-ECC RDIMM (Registered DIMM)
– Supports DDR4 ECC, un-buffered memory/RDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket
– Max. capacity of system memory: 128GB (with Core™ i7 CPU Broadwell-E) or 64GB (with Core™ i7 CPU Haswell-E) or 256GB (With Xeon® CPU)*
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
** Please refer to Memory Support List on ASRock’s website for more information.
BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment
Graphics
– n/a
Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– Nichicon Fine Gold Series Audio Caps
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 Ohm headsets)
– Supports DTS Connect
LAN
– Gigabit LAN 10/100/1000 Mb/s
– 1 x Giga PHY Intel® I218V, 1 x GigaLAN Intel® I211AT
– Supports Intel® Remote Wake Technology (on Intel® I218V)
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Dual LAN with Teaming
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Wireless LAN
– Intel® 802.11ac WiFi Module (Free Bundle)
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual Band (2.4/5 GHz)
– Supports high speed wireless connections up to 867Mbps
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 4.0 / 3.0 + High speed class II
Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
– 1 x Vertical Half-size Mini-PCI Express Slot: For WiFi + BT Module
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage
– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid Storage 13), NCQ, AHCI and Hot Plug*
– 1 x SATA Express 10 Gb/s Connector**
– 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
*RAID is supported on SATA3_0 ~ SATA3_5 ports only.
**shared with SATA3_4, SATA3_5
Support to be announced.
Connector
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x Power LED Header
– 1 x CPU Fan Connector (4-pin) (Supports 3-pin/4-pin Smart Fan Speed Control)
– 2 x Chassis Fan Connectors (2 x 4-pin) (Support 3-pin/4-pin Smart Fan Speed Control)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

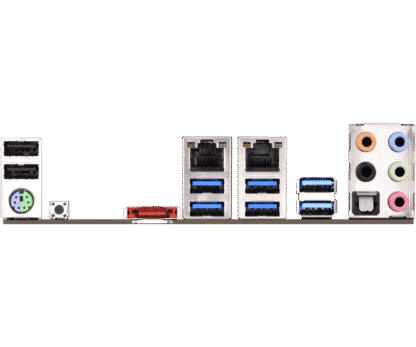

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x Optical SPDIF Out Port
– 1 x eSATA Connector
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen2 Type-A Ports (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (Intel® X99) (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1 x Clear CMOS Switch
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer
Accessories
– I/O Shield
*This motherboard supports this free bundled CPU cooler (Dimension: 112.0 x 84.0 x 67.0 mm) or other CPU coolers for Narrow ILM (LGA 2011/LGA2011-v3 platform).
**This mounting plate is only compatible with selected CPU coolers, such as Cooler Master’s Seidon 120V Plus/120V.
Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages
Form Factor
– Mini ITX Form Factor
– 2oz Copper PCB
– 8 Layer PCB
– High Density Glass Fabric PCB
OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
