Product information

The ASRock X99M Extreme4 is a Micro-ATX LGA2011-3 motherboard based on the Intel X99 chipset. The board must be combined with DDR4 memory, for which 4 slots are available. In total, the ASRock X99M Extreme4 has 10 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC1150 chip.

Features: Motherboard | Micro-ATX | LGA2011-3 | 4x DDR4 | 10x SATA-600 | eSATA | Ultra M.2 | PCI-e 3.0 x16 | PCI-e 2.0 x1 | USB2.0 | USB3.1 | 2x RJ45 Lan

Click here for the supporting CPUs
Click here for the drivers

Product: ASRock X99M Extreme4
Connection: LGA2011-3
Category: motherboards
Brand: ASRock
EAN: 4717677324464
Condition: Refurbished – BIOS updated to the latest version
SKU: 90-MXGW10-A0UAYZ, X99M Extreme4
Warranty:
6 months

Package Contents:
– Motherboard ( ASRock X99M Extreme4 )
– backplate (blende)
– No manual
– No CD with drivers
– No cables


Unique Feature
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– Ultra Dual-N MOSFET (UDM)
– NexFET ™ MOSFET
– Nichicon 12K Platinum Caps (100% Japan-made high-quality conductive polymer capacitors)
– Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & amp; SATA3)
ASRock HDD Saver Technology
ASRock Full Spike Protection
ASRock Cloud
ASRock APP Shop


CPU
Supports Intel® Core ™ i7 and Xeon® 22-Core Processors Family for the LGA 2011-3 Socket
– Digi Power design
– 12 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Untied Overclocking Technology


Chipset
– Intel® X99


Memory
– Quad Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
Supports DDR4 3000+ (OC) * / 2933 (OC) / 2800 (OC) / 2400 (OC) / 2133 non-ECC, un-buffered memory
Supports non-ECC RDIMM (Registered DIMM)
Supports DDR4 ECC, un-buffered memory / RDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket
– Max. capacity of system memory: 128GB (with Core ™ i7 CPU Broadwell-E) or 64GB (with Core ™ i7 CPU Haswell-E) or 256GB (With Xeon® CPU) *
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

** Please refer to the Memory Support List on ASRock’s website for more information.


BIOS
– 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 5.0 Compliant wake-up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment


Graphics
– n / a


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
Supports Surge Protection (ASRock Full Spike Protection)
– Supports Purity Sound ™ 2
– Nichicon Fine Gold Series Audio Caps
115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600-ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolate shielding
– Supports DTS Connect


LAN
– 1 x Intel® I218V (Gigabit LAN PHY 10/100/1000 Mb / s)
– 1 x Qualcomm® Atheros® AR8171 (PCIe x1 Gigabit LAN 10/100/1000 Mb / s)
– Supports Qualcomm® Atheros® Security Wake On Internet Technology (on Qualcomm® Atheros® AR8171)
– Supports Wake-On-LAN
Supports Lightning / ESD Protection (ASRock Full Spike Protection)
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 2 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE2 @ x16 mode)
– 1 x PCI Express 2.0 x16 Slot (PCIE3 @ x4 mode)
– Supports AMD Quad CrossFireX™ and CrossFireX™
– Supports NVIDIA® Quad SLI™ and SLI™
– 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE2)

*If you install CPU with 28 lanes, PCIE1/PCIE2 will run at x16/x8.


Storage
– 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
– 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

*S_SATA3_3 connector is shared with the eSATA port, S_SATA3_2 connector is shared with Ultra M.2 Socket

**RAID is supported on SATA3_0 ~ SATA3_5 ports only.


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
– 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x HDD Saver Connector
– 1 x PCIe Power Connector
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector*
– 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Dr. Debug with LED
– 1 x BIOS Selection Switch

*Please update to the latest BIOS to support Thunderbolt™ technology.

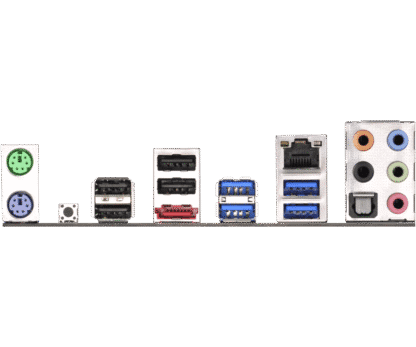

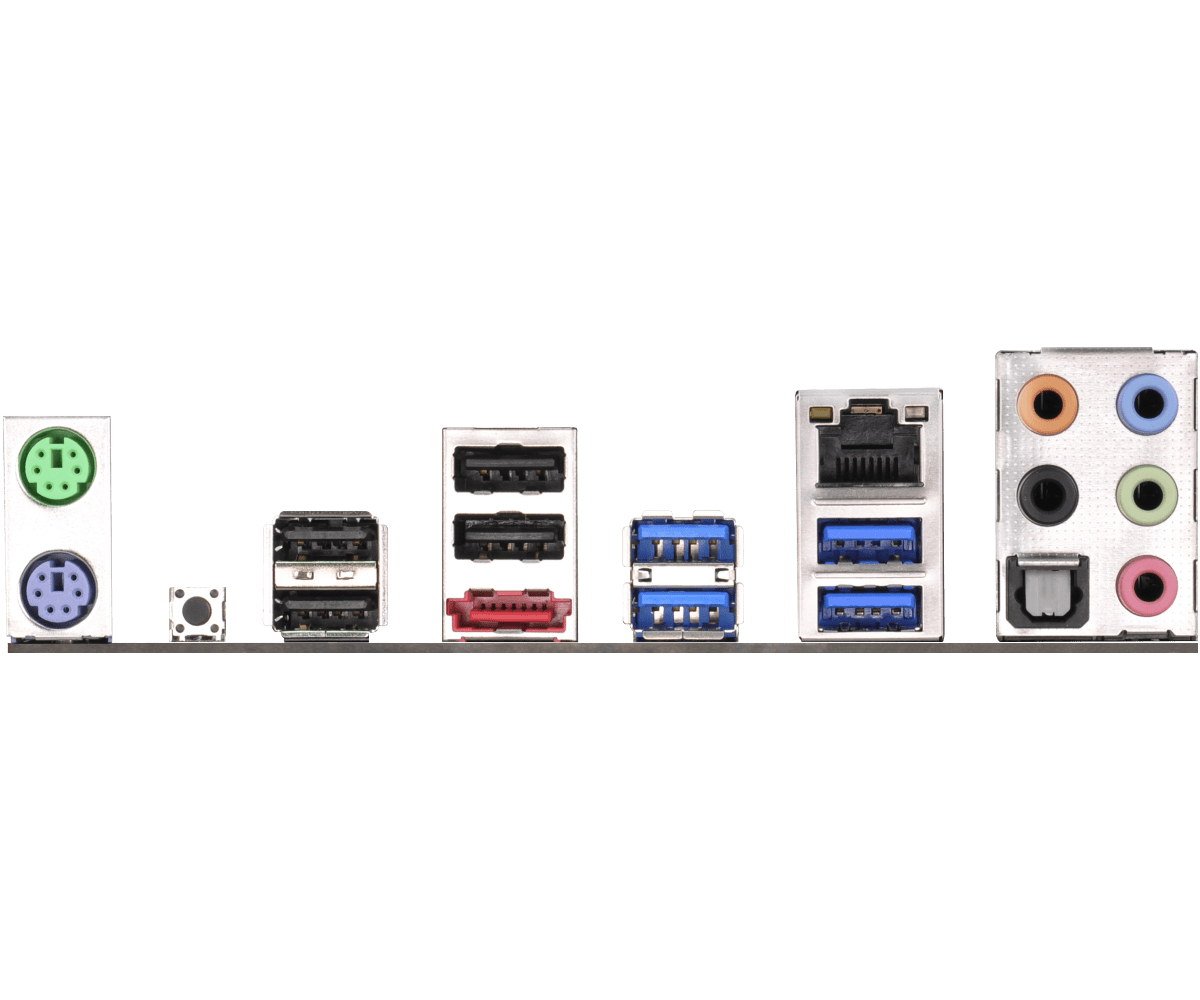

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x Optical SPDIF Out Port
– 1 x eSATA Connector
– 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1 x Clear CMOS Switch
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI

UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer


Accessories
– I/O Shield

Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust the chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages


Form Factor
– Micro ATX Form Factor
– High-Density Glass Fabric PCB


OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specification

Weight1 kg
Intel

LGA2011-3

Brand

Asrock

Chipset

Intel X99

Form Factor

Micro-ATX

Memory Type

DDR4 SDRAM

Number of memory slots

4

Maximum memory size

64 GB

Connectors

2x RJ-45 LAN, eSATA, USB 2.0, USB 3.1 Gen1

Storage Interfaces

eSATA, M.2 Socket (M2_2), Serial ATA-600

Interfaces

PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

ASRock X99M Extreme4

Free delivery

Brand: Asrock
Model:  X99M Extreme4
Socket: 2011-3
Memory: 4x DDR4 (64GB Max)
Form-Factor: Micro-ATX
EAN: 4717677324464
SKU: 90-MXGW10-A0UAYZ, X99M Extreme4
