Description
The Z690M Phantom Gaming 4 is a powerful and versatile micro-ATX motherboard designed for Intel’s 12th,13th and 14th generation processors with an LGA1700 socket. The board offers extensive connectivity options including support for PCIe 4.0, high-speed USB 3.2 Gen1 and Gen2 ports, dual M.2 slots for blazing-fast NVMe SSDs and an HDMI port connection for flexible image display. Thanks to the 1GB LAN and high-quality audio chipset, it delivers a smooth and stable user experience, ideal for both gaming and productivity.

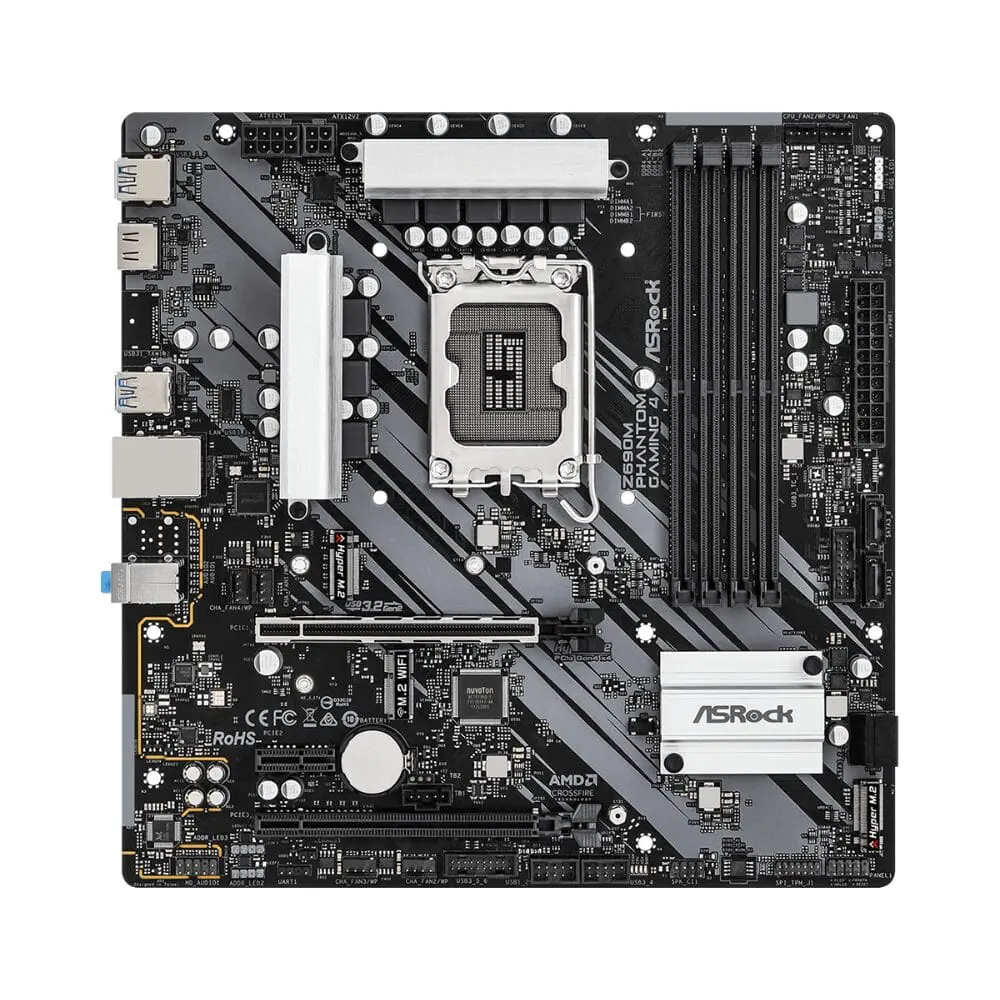

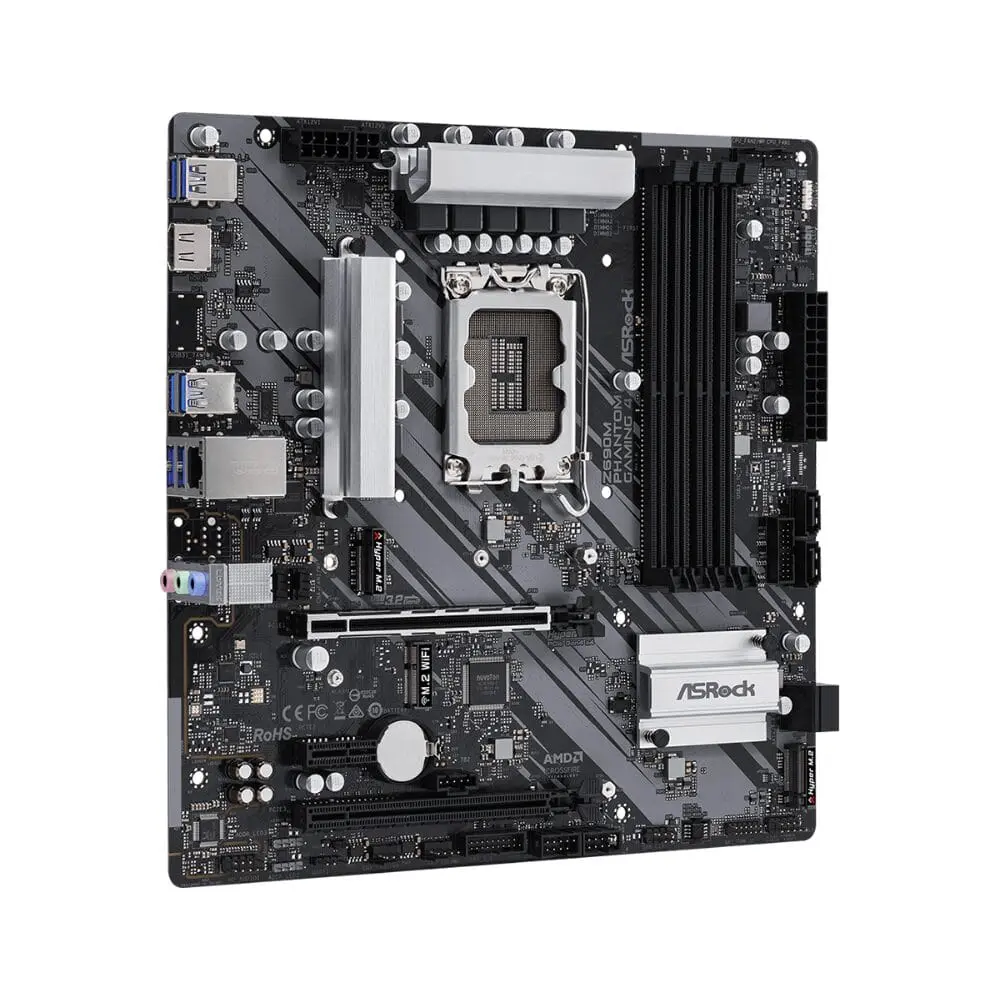

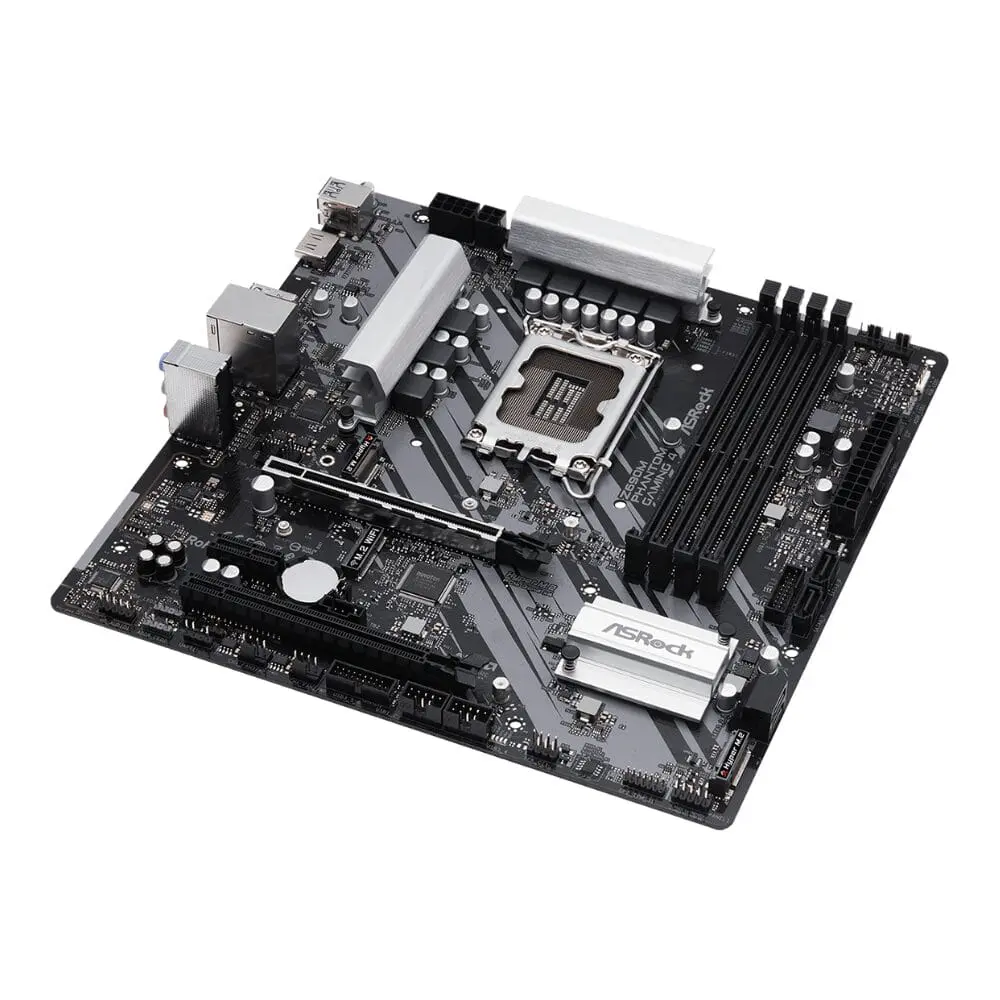

ASRock Z690M Phantom Gaming 4
Product: Asrock Z690M Phantom Gaming 4
Socket: LGA1700
Category: Motherboards
Brand: ASRock
Condition: Refurbished
EAN: 4710483935992
SKU: 90-MXBHJ0-A0UAYZ, Z690M Phantom Gaming 4
Warranty: 6 months
Drivers for the Asrock Z690M Phantom Gaming 4
Processors supported by the Asrock Z690M Phantom Gaming 4
package contents:
– Motherboard (Asrock Z690M Phantom Gaming 4)
– IO-Shield (tin backplate)
– no manual
– no driver cd
– no cables
Unique Characteristics
ASRock USB 3.2 Gen2
– ASRock USB 3.2 Gen2 Type-A port (10 Gb/s)
ASRock Super Alloy
– Premium Power Choke
– 50A Dr.MOS
– Sapphire Black PCB
– high density fiberglass PCB
ASRock Intel® 4-layer memory POOL (Planes on Outer Layers) technology
ASRock Steel Slot
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, audio and LAN ports)
ASRock Live Update & APP Shop
CPU
– Supports 14th, 13th and 12th generation Intel® Core™ processors (LGA1700)
– Digi Power design
– 7-phase power supply design
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
– Intel® Z690
Memory
– Dual Channel DDR4 memory technology
– 4 x DDR4 DIMM slots
– Supports DDR4 non-ECC, unbuffered memory up to 5333+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Maximum system memory capacity: 128 GB
– Supports Intel® Extreme Memory Profile (XMP) 2.0
*Supports standard DDR4 3200.
BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 compatible wake-up events
– SMBIOS 2.7 support
– Multiple voltage setting for CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH
Graphic card
– Intel® Xe Graphics Architecture (Gen 12).
– Supports HDMI 2.1 TMDS compatible with maximum resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports HDCP 2.3 via HDMI 2.1 TMDS compatible port
*Intel® UHD Graphics and VGA outputs are supported only with processors with integrated GPU.
Audio
– 7.1-channel HD audio (Realtek ALC897 audio codec)
– Supports surge protection
– Nahimic Audio
LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD protection
– Supports Energy Efficient Ethernet 802.3az
– Supports UEFI PXE
Expansion slots
CPU:
– 1 x PCIe 4.0 x16 slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 3.0 x16 slot (PCIE3), supports x4 mode*
– 1 x PCIe 3.0 x1 slot (PCIE2)*
– 1 x M.2 socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– Supports AMD CrossFire™
*Supports NVMe SSDs as a boot drive
Storage
CPU:
– 1 x Hyper M.2 socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s)*
Chipset:
– 1 x Hyper M.2 socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s)*
– 4 x SATA3 6.0 Gb/s connections
*Supports Intel® Optane™ Memory H Series (M2_2 only)
Supports Intel® Volume Management Device (VMD)
Supports NVMe SSDs as a boot drive
Supports ASRock U.2 Kit
RAID
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*
*Additional M.2 NVMe expansion cards required for RAID 5
Connectors
– 1 x SPI TPM header
– 1 x chassis break-in and speaker header
– 1 x RGB LED header*
– 3 x addressable LED headers**
– 1 x CPU fan connector (4-pin)***
– 1 x CPU/water pump fan connector (4-pin) (Smart fan speed control)****
– 4 x chassis/water pump fan connectors (4-pin) (Smart fan speed control)*****
– 1 x 24-pin ATX power connector
– 1 x 8-pin 12V power connector (High-Density Power Connector)
– 1 x 4-pin 12V power connector (High-Density Power Connector)
– 1 x front panel audio connector
– 1 x Thunderbolt™ AIC connector (5-pin) (supports ASRock Thunderbolt™ 4 AIC card)
– 2 x USB 2.0 headers (support 4 USB 2.0 ports) (ESD protection)
– 2 x USB 3.2 Gen1 headers (support 4 USB 3.2 Gen1 ports) (ESD protection)
*Supports a total of up to 12V/3A, 36W LED strip
**Supports a total of up to 5V/3A, 15W LED strip
***CPU fan supports up to 1A (12W)
****CPU/water pump fan supports up to 2A (24W)
*****Chassis/water pump fan supports up to 2A (24W)
CPU_FAN2/WP and CHA_FAN1~4/WP automatically detect 3-pin or 4-pin fans

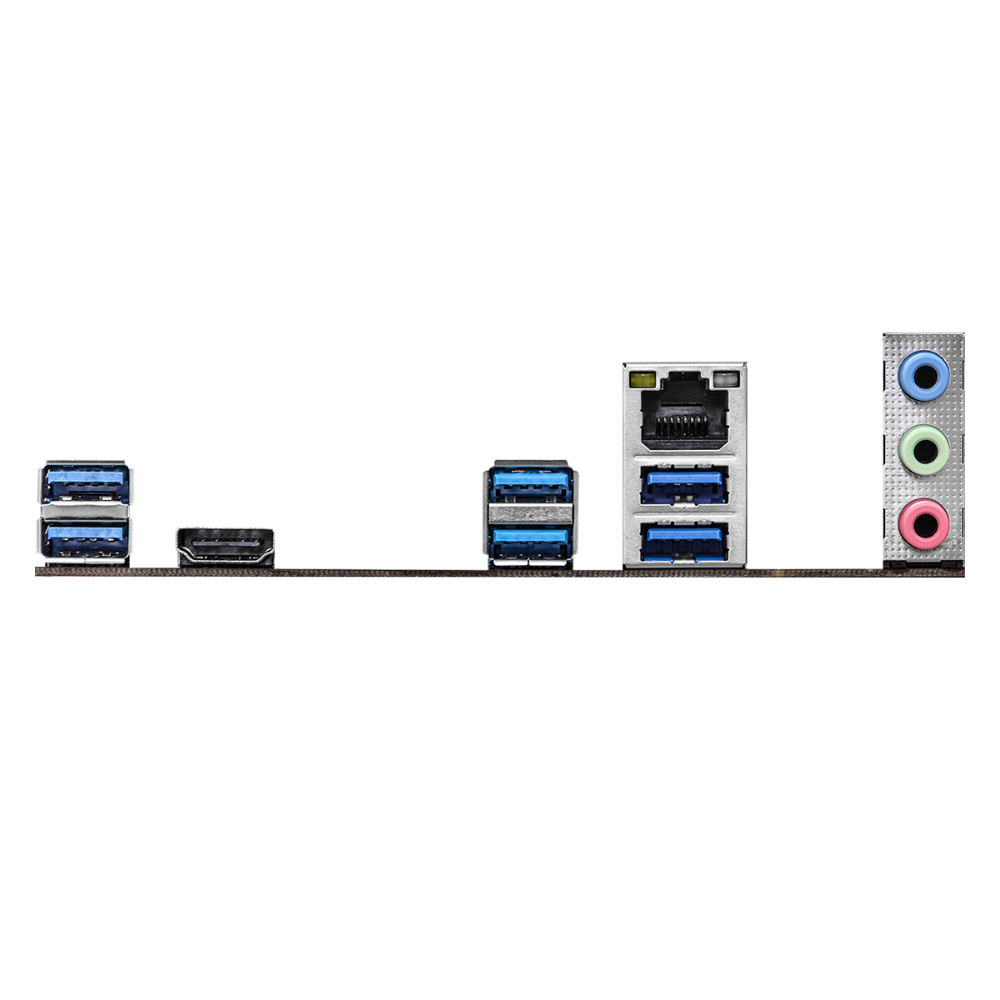

Rear panel I/O
– 3 x antenna mounting points
– 1 x HDMI port
– 2 x USB 3.2 Gen2 ports (10 Gb/s) (ReDriver) (ESD protection)
– 4 x USB 3.2 Gen1 ports (ASMedia ASM1074 hub) (ESD protection)
– 1 x RJ-45 LAN port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Connections: Line-in / Front Speaker / Microphone
Software and UEFI
Software
– ASRock Motherboard Utility (Phantom Gaming Tuning)
– ASRock Polychrome SYNC
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
– I/O Shield
– 2 x SATA data cables
– 3 x screws for M.2 sockets
Hardware Monitor
– Fan speed measurement: CPU, CPU/Water pump, Chassis/Water pump
– Quiet Fan (automatic fan speed control based on CPU temperature)
– Multiple fan speed control
– CASE OPEN detection
– Voltage monitoring: CPU Vcore, DRAM, VCCIN AUX, +1.05V PROC, +1.05V PCH, +0.82V PCH, +12V, +5V, +3.3V
Format
– Micro-ATX size: 9.6 x 9.6 inches, 24.4 x 24.4 cm
– Solid capacitor design
Operating System
– Microsoft Windows® 10 64-bit / 11 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP-enabled power supply required)
